Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 304

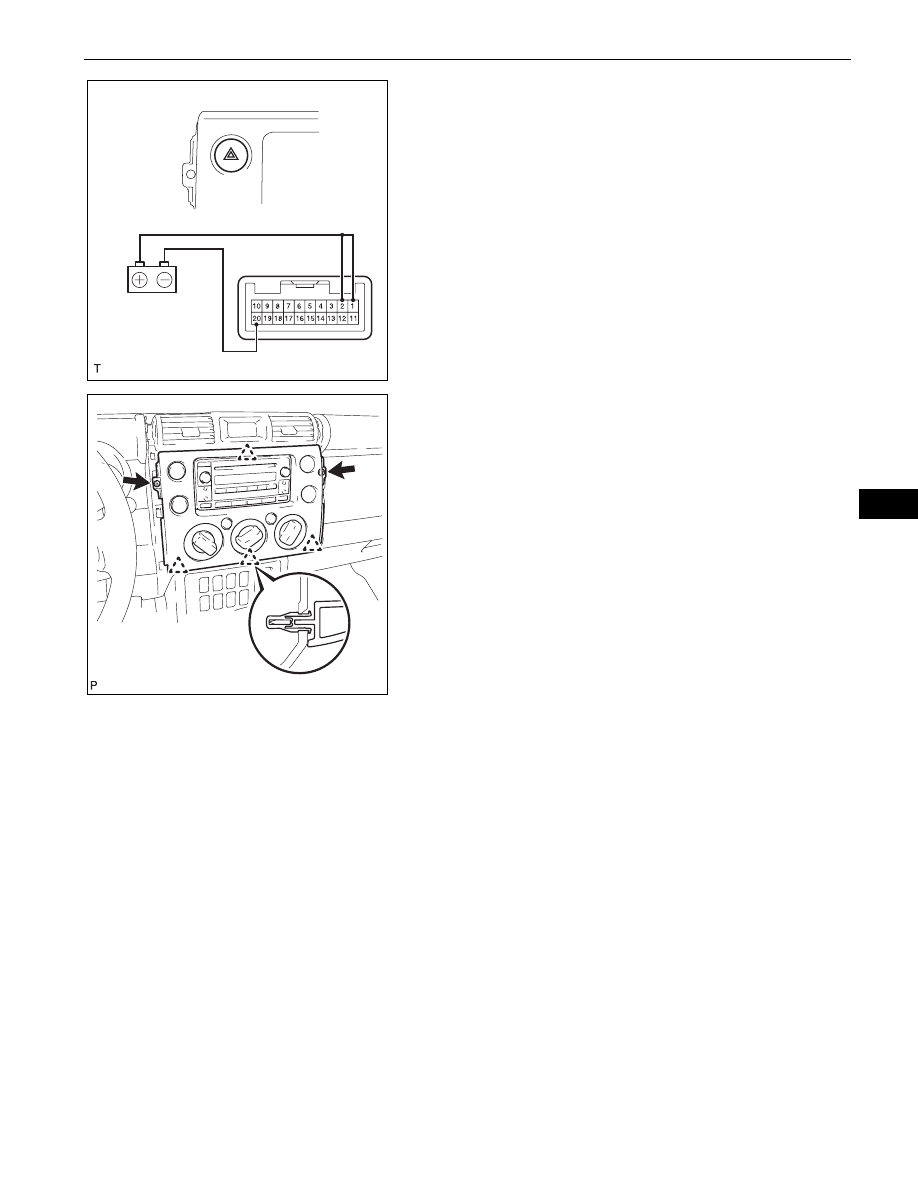

LIGHTING  –  HAZARD WARNING SWITCH

LI–109

LI

(b) Check the illumination operation.

(1) Connect the positive (+) battery lead to

terminals 1 and 2, and the negative (-) battery
lead to terminal 20, then check that the
illumination illuminates.
Standard:

Illumination illuminates.

If the illumination does not illuminate, replace
the integration control and panel.

INSTALLATION

1.

INSTALL INTEGRATION CONTROL AND PANEL
ASSEMBLY
(a) Engage the 4 clips and install the integration control

and panel.

(b) Install the 2 screws.

2.

INSTALL INSTRUMENT PANEL GARNISH LH (See
page

IP-33

)

3.

INSTALL INSTRUMENT PANEL GARNISH RH (See
page

IP-33

)

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Battery

E127250E01

B133888

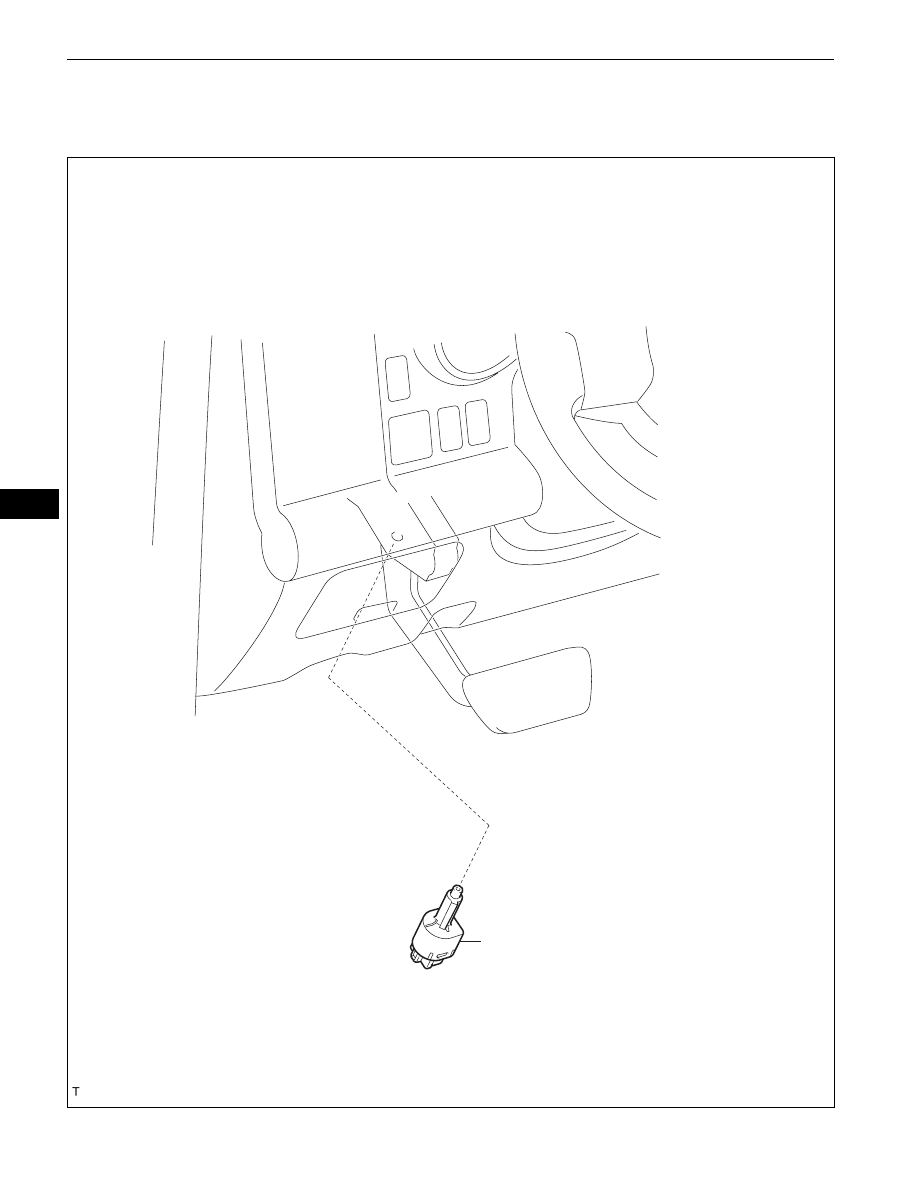

LI–110

LIGHTING  –  STOP LIGHT SWITCH

LI

BODY ELECTRICAL

LIGHTING

STOP LIGHT SWITCH

COMPONENTS

STOP LIGHT SWITCH

E127230E01

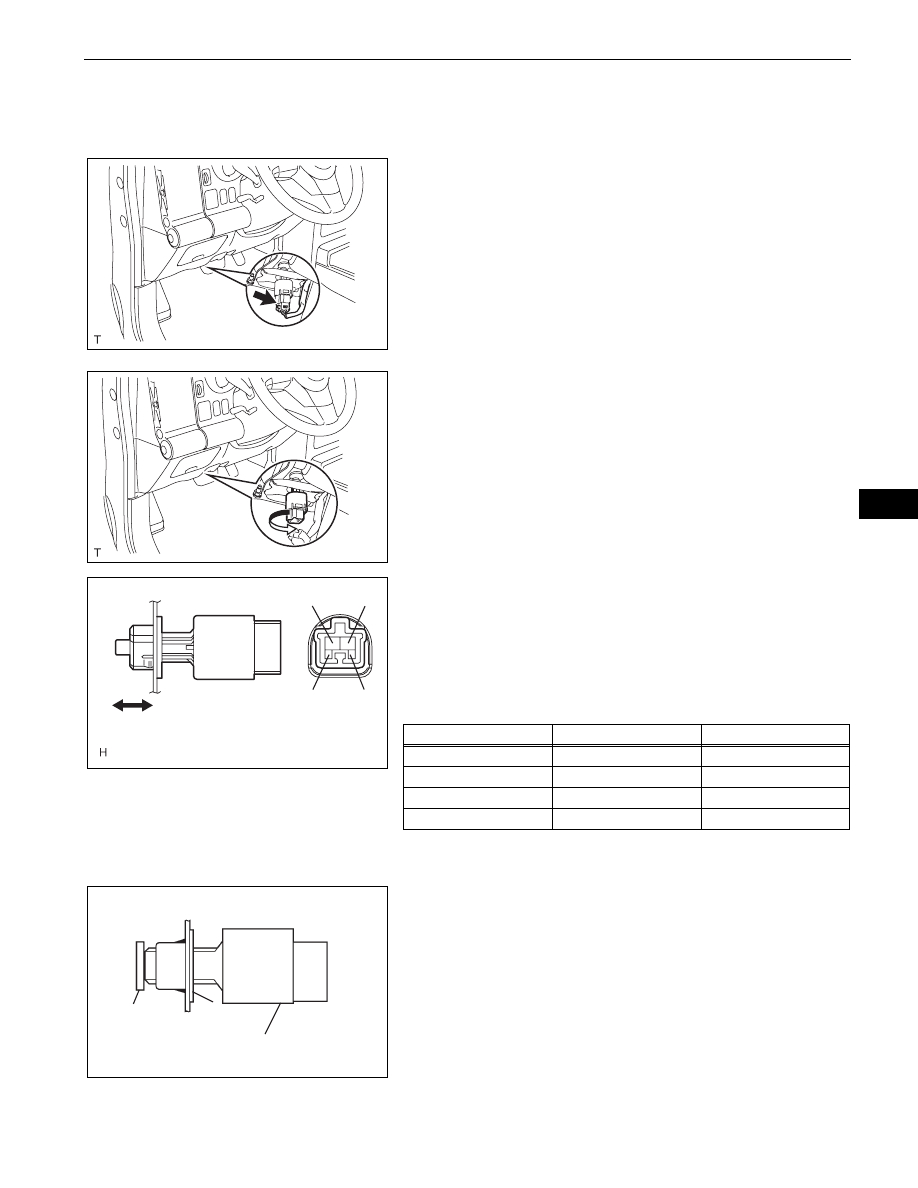

LIGHTING  –  STOP LIGHT SWITCH

LI–111

LI

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE STOP LIGHT SWITCH
(a) Remove the stop light switch connector from the

stop light switch.

(b) Turn the stop light switch counterclockwise and

remove it.

INSPECTION

1.

INSPECT STOP LIGHT SWITCH
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the stop
light switch.

INSTALLATION

1.

INSTALL STOP LIGHT SWITCH
(a) Install the stop light switch into the adjuster until it

slightly touches the brake pedal.
NOTICE:
Do not depress the brake pedal.

E127228

E127229

1

2

3

4

Pushed in

Released

B113724E04

Tester Connection

Condition

Specified Condition

1 - 2

Switch pin released

Below 1

Ω

3 - 4

Switch pin released

10 k

Ω or higher

1 - 2

Switch pin pushed in

10 k

Ω or higher

3 - 4

Switch pin pushed in

Below 1

Ω

Adjuster

Brake Pedal

Stop Light Switch

F049043E05

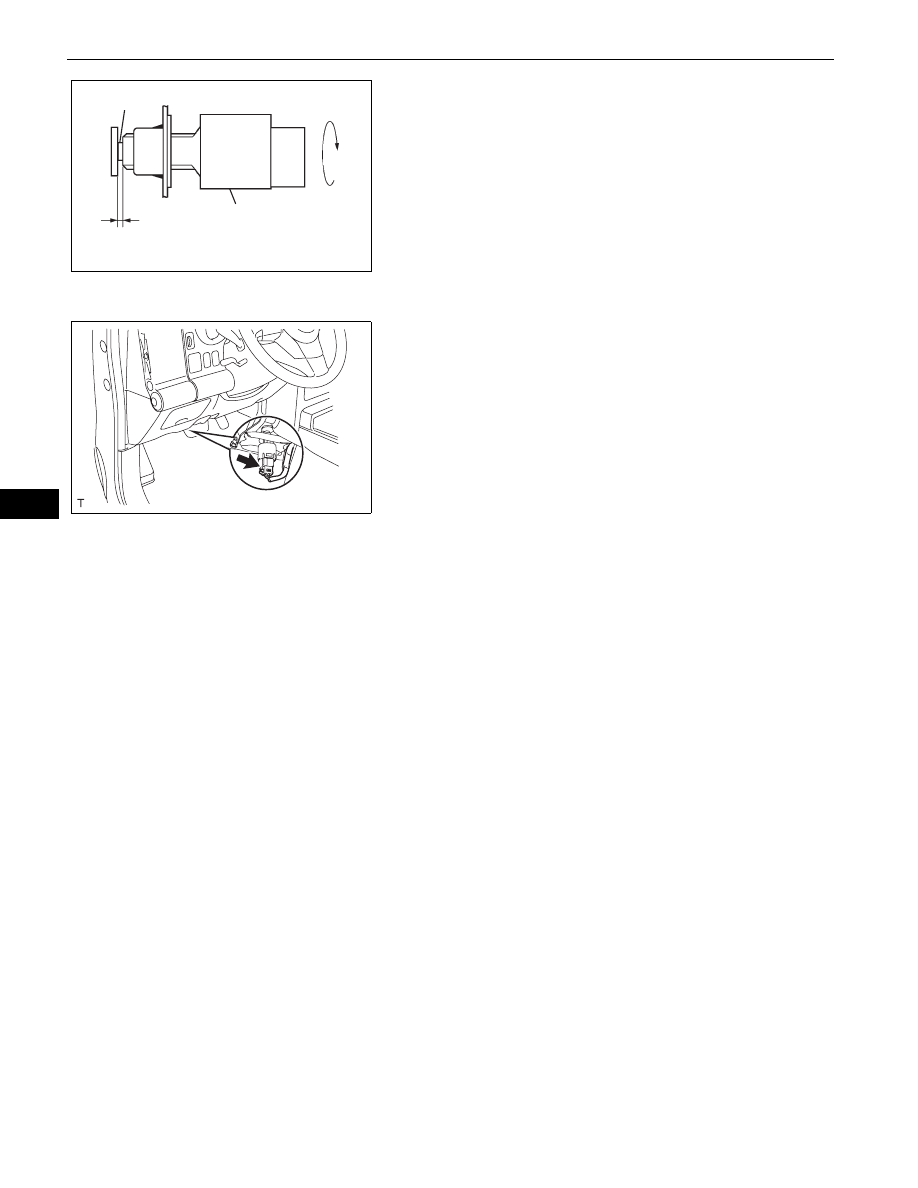

LI–112

LIGHTING  –  STOP LIGHT SWITCH

LI

(1) Make a quarter turn clockwise to install the stop

light switch.
NOTICE:
Do not depress the brake pedal.
HINT:
The turning torque for installing the stop light
switch is as below.
Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf) or

less

(b) Check the stop light switch clearance.

Stop light switch clearance:

0.5 to 2.6 mm (0.020 to 0.102 in.)

(c) Connect the stop light switch connector to the stop

light switch.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Shaft

Stop Light Switch

0.5 to 2.6 mm (0.020 to 0.102 in.)

C133112E01

E127228
