IT–6

1GR-FE INTAKE  –  VACUUM SWITCHING VALVE

IT

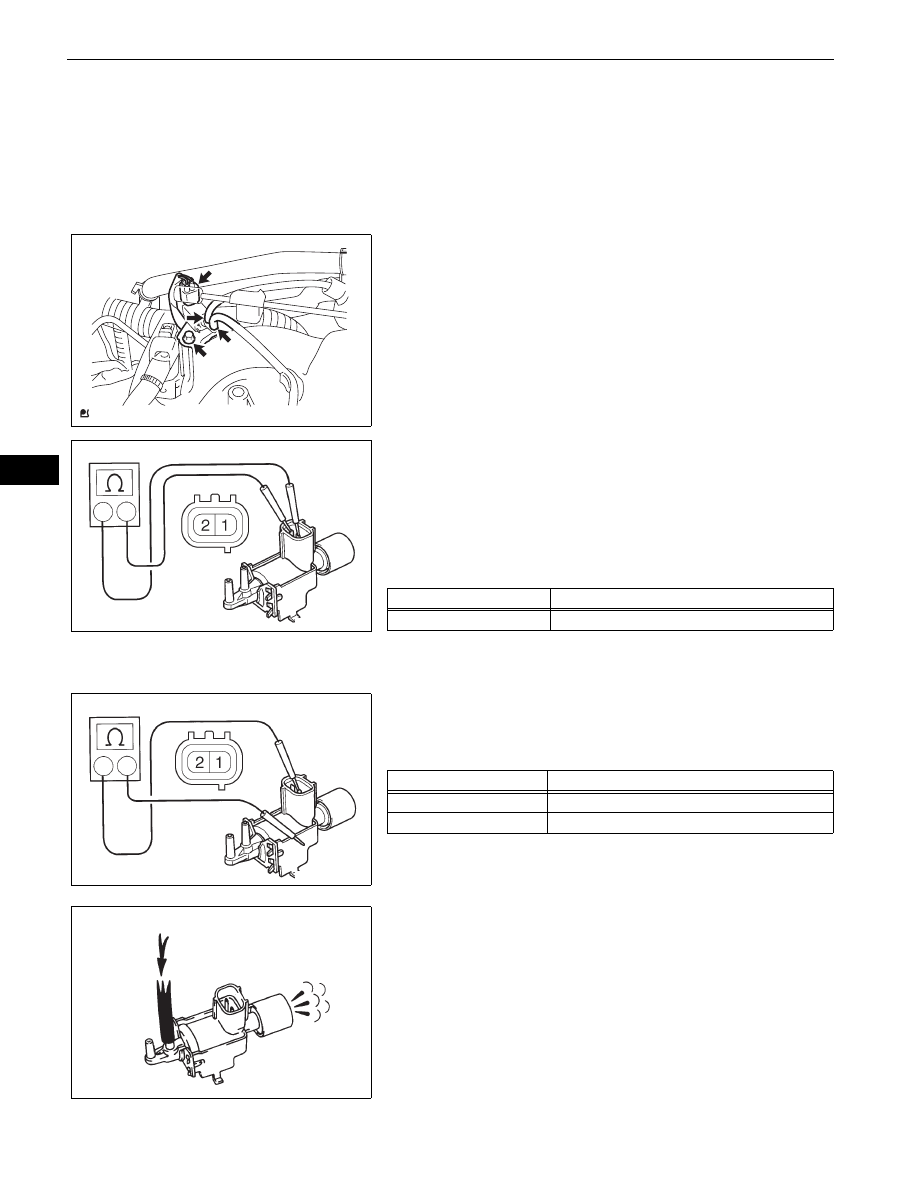

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE V-BANK COVER (See page

ES-428

)

3.

REMOVE AIR CLEANER ASSEMBLY (See page

ES-

429

)

4.

REMOVE NO. 1 VACUUM SWITCHING VALVE
ASSEMBLY
(a) Disconnect the connector.
(b) Disconnect the 2 vacuum hoses.
(c) Remove the bolt and No. 1 vacuum switching valve

from the intake air surge tank.

INSPECTION

1.

INSPECT NO. 1 VACUUM SWITCHING VALVE
ASSEMBLY
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the
vacuum switching valve No. 1.

(b) Check the vacuum switching valve No. 1 for ground.

(1) Using an ohmmeter, measure the resistance

between each terminal and the body.
Standard resistance

If the result is not as specified, replace the
vacuum switching valve No. 1.

(c) Check the operation.

(1) Check that air does not flow from port E to port

F.
If the operation is not as specified, replace the
vacuum switching valve No. 1.

A126383

Ohmmeter

G036152E01

Tester Connection

Specified Condition

1 - 2

33 to 39

Ω at 20°C (68°F)

Ohmmeter

G036153E01

Tester Connection

Specified Condition

1 - Body

10 k

Ω or higher

2 - Body

10 k

Ω or higher

Filter

Air

F

E

FI06393E01

1GR-FE INTAKE  –  VACUUM SWITCHING VALVE

IT–7

IT

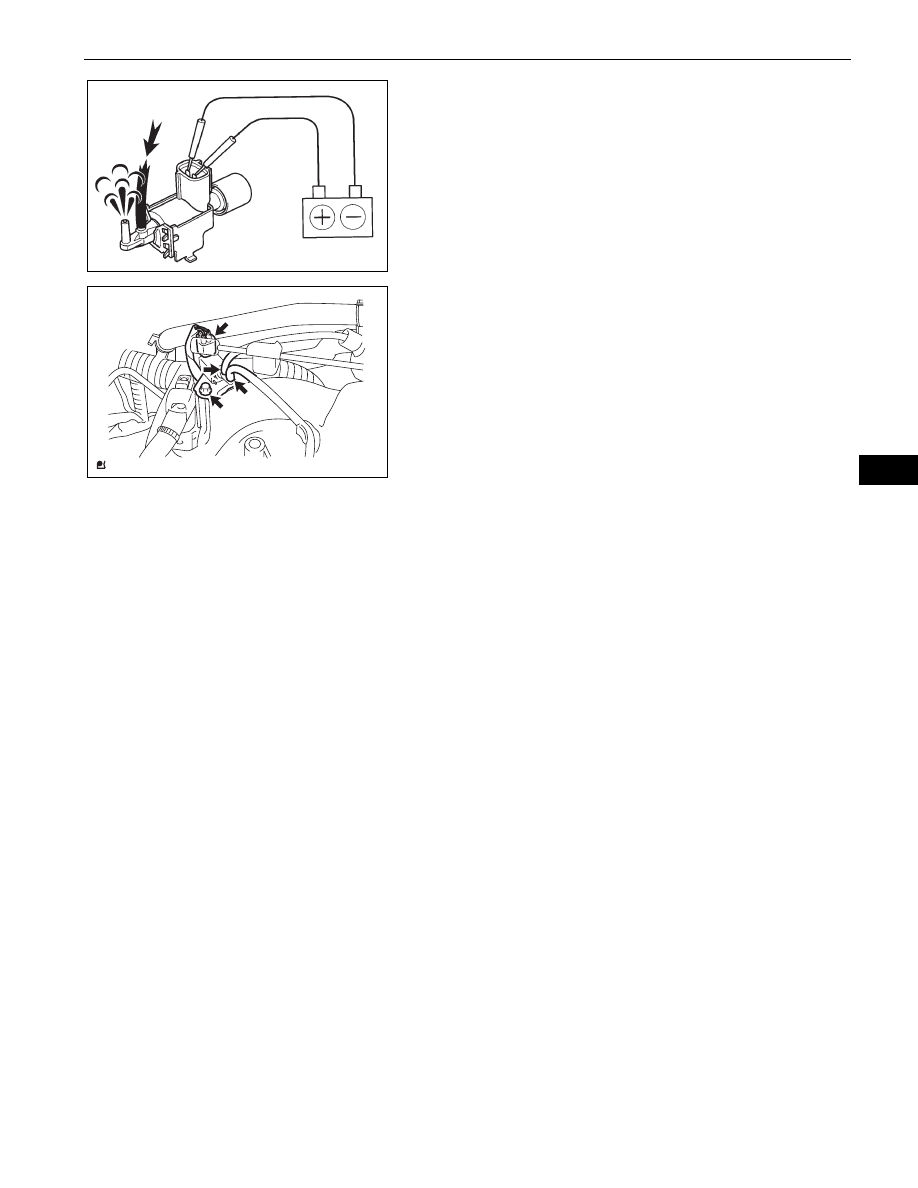

(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.

If the operation is not as specified, replace the
vacuum switching valve No. 1.

INSTALLATION

1.

INSTALL NO. 1 VACUUM SWITCHING VALVE
ASSEMBLY
(a) Install the No. 1 vacuum switching valve with the

bolt onto the intake air surge tank.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

(b) Connect the 2 vacuum hoses.
(c) Connect the connector.

2.

INSTALL AIR CLEANER ASSEMBLY (See page

ES-

431

)

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

4.

INSTALL V-BANK COVER (See page

ES-431

)

Air

E

F

S004523E01

A126383

INTERIOR  –  FRONT FLOOR FOOTREST

IR–1

IR

BODY

INTERIOR

FRONT FLOOR FOOTREST

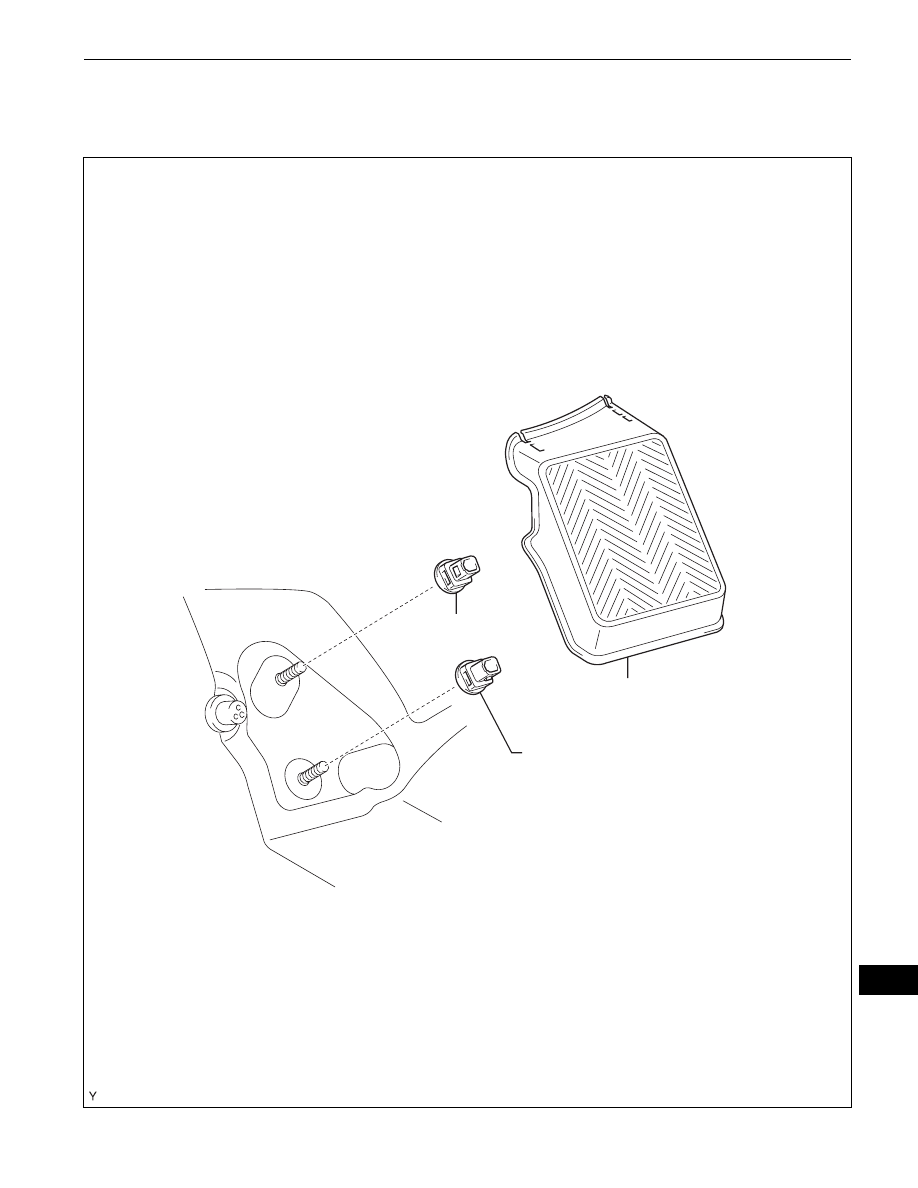

COMPONENTS

FOOTREST CLIP

FRONT FLOOR FOOTREST

FOOTREST CLIP

B130585E01

IR–2

INTERIOR  –  FRONT FLOOR FOOTREST

IR

REMOVAL

1.

REMOVE FRONT FLOOR FOOTREST
(a) Disengage the 4 claws and remove the front floor

footrest.

2.

REMOVE FOOTREST CLIP
(a) Remove the 2 footrest clips.

INSTALLATION

1.

INSTALL FOOTREST CLIP
HINT:
Use the same procedure for both sides.
(a) Engage the 2 claws and install the footrest clip.

2.

INSTALL FRONT FLOOR FOOTREST
(a) Engage the 2 studs and install the front floor

footrest.

B130586

B130587

B130588

B130589
