ED–2

ENGINE HOOD / DOOR  –  HOOD

ED

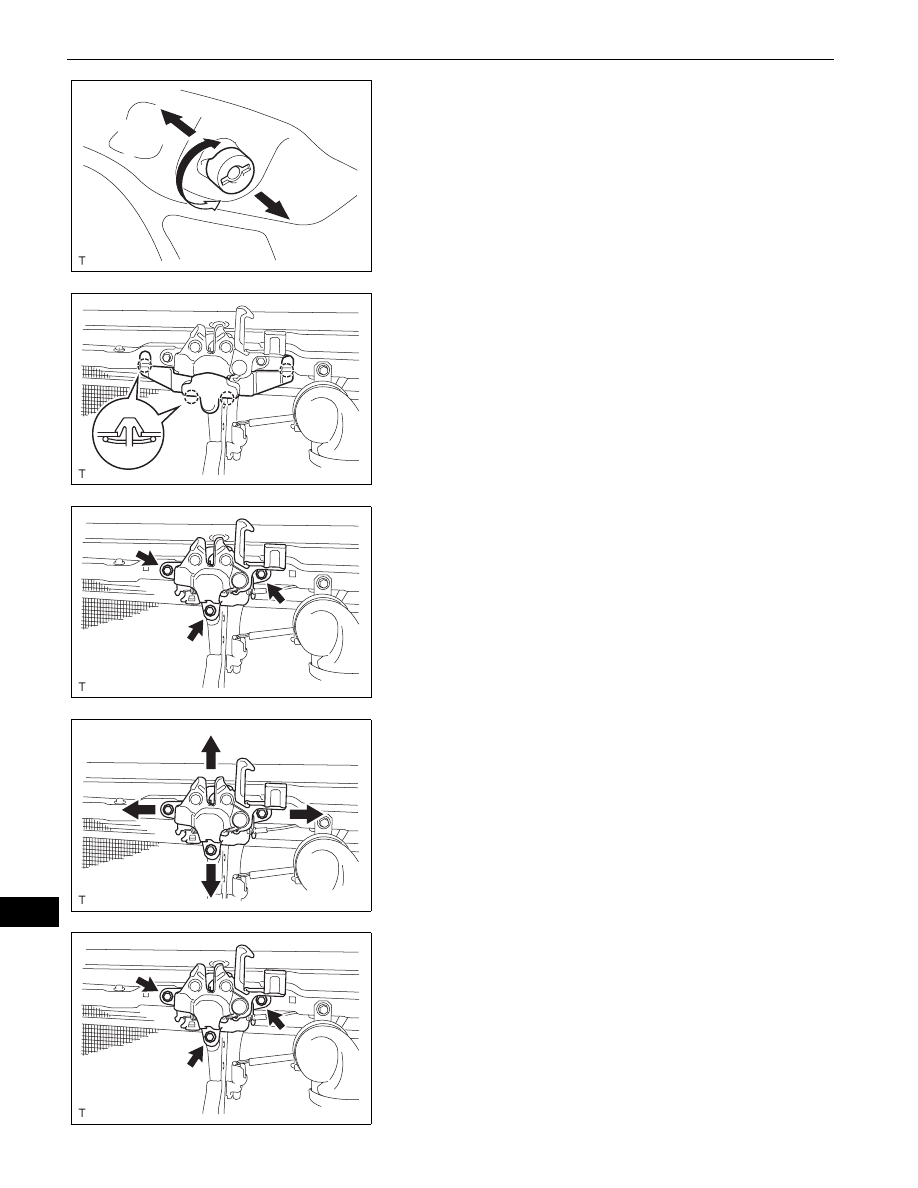

(b) Adjust the cushion rubber so that the heights of the

hood and the fender are equal.
(1) Raise or lower the hood front end by turning the

cushion rubber. Make sure that the clearance is
within the standard range.
HINT:
Raise or lower the cushion rubber by turning it.

(c) Adjust the hood lock.

(1) Disengage the 4 claws and remove the hood

lock release lever protector.

(2) Loosen the 3 bolts.

(3) Adjust the hood lock position so that the striker

can enter it smoothly.

(4) Tighten the 3 bolts after the adjustment.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

B135976

B135978

B135979

B135980

B135979

ENGINE HOOD / DOOR  –  HOOD

ED–3

ED

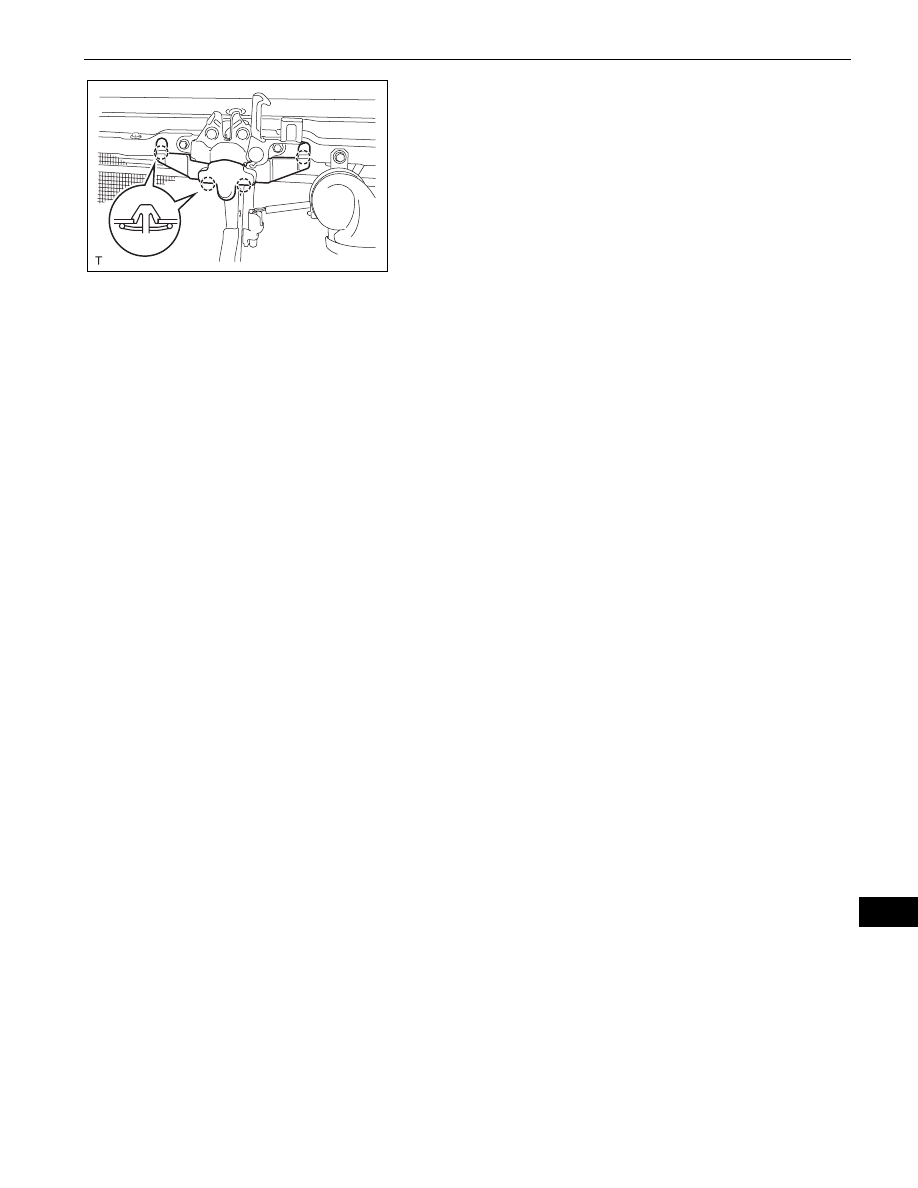

(5) Engage the 4 claws and install the hood lock

release lever protector.

B135978

ED–4

ENGINE HOOD / DOOR  –  HOOD SUPPORT

ED

BODY

ENGINE HOOD / DOOR

HOOD SUPPORT

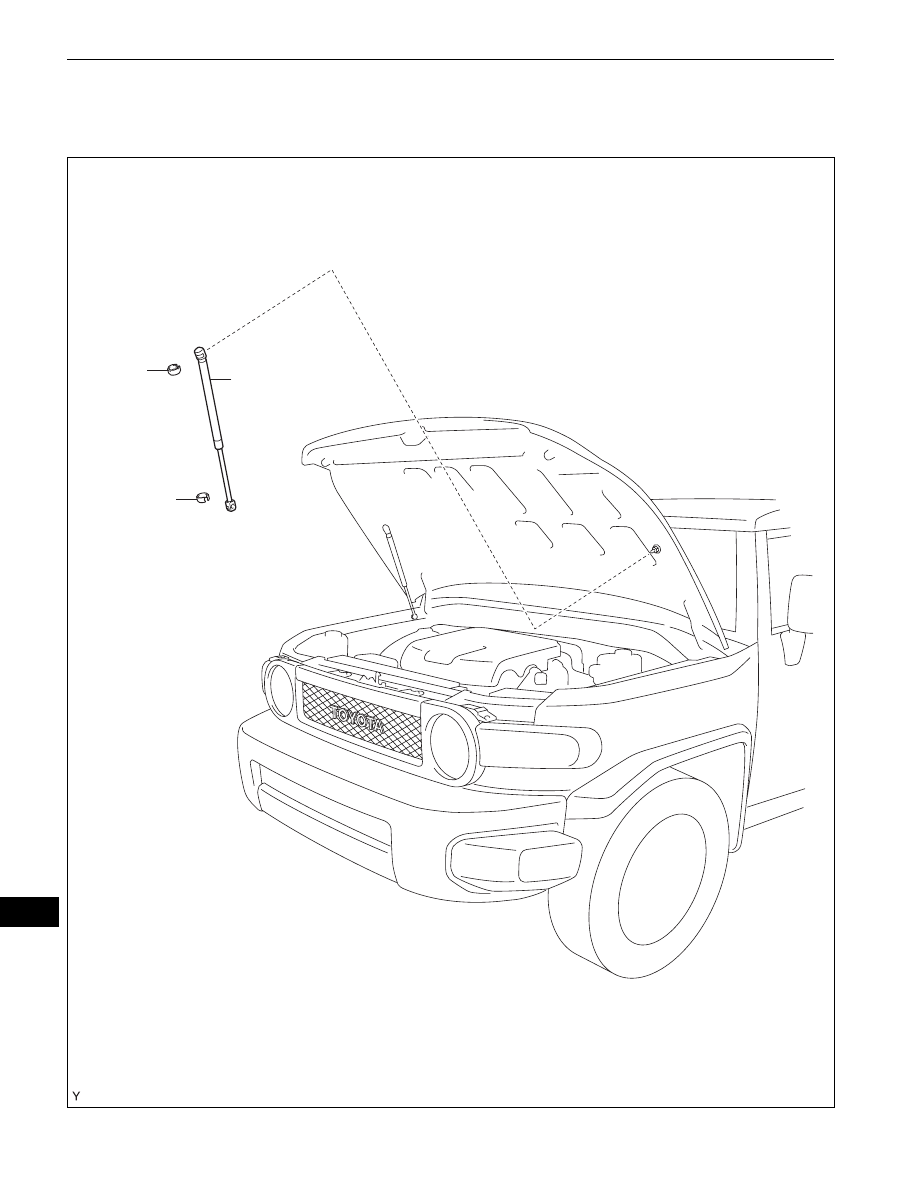

COMPONENTS

HOOD SUPPORT

CLIP

CLIP

B135984E01

ENGINE HOOD / DOOR  –  HOOD SUPPORT

ED–5

ED

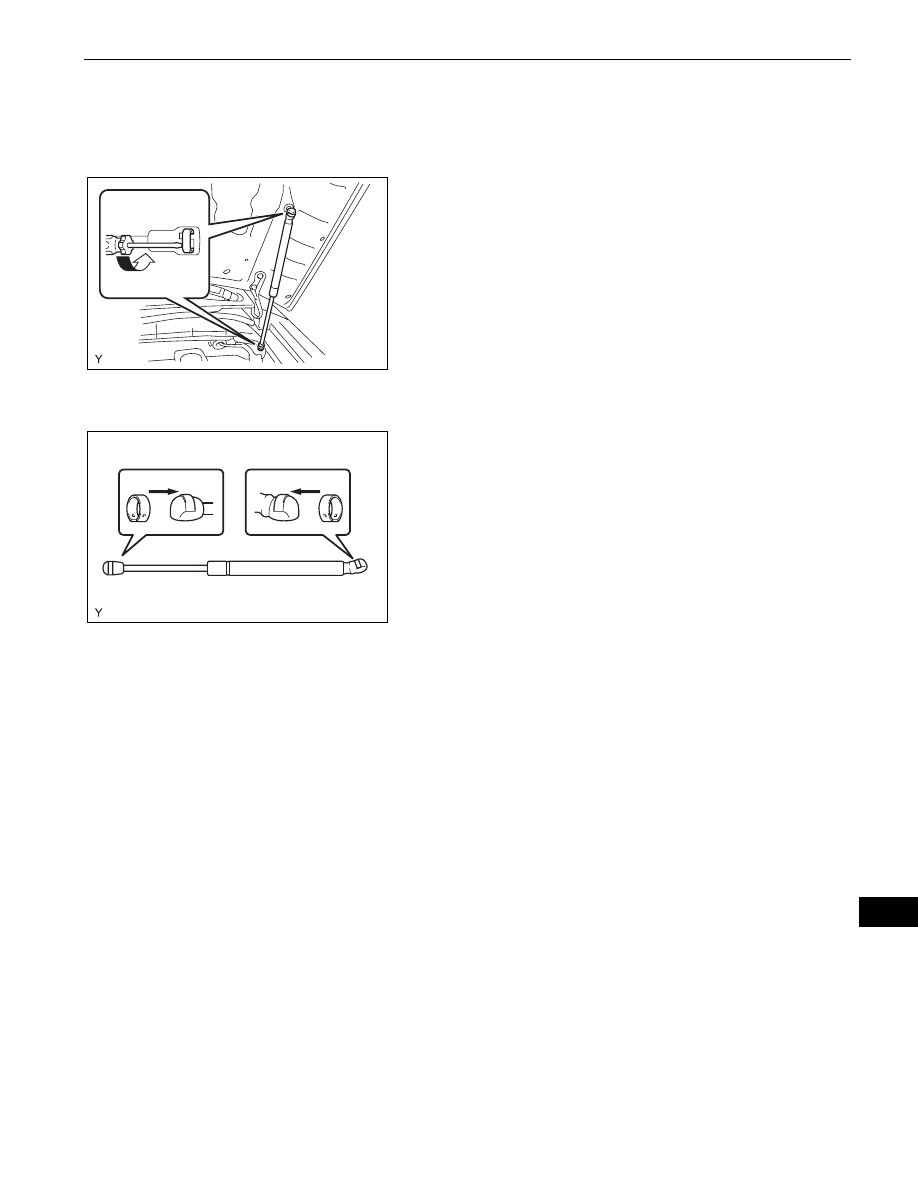

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the LH side.

1.

REMOVE HOOD SUPPORT
(a) Using a screwdriver with its tip wrapped in

protective tape, remove the 2 stop rings and the
hood support.
NOTICE:
•

Do not touch the rod of the hood support with
gloves, to avoid fibers from adhering.

•

When foreign matter adheres to the rod, it
prevents the rod from moving smoothly and
reduces its holding power.

HINT:
Support the hood by hand while removing the hood
support.

INSTALLATION

1.

INSTALL HOOD SUPPORT
(a) Install the 2 stop rings onto the hood support.
(b) Install the hood support.

B135981

B135982
