BODY

SEAT BELT PRETENSIONER

3725

INSTALLATION

NOTICE:

Never use seat belt pretensioner from another ve-
hicle. When replacing parts, replace them with new
parts.

Make sure that the front seat outer belt is installed to
the specified torque.

If the front seat outer belt has been dropped, or there
are cracks, dents or other defects in the case or con-
nector, replace the front seat outer belt with a new
one.

When installing the front seat outer belt, take care that
the wiring does not interfere with other parts and is
not pinched between other parts.

1.

Other front seat outer belts:
INSTALL RETRACTOR OF FRONT SEAT OUTER BELT

(a)

Install the retractor of front seat outer belt with the 2 bolts.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(b)

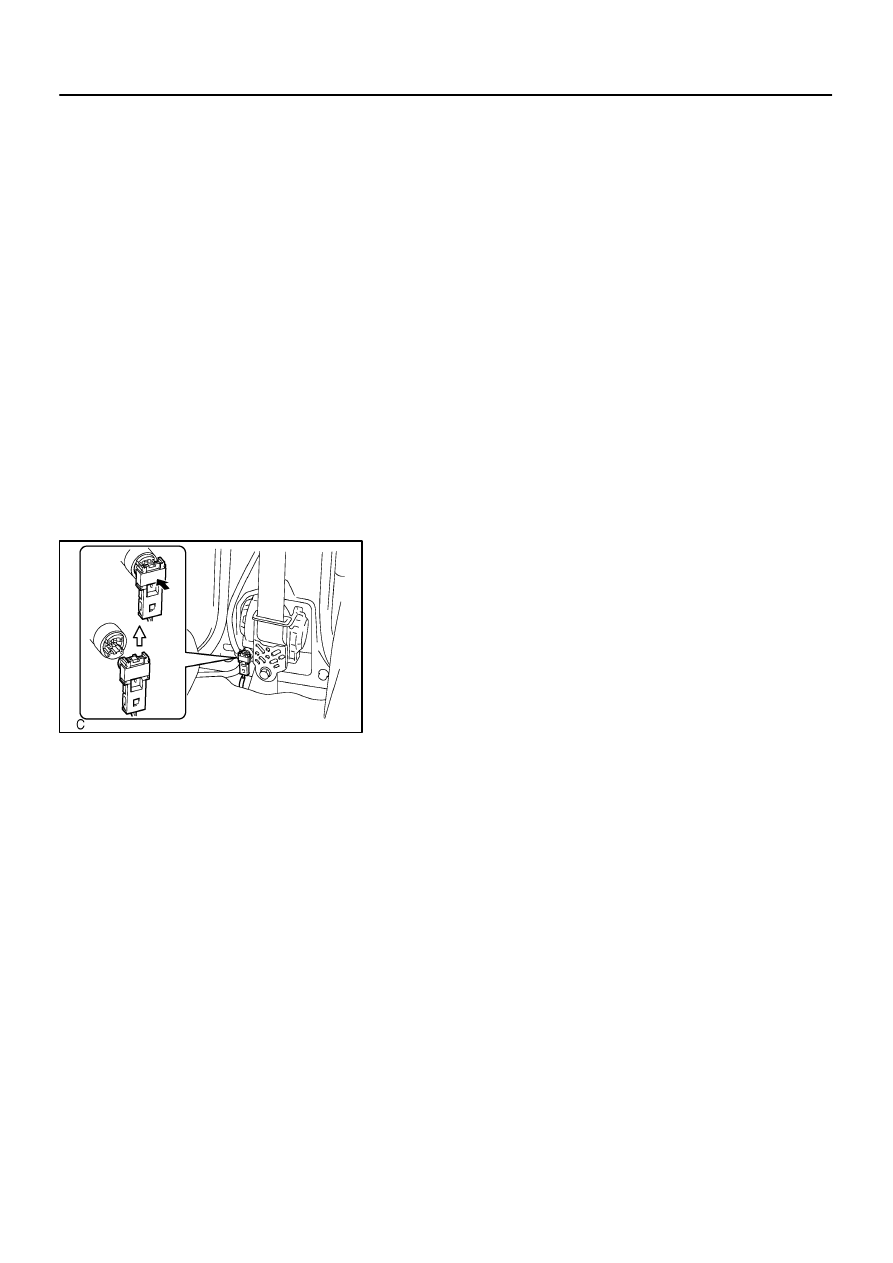

Connect the pretensioner connector as shown in the il-
lustration.

2.

INSTALL LOWER CENTER PILLAR GARNISH

(a)

Install the lower center pillar garnish.

(b)

Install the front seat outer belt floor anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

3.

INSTALL REAR DOOR OPENING TRIM WEATH-
ERSTRIP

4.

INSTALL REAR DOOR SCUFF PLATE

5.

INSTALL FRONT DOOR OPENING TRIM WEATH-
ERSTRIP

6.

INSTALL FRONT DOOR SCUFF PLATE

7.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

8.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable
from the negative battery terminal.

BO47V–04

H16752

Center Leg Cover

Front Leg

Front Leg Cushion

No. 1 Roof Inner Rack
Bracket

Center Support

Roof Inner Rack Retainer

Weatherstrip

Front Leg Cover

Front Leg

Front Leg Cushion

Front Leg Cover

Rear Leg Cover

Front Stay

Roof Rack Bar Joint

Center Support
Sub–assembly

Roof Inner
Rack Retainer

Rear Leg Cover

Rear Leg

Rear Leg Cover

Center Leg Cover

Rear Leg

Rear Leg Cushion

11 (115, 8)

N·m (kgf·cm, ft·lbf)

: Specified torque

11 (115, 8)

11 (115, 8)

11 (115, 8)

11 (115, 8)

11 (115, 8)

–

BODY

ROOF RACK

BO–173

3726

ROOF RACK

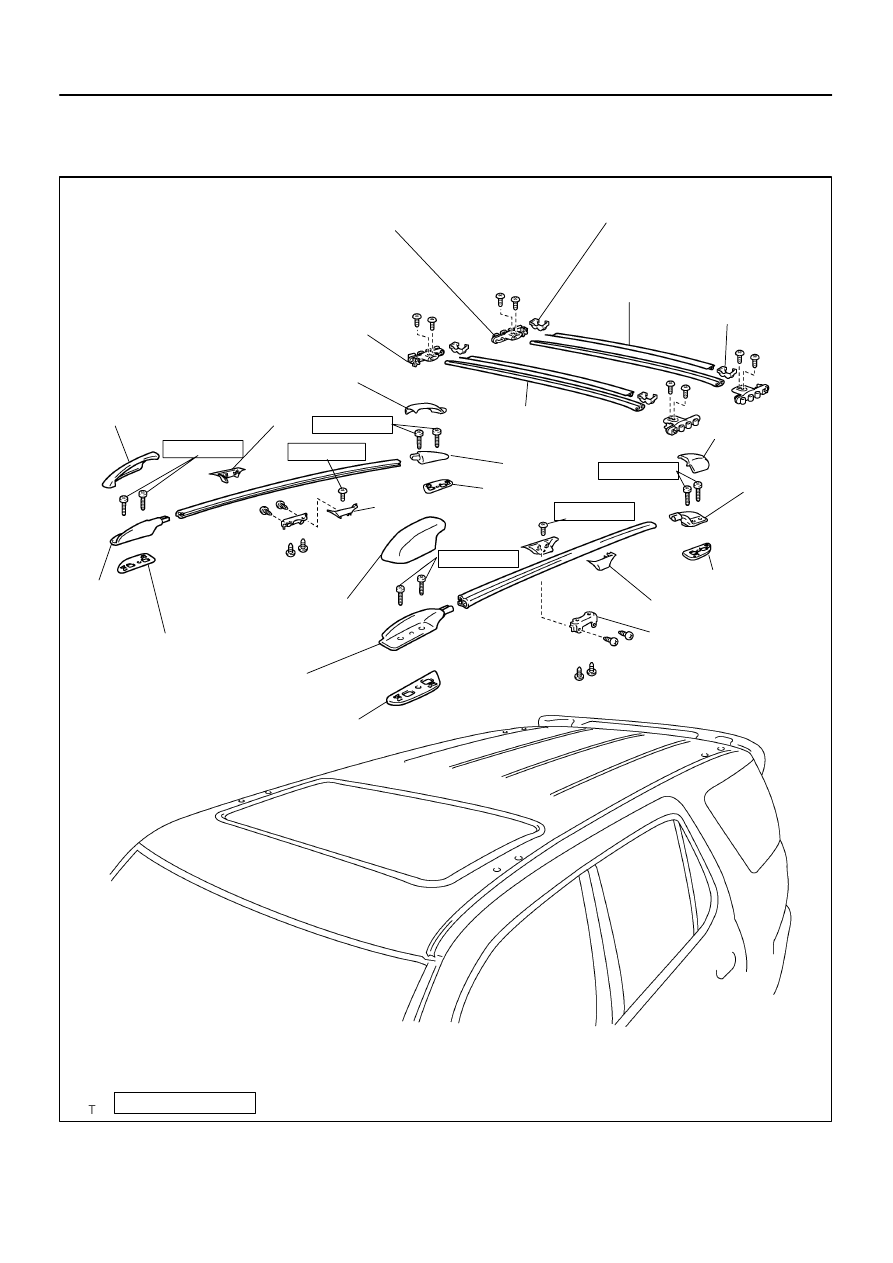

COMPONENTS

BO47W–01

H16756

Service Hole Plug

Rear Trim

Rear Spoiler

Service Hole Plug

High Mounted
Stop Light

N·m (kgf·cm, ft·lbf)

: Specified torque

12 (120, 8)

12 (120, 8)

12 (120, 8)

12 (120, 8)

BO–174

–

BODY

SPOILER

3727

SPOILER

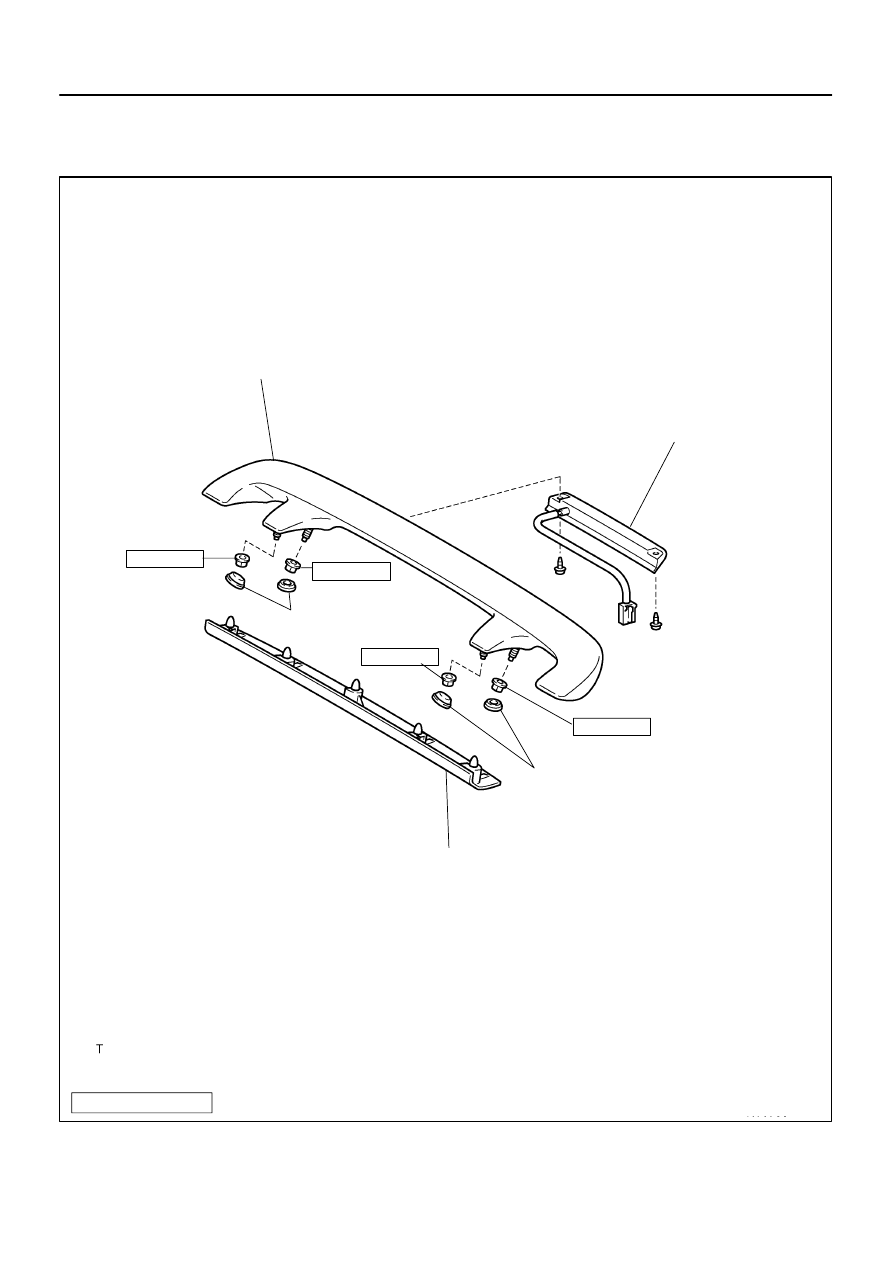

COMPONENTS

AC2810

AC1JS–06

AC2811

N11084

Wrong

Okay

HI

LO

HI

LO

–

AIR CONDITIONING

AIR CONDITIONING SYSTEM

AC–1

3728

AIR CONDITIONING SYSTEM

PRECAUTION

1.

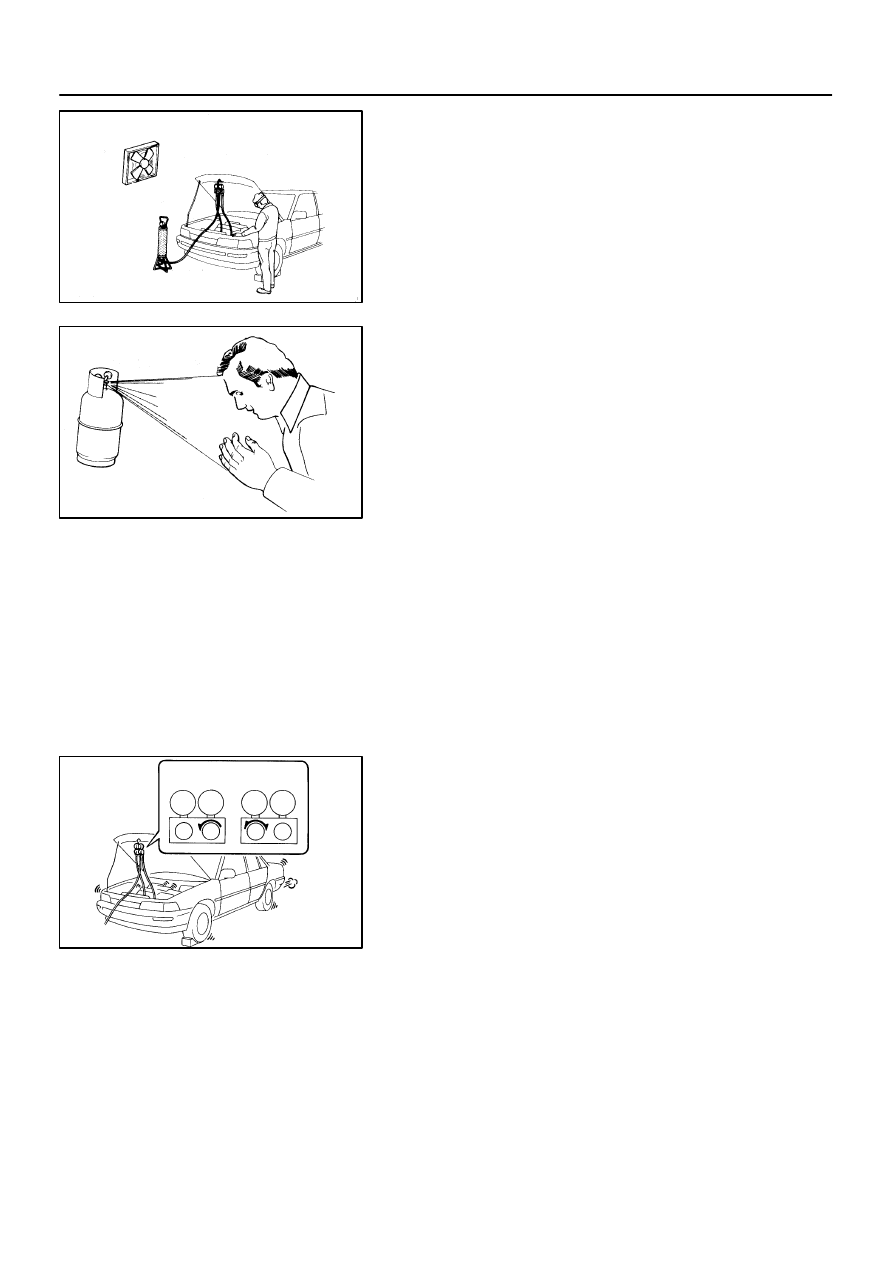

DO NOT HANDLE REFRIGERANT IN AN ENCLOSED
AREA OR NEAR AN OPEN FLAME

2.

ALWAYS WEAR EYE PROTECTION

3.

BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN
YOUR EYES OR ON YOUR SKIN

If liquid refrigerant gets in your eyes or on your skin.
(a)

Wash the area with lots of cool water.

CAUTION:
Do not rub your eyes or skin.
(b)

Apply clean petroleum jelly to the skin.

(c)

Go immediately to a physician or hospital for professional
treatment.

4.

NEVER HEAT CONTAINER OR EXPOSE IT TO OPEN
FLAME

5.

BE CAREFUL NOT TO DROP CONTAINER OR NOT TO
APPLY PHYSICAL SHOCKS TO IT

6.

DO NOT OPERATE COMPRESSOR WITHOUT
ENOUGH REFRIGERANT IN REFRIGERATION SYS-
TEM

If there is not enough refrigerant in the refrigerant system, oil lu-
brication will be insufficient and compressor burnout may occur.
Necessary care should be taken to avoid this.
7.

DO NOT OPEN PRESSURE MANIFOLD VALVE WHILE
COMPRESSOR IS OPERATING

If the high pressure valve is opened, refrigerant flows in the re-
verse direction and could cause the charging cylinder to rup-
ture, so open and close only the low pressure valve.
8.

BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH
REFRIGERANT

If refrigerant is overcharged, it causes problems such as insuffi-
cient cooling, poor fuel economy, engine overheating, etc.
