Toyota Sequoia (2005). Manual - part 931

H16780

42 (430, 31)

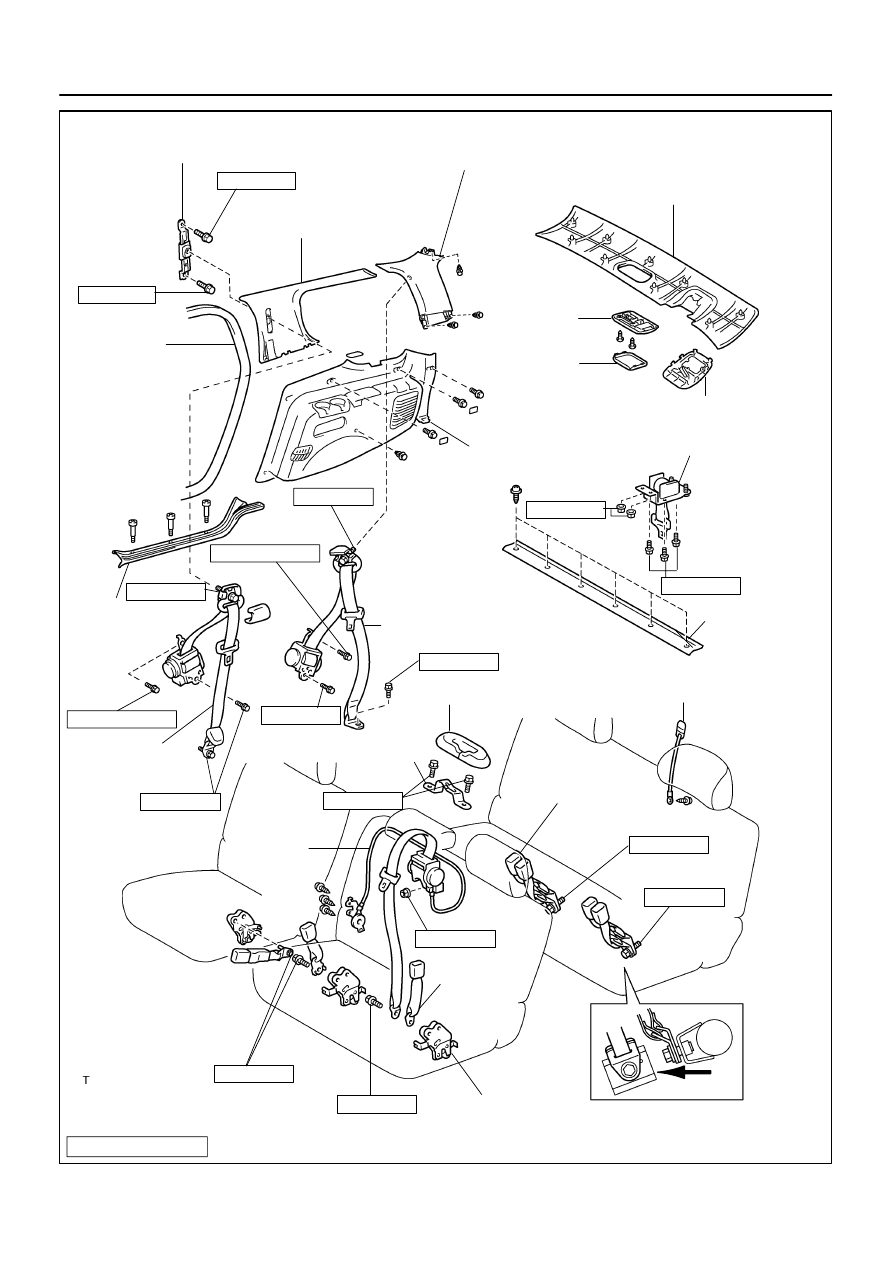

No. 2 Rear Window
Side Garnish

Rear Trim

Rear No. 1 Seat
Outer Belt

Rear Seat Shoulder
Belt Cover

Rear Window
Side Garnish

Adjustable Anchor

Rear Door
Opening Trim
Weatherstrip

Rear Door
Scuff Plate

Rear No. 2 Seat
Outer Belt

Rear Seat
Shoulder
Belt Guide

Rear
Outer Belt

Rear No. 2 Inner Belt

Child Comfort Guide

Rear Seat Lock

Dome Light

Lens

Rear Trim Cover

Rear Floor Mat
Support Plate

Rear No. 2 Seat
Outer Center Belt

Quarter Trim
Panel

Rear No. 1
Inner Belt

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

8.5 (87, 76 in.·lbf)

8.5 (87, 76 in.·lbf)

N·m (kgf·cm, ft·lbf)

: Specified torque

42 (430, 31)

42 (430, 31)

42 (430, 31)

Front

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

BO–160

–

BODY

SEAT BELT

3713

BO47P–01

BO0632

BO0633

15

°

45

°

–

BODY

SEAT BELT

BO–161

3714

INSPECTION

CAUTION:
Replace the seat belt assembly (outer belt, inner belt, bolts,
nuts or sill–bar) if it has been used in a severe impact. The
entire assembly should be replaced even if damage is not
obvious.
1.

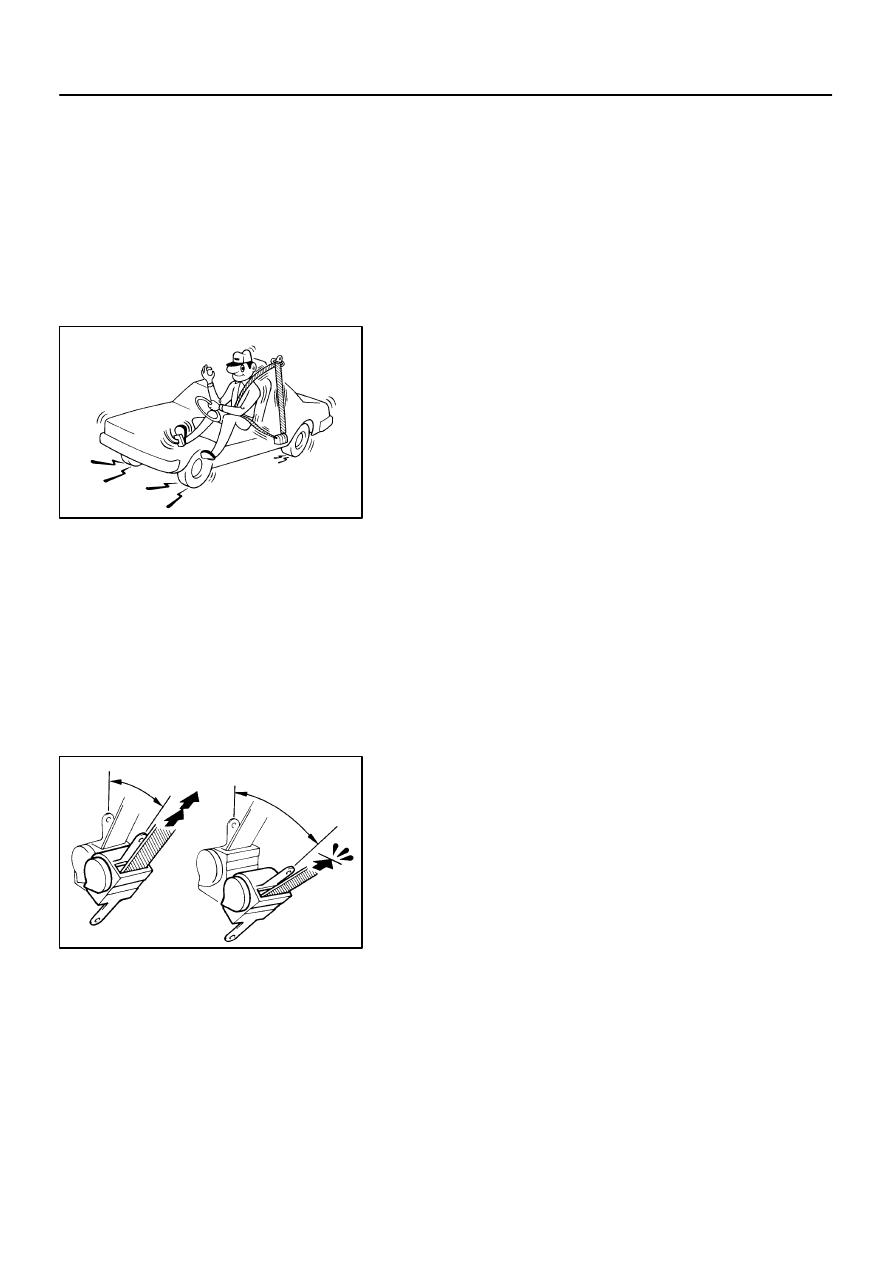

RUNNING TEST (IN SAFE AREA)

(a)

Fasten the front seat belts.

(b)

Drive the car at 10 mph (16 km/h) and slam on the brakes.
Check that the belt locks and cannot be extended at this
time.

HINT:
Conduct this test in a safe area. If the belt does not lock, remove
the belt mechanism assembly and conduct the following static
check. Also, whenever installing a new belt assembly, verify the
proper operation before installation.
2.

Driver’s seat belt (ELR):
STATIC TEST

(a)

Make sure that the belt locks when pulled out quickly.

(b)

Remove the locking retractor assembly.

HINT:
Before removing the pretensioner connector, be sure to read
the precautionary notice in the RS section.
(c)

Tilt the retractor slowly.

(d)

Make sure that the belt can be pulled out at a tilt of 15 de-
grees or less, and cannot be pulled out over 45 degrees
of tilt.

If a problem is found, replace the assembly.
3.

Except driver’s seat belt (ELR/ALR):
STATIC TEST

(a)

Make sure that the belt locks when pulled out quickly.

(b)

Pull out the whole belt, then retract the belt slightly and
pull it out again

(c)

Make sure that the belt cannot be extended further.

If a problem is found, replace the assembly.
(d)

Remove the locking retractor assembly.

HINT:
Front passenger’s seat belt only:
Before removing the pretensioner connector, be sure to read
the precautionary notice in the RS section.
(e)

Tilt the retractor slowly.

BO0633

15

°

45

°

H05710

40

°

Rear No.1 Seat
Outer Center
Seat Belt

Retractor

H05731

Rear No.1 Seat
Outer Center
Seat Belt

BO–162

–

BODY

SEAT BELT

3715

(f)

Make sure that the belt can be pulled out at a tilt of 15 de-
grees or less, and cannot be pulled out at over 45 degrees
of tilt.

If a problem is found, replace the assembly.

4.

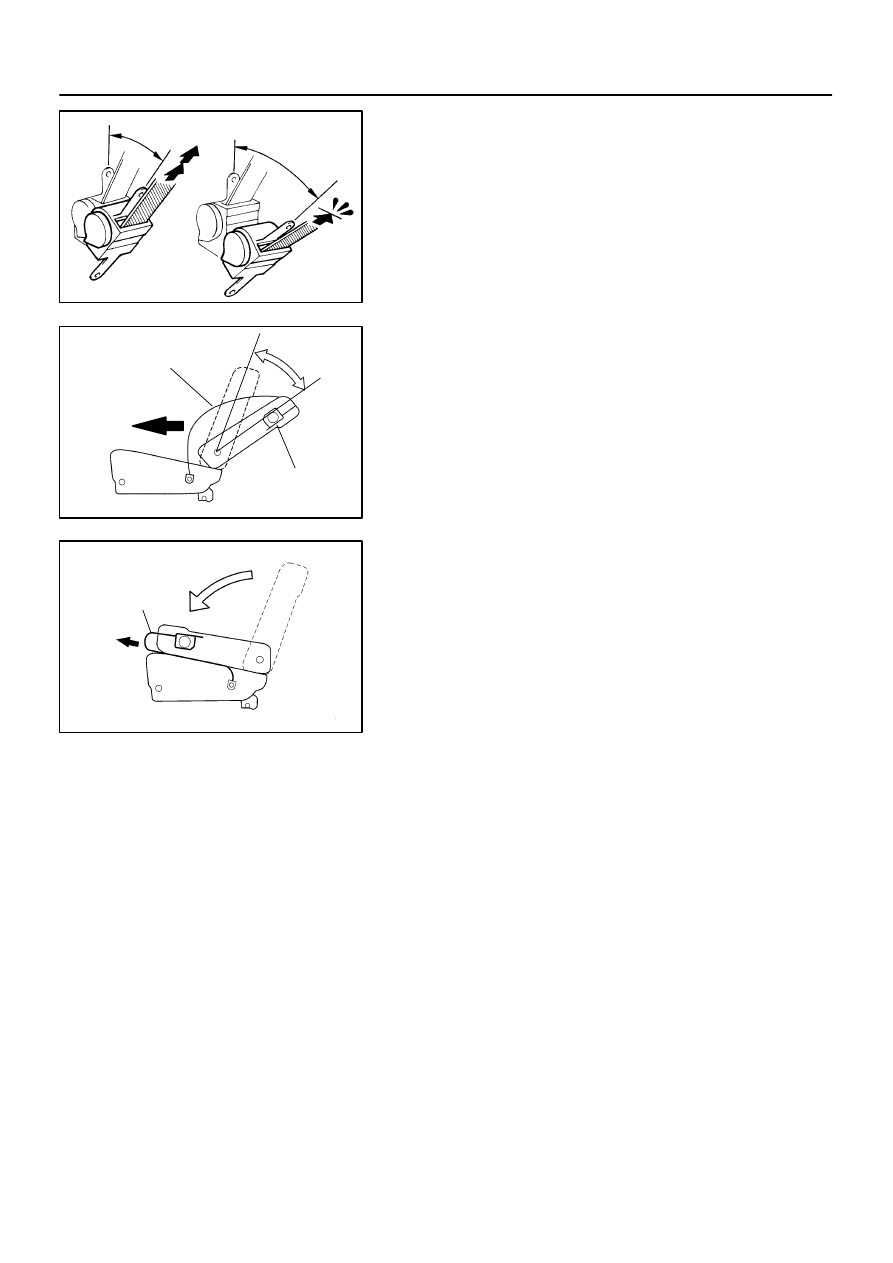

INSPECT REAR NO.1 SEAT CENTER BELT

(a)

After extracting 300 mm (11.81 in.), check that the belt is
locked when suddenly extracted.

(b)

Check that the belt can be extracted 300 mm (11.81 in.)
without being locked when the seat is reclined as shown
in the illustration.

(c)

Check that the belt is locked when the belt is extracted by
a certain amount under (a) condition.

(d)

When folding down the seatback forward and extracting
the seat belt slowly, check that the belt is locked after a
certain length (approx. 500 mm (19.69 in.)) of the belt has
been extracted.

BO47Q–03

H24383

Clip

H16718

Clip

H16719

4 Clips

–

BODY

SEAT BELT PRETENSIONER

BO–163

3716

SEAT BELT PRETENSIONER

REMOVAL

NOTICE:

If the wiring connector of the supplemental restraint
system is disconnected with the ignition switch at ON
or ACC, diagnostic trouble codes will be recorded.

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new parts.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

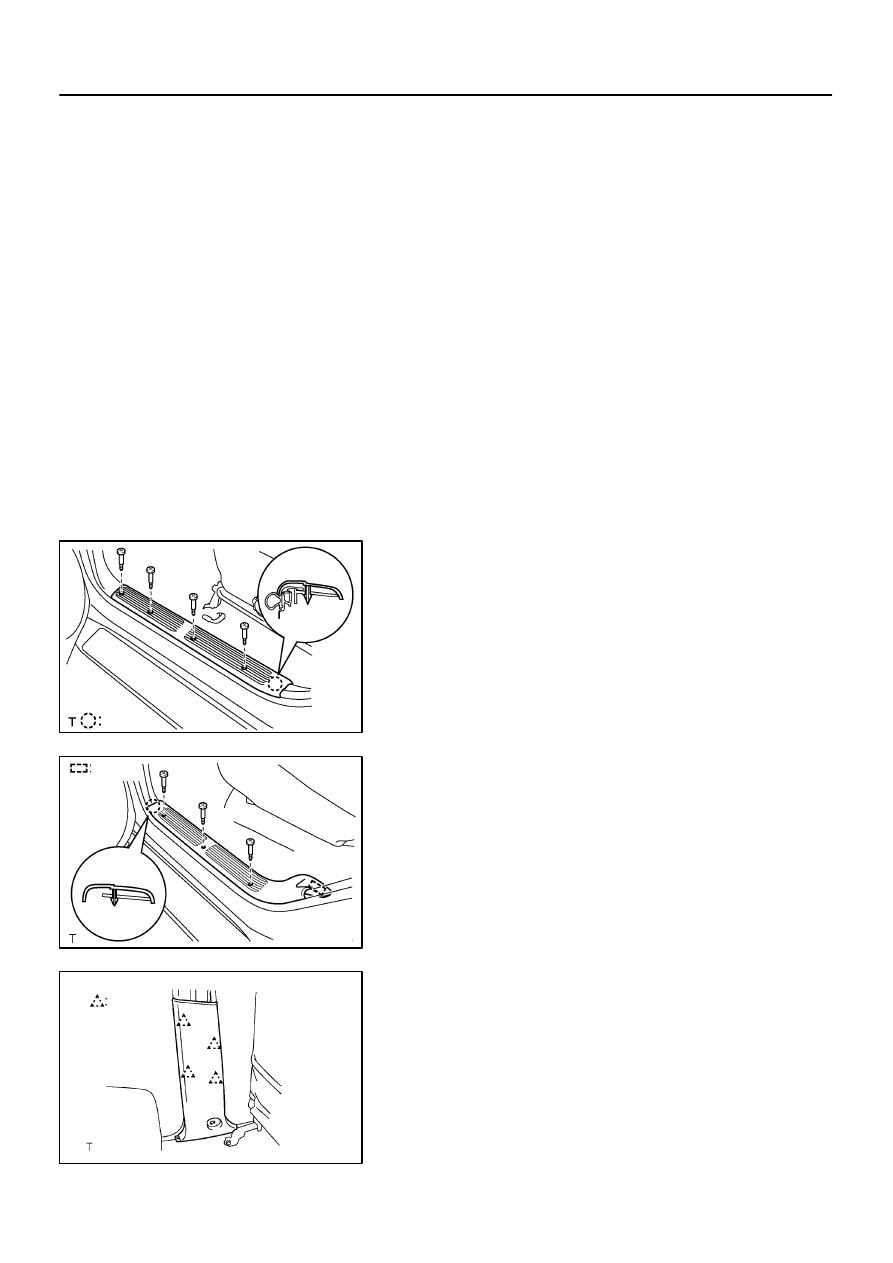

REMOVE FRONT DOOR SCUFF PLATE

Remove the 4 screws and front door scuff plate.
3.

REMOVE FRONT DOOR OPENING TRIM WEATH-
ERSTRIP

4.

REMOVE REAR DOOR SCUFF PLATE

(a)

Remove the 3 screws.

(b)

Using a screwdriver, remove the rear door scuff plate.

HINT:
Tape the screwdriver tip before use.
5.

REMOVE REAR DOOR OPENING TRIM WEATH-
ERSTRIP

6.

REMOVE LOWER CENTER PILLAR GARNISH

(a)

Remove the front seat outer belt floor anchor.

(b)

Using a screwdriver, remove the lower center pillar gar-
nish.

HINT:
Tape the screwdriver tip before use.
