SR1HO–08

F16015

Steering Wheel

Masking Tape

Steering Column
Upper Cover

F16016

Steering Column
Upper Cover

Marked Line

Steering
Wheel

Masking
Tape

SR–10

–

STEERING

STEERING WHEEL

3237

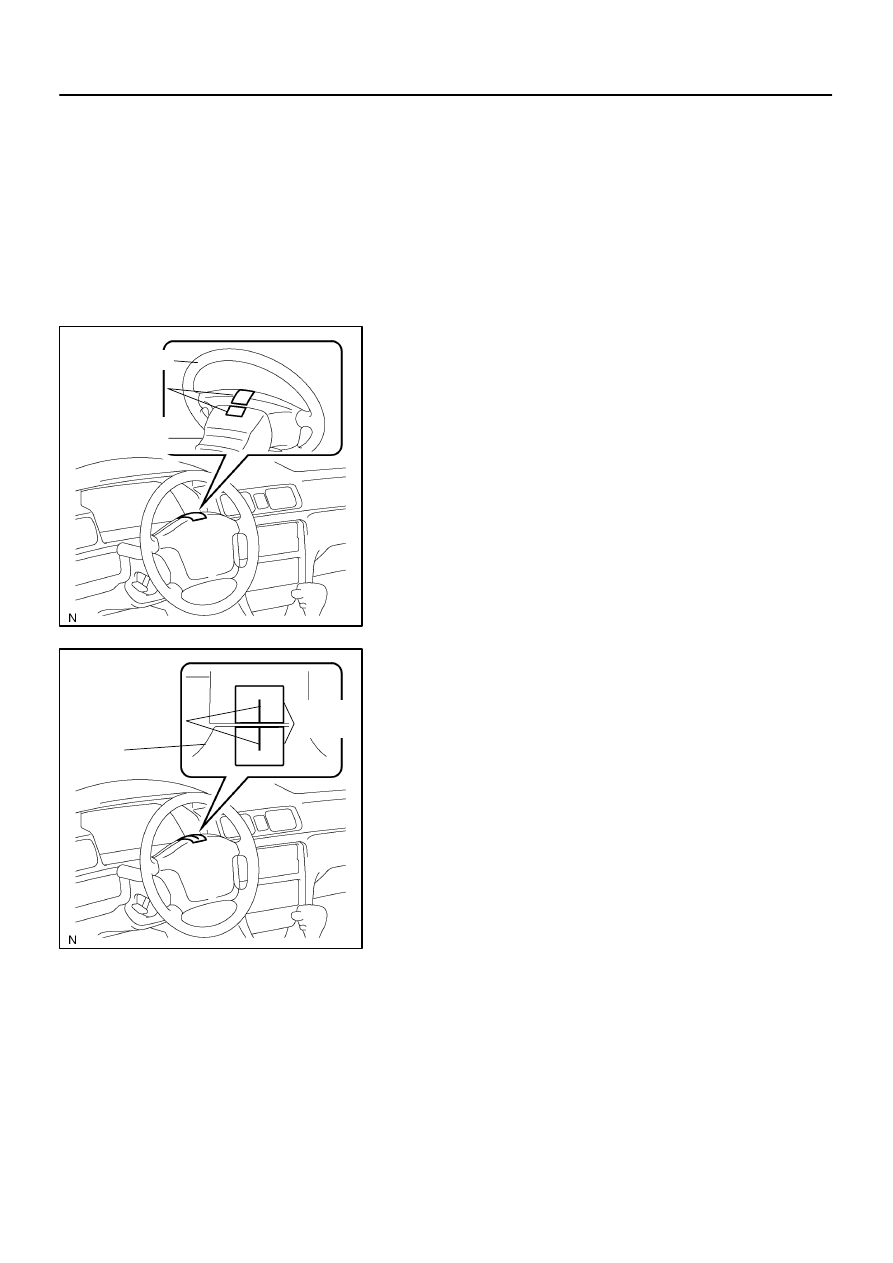

REPAIR PROCEDURES

HINT:
This is the repair procedure for steering off center.

1.

INSPECT STEERING WHEEL OFF CENTER

(a)

Apply masking tape on the top center of the steering
wheel and steering column upper cover.

(b)

Drive the vehicle in a straight line for 100 meters at a
constant speed of 35 mph (56 km/h), and hold the steer-
ing wheel to maintain the course.

(c)

Draw a line on the masking tape as shown in the illustra-
tion.

F16017

Steering Column
Upper Cover

New Marked
Line

Steering Wheel

R00429

Marked Line

F16018

–

STEERING

STEERING WHEEL

SR–11

3238

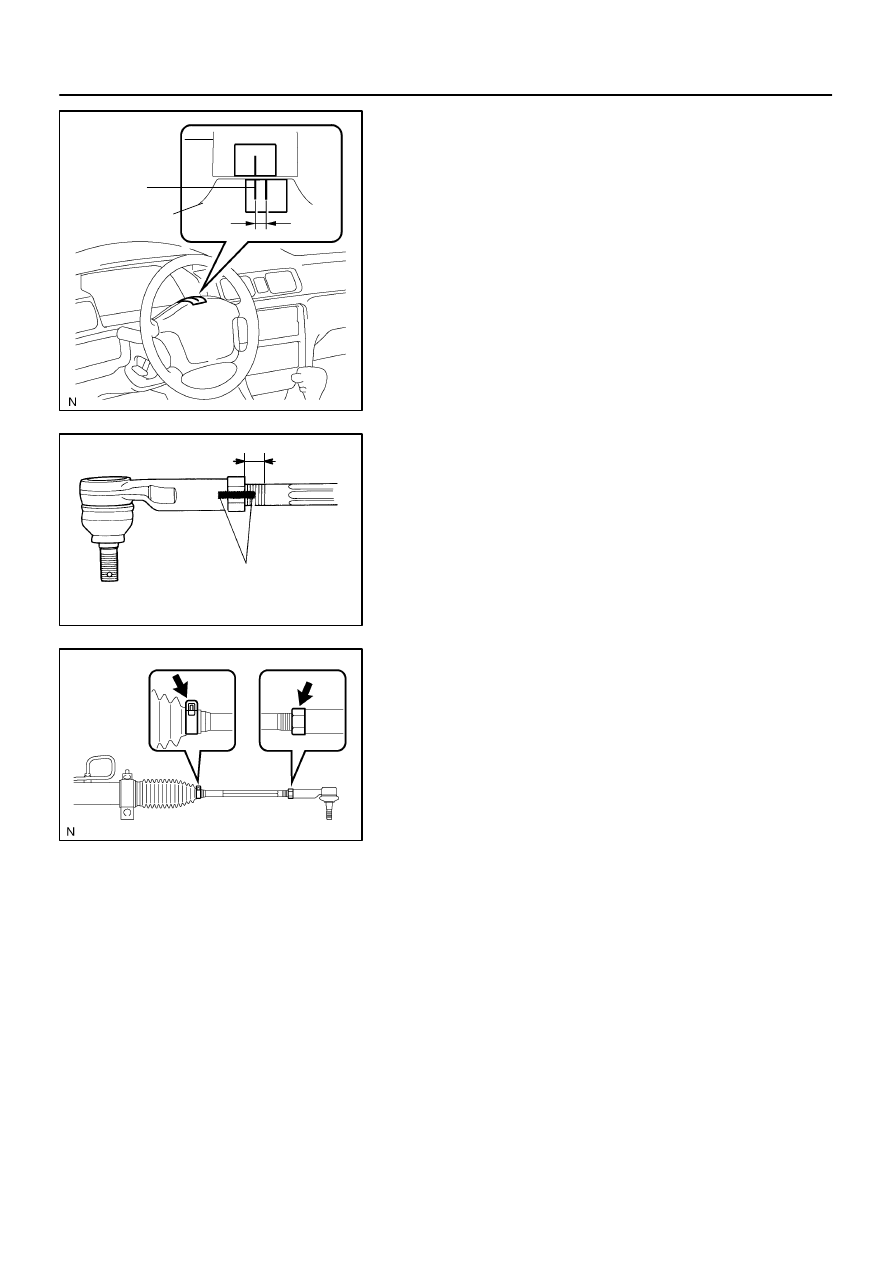

(d)

Turn the steering wheel to its straight position.

HINT:
Refer to the upper surface of the steering wheel, steering spoke
and SRS airbag line for the straight position.
(e)

Draw a new line on the masking tape of the steering wheel
as shown in the illustration.

(f)

Measure the distance between the 2 lines on the masking
tape of the steering wheel.

(g)

Convert the measured distance to steering angle.
Measured distance 1 mm (0.04 in.) = Steering angle
approximately 1 deg.

HINT:
Make a note of the steering angle.

2.

ADJUST STEERING ANGLE

(a)

Draw a line on the RH and LH tie rod and rack ends where
it can easily be seen.

(b)

Using a paper gauge, measure the distance from RH and
LH tie rod ends to the rack end screws.

HINT:

Measure the RH side and LH side.

Make a note of the measured values.

(c)

Remove the RH and LH boot clips from the rack boots.

(d)

Loosen the RH and LH lock nuts.

(e)

Turn the RH and LH rack end by the same amount (but
in different directions) according to the steering angle.
1 turn 360 deg. of rack end (1.5 mm (0.059 in.) horizon-
tal movement) = 12 deg. of steering angle

(f)

Tighten the RH and LH lock nuts.
Torque: 55 N·m (560 kgf·cm, 41 ft·lbf)

NOTICE:
Make sure that the difference in length between RH and LH
tie rod ends and rack end screws are within 1.5 mm (0.059
in.).
(g)

Install the RH and LH boot clips.

SR1F3–03

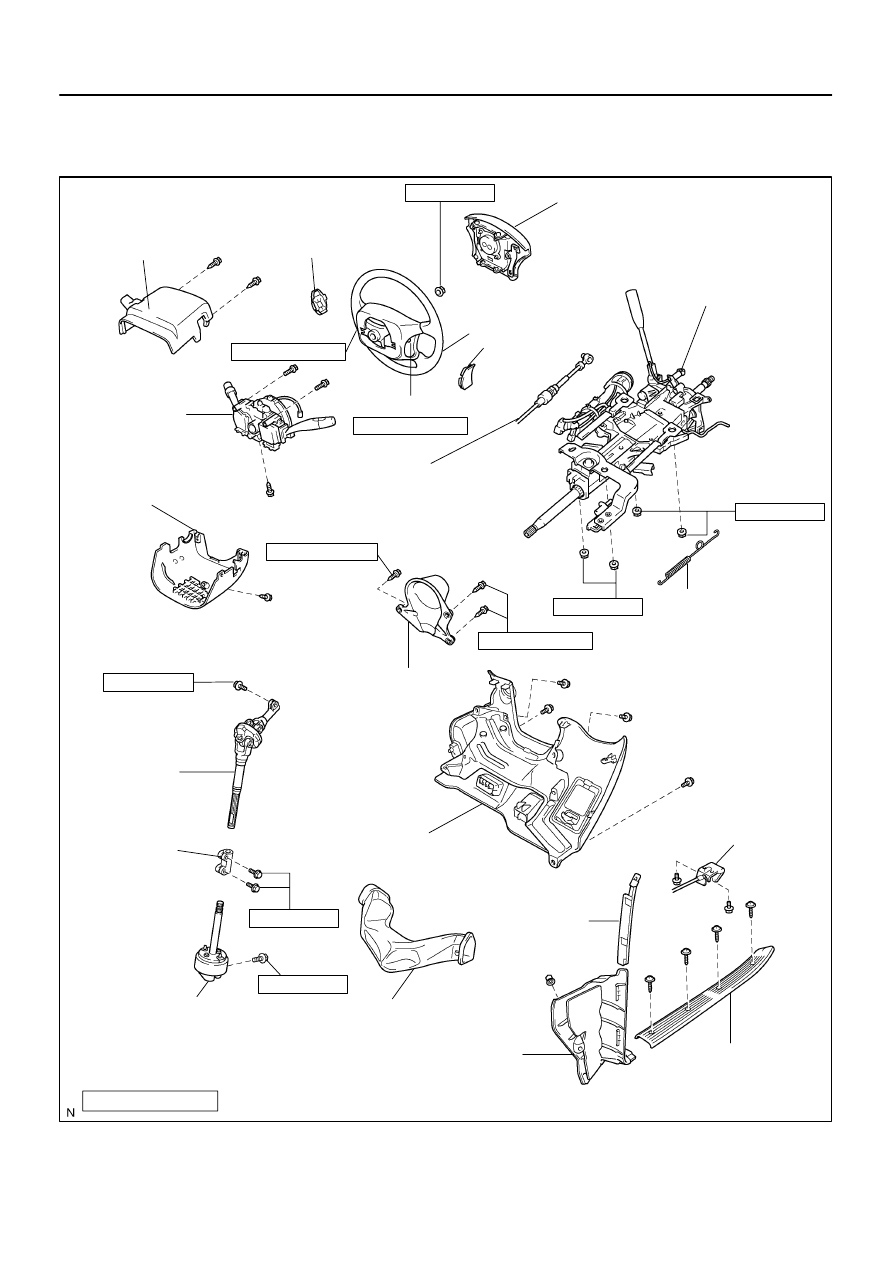

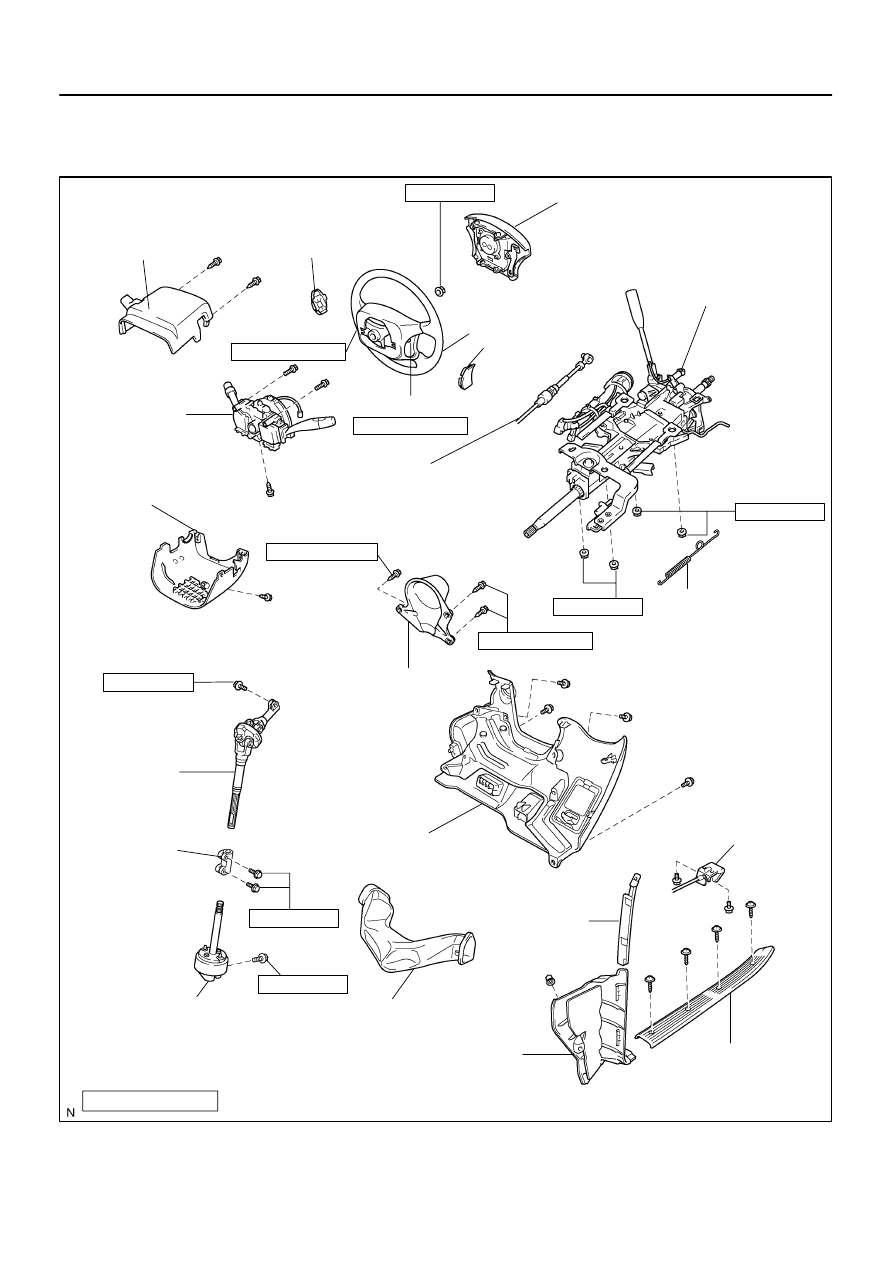

F17895

Steering Wheel Pad

Steering
Wheel

Column Lower
Cover

Combination
Switch

Steering Column Assembly

Transmission Control
Cable Assembly

Lower LH Finish Panel

Column Hole
Cover No. 2

No. 2 Universal
Joint Assembly

No. 2 Heater to Register Dust

Torx

®

 Screw

35 (360, 26)

35 (360, 26)

8.0 (82, 71 in.·lbf)

26 (260, 19)

26 (260, 19)

8.8 (90, 78 in.·lbf)

50 (510, 37)

8.8 (90, 78 in.·lbf)

Front Door Scuff Plate

Cowl Side Trim

Hood Lock
Release Lever

8.0 (82, 71 in.·lbf)

Side Panel

No. 2 Intermediate
Shaft Assembly

Brake Pedal
Return Spring

Column Upper Cover

N·m (kgf·cm, ft·lbf) : Specified torque

Steering Wheel Lower
No. 3 Cover

Steering Wheel Lower
No. 2 Cover

35 (360, 26)

Sliding Yoke

Torx

®

 Screw

SR–12

–

STEERING

TILT STEERING COLUMN

3239

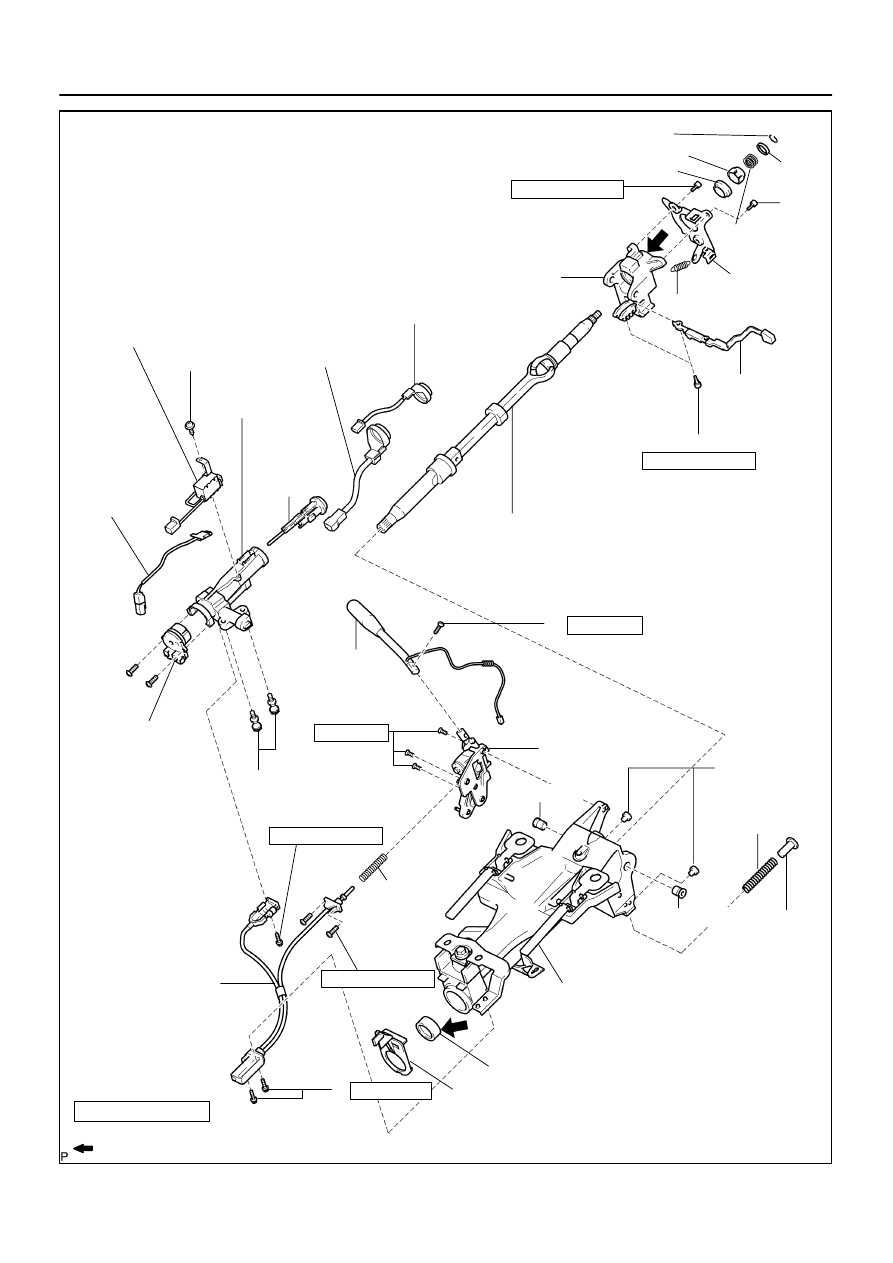

TILT STEERING COLUMN

COMPONENTS

F13256

Non–reusable part

Molybdenum disulfide lithium base grease

: Specified torque

N·m (kgf·cm, ft·lbf)

Column Upper
Bracket

Key Cylinder

Key Unlock
Warning Switch

Ignition Switch

10.5 (110, 8)

Column Tube
Assembly

2.2 (23, 19 in.·lbf)

Spring Guide

Tilt Spring

Main Shaft Assembly

Steering Column Housing

Tilt Lever

Release Lever Spring

Turn Signal Bracket

Compression
Spring

Spring
Retainer

Upper Bearing Inner Race Seat

Inner Race

12 (120, 9)

Pivot Pin

Spring

Park Lock Cable
Assembly

Shaft Bearing

Main Shaft Stopper

Pivot Pin

Shift Lever
Housing

18 (180, 13)

Shift Lever

No. 2 Steering Column Ring

Tilt Lever Lock Shaft

9.0 (90, 78 in.·lbf)

7.5 (75, 65 in.·lbf)

2.9 (29, 25 in.·lbf)

Transponder Key Coil

Key Cylinder
Lamp Assembly

Screw

Transponder Key Amplifier

Tilt No. 1
Stopper

–

STEERING

TILT STEERING COLUMN

SR–13

3240
