Toyota Sequoia (2005). Manual - part 785

SA2CY–01

F16840

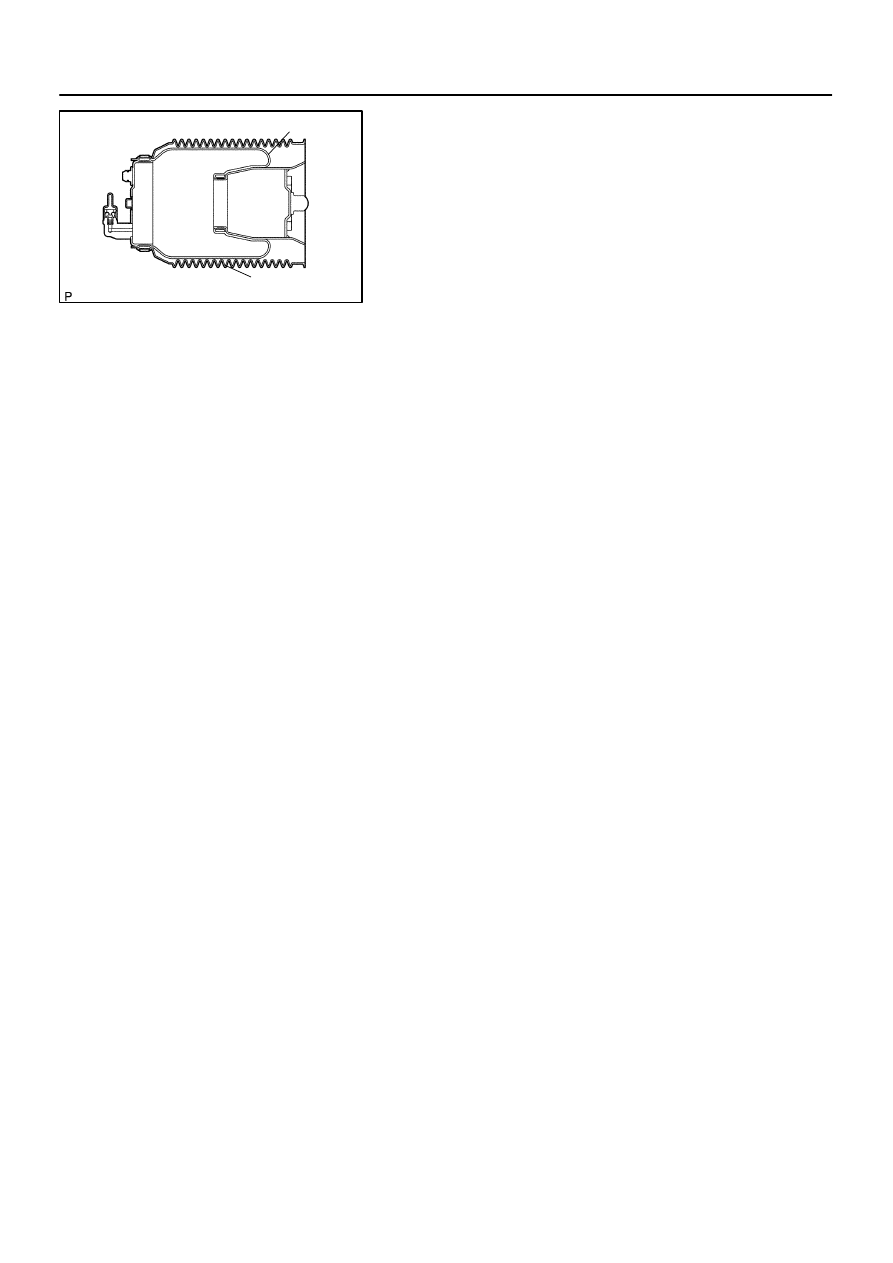

Rolling Diaphragm

Dust Cover

–

SUSPENSION AND AXLE

REAR PNEUMATIC CYLINDER

SA–133

3129

INSPECTION

1.

INSPECT ROLLING DIAPHRAGM

(a)

Lift up the dust cover and check that the rolling diaphragm
is not damaged or cracked.

If damage or cracks exist, replace the pneumatic cylinder.
(b)

Return the dust cover back to the original position.

SA0KM–05

SA–134

–

SUSPENSION AND AXLE

REAR PNEUMATIC CYLINDER

3130

INSTALLATION

Installation is in the reverse order of removal (See page

SA–131

).

SA2BG–02

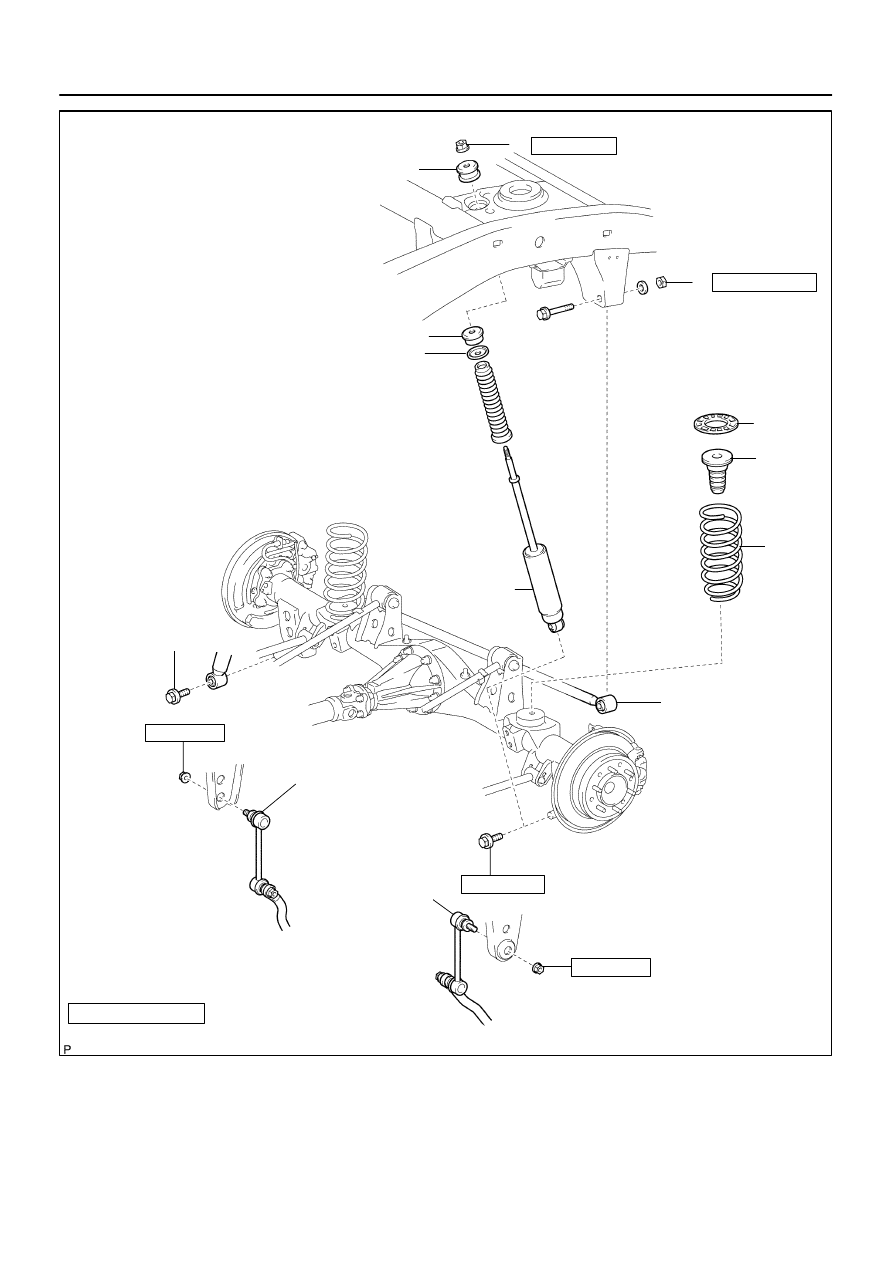

F14308

58 (591, 43)

Cushion

Retainer

Insulator

Hollow
Spring

Shock Absorber

 Bushing

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Coil
Spring

140 (1,428, 103)

Retainer

Cushion

Retainer

Retainer

Lateral Control Rod

Stabilizer Bar Link

87 (887, 64)

69 (704, 51)

Stabilizer Bar Link

69 (704, 51)

Normal Type:

–

SUSPENSION AND AXLE

COIL SPRING AND REAR SHOCK ABSORBER

SA–135

3131

COIL SPRING AND REAR SHOCK ABSORBER

COMPONENTS

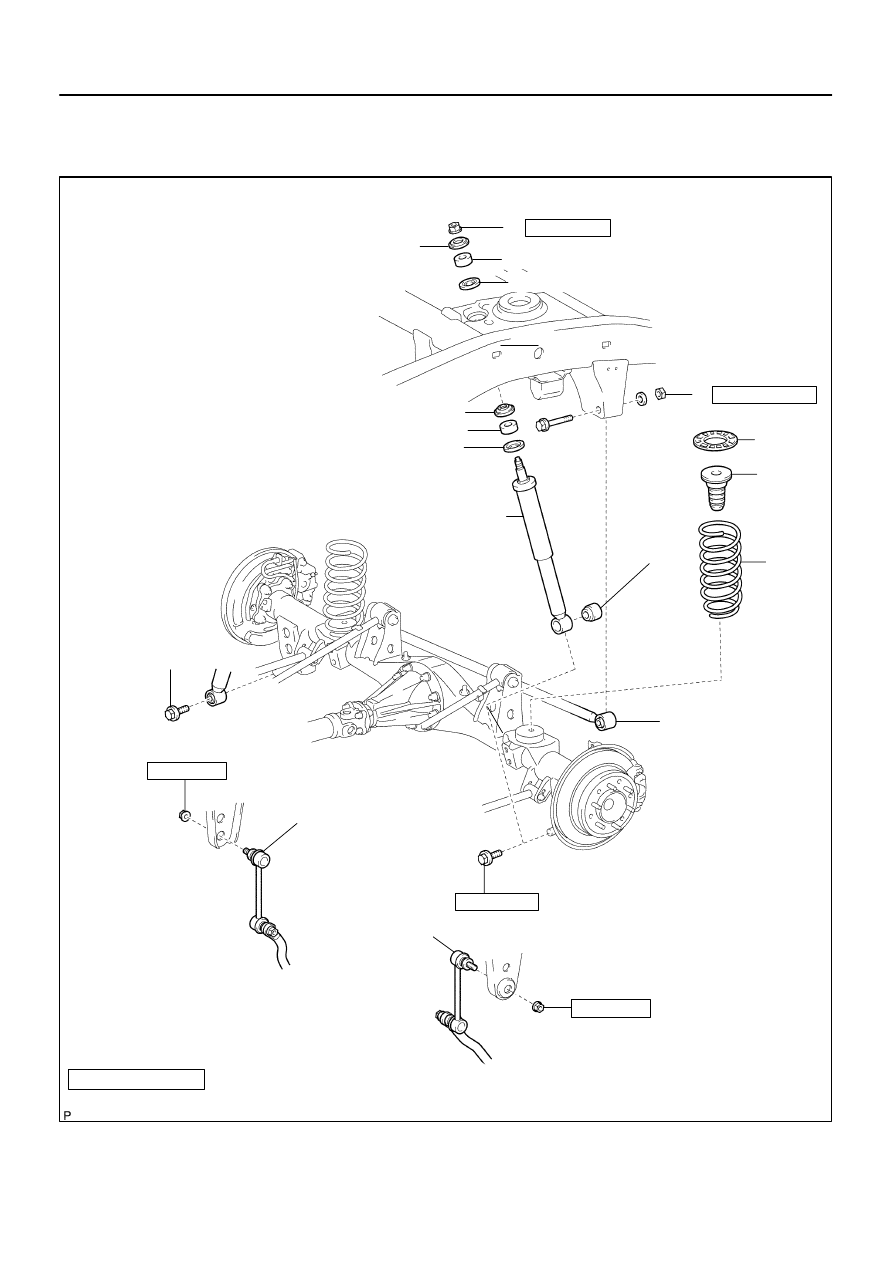

F16917

58 (591, 43)

Cushion

Insulator

Hollow
Spring

Shock Absorber

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Coil
Spring

140 (1,428, 103)

Retainer

Lateral Control Rod

Stabilizer Bar Link

87 (887, 64)

69 (704, 51)

Stabilizer Bar Link

69 (704, 51)

Cushion

Auto Leveler Type:

SA–136

–

SUSPENSION AND AXLE

COIL SPRING AND REAR SHOCK ABSORBER

3132
