AUTOMATIC TRANSMISSION (A750E, A750F)

VALVE BODY ASSEMBLY

AT–13

2921

13.

FILL WITH ATF AND CHECK ATF LEVEL

(a)

Remove the refill plug (See page

DI–524

).

(b)

Fill with new fluid through the refill hole.
Fluid type: Toyota genuine ATF WS

AT137–01

D12708

D12709

D12710

D12708

AT–14

–

AUTOMATIC TRANSMISSION (A750E, A750F)

PARKING LOCK PAWL

2922

PARKING LOCK PAWL

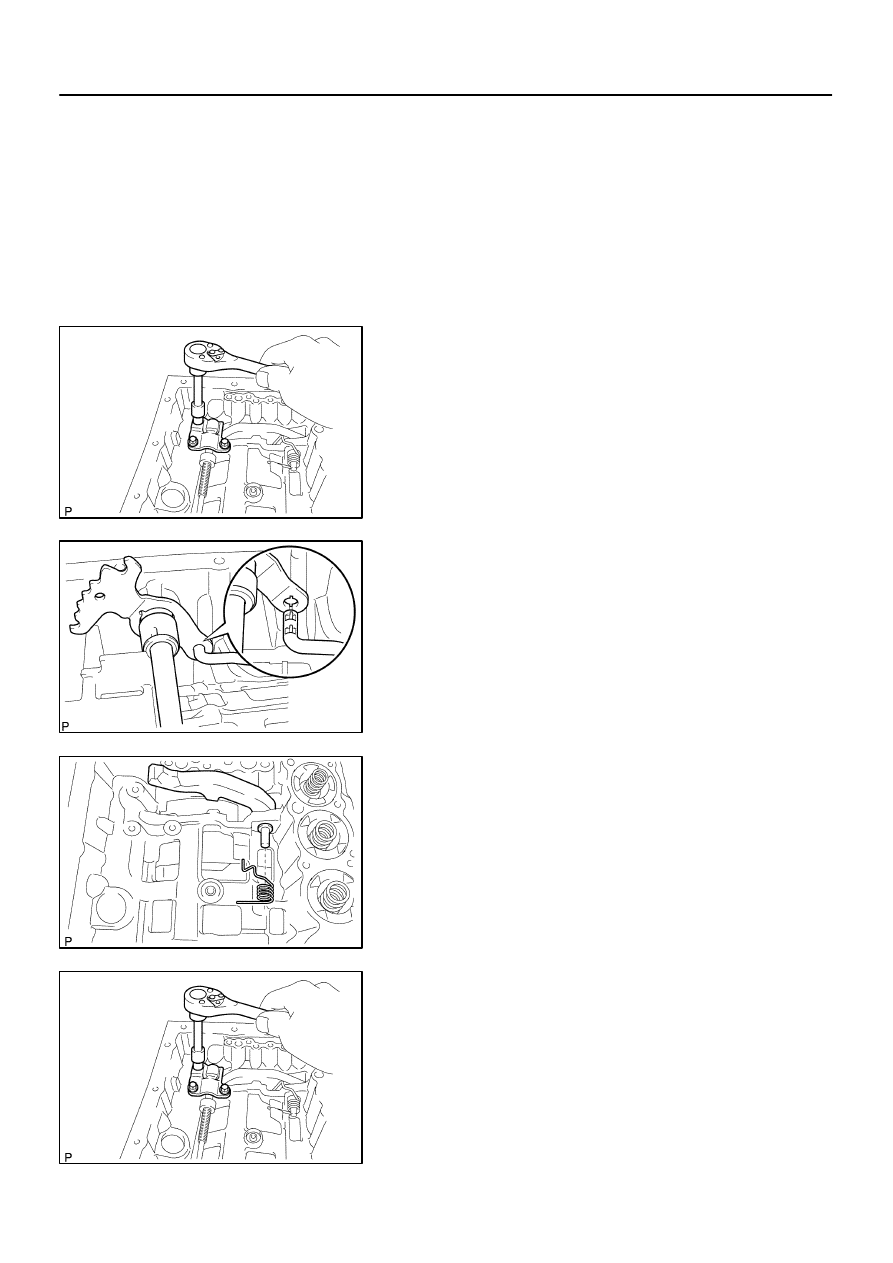

ON–VEHICLE REPAIR

1.

REMOVE VALVE BODY (See page

AT–10

)

2.

REMOVE PARKING LOCK PAWL BRACKET

Remove the 3 bolts and parking lock pawl bracket.

3.

REMOVE PARKING LOCK ROD

4.

REMOVE SPRING FROM PARKING LOCK PAWL
SHAFT

5.

REMOVE PARKING LOCK PAWL AND SHAFT

6.

INSTALL PARKING LOCK PAWL AND SHAFT

7.

INSTALL SPRING TO PARKING LOCK PAWL SHAFT

8.

INSTALL PARKING LOCK PAWL BRACKET

Install the parking lock pawl bracket with the 3 bolts.
HINT:

Push the lock rod fully forward.

Check that the parking lock pawl operates smoothly.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)

9.

INSTALL VALVE BODY (See page

AT–10

)

AT138–01

D10672

N·m (kgf·cm, ft·lbf) : Specified torque

Oil Cooler Pipe

Oil Cooler Bracket

Clip

Clip

Oil Cooler

11 (110, 8)

5.0 (50, 48 in.·lbf)

Clip

Grommet

Grommet

Condenser Mounting
Insulator

11 (110, 8)

Hose

Grommet

Condenser Mounting
Insulator

–

AUTOMATIC TRANSMISSION (A750E, A750F)

AIR COOLED OIL COOLER

AT–15

2923

AIR COOLED OIL COOLER

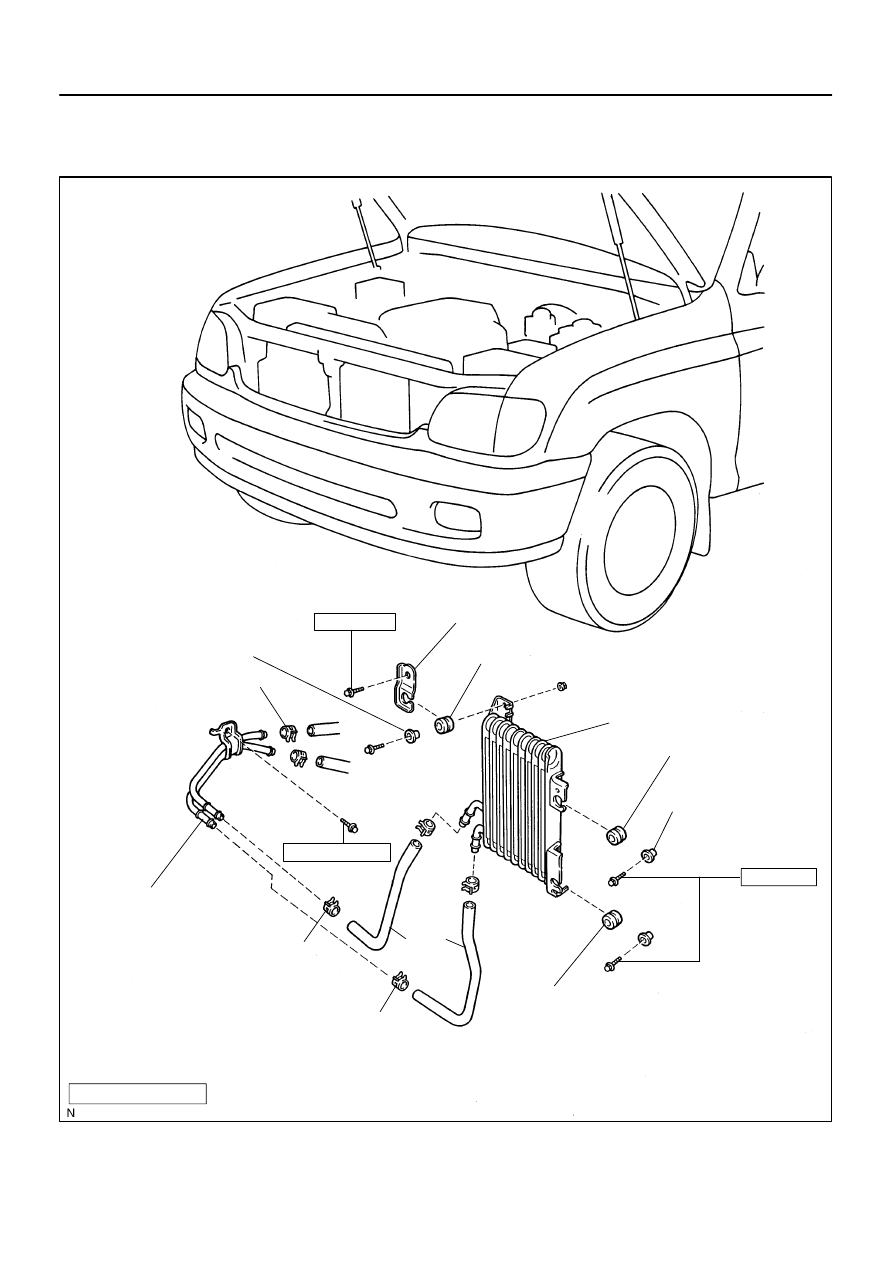

COMPONENTS

AT139–01

D10673

D10674

D10675

D05209

AT–16

–

AUTOMATIC TRANSMISSION (A750E, A750F)

AIR COOLED OIL COOLER

2924

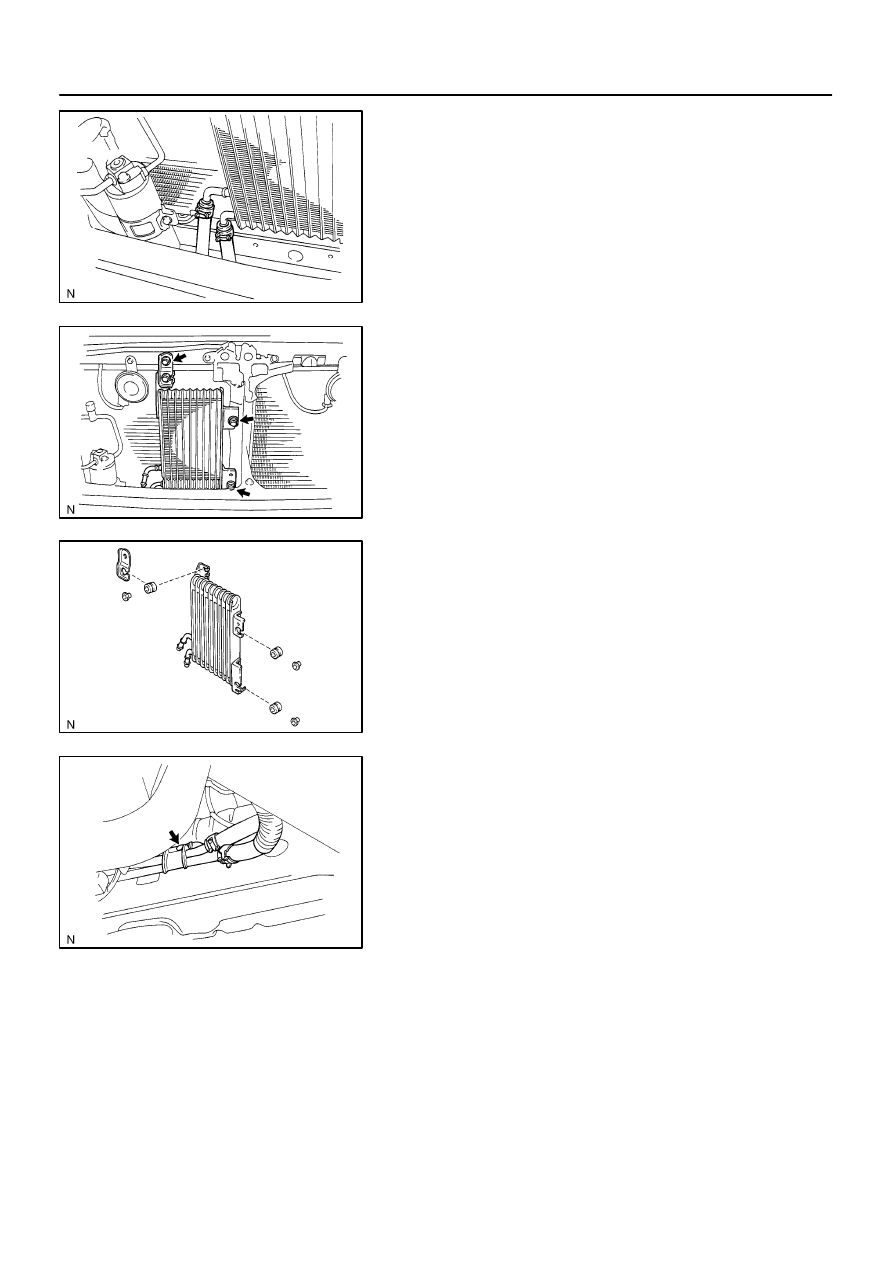

REMOVAL

1.

REMOVE PIPE

Loosen the 2 clips and disconnect the 2 hoses.

2.

REMOVE OIL COOLER

(a)

Remove the 3 bolts and oil cooler.
Torque: 11 N·m (110 kgf·cm, 8 ft·lbf)

(b)

Remove the bolt, transmission oil cooler bracket and
grommet.
Torque: 4.9 N·m (50 kgf·cm, 43 in.·lbf)

(c)

Remove the 2 grommets and condenser mounting insula-
tors.

3.

REMOVE OIL COOLER TUBE

(a)

Loosen the 2 clips and disconnect the 2 hoses.

(b)

Remove the bolt and oil cooler tube with the 2 hoses.
Torque: 5.0 N·m (50 kgf·cm, 48 in.·lbf)

(c)

Loosen the 2 clips and disconnect the 2 hoses.
