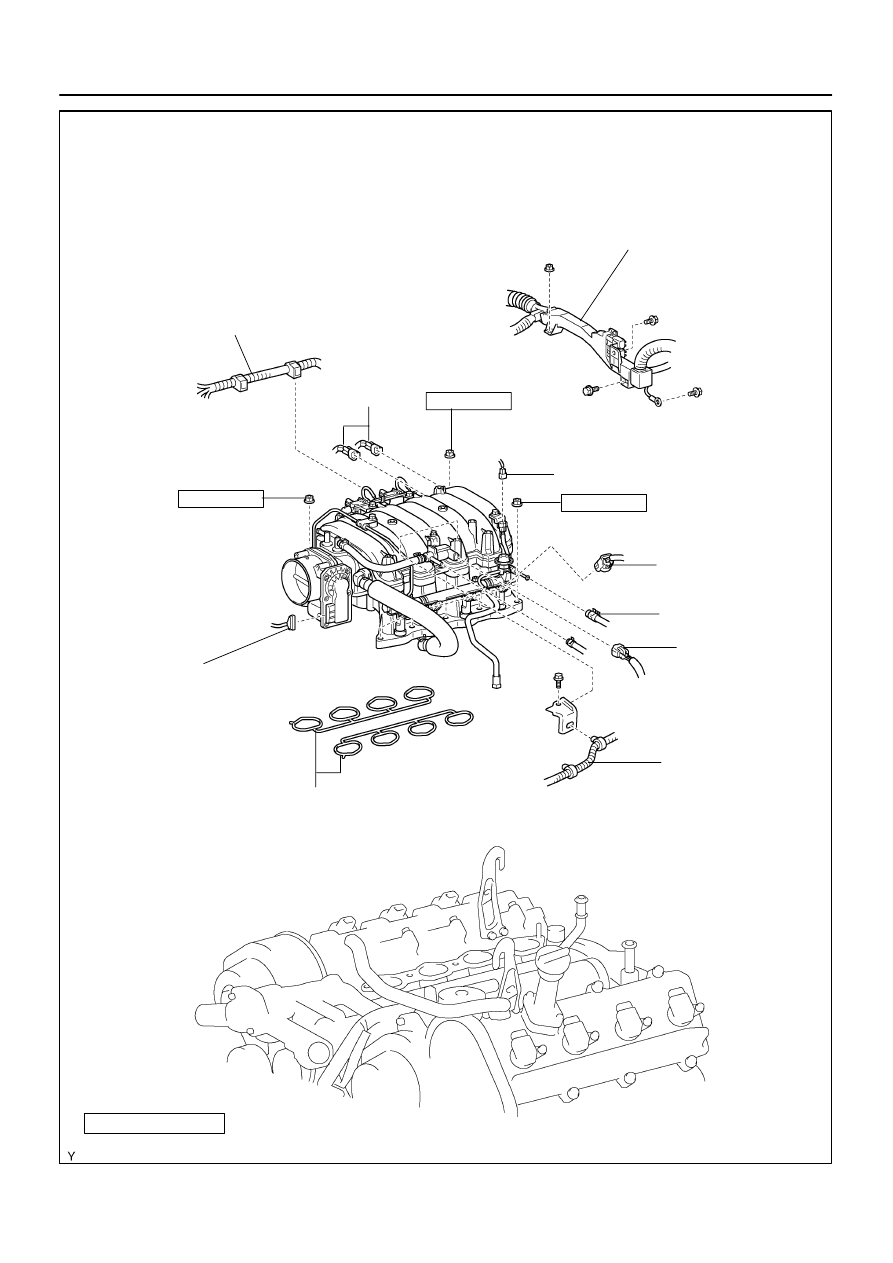

Toyota Sequoia (2005). Manual - part 699

B17490

N·m (kgf·cm, ft·lbf)

: Specified torque

Gasket

Non–reusable part

18 (185, 13)

VSV Connector for
EVAP

Injector Connector

Fuel Return Hose

VSV Connector

Engine Wire

Engine Wire

Throttle Body
Connector

18 (185, 13)

Injector Connector

VSV Connector

18 (185, 13)

Engine Wire

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

SF–51

2785

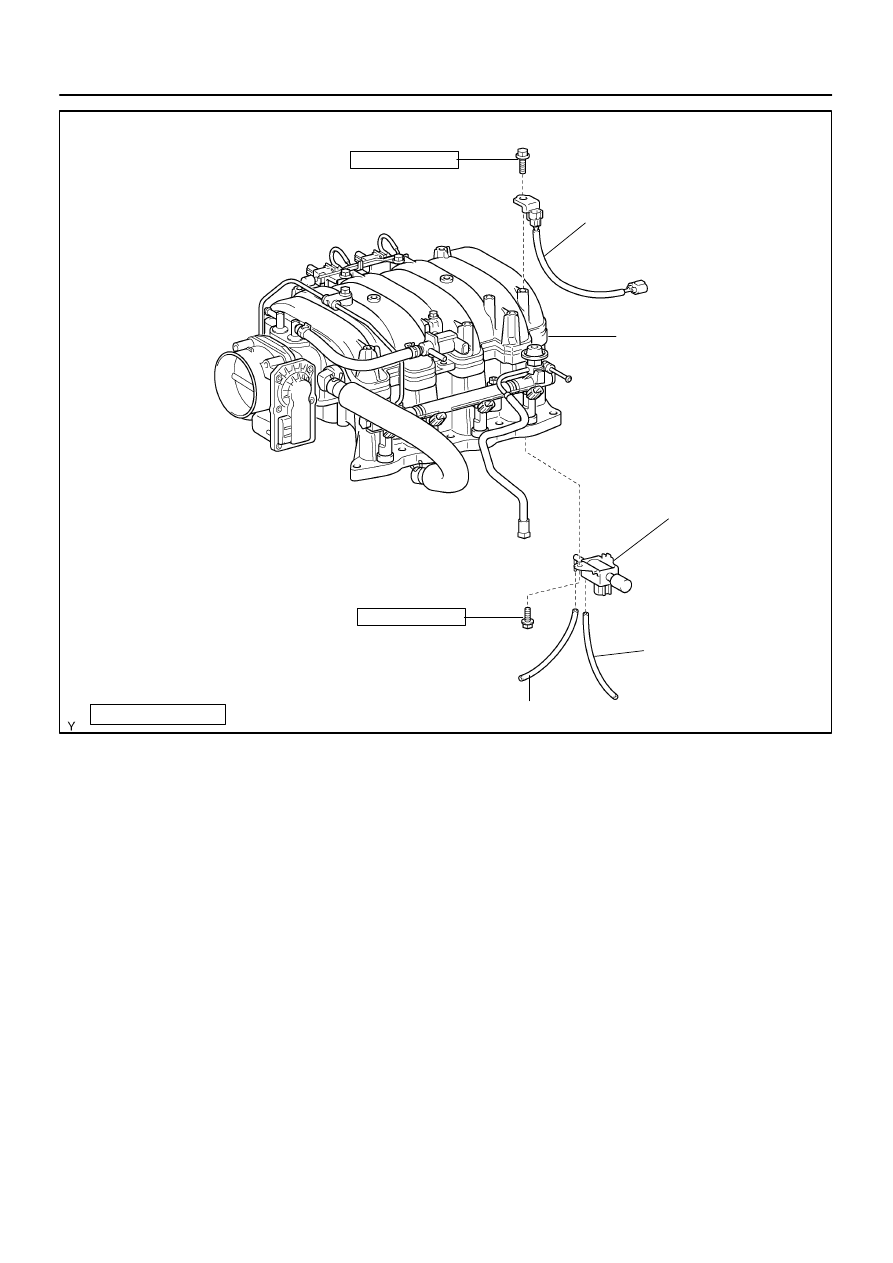

B17491

VSV for ACIS

VSV Wire Connector

Vacuum Hose

Vacuum Hose

7.5 (80, 66 in.·lbf)

N·m (kgf·cm, ft·lbf) : Specified torque

7.5 (80, 66 in.·lbf)

Intake Manifold Assembly

SF–52

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

2786

SF1XN–01

B17510

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

SF–53

2787

REMOVAL

1.

REMOVE THROTTLE BODY COVER

2.

REMOVE INTAKE MANIFOLD ASSEMBLY
(See page

EM–36

)

3.

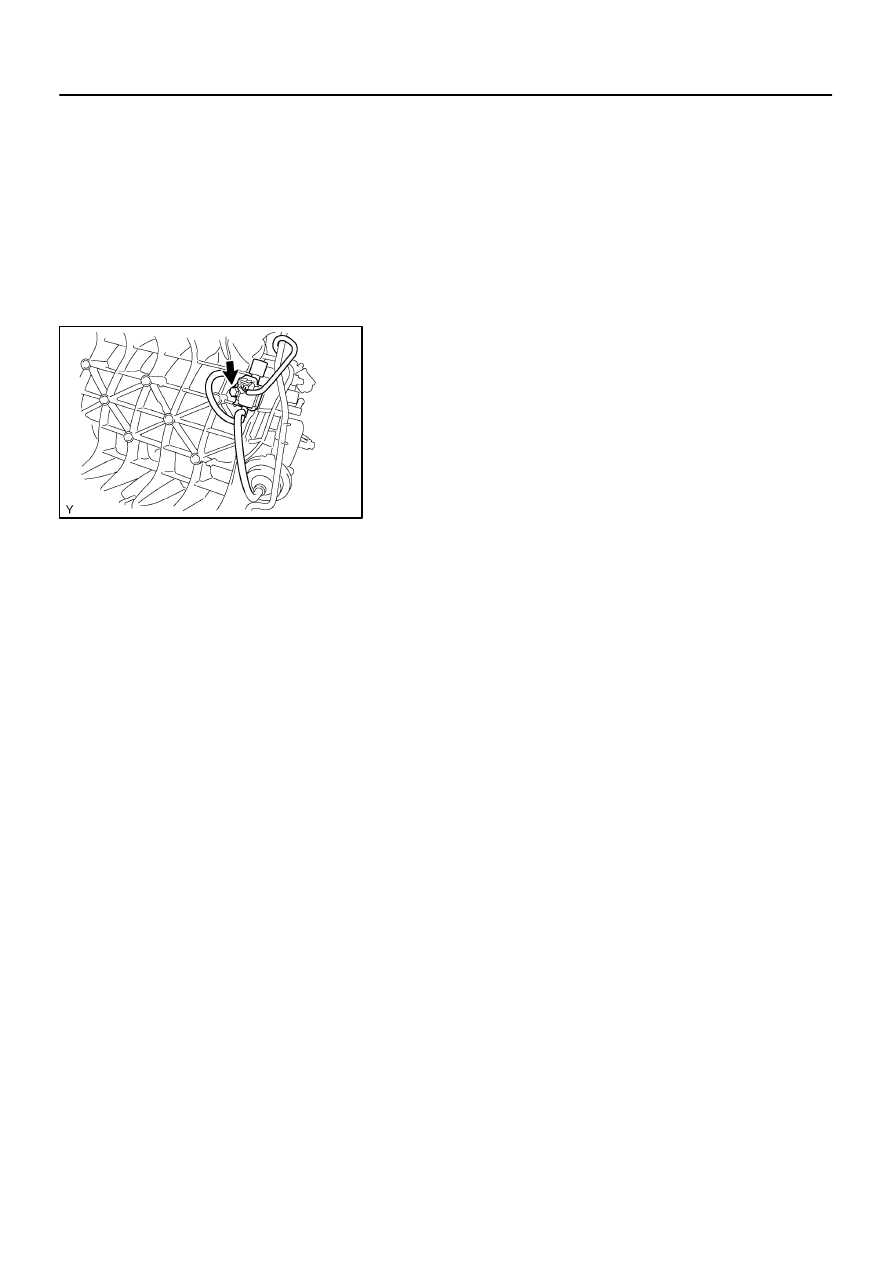

REMOVE VSV FOR ACIS

(a)

Remove the 2 vacuum hoses from the VSV.

(b)

Remove the bolt and VSV from the intake manifold.

SF1XO–01

B17511

S04525

Continuity

Ohmmeter

S04524

No continuity

Ohmmeter

FI6393

Air

E

Filter

S04523

Air

E

F

Battery

SF–54

–

SFI

ACOUSTIC CONTROL INDUCTION SYSTEM (ACIS)

2788

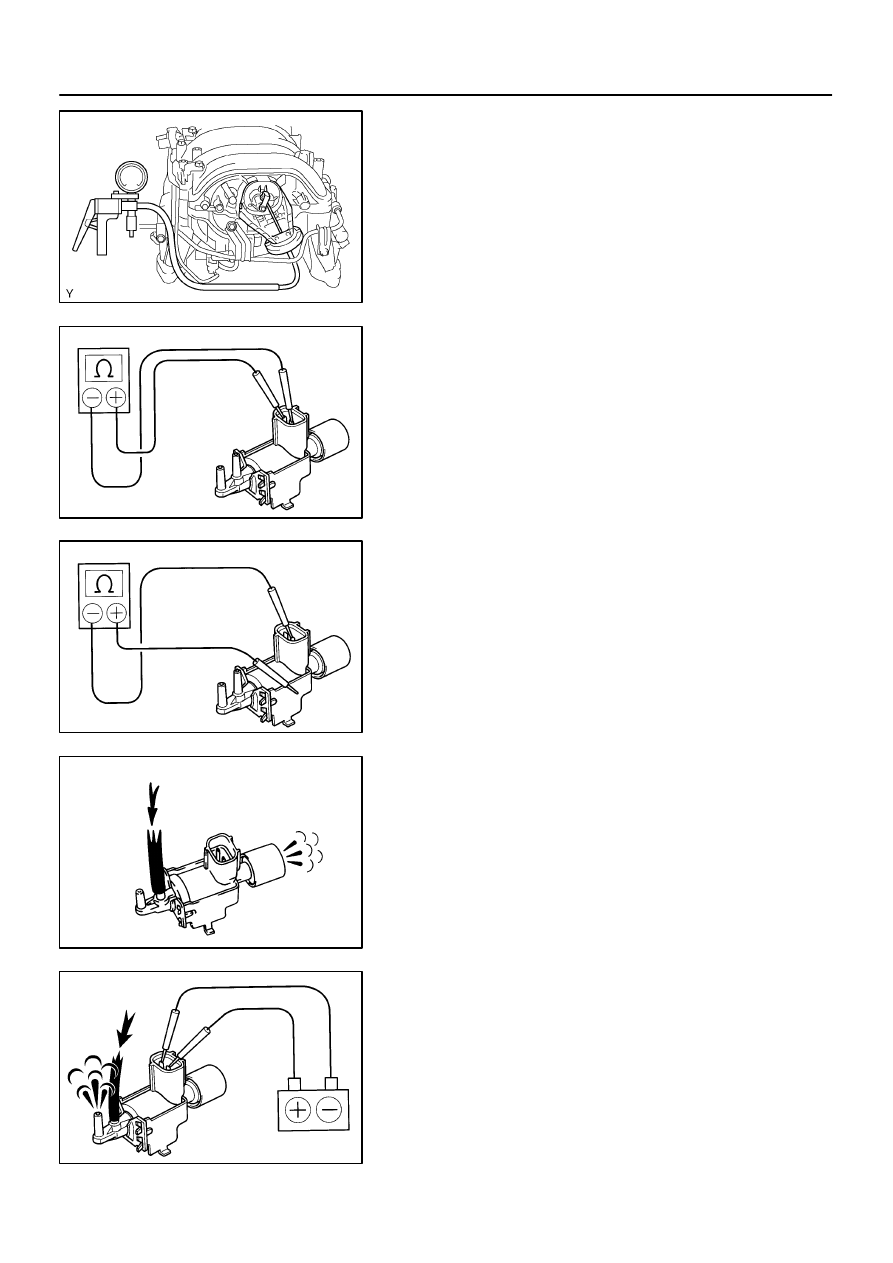

INSPECTION

1.

INSPECT INTAKE AIR CONTROL VALVE

(a)

With 39.9 kPa (300 mmHg, 11.8 in.Hg) of vacuum applied
to the actuator, check that the actuator rod moves.

(b)

One minute after applying the vacuum in step (a), check
that the actuator rod does not return.

If the operation is not as specified, replace the intake manifold.

2.

INSPECT VSV

(a)

Using an ohmmeter, check that there is continuity be-
tween each terminal.
Resistance: 33 to 39

Ω

 at 20

°

C (68

°

F)

If there is no continuity, replace the VSV.

(b)

Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.

If there is continuity, replace the VSV.

(c)

Check that air flows from port E to the filter.

(d)

Apply battery voltage across the terminals.

(e)

Check that air flows from port E to port F.

If operation is not as specified, replace the VSV.
