Toyota Sequoia (2005). Manual - part 651

A23302

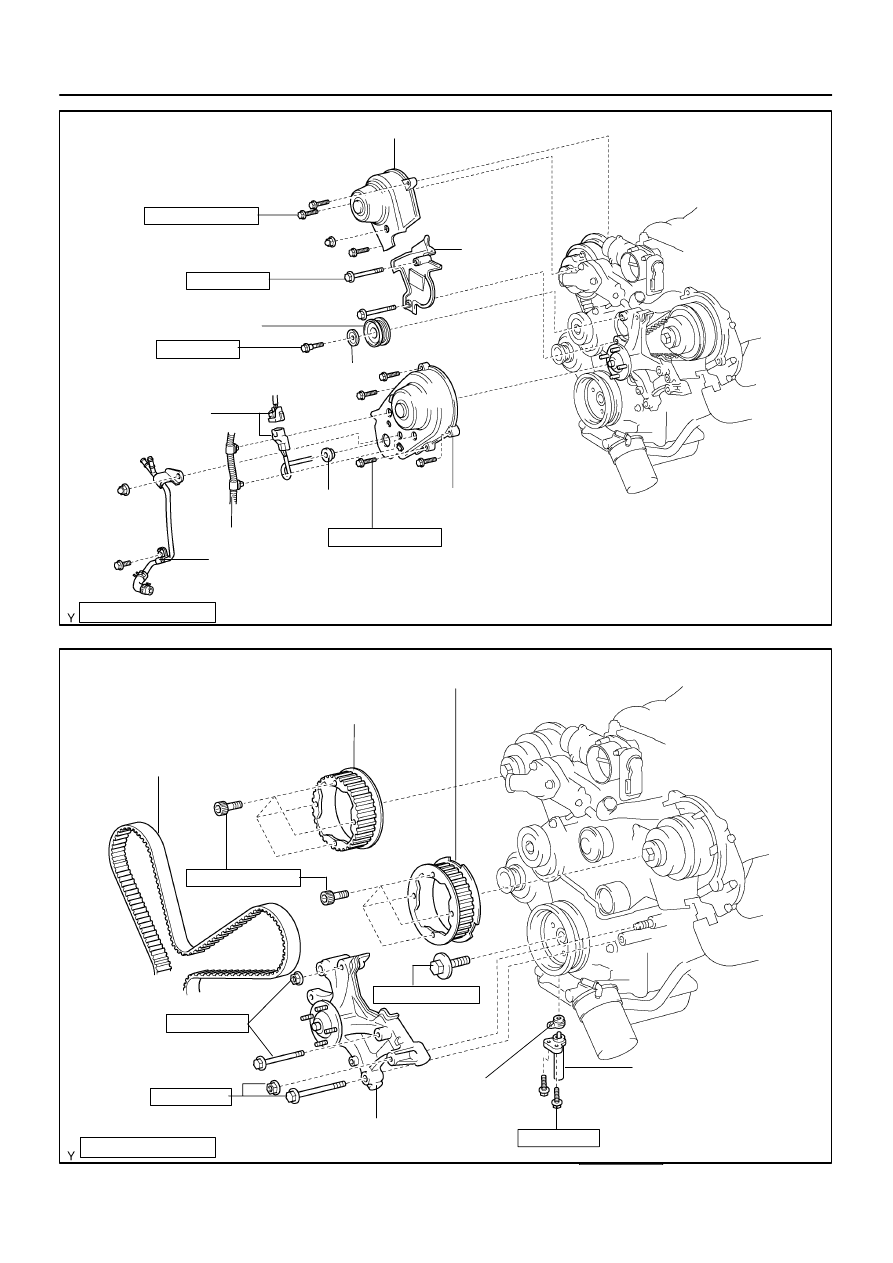

RH No.3 Timing Belt Cover

No.2 Timing
Belt Cover

LH No.3 Timing Belt Cover

Drive Belt Idler Pulley

Camshaft Position
Sensor Connector

Cover Plate

Oil Cooler Pipe

Engine Wire

7.5 (76, 66 in.·lbf)

16 (160, 12)

7.5 (76, 66 in.·lbf)

N·m (kgf·cm, ft·lbf) : Specified torque

Wire Grommet

39 (400, 29)

A23303

Timing Belt

LH Camshaft Timing Pulley

Timing Belt Tensioner

Dust Boot

245 (2,500, 181)

16 (160, 12)

32 (330, 24)

RH Camshaft Timing Pulley

26 (270, 19)

Fan Bracket

N·m (kgf·cm, ft·lbf) : Specified torque

8.1 (83, 72 in.·lbf)

EM–14

–

ENGINE MECHANICAL

TIMING BELT

2593

A23304

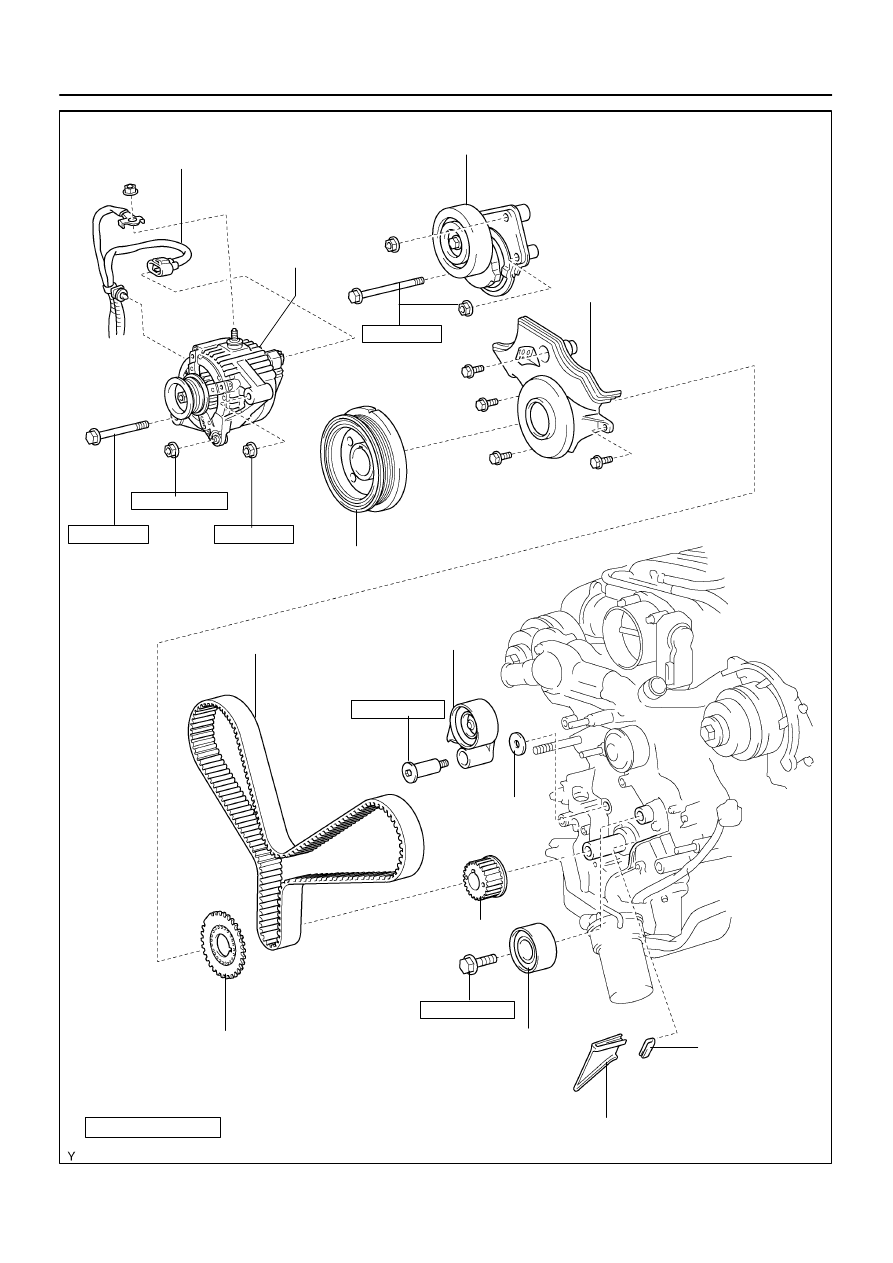

Generator Wire

Drive Belt Tensioner

No.1 Timing Belt Cover

Generator

Crankshaft Pulley

39 (400, 29)

No.1 Idler Pulley

Timing Belt

Plate Washer

Crankshaft Timing Pulley

Timing Belt Cover Spacer

No.2 Idler Pulley

Timing Belt Guide
(Crankshaft Angle Sensor Plate)

Gasket

34.5 (350, 25)

34.5 (350, 25)

N·m (kgf·cm, ft·lbf) : Specified torque

 Precoated part

26 (265, 19)

39 (400, 29)

15.5 (158, 11)

–

ENGINE MECHANICAL

TIMING BELT

EM–15

2594

EM1WX–01

A08934

A04329

A04331

EM–16

–

ENGINE MECHANICAL

TIMING BELT

2595

REMOVAL

1.

REMOVE ENGINE UNDER COVER

2.

DRAIN ENGINE COOLANT

3.

REMOVE RADIATOR ASSEMBLY (See page

CO–17

)

4.

REMOVE THROTTLE BODY COVER

5.

REMOVE INTAKE AIR CONNECTOR ASSEMBLY

6.

REMOVE DRIVE BELT, FAN, FLUID COUPLING AND
FAN PULLEY

(a)

Loosen the 4 nuts holding the fluid coupling to the fan
bracket.

(b)

Remove the drive belt. (See page

CH–7

)

(c)

Remove the 4 nuts, the fan, fluid coupling assembly and
fan pulley.

7.

DISCONNECT PS PUMP

Remove the 3 bolts, and disconnect the PS pump from the en-
gine.
HINT:
Suspend the PS pump securely.
8.

REMOVE DRIVE BELT IDLER PULLEY

Remove the pulley bolt, cover plate and idler pulley.

9.

REMOVE RH NO.3 TIMING BELT COVER

Remove the 3 bolts, nut and RH No.3 timing belt cover.

10.

REMOVE LH NO.3 TIMING BELT COVER

(a)

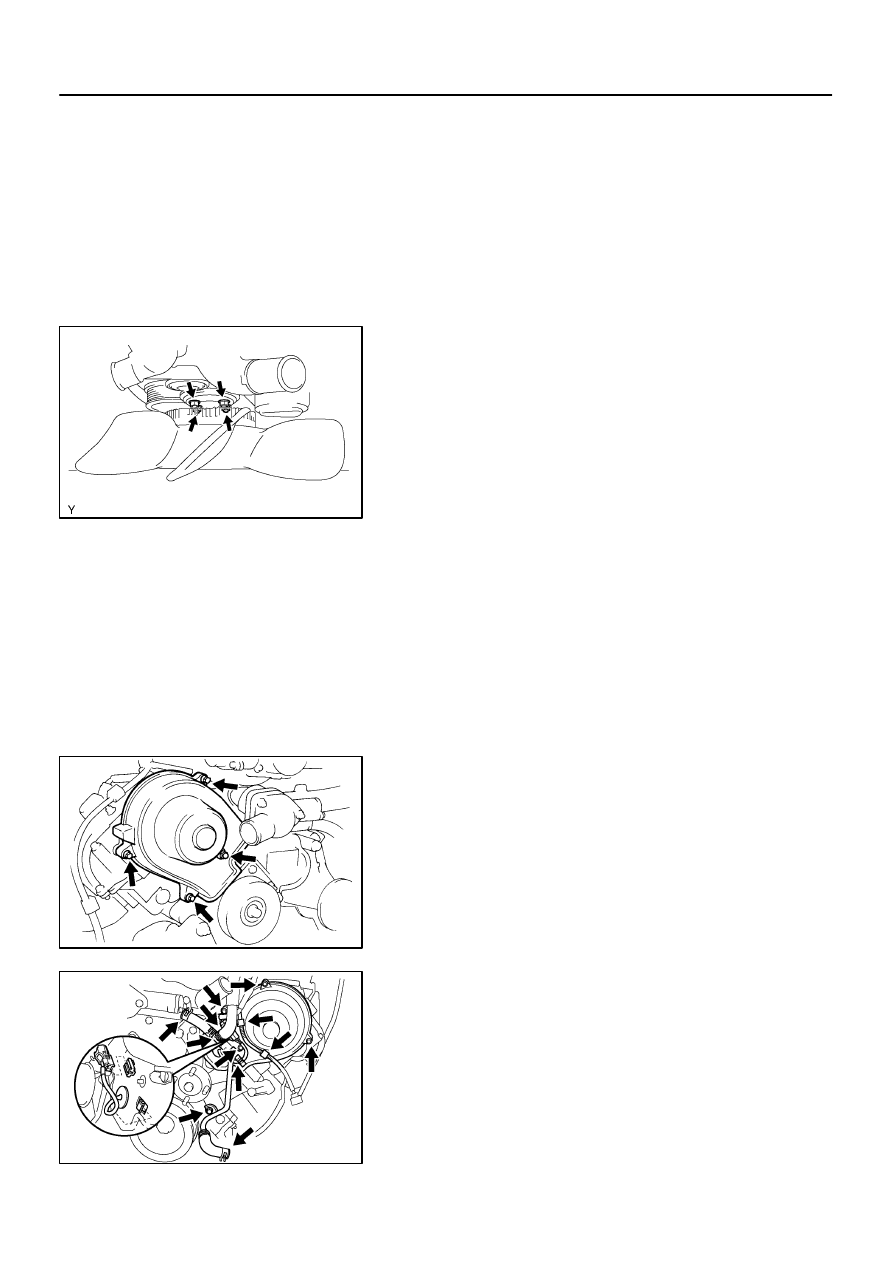

Disconnect the engine wire from the 2 wire clamps.

(b)

Remove the 4 bolts and nut.

(c)

Disconnect the camshaft position sensor wire from the
wire clamp on the LH No.3 timing belt cover.

(d)

Disconnect the camshaft position sensor connector from
the connector bracket.

(e)

Disconnect the camshaft position sensor connector.

(f)

Remove the wire grommet from the LH No.3 timing belt
cover.

A04330

A04455

A23305

A23306

SST

–

ENGINE MECHANICAL

TIMING BELT

EM–17

2596

(g)

Remove the LH No.3 timing belt cover.

(h)

Remove the bolt, nut and oil cooler pipe.

11.

REMOVE NO.2 TIMING BELT COVER

Remove the 2 bolts and No.2 timing belt cover.
12.

DISCONNECT A/C COMPRESSOR FROM ENGINE
(See page

EM–79

)

13.

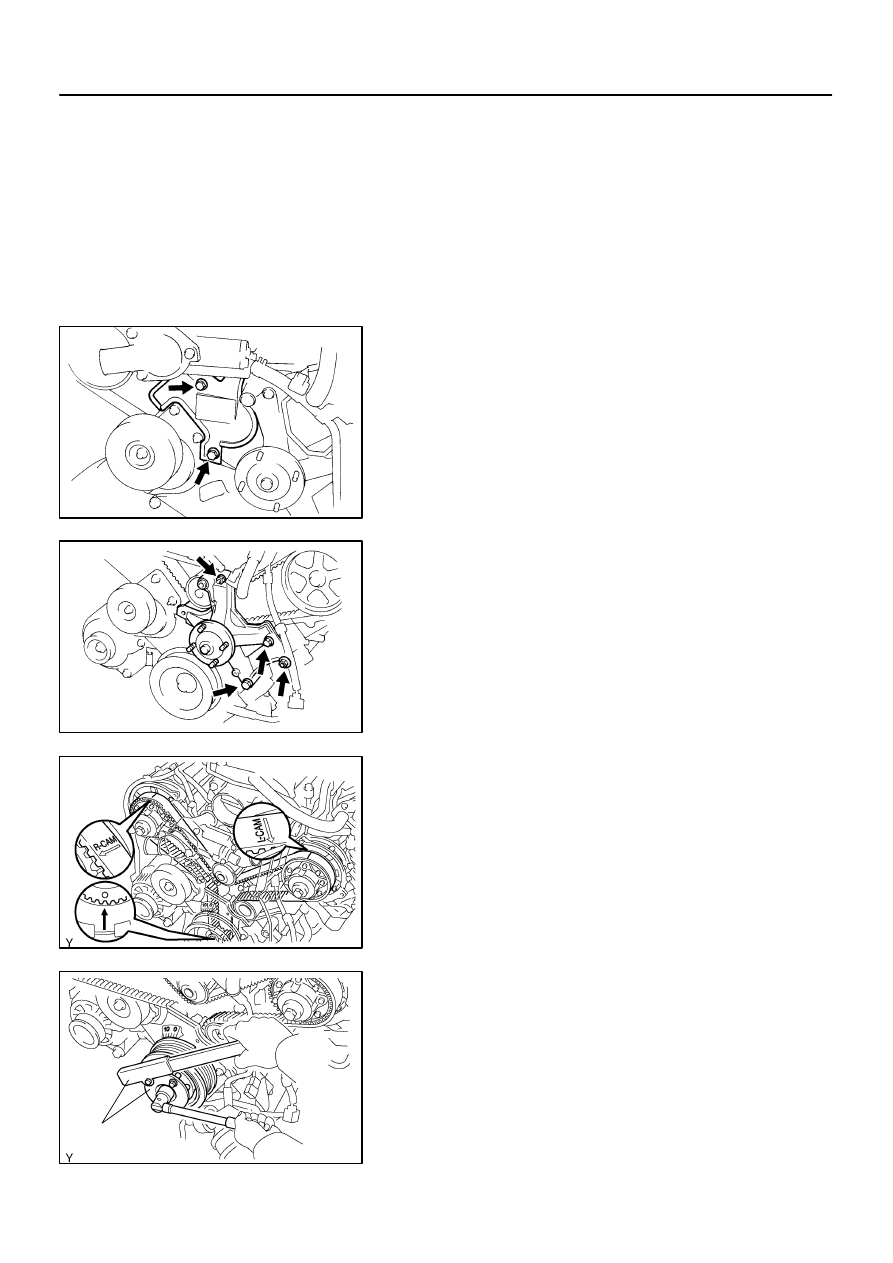

REMOVE FAN BRACKET

Remove the 2 bolts, 2 nuts and fan bracket.

14.

IF RE–USING TIMING BELT, CHECK INSTALLATION
MARKS ON TIMING BELT

Check that there are 3 installation marks on the timing belt by
turning the crankshaft pulley as shown in the illustration.
HINT:
If the installation marks have disappeared, place a new installa-
tion mark on the timing belt before removing each part.

15.

LOOSEN CRANKSHAFT PULLEY BOLT

Using SST, loosen the pulley bolt.

SST

09213–70011 (90105–08076), 09330–00021
