DI6OX–17

Supplemental Restraint System Check Sheet

VIN

Production Date

Licence Plate No.

Odometer Reading

Weather

Temperature

Vehicle Operation

Road Conditions

Details of Problem

Vehicle Inspection, and Repair
History



Prior to Occurrence of

Malfunction (Including Supple-
mental Restraint System)

Diagnostic System Inspection

SRS Warning Light
Inspection

DTC Inspection

1st Time

2nd Time

1st Time

2nd Time

Inspector’s
Name

Fine

Cloudy

Rainy

Snowy

Other

Approx.

Starting

Idling

Driving

[

Constant speed

Acceleration

Deceleration

Other

]

Remains ON

Sometimes comes on

Does not come on

Remains ON

Sometimes comes on

Normal System Code

Trouble Code

Normal System Code

Trouble Code

[ Code.

]

[ Code.

]

km
miles

/

/

/

/

/

/

Remains ON

Remains ON

Does not come on

Does not come on

1st Time

2nd Time

Passenger Airbag
ON/OFF Indicator
Inspection

Does not come on

Customer’s Name

Remains ON

Remains ON

Does not come on

Does not come on

1st Time

2nd Time

RSCA OFF Indicator
Inspection

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1127

1321

CUSTOMER PROBLEM ANALYSIS CHECK

DIDGK–01

A08841

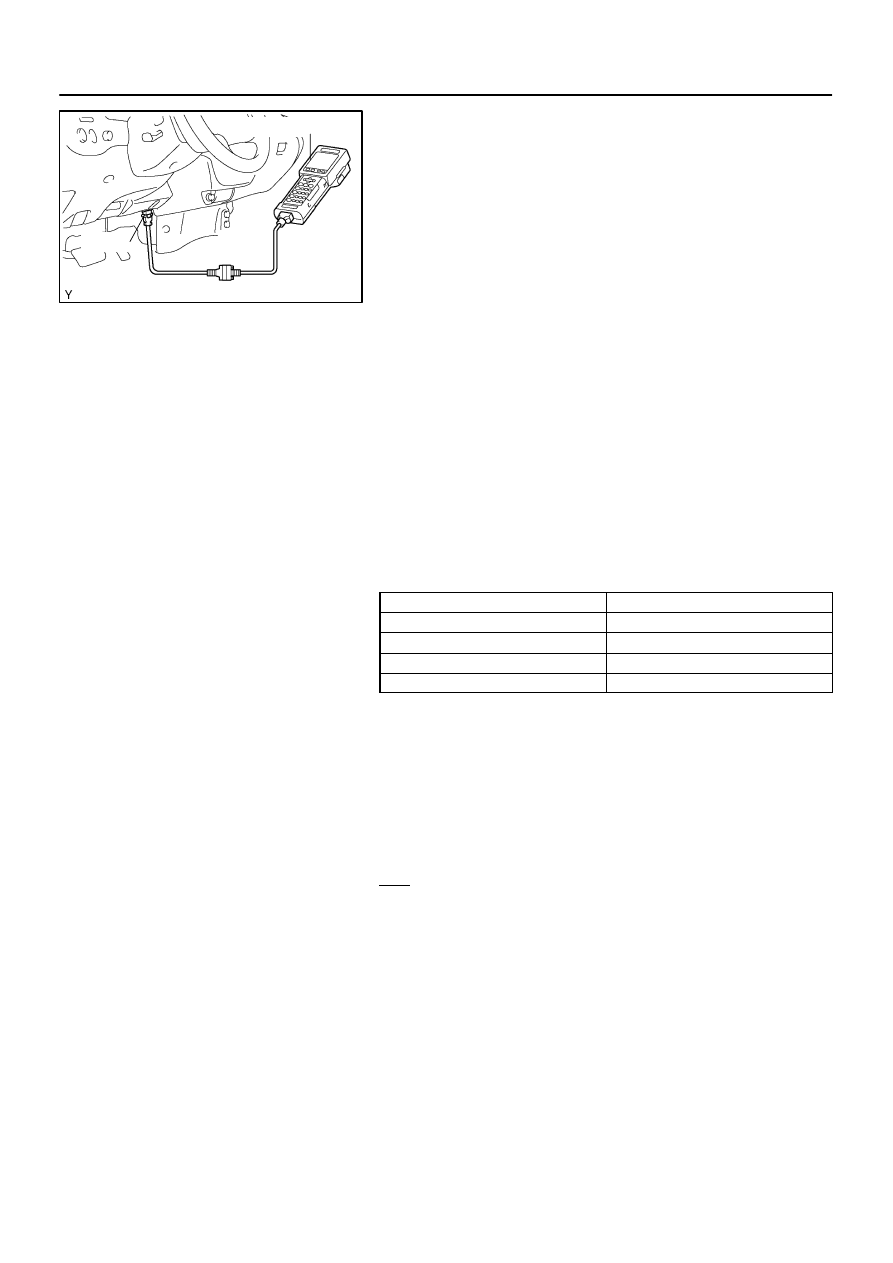

Hand–held Tester

DLC3

DI–1128

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1322

INITIALIZATION

ZERO POINT CALIBRATION AND SENSITIVITY CHECK
NOTICE:
Make sure that the seat is not occupied before performing
the operation.
HINT:
Perform the zero point calibration and sensitivity check if any of
the following conditions occur.

The occupant classification ECU is replaced.

Accessories (seatback tray and seat cover, etc.) are
installed.

The passenger seat is removed from the vehicle.

The passenger airbag ON/OFF indicator (”OFF”) comes
on when the passenger seat is not occupied.

The vehicle is brought to the workshop for repair due to
an accident or a collision.

Zero point calibration and sensitivity check procedures.
HINT:
Make sure that zero point calibration has finished normally, and
then perform the sensitivity check.

(1)

Adjust the seat position according to the table be-
low.

Adjustment Component

Position

Slide Direction

Rearmost position

Reclining Angle

Upright position

Headrest Height

Lowest position

Lifter Height

Lowest position

(2)

Connect the hand–held tester to the DLC3.

(3)

Turn the ignition switch to the ON position.

(4)

Perform the zero point calibration by following the
prompts on the tester screen shown in 2 pages lat-
er.

HINT:
Refer to the hand–held tester operator’s manual for further de-
tails.
OK:

The ”COMPLETE” is displayed.

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1129

1323

(5)

Perform the sensitivity check by following the
prompts on the tester screen shown in 2 pages lat-
er.

(6)

Confirm that the beginning sensor reading is within
the standard value.

OK:

Standard value: –3.2 to 3.2 kg (–7 to 7 lb)
(7)

Place a 30 kg (66.14 lb) weight (eg. a 30 kg (66.14
lb) of lead mass) onto the passenger seat.

(8)

Confirm that the sensitivity is within the standard
value.

OK:

Standard value: 27 to 33 kg (59.52 to 72.75 lb)

HINT:

When performing the sensitivity check, use a solid metal
weight (the check result may not appear properly if the
weight made from liquid is used).

When the sensitivity deviates from the standard value, re-
tighten the bolts of the passenger seat taking care not to
deform the seat rail. After performing this procedure, if the
sensitivity is not within the standard value, replace the
front seat assembly RH.

When zero point calibration has not finished normally, re-
place the front seat assembly RH.

DIAGNOSTIC MENU

OCCUPANT DETECT

1: DATA LIST
2: DTC INFO

5: ZERO CALIBRATION

6: SENSITIVITY CHK

4: SNAPSHOT

NOTICE

Please confirm seat
position.

Slide: Max rear
Recline: Max upright
Headrest: Max down
Lifter: Max down

PRESS [ENTER] or [EXIT]

NOTICE

Confirm that
nothing is placed
on the passenger
seat.

PRESS [ENTER] or [EXIT]

NOTICE

Do you wish to
start  ”ZERO
CALIBRATION”?

PRESS [YES] or [NO]

ZERO CALIBRATION

COMPLETED

Next, perform the
SENSITIVITY CHECK.

PRESS [ENTER]

ZERO POINT CALIBRATION PROCEDURE

”1: DIAGNOSIS” – ”1: OBD/MOBD” – ”MODEL YEAR” – ”MODEL SELECTION = SEQUOIA” –
Select the option parts – ”9: OCCUPANT DETECT” – Refer to the following screen flow.

ZERO CALIBRATION

FAILED

EEPROM writing error

Please check DTCs

PRESS [ENTER]

ZERO CALIBRATION

FAILED

Failed to SECURITY

ACCESS.

PRESS [ENTER]

Try again

ZERO CALIBRATION

FAILED

Sensor range

Front Left

PRESS [ENTER]

over malfunction

Front Right

Rear Left
Rear Right

––––[        ]
––––[        ]

––––[        ]

––––[        ]

Sensor information is
expressed as OK, MAX or MIN
in [     ].

If MAX or MIN is displayed,
replace the front seat assembly RH.

Perform sensitivity check.

Perform DTC check and repair.

DI–1130

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1324
