D14237

L4

4WD Control ECU:

F23

D14167

ECM:

E8

E7

E6

E5

E4

L4(+)

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–687

881

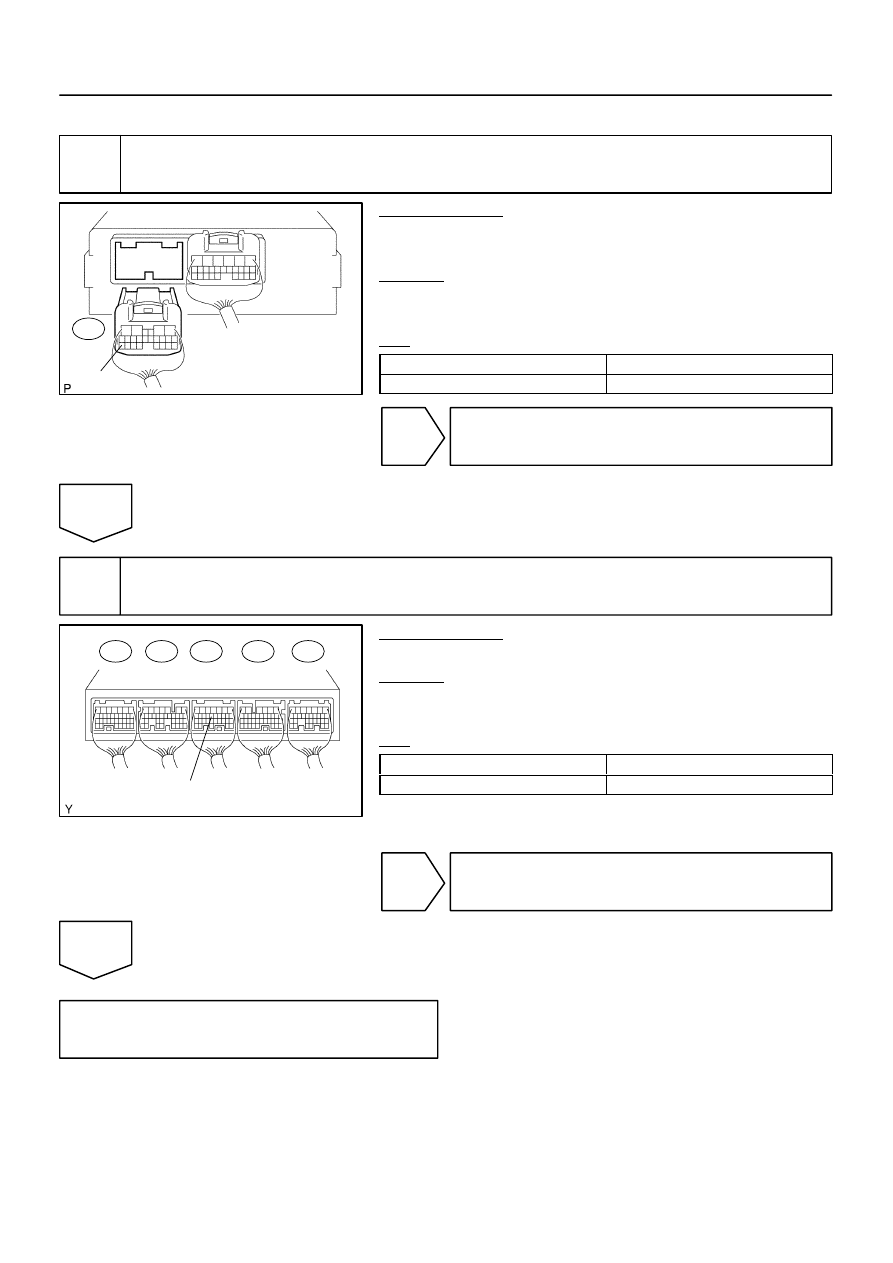

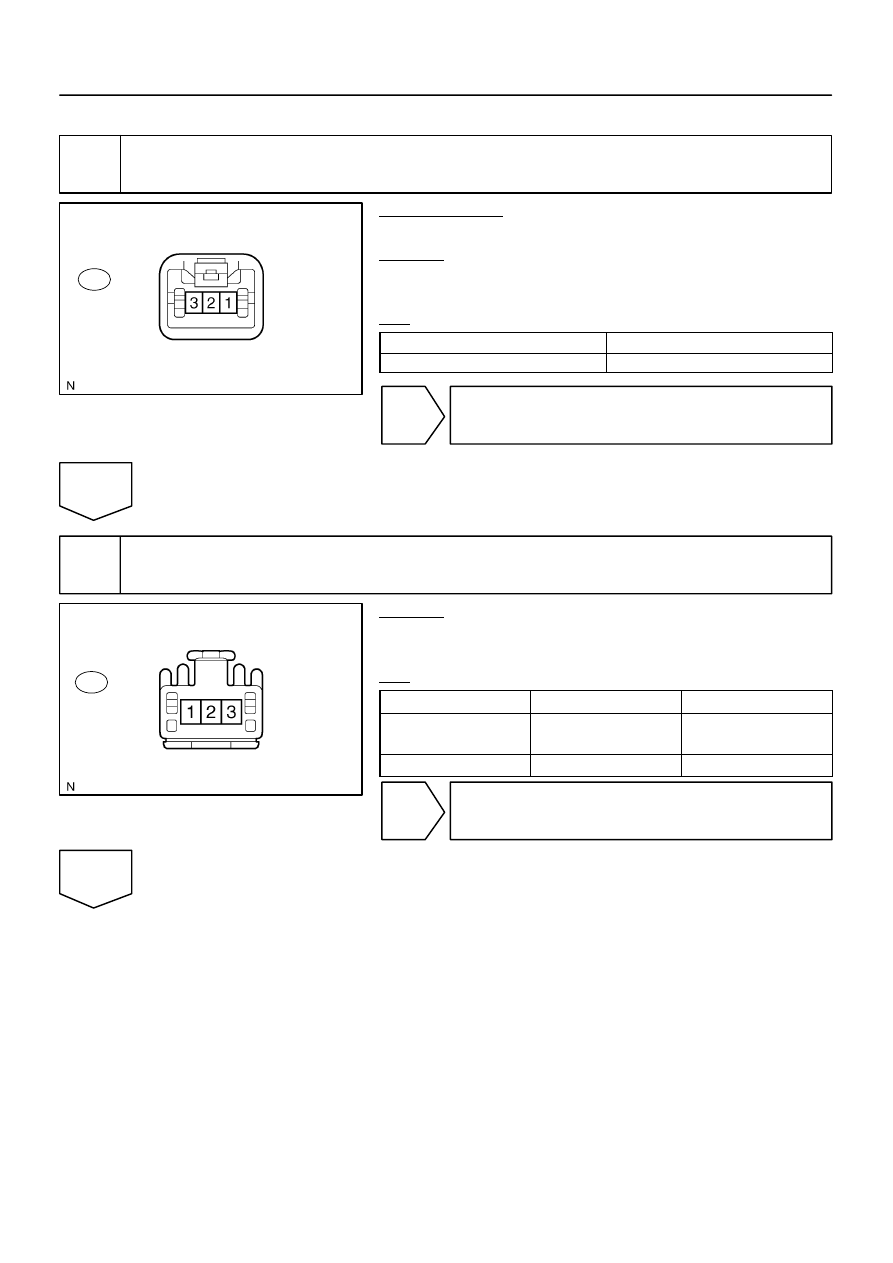

INSPECTION PROCEDURE

1

Inspect terminal voltage (L4 – body ground).

PREPARATION:
Disconnect the 4WD control ECU connector and turn the igni-
tion switch ON.
CHECK:
Measure the voltage according to the value(s) in the table be-
low.
OK:

Tester Connection

Specified Condition

F23 – 24 (L4) – Body ground

10 to 14 V

NG

Check and replace 4WD control ECU
(See page

TR–39

).

OK

2

Inspect terminal voltage (L4 – body ground).

PREPARATION:
Turn the ignition switch ON.
CHECK:
Measure the voltage according to the value(s) in the table be-
low.
OK:

Tester Connection

Specified Condition

E6 – 13 (L4) – Body ground

10 to 14 V

NG

Replace the ECM (See page

SF–80

).

OK

Repair or replace the harness or connector
(See page

IN–35

).

D14232

J12
J/C

A

L–W

ODMS

E4

12

ECM

O3
O/D
Main SW

W–B

IF

3

1

DI–688

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

882

O/D Main Switch Circuit

CIRCUIT DESCRIPTION

The O/D main switch (transmission control switch) is a momentary type switch. When pressing the O/D main
switch once, the O/D OFF indicator light comes on and the ECM prohibits shifting into O/D. When pressing
it once again, the O/D OFF indicator light goes off and the ECM allows shifting into O/D. Turning the IG switch
OFF will reset the O/D OFF indicator light.

WIRING DIAGRAM

DIDJR–01

D14181

Wire Harness Side:
(Connector Front View):

O3

D14182

Switch Side:
(Connector Front View):

O3

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–689

883

INSPECTION PROCEDURE

1

Check harness and connector (O/D main switch – body ground)

PREPARATION:
Disconnect the O/D main switch connector.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Specified Condition

1 – Body ground

Below 1

Ω

NG

Repair or replace the harness or connector
(See page

IN–35

).

OK

2

Inspect O/D main switch.

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Switch Condition

Tester Connection

Specified Condition

O/D main switch pressed

and held

1 – 3

Below 1

Ω

O/D main switch released

↑

10 k

Ω

 or higher

NG

Replace O/D main switch (See page

AT–18

).

OK

D14183

E8

E7

E6

E5

E4

ECM:

ODMS

DI–690

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

884

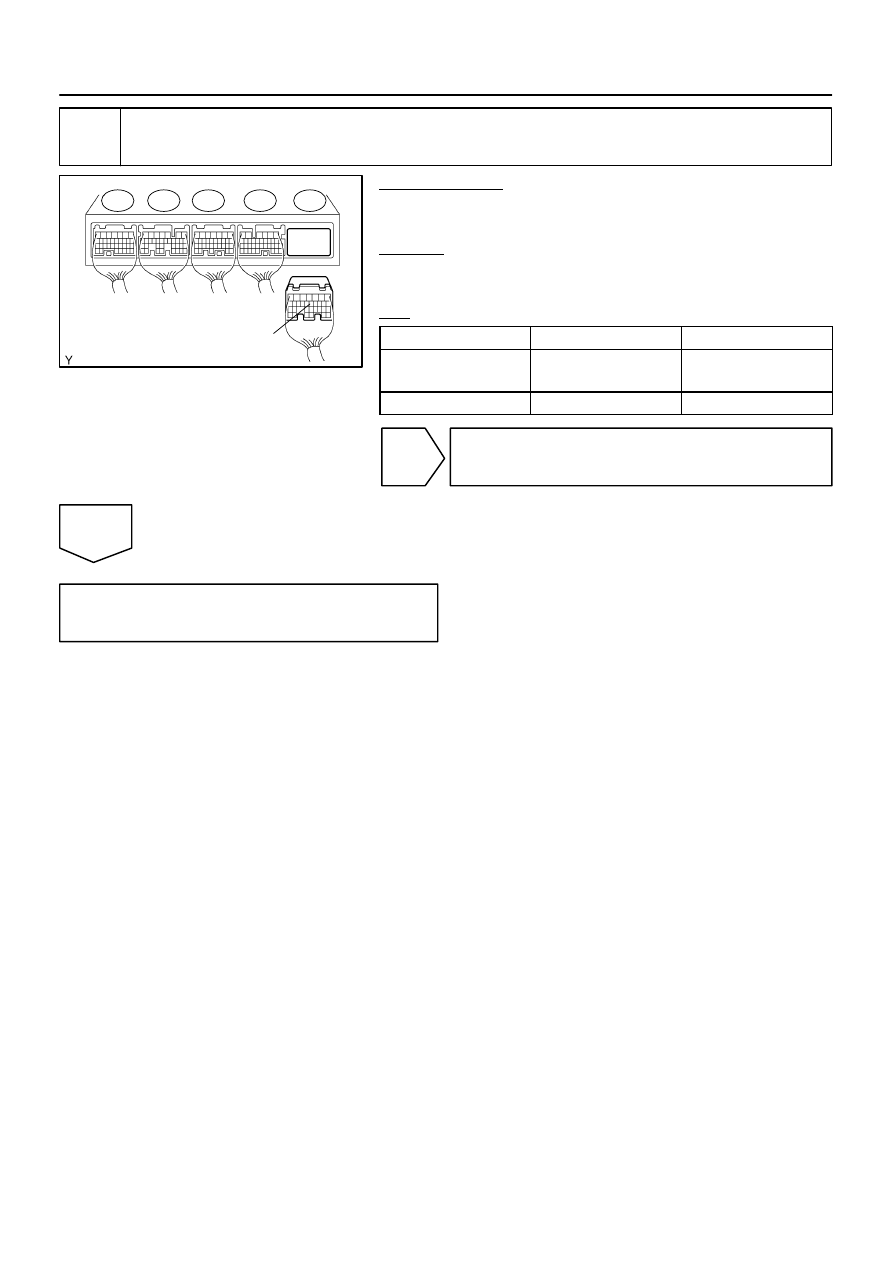

3

Check harness and connector (O/D main switch – ECM).

PREPARATION:
(a)

Connect the O/D main switch connector.

(b)

Disconnect the connector from the ECM.

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Switch Condition

Tester Connection

Specified Condition

O/D main switch pressed

and held

E4 – 12 (ODMS) –

Body ground

Below 1

Ω

O/D main switch released

↑

10 k

Ω

 or higher

NG

Repair or replace harness or connector
(See page

IN–35

).

OK

Proceed to next circuit inspection shown on
matrix chart (See page

DI–553

).
