B17411

FC (+)

E4

DIAGNOSTICS

ENGINE

DI–511

705

6

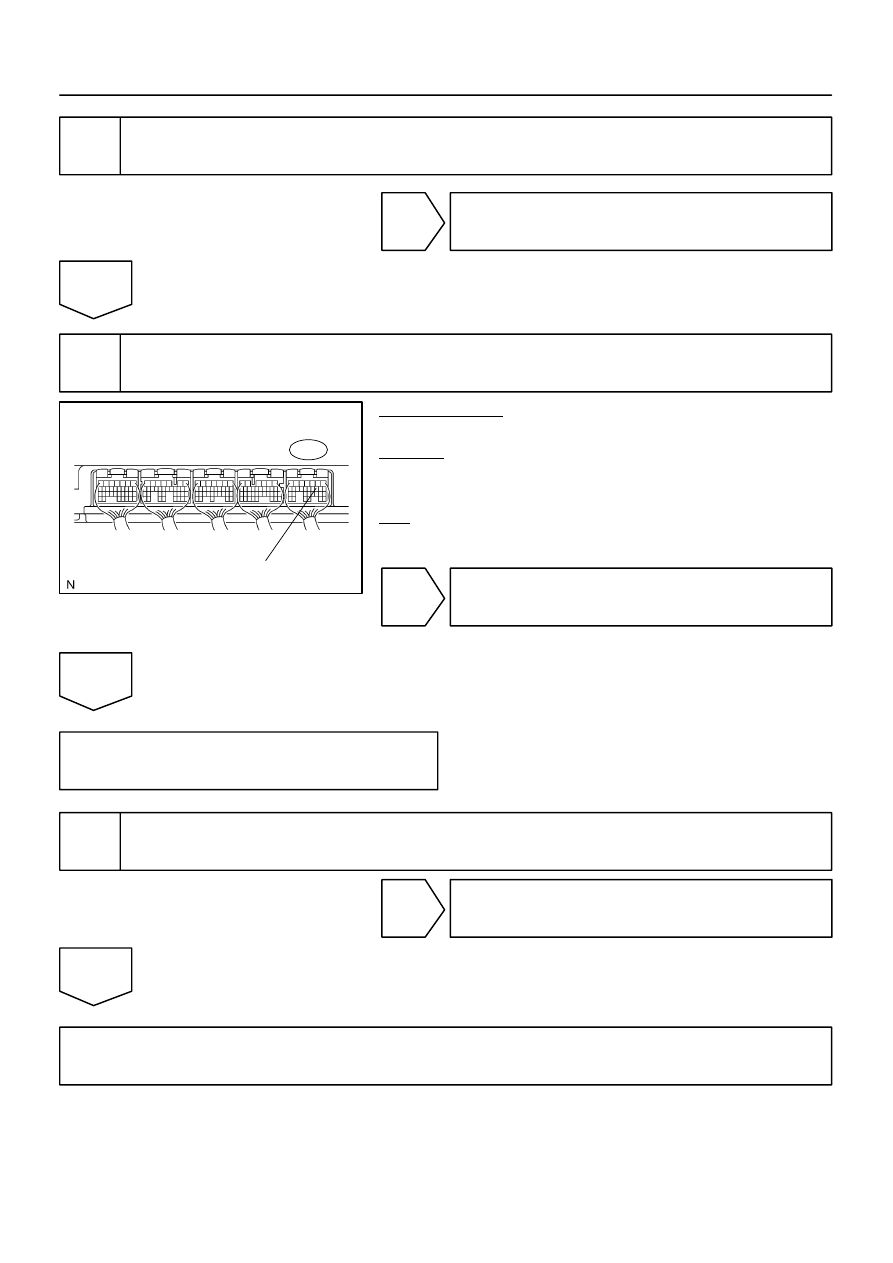

Check for open in harness and connector between circuit opening relay and fuel
pump, and fuel pump and body ground (See page

IN–35

).

NG

Repair or replace harness or connector.

OK

7

Check voltage between terminal FC and E1 of ECM connector.

PREPARATION:
Turn the ignition switch ON.
CHECK:
Measure the voltage between terminal FC of the ECM connec-
tor and body ground.
OK:

Voltage: 9 to 14 V

NG

Check for open in harness and connector be-
tween battery and FC terminal of ECM (See page

IN–35

).

OK

Proceed to problem symptoms table
(See page

DI–33

).

8

Check fuel pump resistor (See page

SF–61

).

NG

Replace fuel pump resistor.

OK

Check for open in harness and connector between circuit opening relay and fuel pump resistor,
and fuel pump resistor and fuel pump (See page

IN–35

).

A21044

Engine
Room
R/B

R–B

7

ECM

W

E4

11

C8

C10

1

2

B

R–L

15

2

2

Battery

7

6

I18
Ignition
Switch

4

1D

1G

6

B–R

R

GAUGE

Combination
Meter

Malfunction
Indicator
Lamp

AM2

IG2

AM2

DI–512

DIAGNOSTICS

ENGINE

706

MIL Circuit

CIRCUIT DESCRIPTION

If the ECM detects a trouble, the MIL lights up. At this time, the ECM records a DTC in the memory.

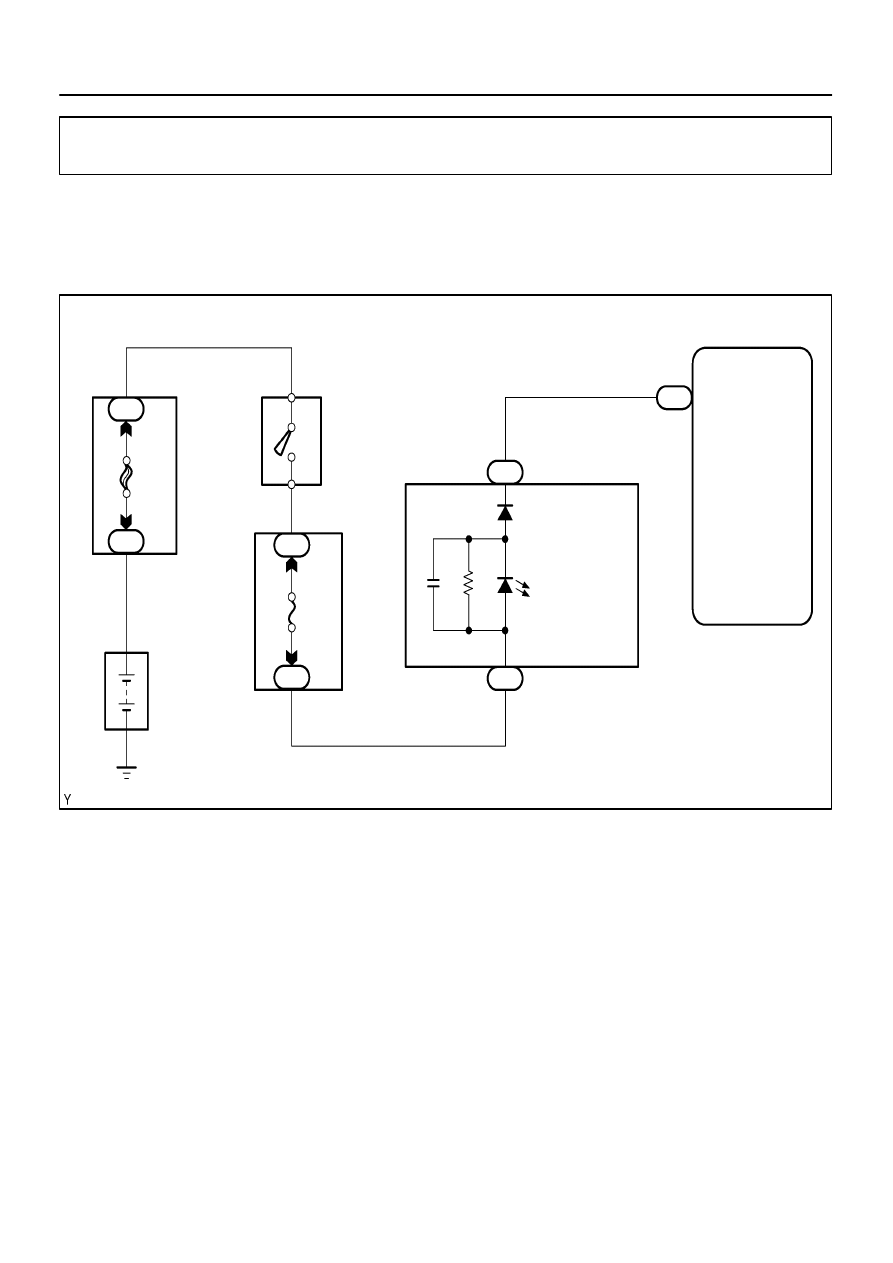

WIRING DIAGRAM

DICFG–02

B17418

W

E5

DIAGNOSTICS

ENGINE

DI–513

707

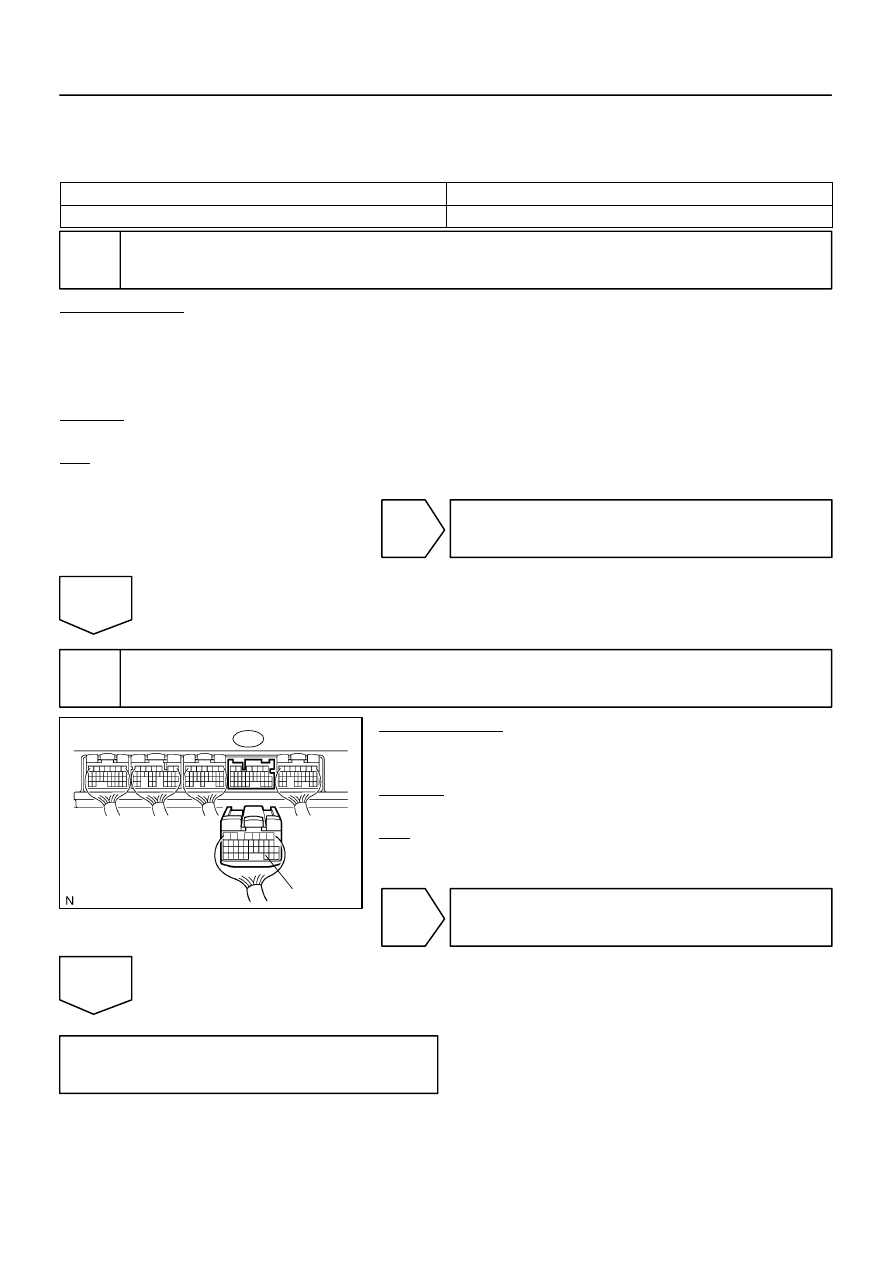

INSPECTION PROCEDURE

HINT:
Troubleshoot each trouble symptom in accordance with the chart below.

MIL remains on

Start inspection from step 1

MIL does not light up

Start inspection from step 3

1

Clear DTC.

PREPARATION:
(a)

Connect the hand–held tester to the DLC3.

(b)

Turn the ignition switch ON and push the hand–held tester main switch ON.

(c)

Read the DTC (See page

DI–43

).

(d)

Clear the DTC (See page

DI–43

).

CHECK:
(a)

Check that MIL does not light up.

OK:

Standard: MIL does not light up

OK

Repair circuit indicated by output code
(See page

DI–58

).

NG

2

Check Harness and connector (Check for short in wire harness).

PREPARATION:
(a)

Disconnect the E4 ECM connector.

(b)

Turn the ignition switch ON.

CHECK:
(a)

Check that MIL does not light up.

OK:

Standard: MIL does not light up

OK

Replace ECM (See page

SF–80

).

NG

Check and repair harness and connector be-
tween combination meter and ECM.

DI–514

DIAGNOSTICS

ENGINE

708

3

Check that MIL lights up.

CHECK:
Check that MIL lights up when turning the ignition switch ON.
OK:

Standard: MIL lights up

OK

System OK.

NG

4

Inspect combination meter assy (MIL circuit).

See the combination meter troubleshooting on page

BE–55

.

NG

Repair or replace bulb or combination meter as-
sembly.

OK

Check and repair harness and connector be-
tween combination meter and ECM.
