7-3. Do-it-yourself maintenance

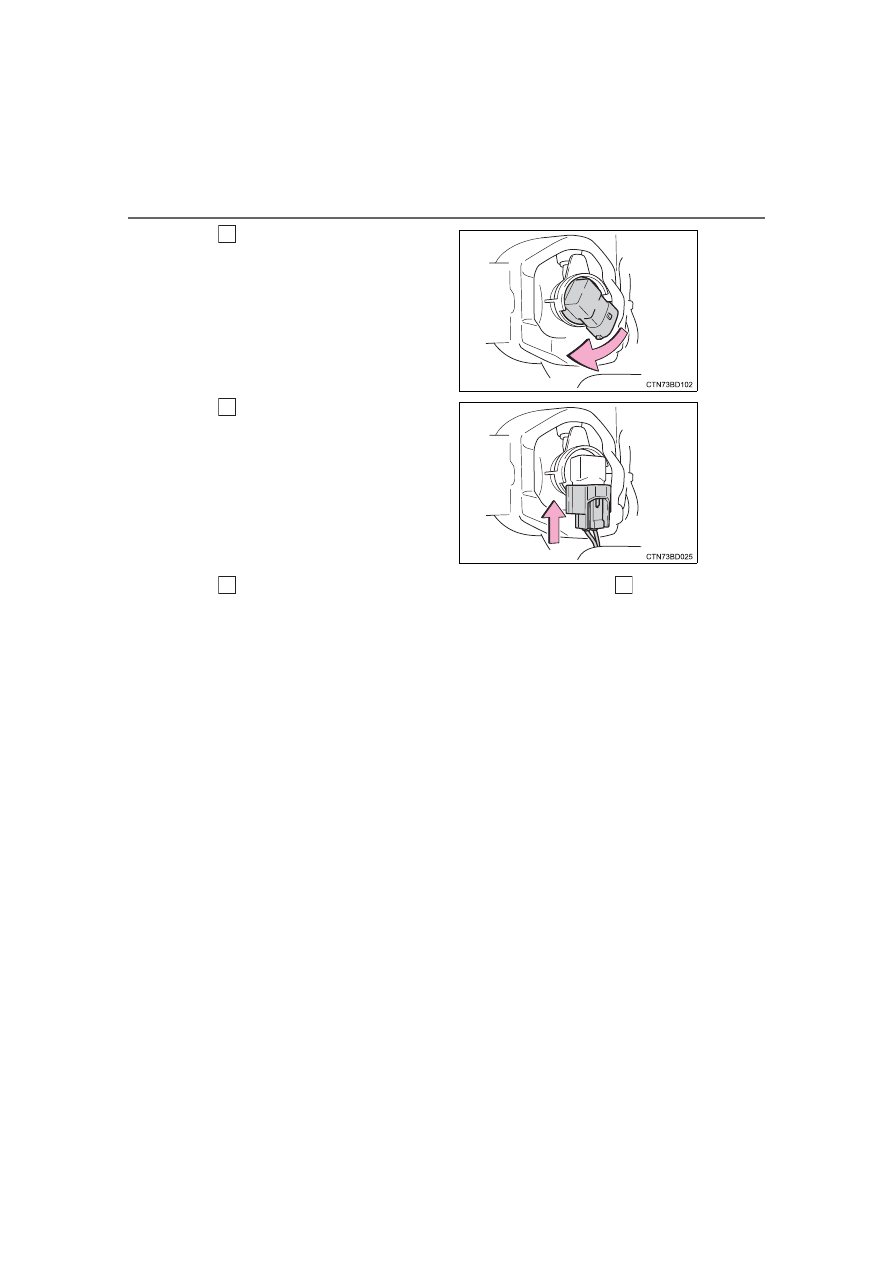

Turn clockwise and secure
the bulb base.

Install the connector.

Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.

When installing the fender liner, install by conducting

 with the

directions reversed.

Make sure that the fender liner is attached to the inside of the bumper.

5

6

7

1

565

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

■

Rear turn signal lights

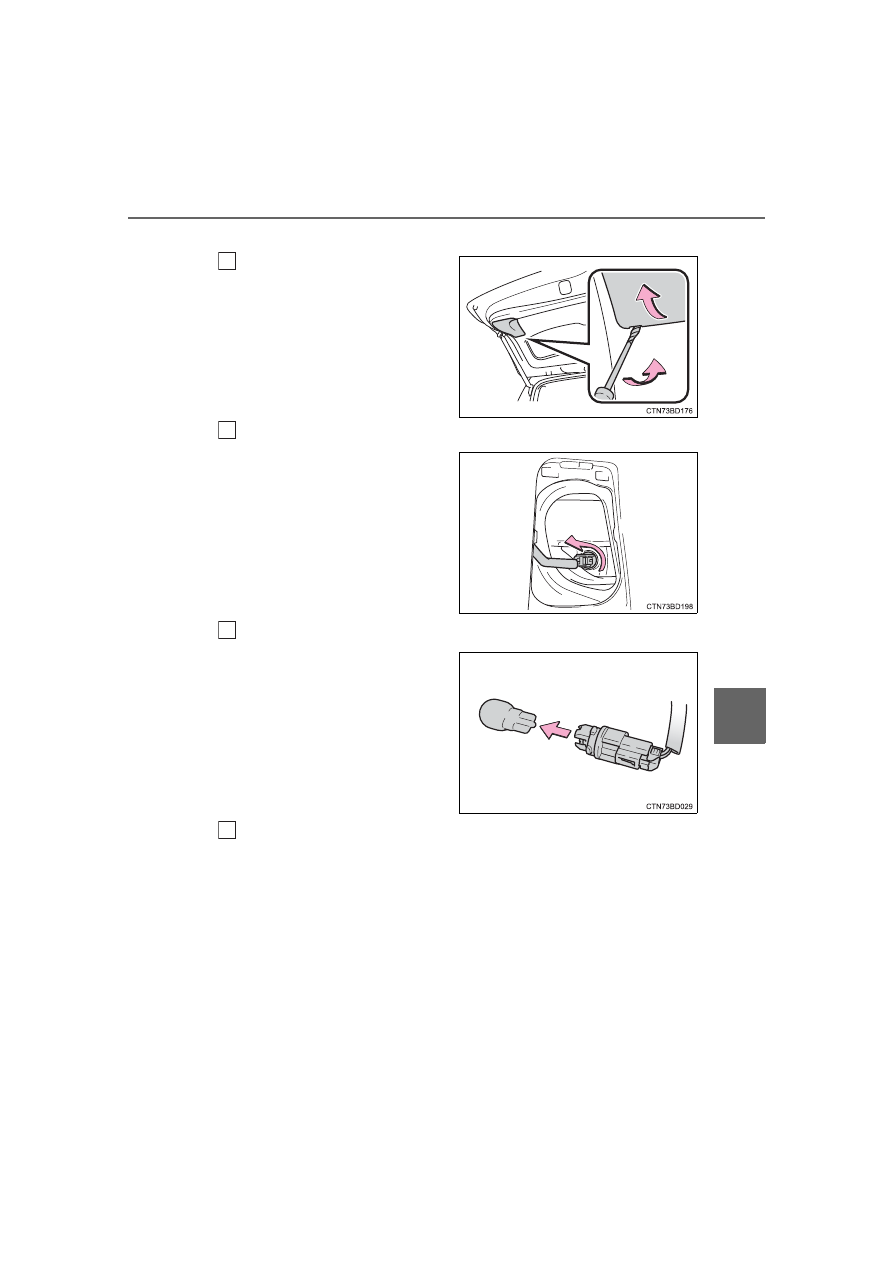

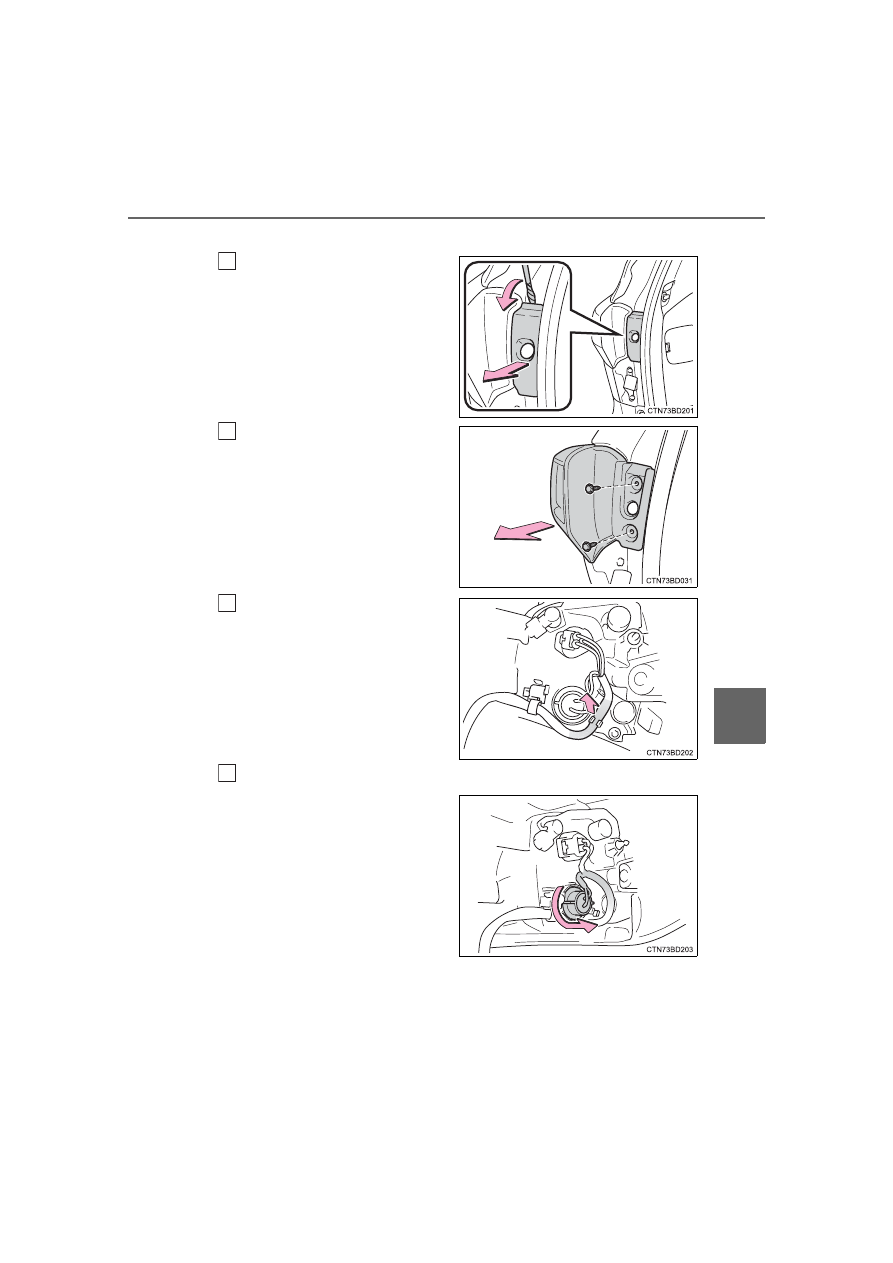

Open the back door and
remove the cover.

Insert a flathead screwdriver
into the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Remove the 2 screws, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.

Remove the wire harness.

Turn the bulb base counterclockwise.

1

2

3

4

566

7-3. Do-it-yourself maintenance

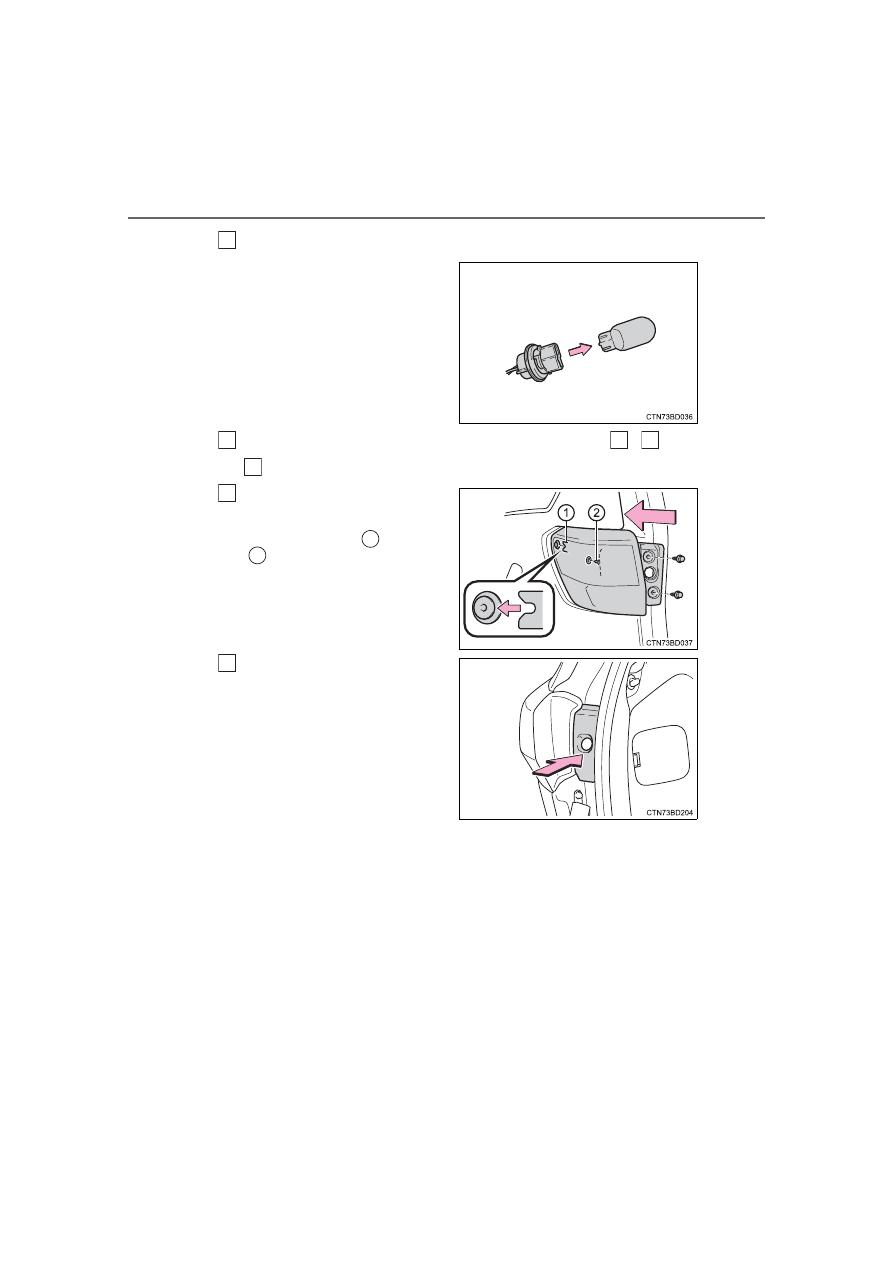

Remove the light bulb.

When installing the light bulb, install by conducting

,

 and

 with the directions reversed.

Install the lamp assembly
and then install the 2 screws.

Align the guide (

) and pin

(

) on the lamp assembly with

the mounting when installing it.

Install the cover.

5

6

5

4

3

7

1

2

8

567

7-3. Do-it-yourself maintenance

7

Mainten

ance an

d ca

re

■

Back-up lights

Open the back door and
remove the cover.

Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.

To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.

Turn the bulb base counterclockwise.

Remove the light bulb.

When installing, reverse the steps listed.
