4-1. Before driving

■

Unbraked TWR (Unbraked Trailer Weight Rating)

The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.

■

Tongue Weight

The load placed on the trailer
hitch ball. (

→P. 207)

(Without brakes)

205

4-1. Before driving

4

Drivin

g

● The gross trailer weight must never exceed the TWR described in

the table. (

→P. 206)

● The gross combination weight must never exceed the GCWR

described in the table. (

→P. 206)

● The gross vehicle weight must

never exceed the GVWR indi-
cated on the Certification Label.

● The gross axle weight on each

axle must never exceed the
GAWR indicated on the Certifi-
cation Label.

● If the gross trailer weight is over the unbraked TWR, trailer service

brakes are required.

● If the gross trailer weight is over 2000 lb. (900 kg), a sway control

device with sufficient capacity is required.

● If the gross trailer weight is over 5000 lb. (2200 kg), a weight distrib-

uting hitch with sufficient capacity is required.

Weight limits

206

4-1. Before driving

Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.

■

GCWR

*

1

 and TWR

*

1

■

Unbraked TWR

*

1

1000 lb. (450 kg)

GCWR, TWR and Unbraked TWR

Model code

*

2

Engine

Driving
system

GCWR

TWR

ASU50L-ARTNKA

2.7L L4

(1AR-FE)

engine

FF

6010 lb.

(2725 kg)

1500 lb.

(680 kg)

GSU50L-ARZNHA

3.5L V6

(2GR-FKS)

engine

10840 lb.

(4850 kg)

5000 lb.

(2200 kg)

GSU50L-ARZMHA
GSU50L-ARZGHA

10950 lb.

(4900 kg)

5000 lb.

(2200 kg)

GSU55L-ARZNHA

GSU55L-ARZMHA
GSU55L-ARZGHA

3.5L V6

(2GR-FKS)

engine

AWD

11000 lb.

(4920 kg)

5000 lb.

(2200 kg)

*

1

: These models meet the tow-vehicle trailering requirement of SAE Interna-

tional per SAE J2807.

*

2

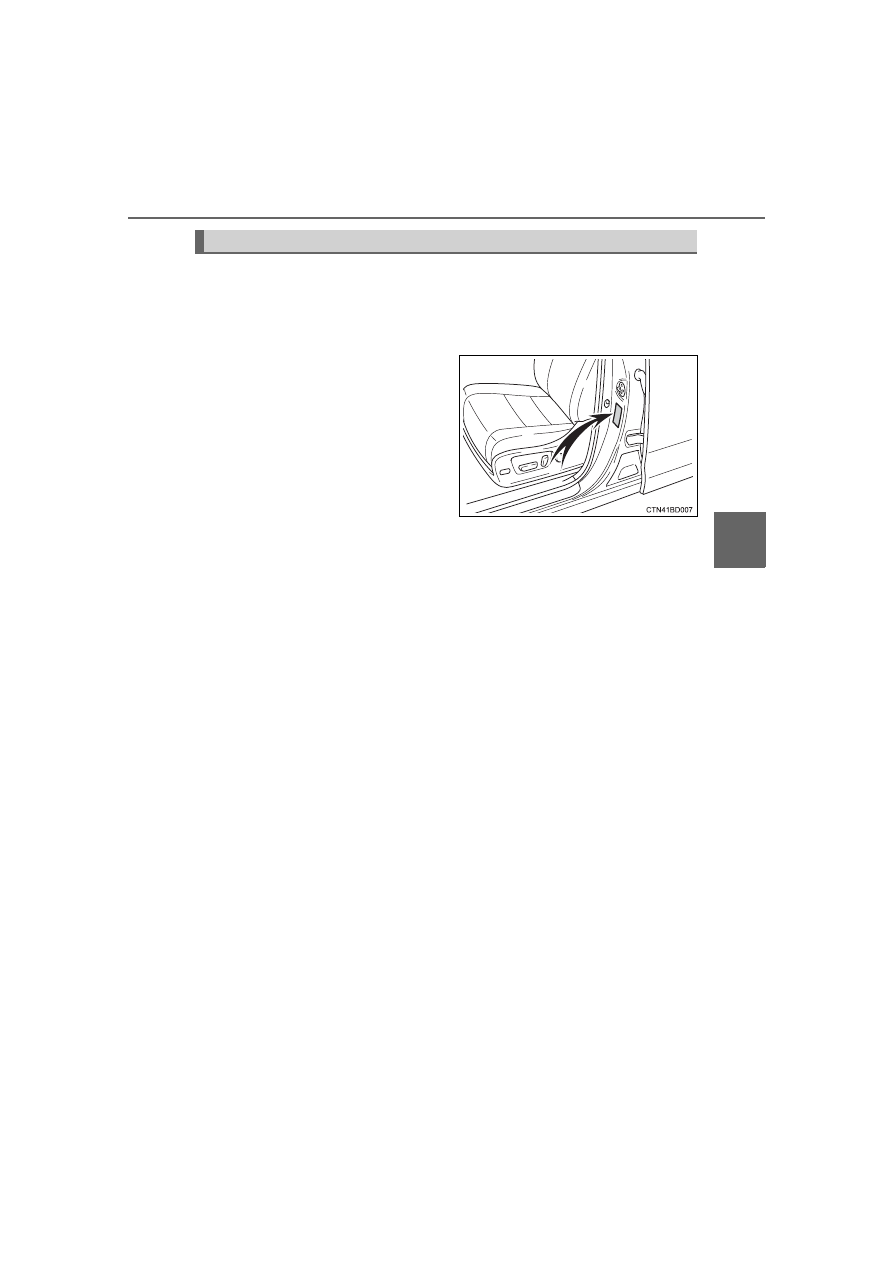

: The model code is indicated on the Certification Label.

(

→P. 651)

207

4-1. Before driving

4

Drivin

g

● A recommended tongue weight varies in accordance with the types

of trailers or towing as described below.

● To ensure the recommended values shown below, the trailer must

be loaded by referring to the following instructions.

• Tongue Weight

The gross trailer weight should be distributed so that the tongue
weight is 9% to 11%.
(Tongue weight /Gross trailer weight x 100 = 9% to 11%)

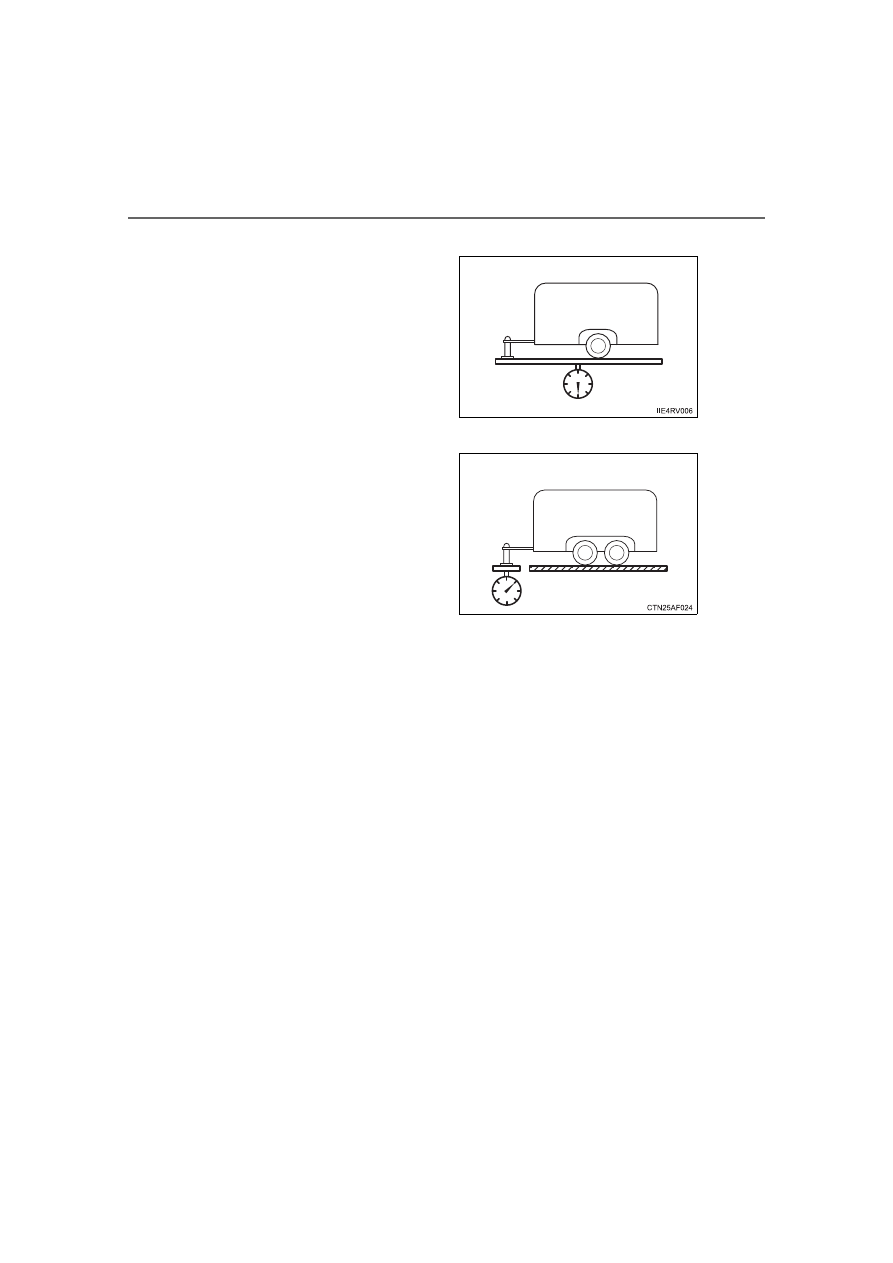

Gross trailer weight

Tongue weight

If using a weight distributing hitch when towing, return the front
axle to the same weight as before the trailer connection.

If front axle weight cannot be measured directly, measure the
front fender height above the front axle before connection. Adjust
weight distributing hitch torque until front fender is returned to the
same height as before connection.

The gross trailer weight, gross axle weight and tongue weight
can be measured with platform scales found at a highway weigh-
ing station, building supply company, trucking company, junk
yard, etc.

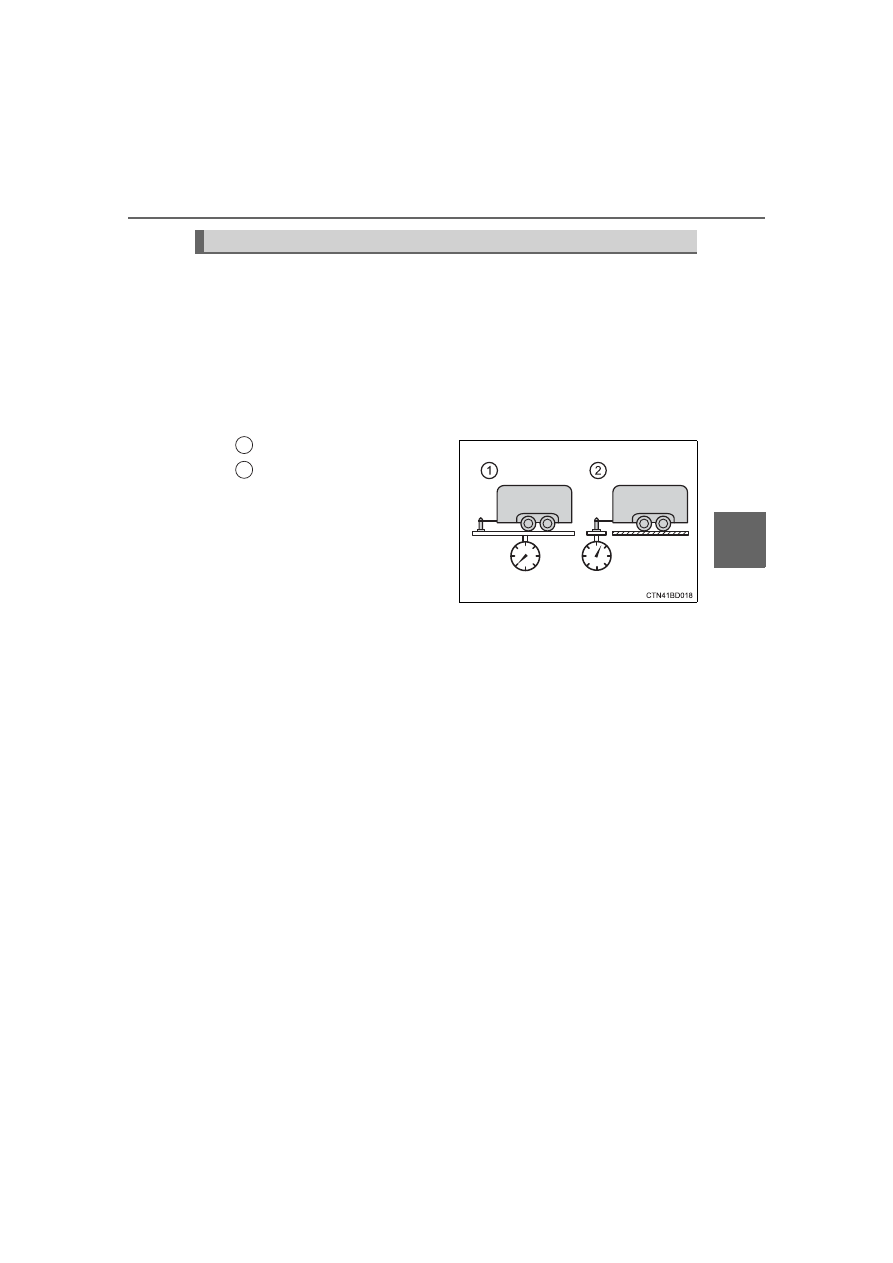

Trailer Tongue Weight

1
