Toyota Tundra (2015 year). Manual - part 986





Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002ZX6013X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AUDIO / VISUAL: FRONT DOOR SPEAKER (for CrewMax): REMOVAL; 2015 MY Tundra [08/2014 -        ]

REMOVAL

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

1. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH LH

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

3. REMOVE FRONT UPPER ARMREST BASE PANEL LH

4. REMOVE FRONT DOOR ARMREST COVER LH

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

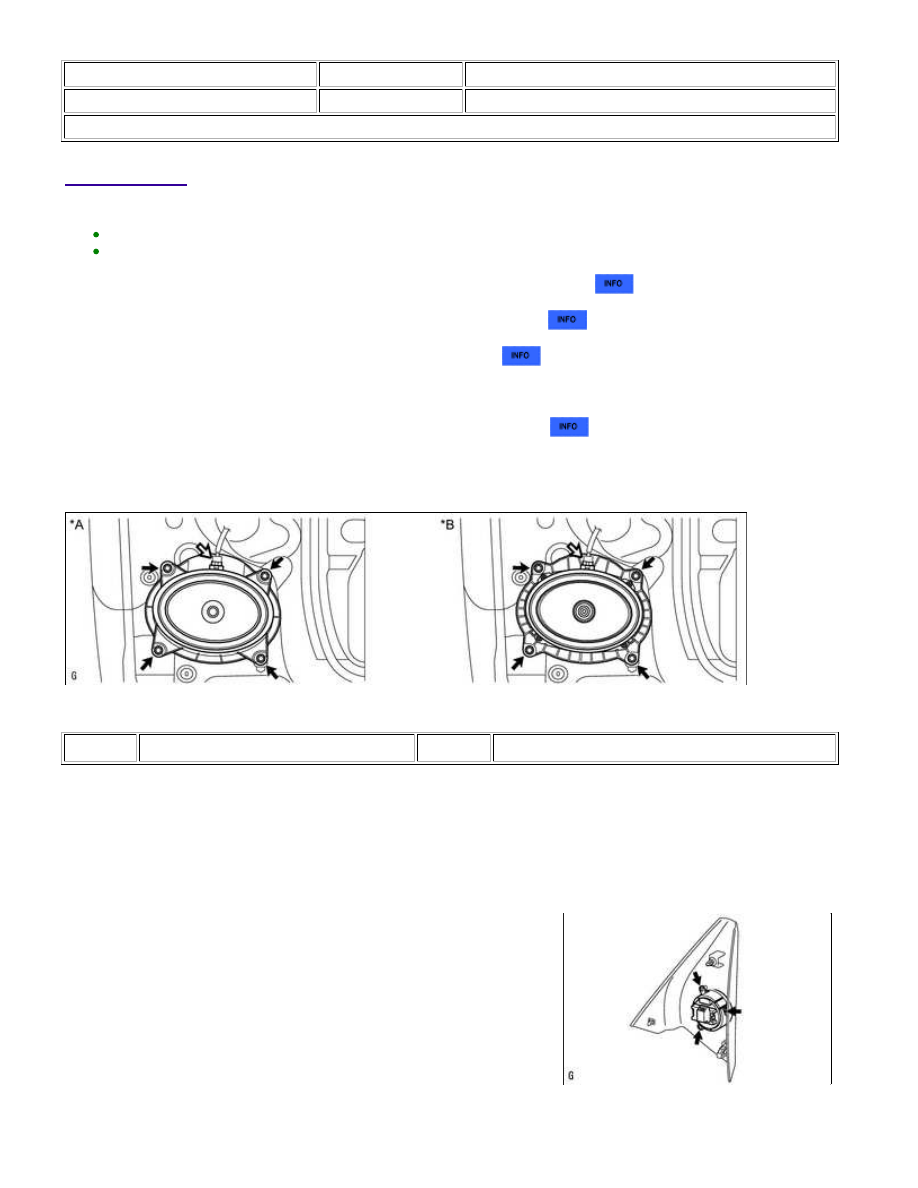

6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

(a) Remove the 4 screws.

Text in Illustration

*A

for Standard

*B

for 12 Speakers

NOTICE:

7. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for 12 Speakers)

(a) Remove the 3 screws and front No. 3 speaker assembly with the

bracket.

AUDIO / VISUAL: FRONT DOOR SPEAKER (for CrewMax): REM...

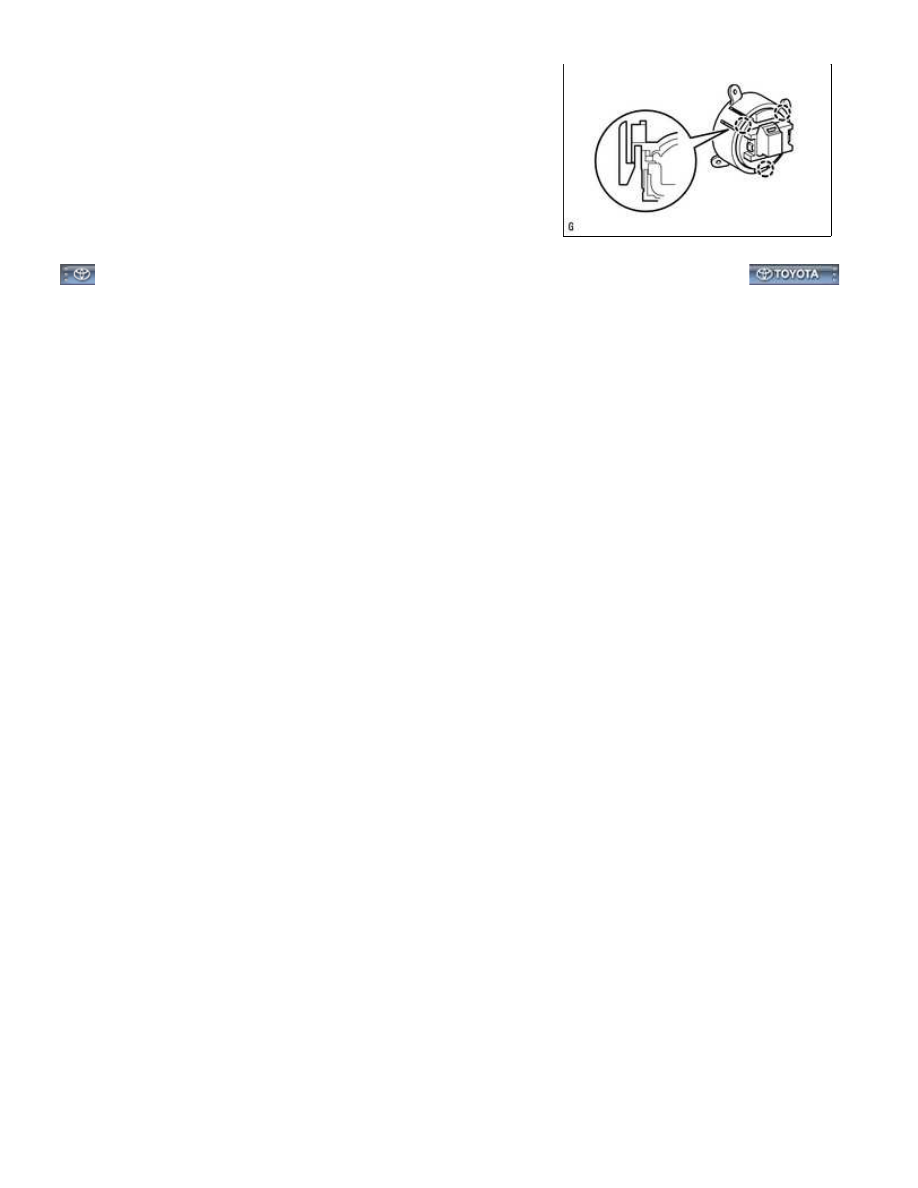

(b) Detach the 3 claws and remove the front No. 3 speaker

assembly from the bracket.

NOTICE:

Last Modified: 9-16-2014

6.6 G

Doc ID: RM000002ZX4023X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AUDIO / VISUAL: FRONT DOOR SPEAKER (for CrewMax): INSPECTION; 2015 MY Tundra [08/2014 -

       ]

INSPECTION

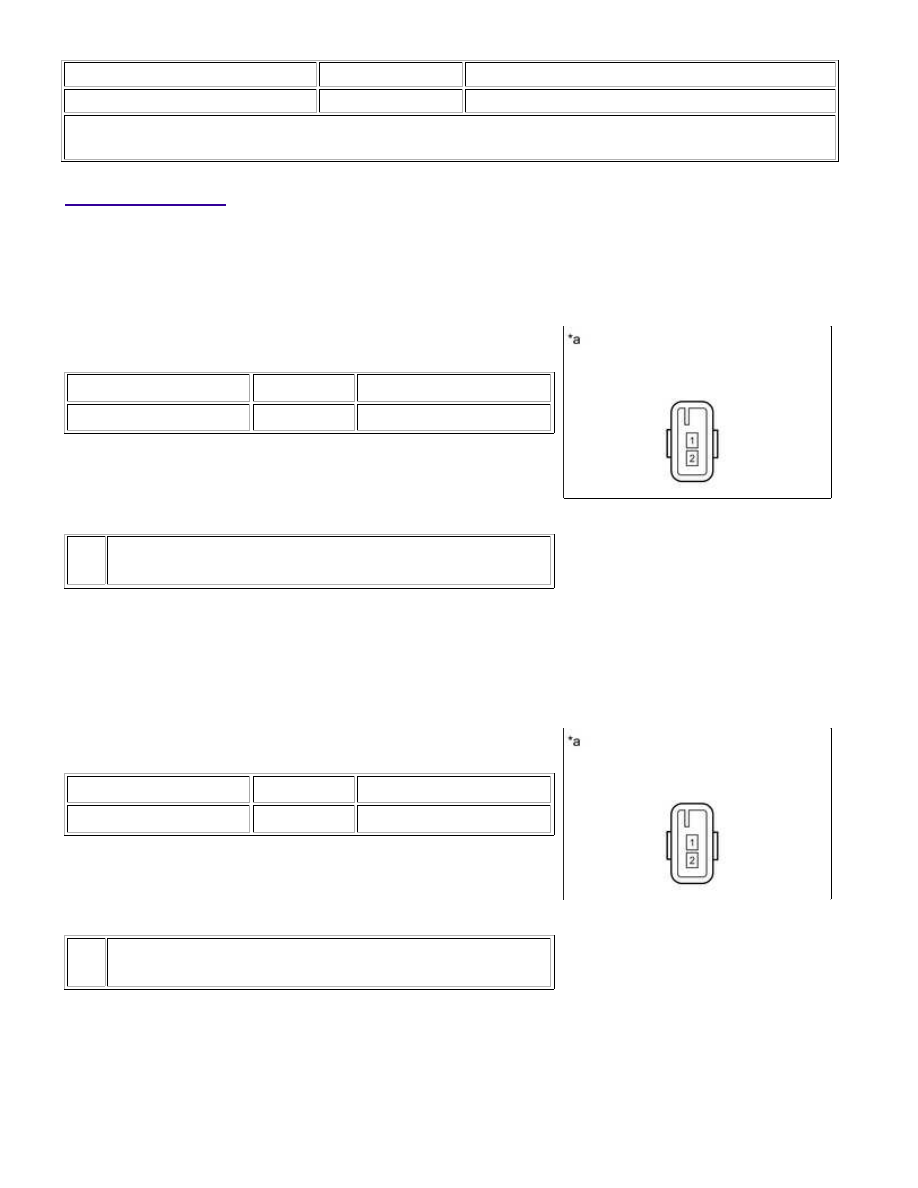

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for

Standard)

(a) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 - 2

Always

2 Ω

If the result is not as specified, replace the front No. 1 speaker

assembly.

Text in Illustration

*a

Component without harness connected

(Front No. 1 Speaker Assembly)

2. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for 12

Speakers)

(a) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 - 2

Always

1.8 to 2.6 Ω

If the result is not as specified, replace the front No. 1 speaker

assembly.

Text in Illustration

*a

Component without harness connected

(Front No. 1 Speaker Assembly)

3. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY (for 12 Speakers)

(a) When there is a malfunction such as noise from a speaker or no sound at all, replace the speaker with a

new one and check that the malfunction disappears.

OK:

AUDIO / VISUAL: FRONT DOOR SPEAKER (for CrewMax): INSPE...

Malfunction disappears.

HINT:

Connect the connectors to the front No. 3 speaker assemblies.
When there is a possibility that either the right or left front No. 3 speaker assembly is defective, inspect by
interchanging the right one with the left one.
Perform the inspection above on both the LH and RH sides.

AUDIO / VISUAL: FRONT DOOR SPEAKER (for CrewMax): INSPE...
