Toyota Tundra (2015 year). Manual - part 974





Last Modified: 9-16-2014

6.6 J

Doc ID: RM0000012CK0S5X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Steering Pad Switch Circuit; 2015 MY Tundra [08/2014 -

       ]

Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch assembly to the radio and display receiver

assembly.

If there is an open in the circuit, the audio system cannot be operated using the steering pad switch assembly.

If there is a short in the circuit, the same condition as when the switch is continuously depressed occurs.

Therefore, the radio and display receiver assembly cannot be operated using the steering pad switch assembly,

and the radio and display receiver assembly itself cannot function.

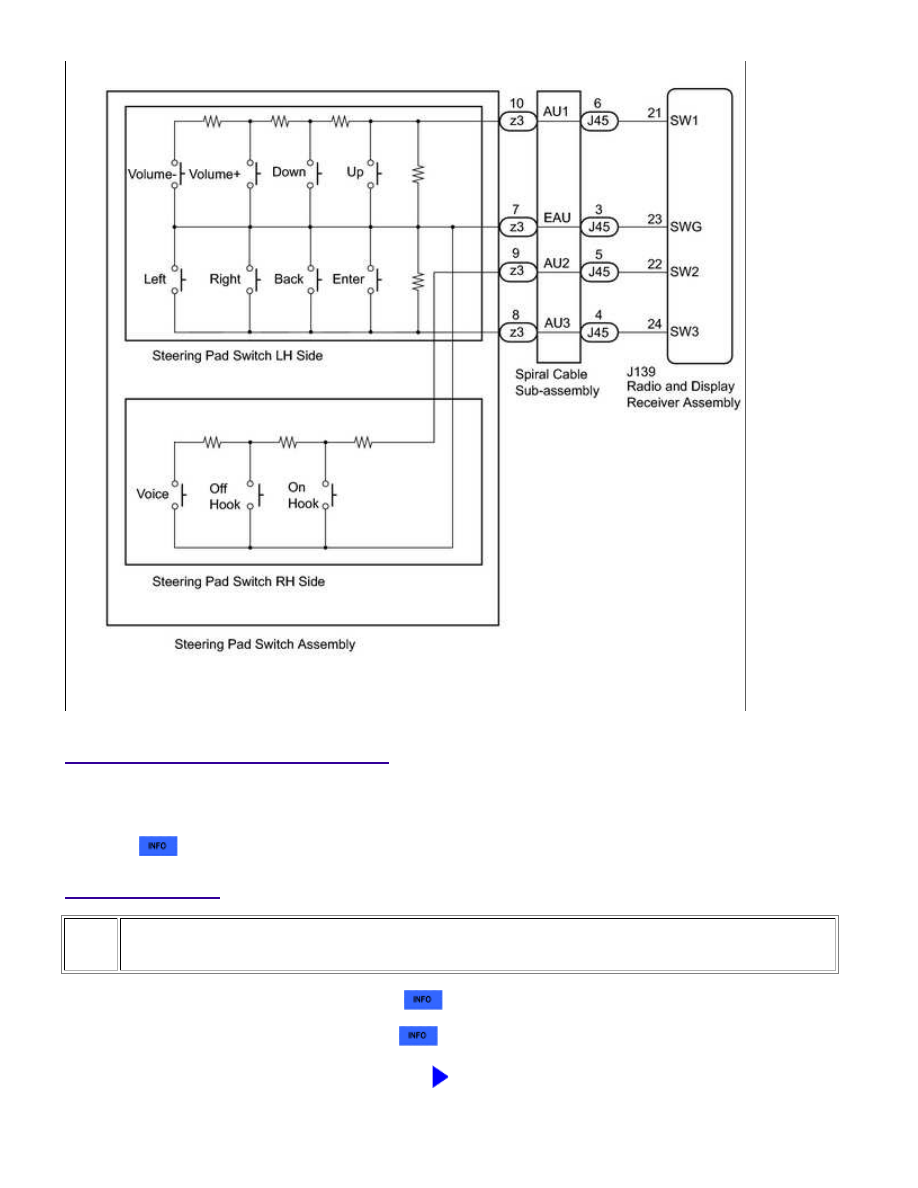

WIRING DIAGRAM

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Steering Pad Swi...

INSPECTION PROCEDURE

CAUTION:

The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as

.

PROCEDURE

1.

INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Remove the steering pad switch assembly



.

(b) Inspect the steering pad switch assembly



.

NG

REPLACE STEERING PAD SWITCH ASSEMBLY

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Steering Pad Swi...

OK

OK

2.

INSPECT SPIRAL CABLE SUB-ASSEMBLY

(a) Remove the spiral cable sub-assembly



.

(b) Inspect the spiral cable sub-assembly



.

NG

REPLACE SPIRAL CABLE SUB-ASSEMBLY

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY -
SPIRAL CABLE SUB-ASSEMBLY)

(a) Disconnect the J139 radio and display receiver assembly connector.

(b) Disconnect the J45 spiral cable sub-assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J139-21 (SW1) - J45-6 (AU1)

Always

Below 1 Ω

J139-22 (SW2) - J45-5 (AU2)

Always

Below 1 Ω

J139-24 (SW3) - J45-4 (AU3)

Always

Below 1 Ω

J139-23 (SWG) - J45-3 (EAU)

Always

Below 1 Ω

J139-21 (SW1) - Body ground

Always

10 kΩ or higher

J139-22 (SW2) - Body ground

Always

10 kΩ or higher

J139-24 (SW3) - Body ground

Always

10 kΩ or higher

J139-23 (SWG) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN

PROBLEM SYMPTOMS TABLE

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Steering Pad Swi...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM0000012CG0X2X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Illumination Circuit; 2015 MY Tundra [08/2014 -        ]

Illumination Circuit

DESCRIPTION

Power is supplied to the radio and display receiver assembly and steering pad switch assembly illumination when

the headlight dimmer switch assembly is in the tail or head position.

WIRING DIAGRAM

INSPECTION PROCEDURE

CAUTION:

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Illumination Circ...
