Toyota Tundra (2015 year). Manual - part 783

for Aluminum Wheel -

131 N·m {1336 kgf·cm, 97ft·lbf}

for Steel Wheel -

209 N·m {2131 kgf·cm, 154ft·lbf}

AXLE: FRONT AXLE HUB BOLT: REPLACEMENT; 2015 MY Tundr...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002A7D01YX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

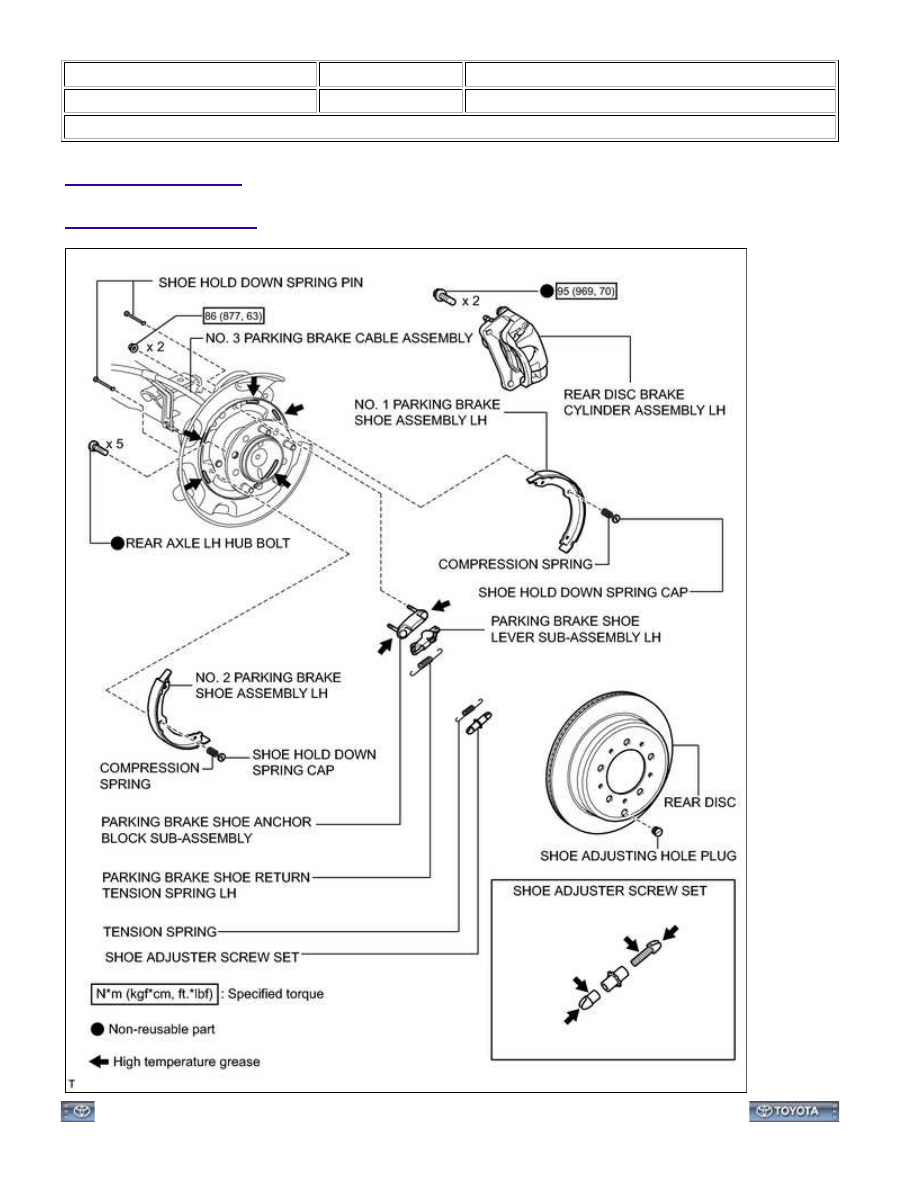

Title: AXLE: REAR AXLE HUB BOLT: COMPONENTS; 2015 MY Tundra [08/2014 - ]

COMPONENTS

ILLUSTRATION

AXLE: REAR AXLE HUB BOLT: COMPONENTS; 2015 MY Tundra [...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM00000306N013X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

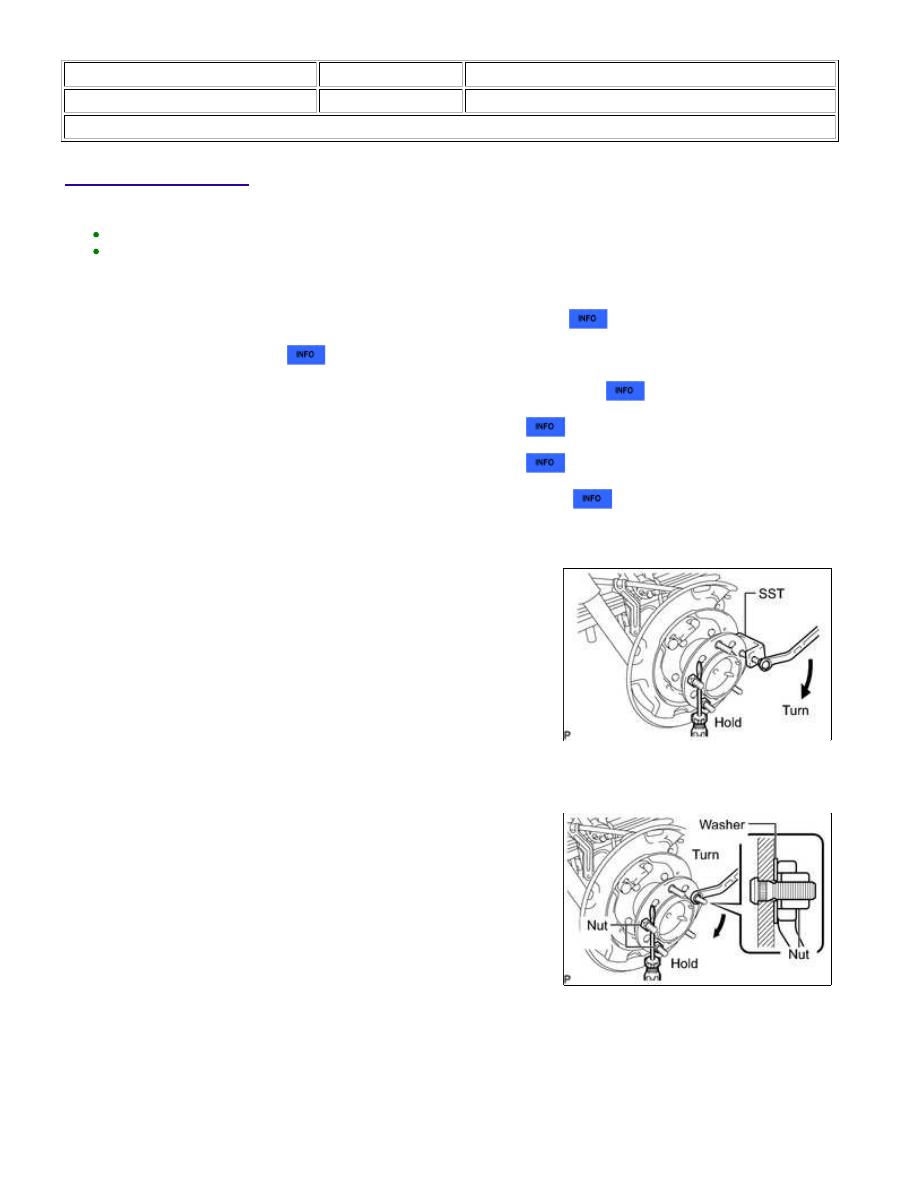

Title: AXLE: REAR AXLE HUB BOLT: REPLACEMENT; 2015 MY Tundra [08/2014 - ]

REPLACEMENT

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL LH

2. DISCONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH

3. REMOVE REAR DISC LH

4. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING LH

5. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

6. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

7. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH

8. REMOVE REAR AXLE LH HUB BOLT

(a) Using SST and a screwdriver or equivalent to hold the axle hub,

remove the hub bolt.

SST: 09650-17011

9. INSTALL REAR AXLE LH HUB BOLT

(a) Temporarily install a washer and hub nut to a new hub bolt as

shown in the illustration.

NOTICE:

Install hub nuts to prevent damage to the hub bolts.

NOTICE:

AXLE: REAR AXLE HUB BOLT: REPLACEMENT; 2015 MY Tundra...

11. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

12. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

13. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING LH

14. CHECK PARKING BRAKE INSTALLATION

15. INSTALL REAR DISC LH

16. ADJUST PARKING BRAKE SHOE CLEARANCE

17. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH

18. INSTALL REAR WHEEL LH

Torque:
