spring from the input shaft.

(d) Remove the O-ring from the No. 1 clutch balancer.

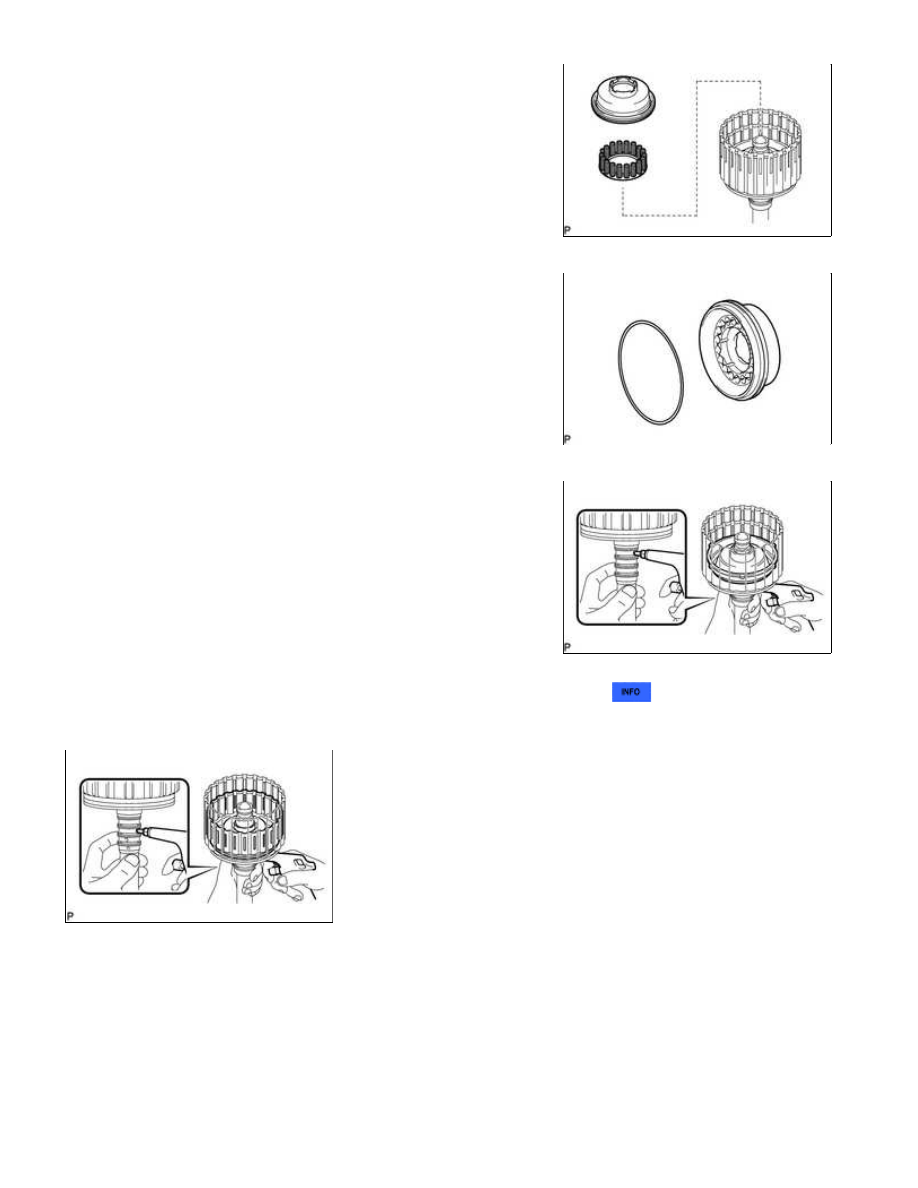

(e) Hold the coast clutch piston by hand and apply compressed air

to the input shaft to remove the coast clutch piston.

48. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

49. REMOVE FORWARD CLUTCH PISTON

(a) Hold the forward clutch piston by hand and apply compressed air to the input shaft to remove the forward

clutch piston.

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

(b) Remove the O-ring from the input shaft.

50. REMOVE DIRECT CLUTCH DISC SET

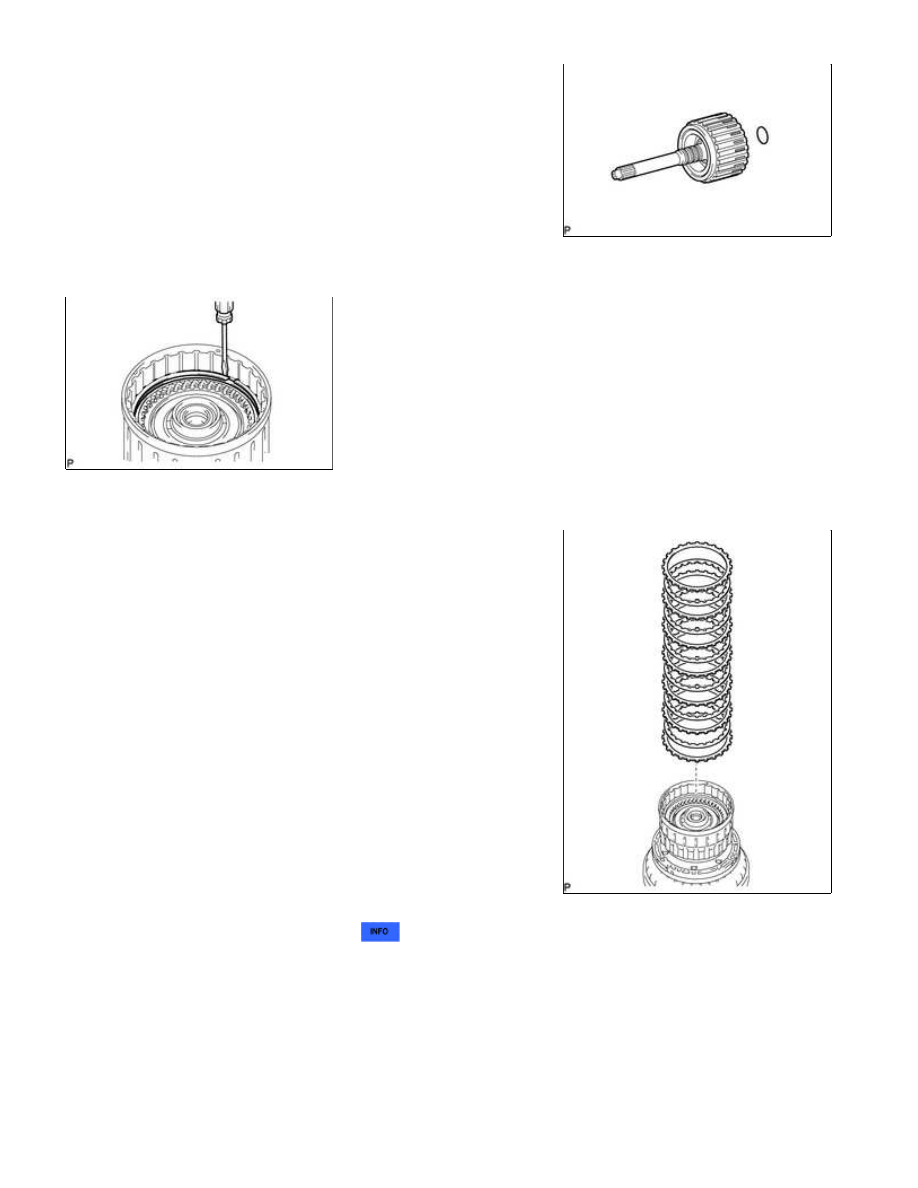

(a) Using a screwdriver, remove the 2 hole snap rings from the clutch drum.

(b) Remove the direct clutch flange, 6 discs and 6 plates from the

clutch drum.

51. INSPECT DIRECT CLUTCH DISC

52. REMOVE NO. 3 CLUTCH BALANCER

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

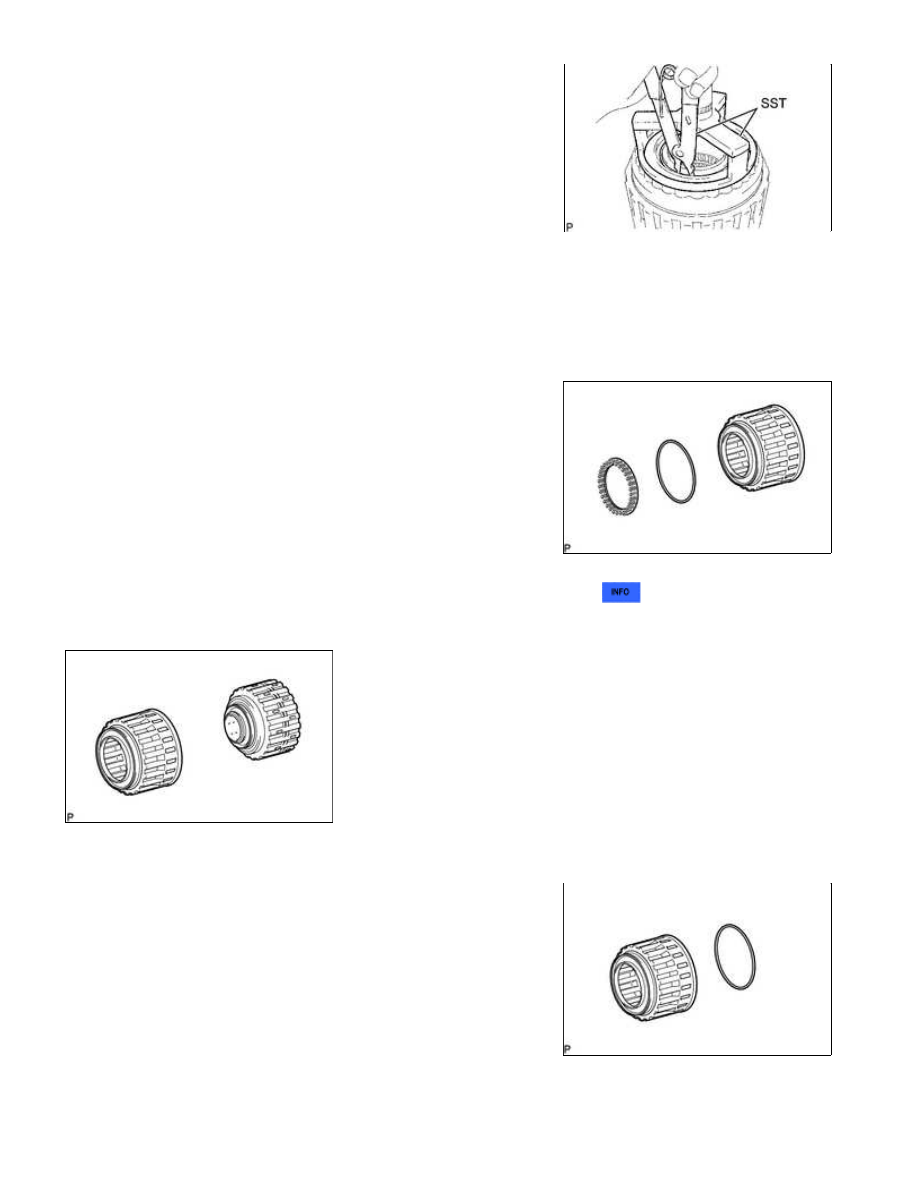

(a) Place SST on the No. 3 clutch balancer, and compress the return

spring with a press.

SST: 09387-00070

(b) Using SST, remove the snap ring.

SST: 09350-30020

09350-07070

(d) Remove the reverse clutch return spring and O-ring from the

reverse clutch piston sub-assembly.

53. INSPECT REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY

54. REMOVE REVERSE CLUTCH PISTON SUB-ASSEMBLY

(a) Remove the reverse clutch piston from the clutch drum.

(b) Remove the O-ring from the reverse clutch piston.

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

55. REMOVE DIRECT CLUTCH PISTON SUB-ASSEMBLY

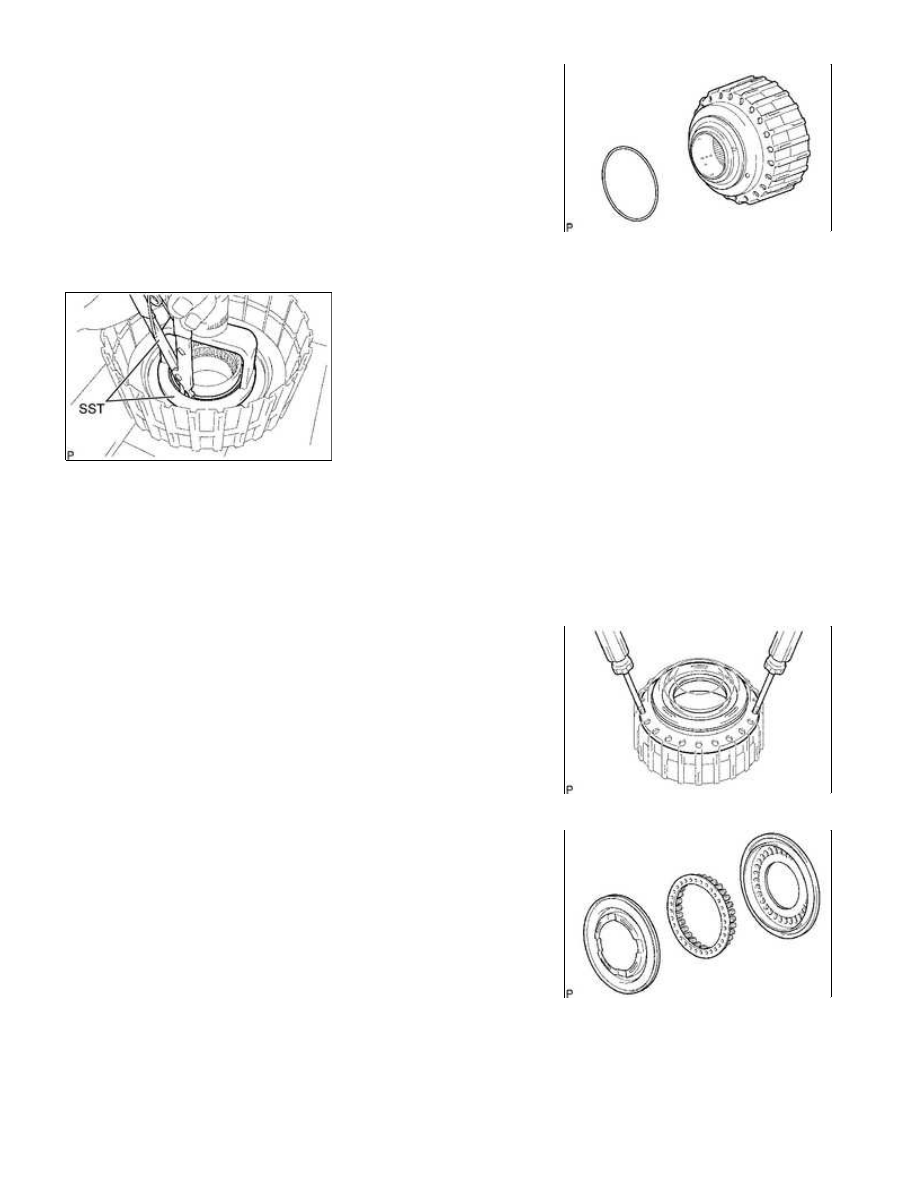

(a) Place SST on the direct clutch piston, and compress the return spring with a press.

SST: 09320-89010

(b) Using SST, remove the snap ring.

SST: 09350-30020

09350-07070

with the No. 2 clutch balancer and direct clutch return spring

sub-assembly.

(d) Remove the No. 2 clutch balancer and direct clutch return spring

sub-assembly from the direct clutch piston.

(e) Remove the No. 2 clutch balancer and direct clutch return spring from the direct clutch piston.
