Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: SYSTEM DIAGRAM; 2015 MY Tundra [08/2014 -

       ]

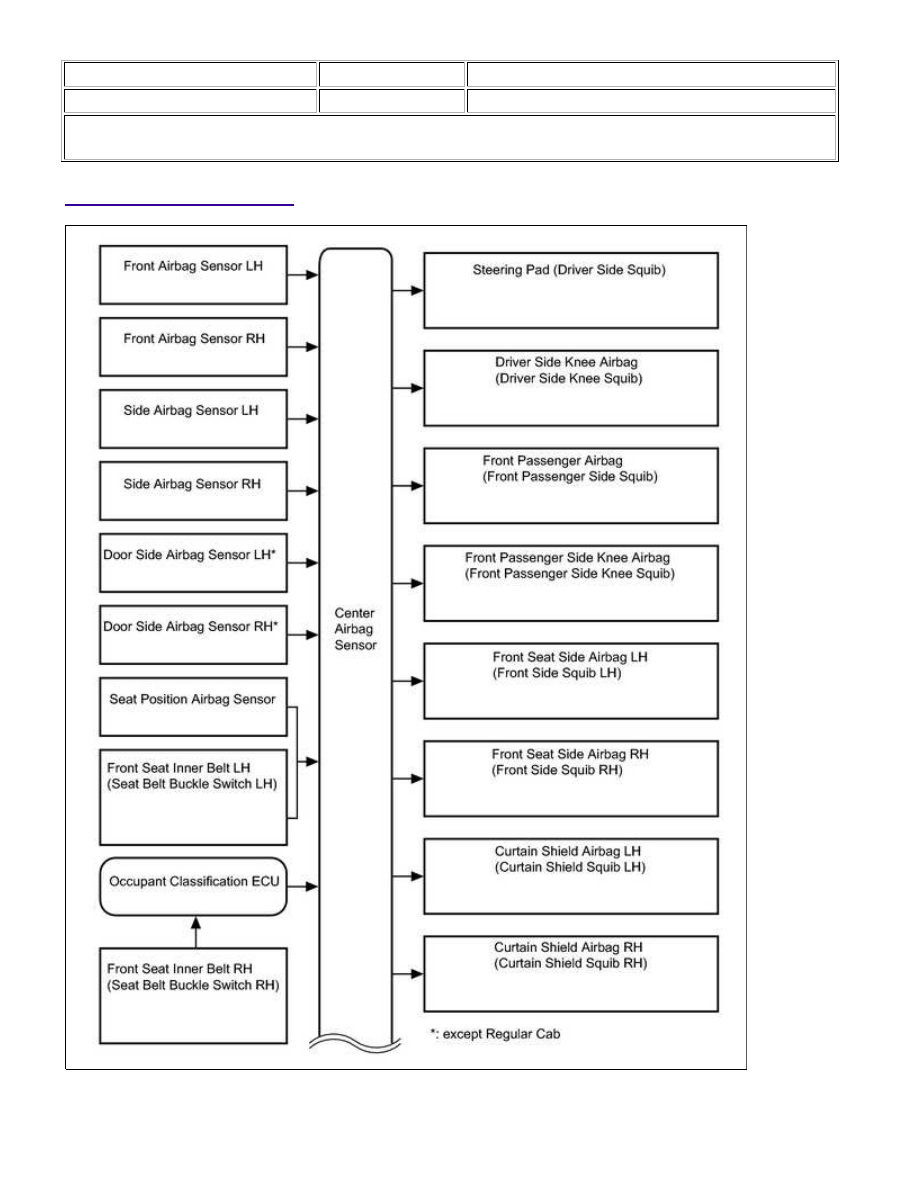

SYSTEM DIAGRAM

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: SYST...

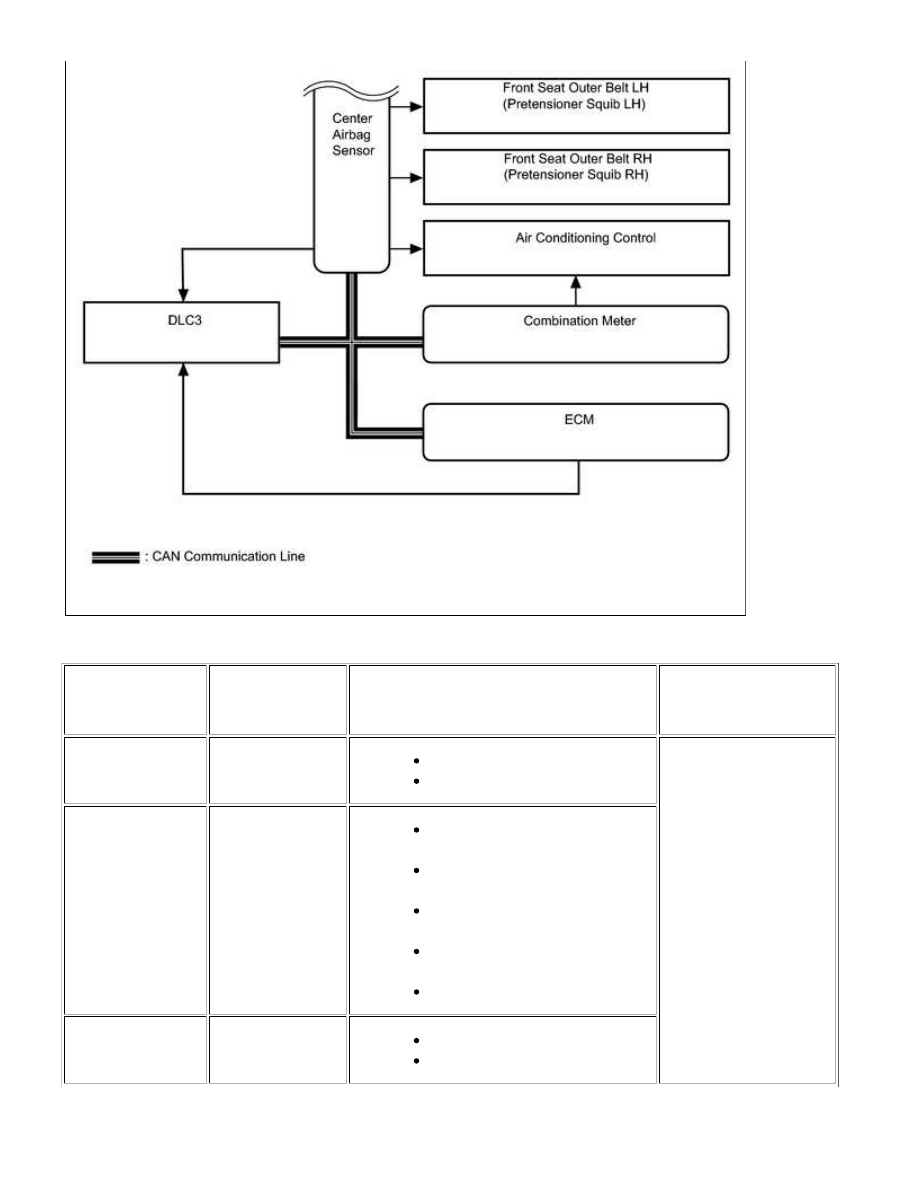

Combination table:

TRANSMITTING

ECU

(TRANSMITTER)

RECEIVING ECU

SIGNALS

COMMUNICATION

METHOD

Center Airbag

Sensor

ECM

Crash detection signal

Fuel cut signal

CAN

Center Airbag

Sensor

Combination Meter

SRS warning light ON demand

signal

SRS warning light blink demand

signal

Passenger seat occupant

detection signal

Passenger seat buckle switch

signal

Diagnosis signal (DTC)

Combination Meter

Center Airbag

Sensor

Vehicle speed signal

Meter diagnosis polling signal

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: SYST...

TRANSMITTING

ECU

(TRANSMITTER)

RECEIVING ECU

SIGNALS

COMMUNICATION

METHOD

ECM

Center Airbag

Sensor

Engine speed signal

Accelerator opening angle

information

Accelerator opening angle signal

Shift position signal

Test mode signal

Stop signal
