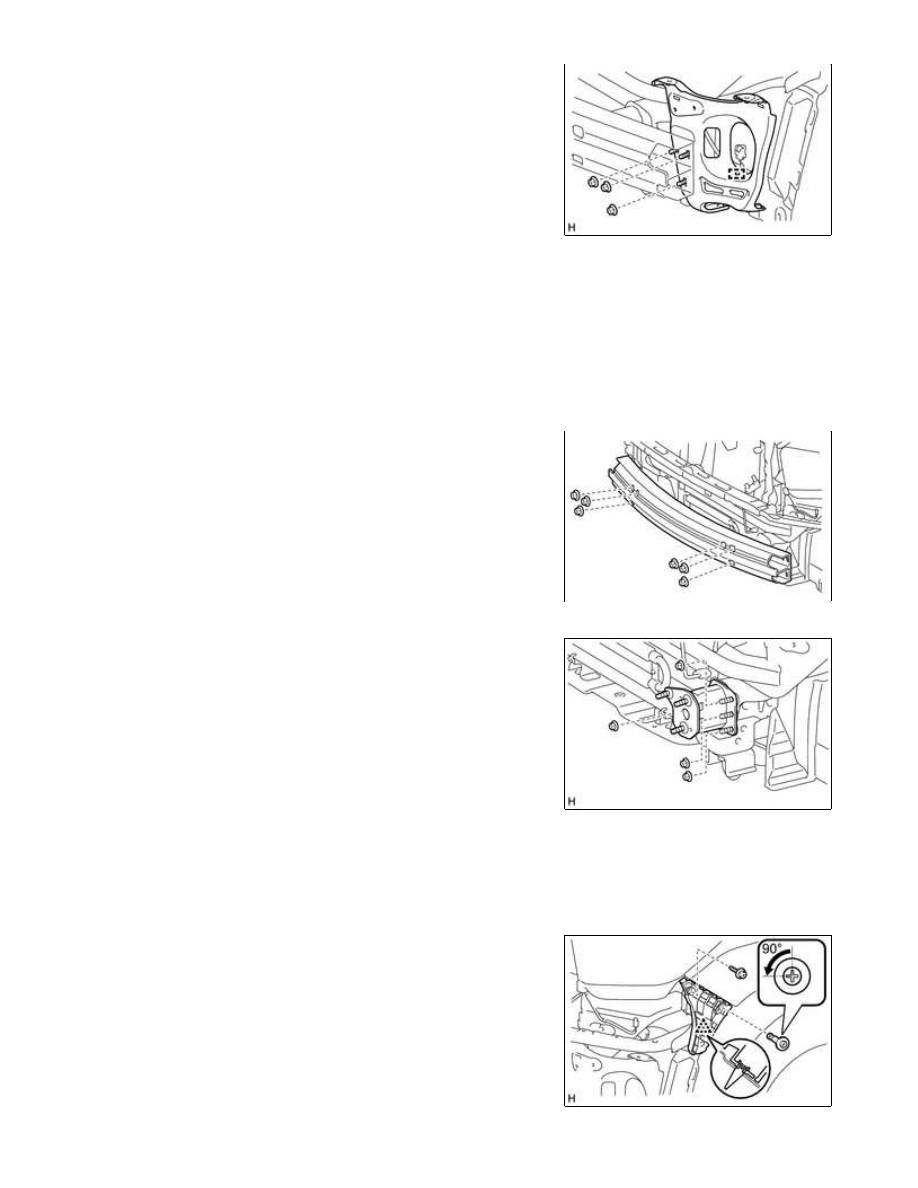

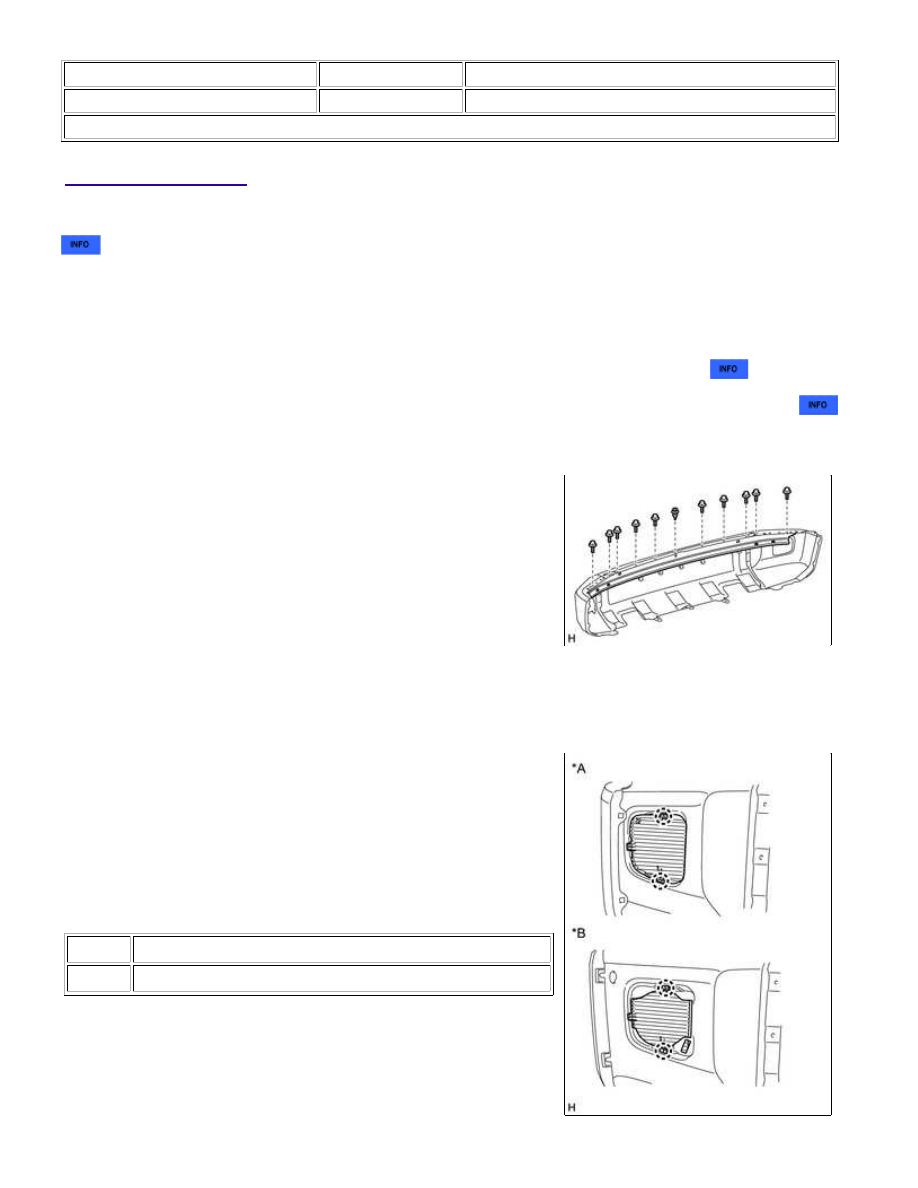

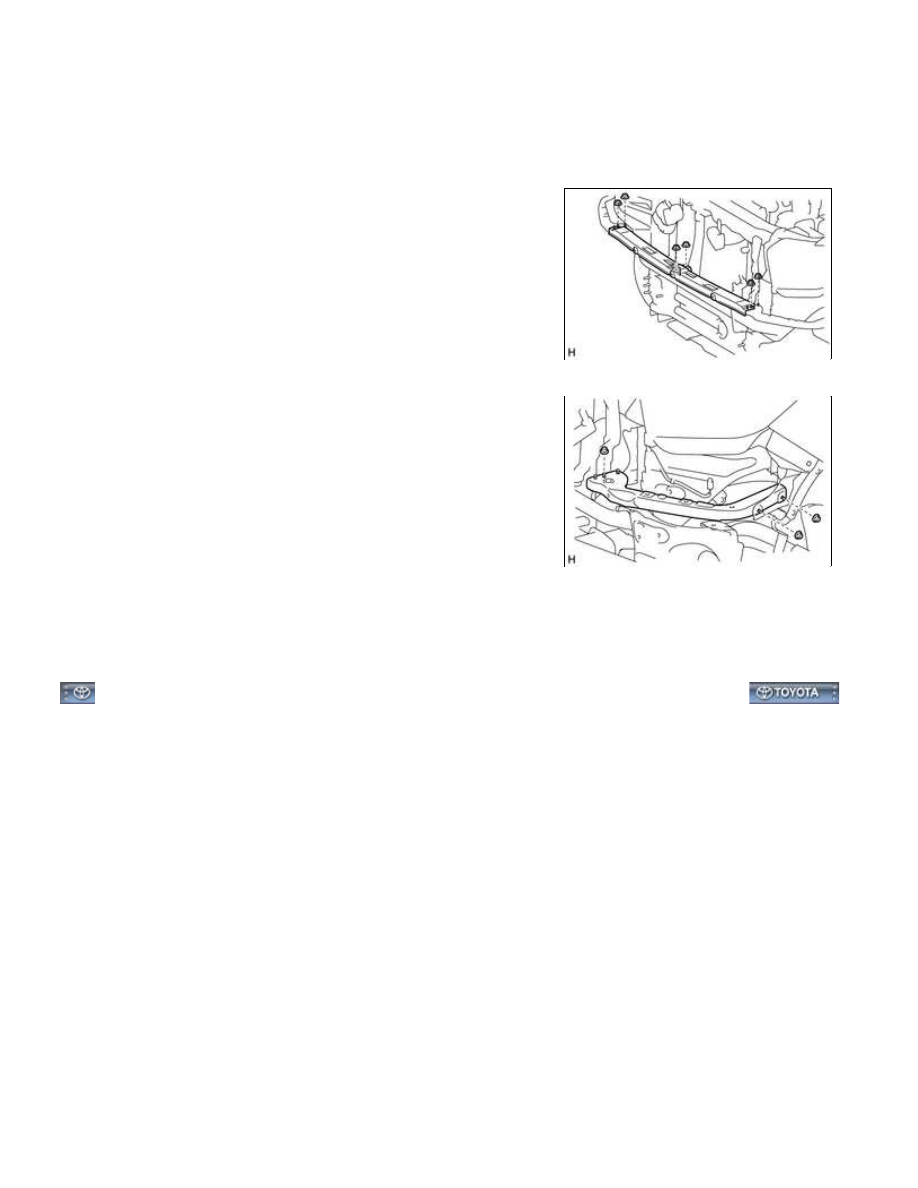

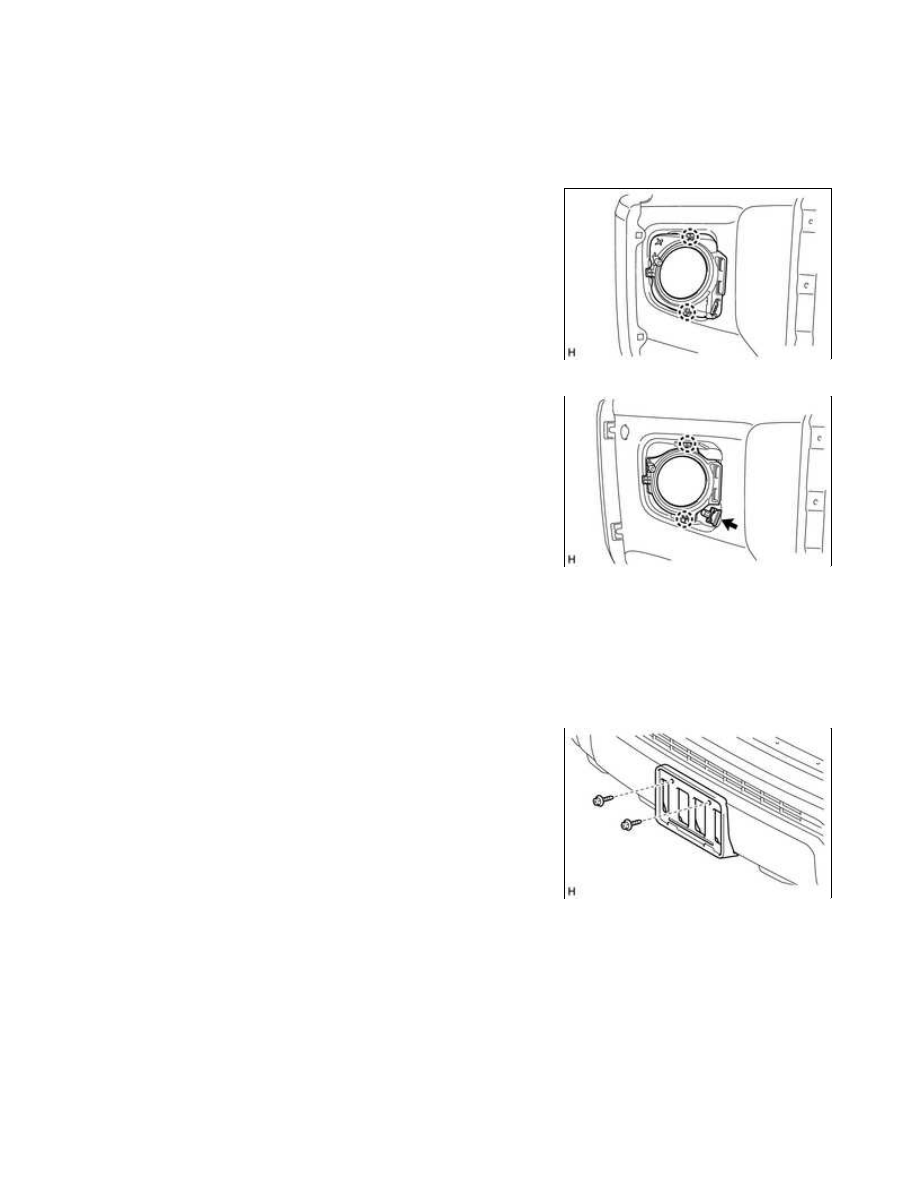

(a) Detach the clamp and disconnect the engine room wire. (b) Remove the 3 nuts and front bumper arm LH. 8. REMOVE FRONT BUMPER ARM RH HINT: Use the same procedure described for the LH side. 9. REMOVE FRONT BUMPER REINFORCEMENT (a) Remove the 6 nuts and front bumper reinforcement. 10. REMOVE FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY LH (a) Remove the 4 nuts and front bumper No. 2 extension sub-assembly LH. 11. REMOVE FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY RH HINT: Use the same procedure described for the LH side. 12. REMOVE FRONT BUMPER SIDE SUPPORT LH (a) Remove the screw. (b) Using a screwdriver, turn the clip 90° and remove the clip. (c) Detach the clip and remove the front bumper side support LH. EXTERIOR: FRONT BUMPER: REMOVAL; 2015 MY Tundra [08/201... |
