Toyota Tundra (2015 year). Manual - part 2803
Last Modified: 9-16-2014
6.6 A
Doc ID: RM000001V48020X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: SUSPENSION: FRONT LOWER SUSPENSION ARM: REMOVAL; 2015 MY Tundra [08/2014 - ]

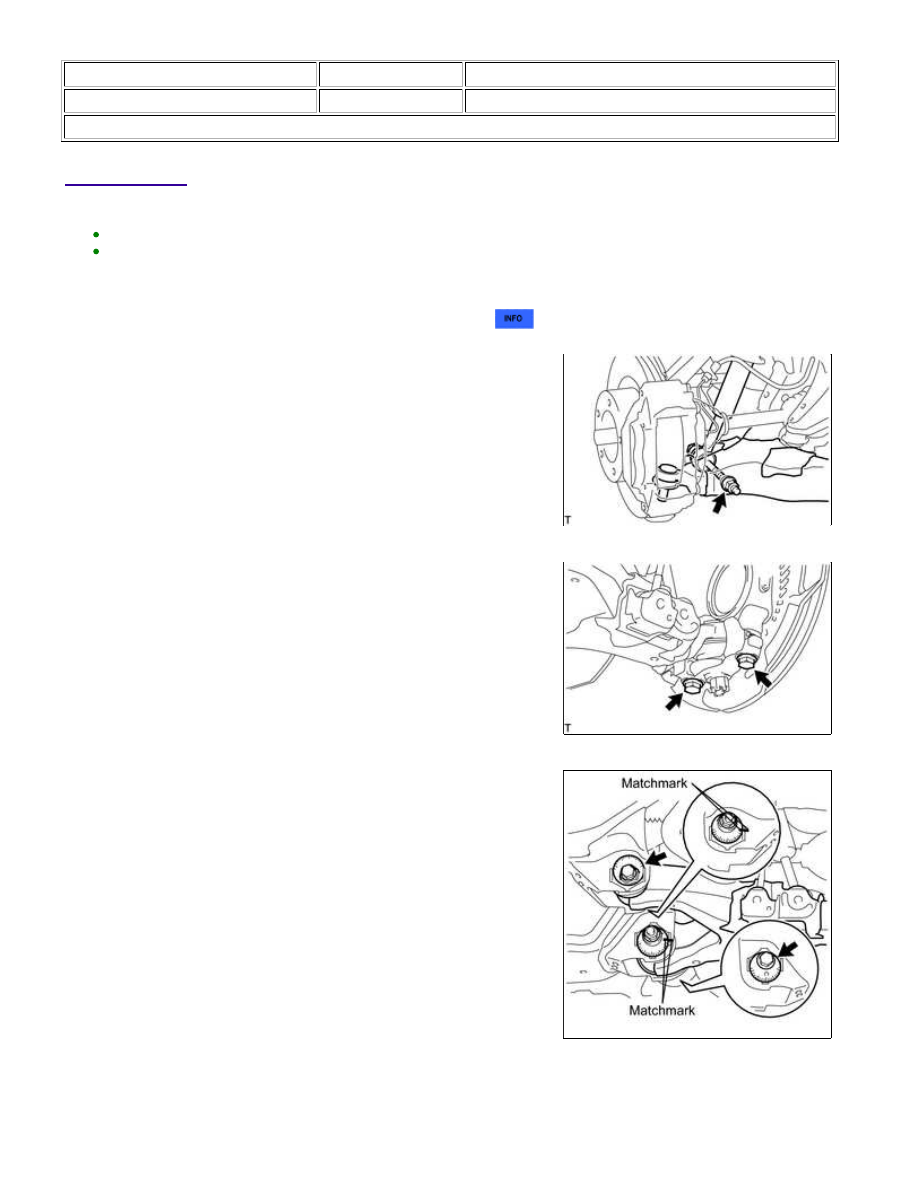

REMOVAL
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT STABILIZER LINK ASSEMBLY LH
3. DISCONNECT FRONT SHOCK ABSORBER WITH COIL
SPRING LH
(a) Remove the nut and bolt, and disconnect the shock absorber
from the lower side.
4. DISCONNECT FRONT LOWER BALL JOINT ATTACHMENT
LH
(a) Remove the 2 bolts and disconnect the attachment from the
steering knuckle.
5. REMOVE FRONT NO. 1 SUSPENSION ARM
SUB-ASSEMBLY LOWER LH
(a) Place matchmarks on the No. 2 camber adjusting cam and No. 2
toe adjusting plate.
(b) Remove the nut, washer, No. 2 camber adjusting cam, camber
adjusting cam assembly, bolt, toe adjusting cam, No. 2 toe
adjusting plate and front No. 1 suspension arm lower LH.

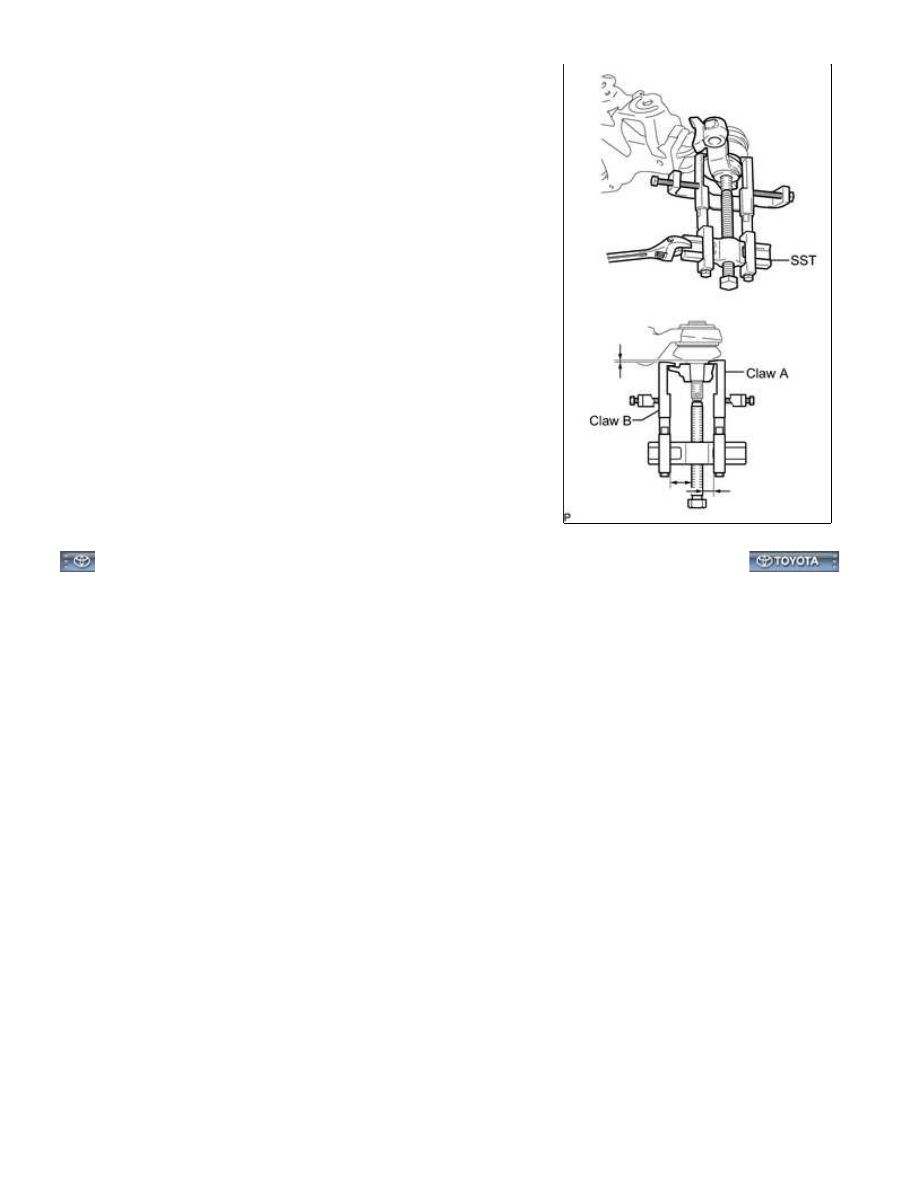

6. REMOVE FRONT LOWER BALL JOINT ATTACHMENT LH
(a) Remove the cotter pin and nut.

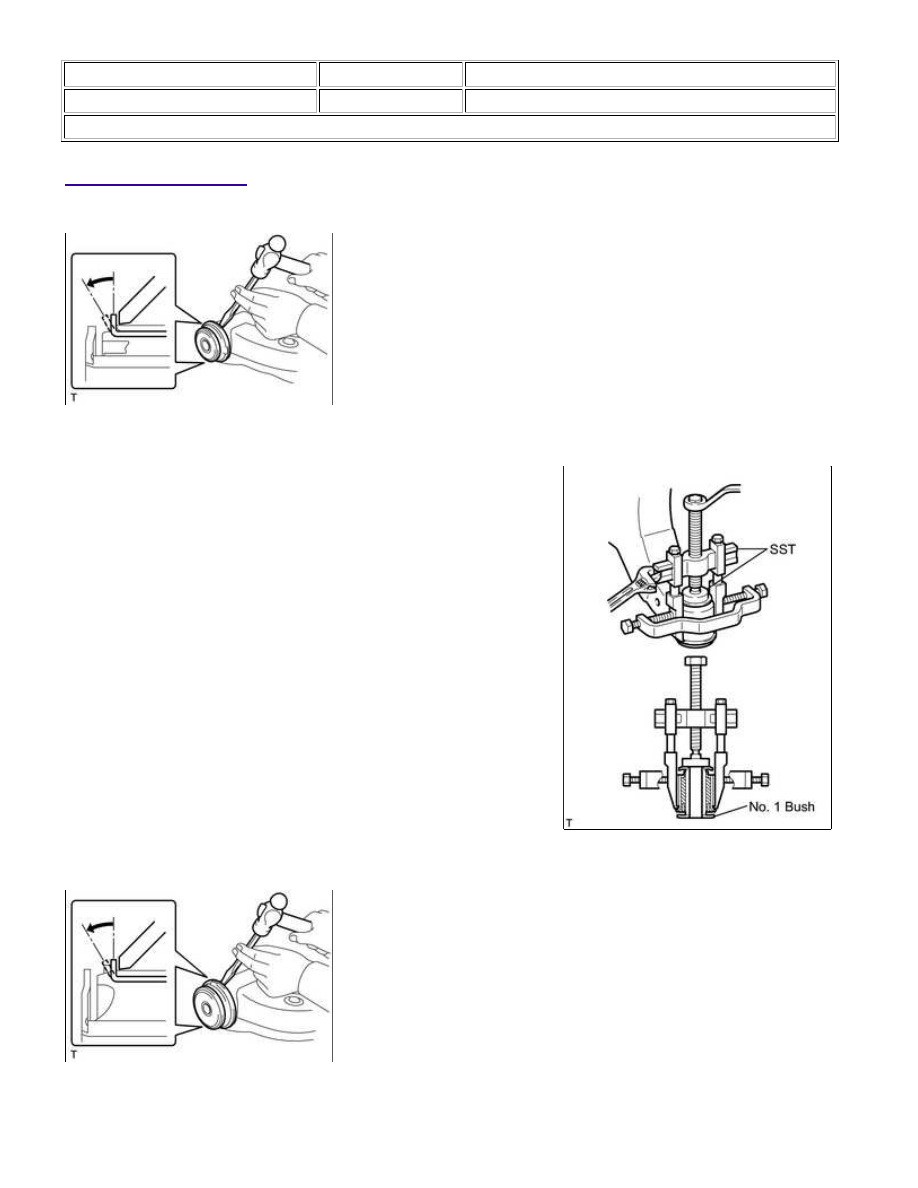

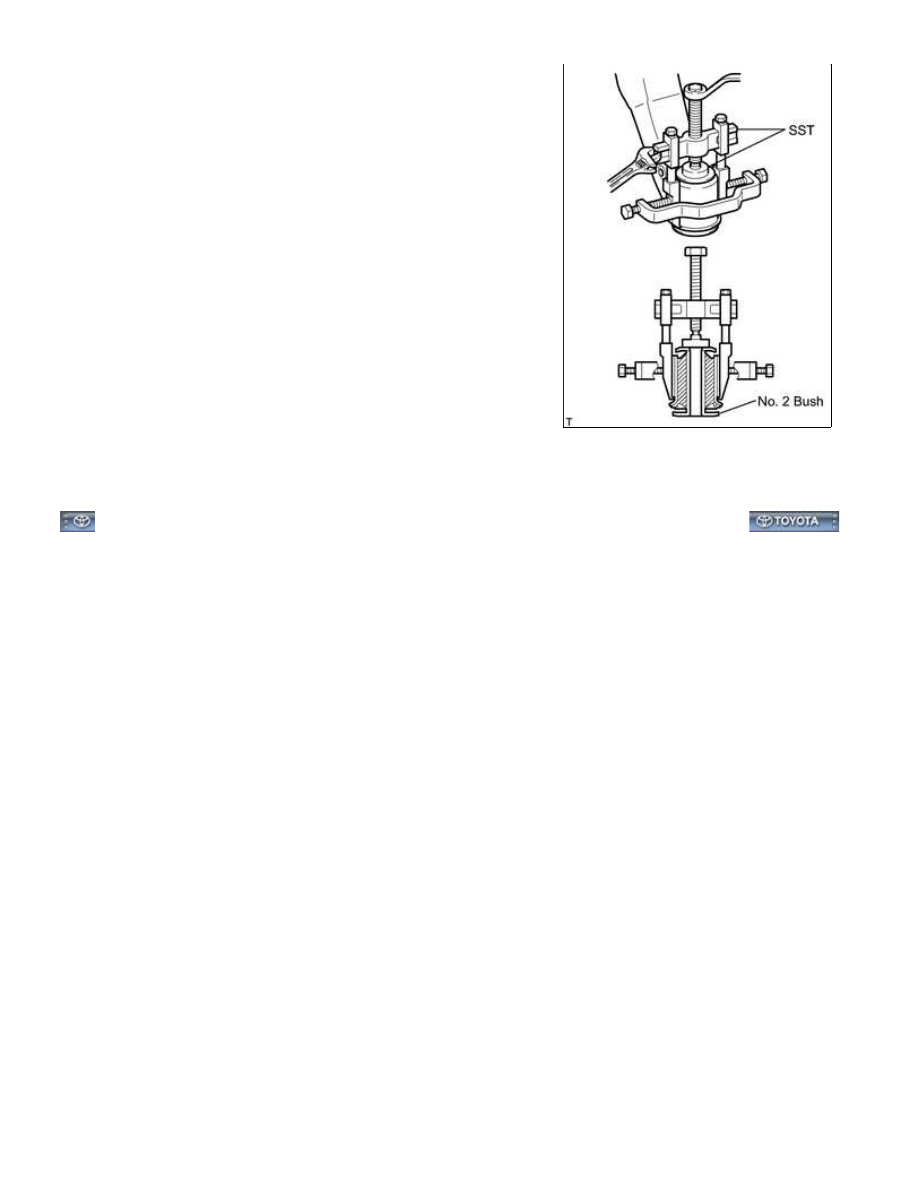

SUSPENSION: FRONT LOWER SUSPENSION ARM: REMOVAL; 2...
