Title: SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Regular Cab): REMOVAL; 2015 MY Tundra

[08/2014 - ]

REMOVAL

HINT:

Move the seat to the foremost position before performing this procedure.

1. REMOVE UPPER BACK PANEL GARNISH

2. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR

BRACKET

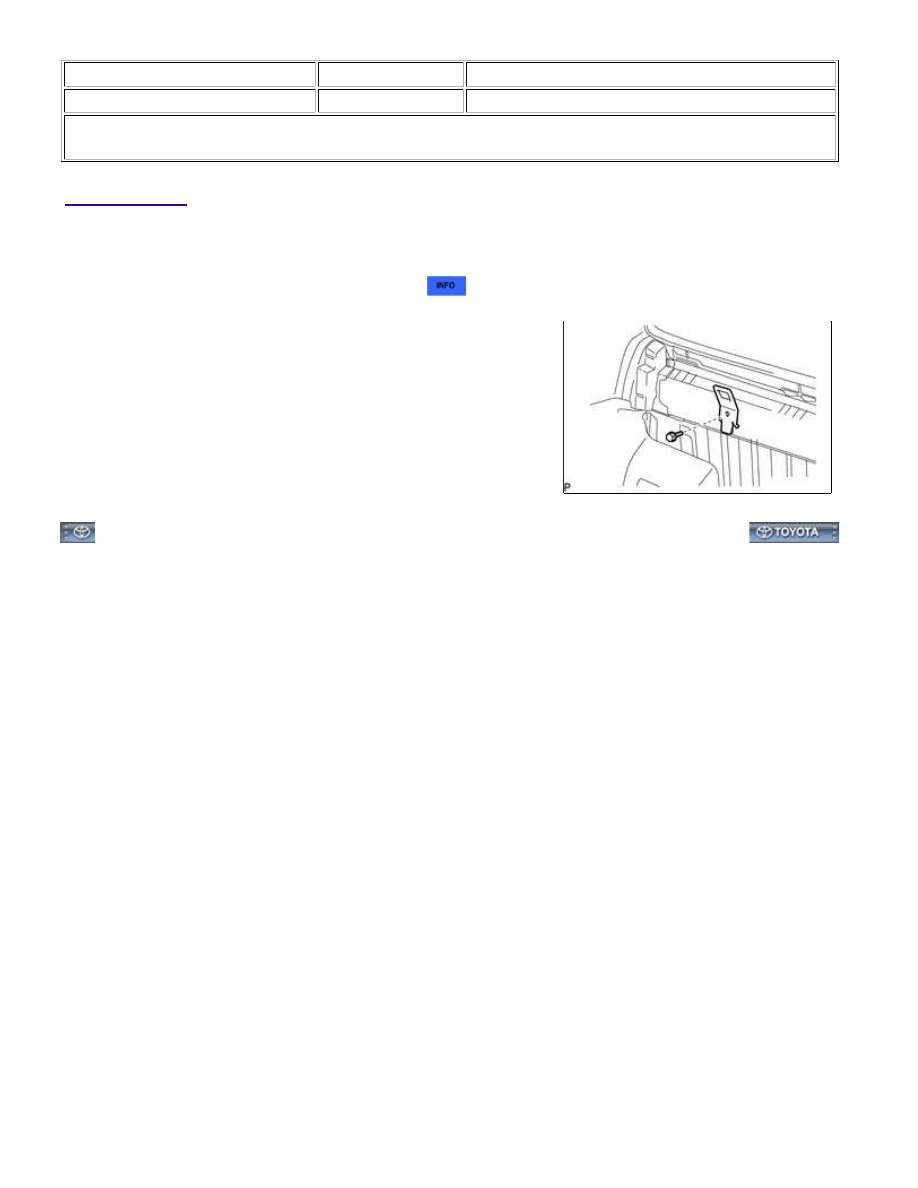

(a) Remove the 2 bolts and 2 anchor brackets.

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Reg...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002LKE01BX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Regular Cab): INSTALLATION; 2015 MY

Tundra [08/2014 - ]

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR

BRACKET

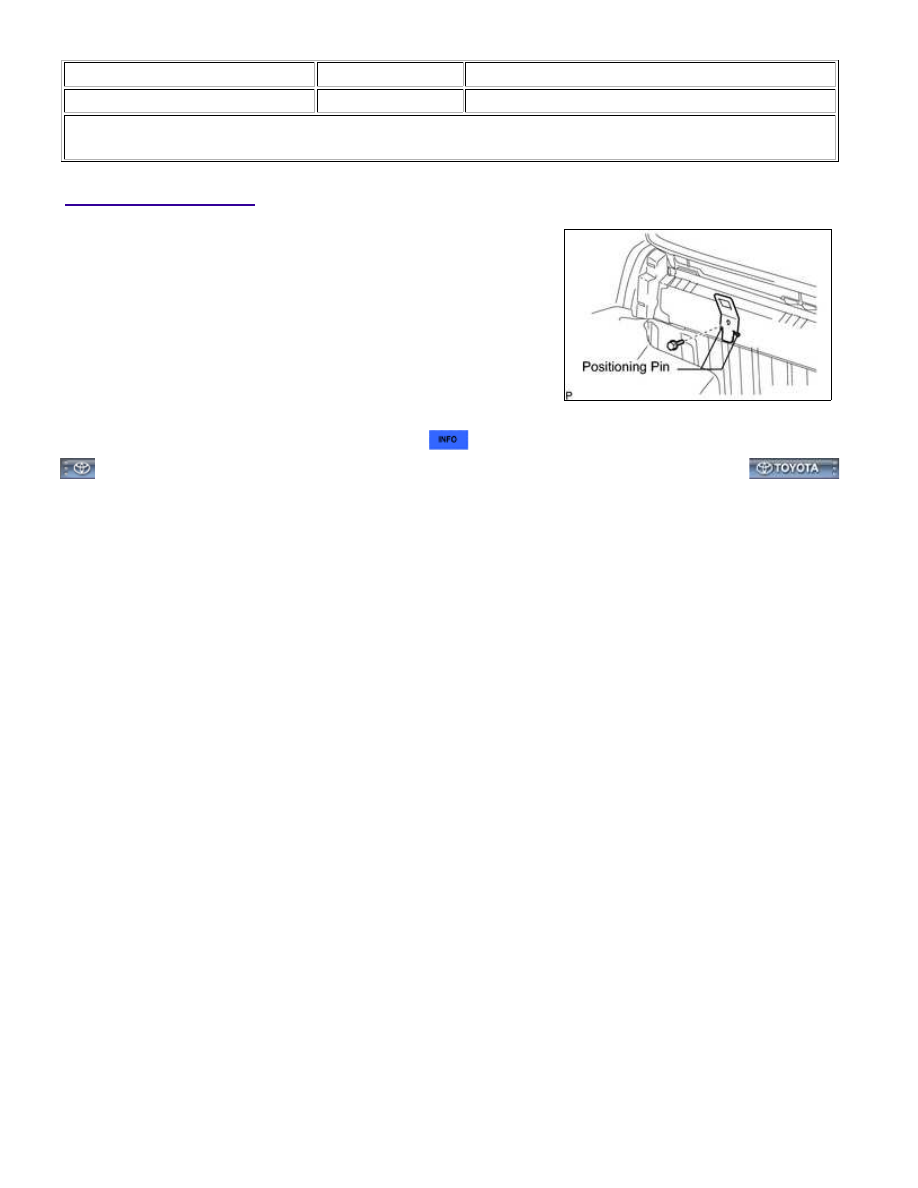

(a) Align the holes with the positioning pins and install the 2 anchor

brackets with the 2 bolts.

Torque:

42 N·m {428 kgf·cm, 31ft·lbf}

2. INSTALL UPPER BACK PANEL GARNISH

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET (for Reg...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002ZXE00UX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: COMPONENTS; 2015 MY Tundra [08/2014 - ]

COMPONENTS

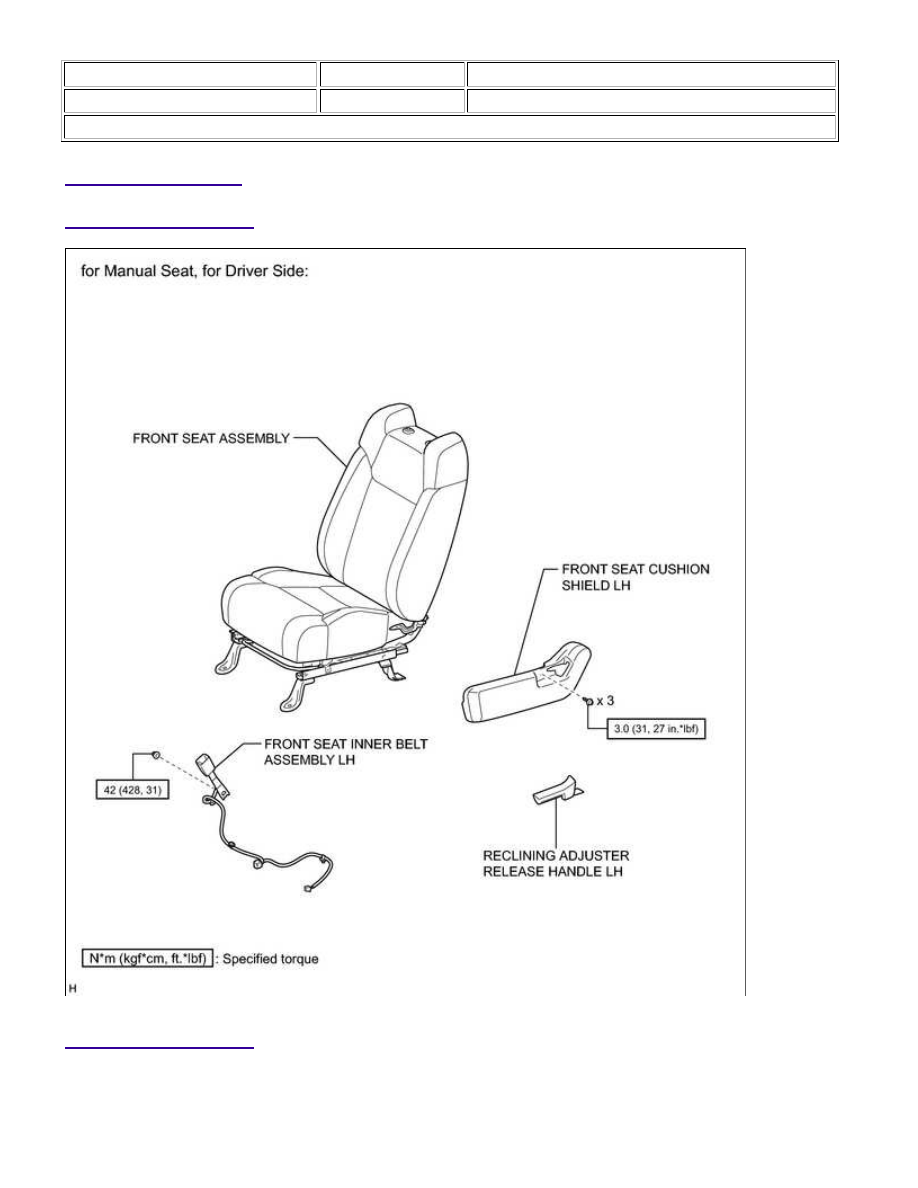

ILLUSTRATION

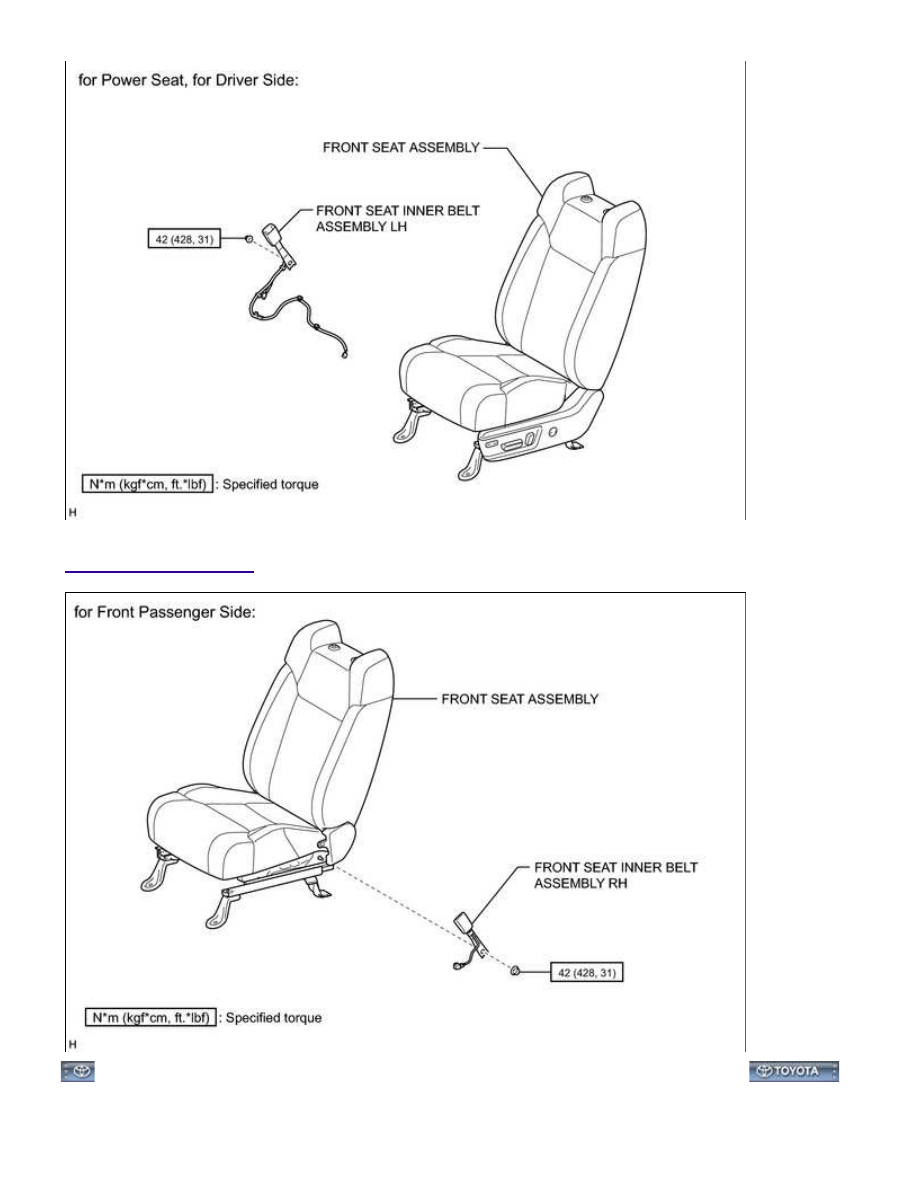

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: COMPONENTS...

ILLUSTRATION

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: COMPONENTS...
