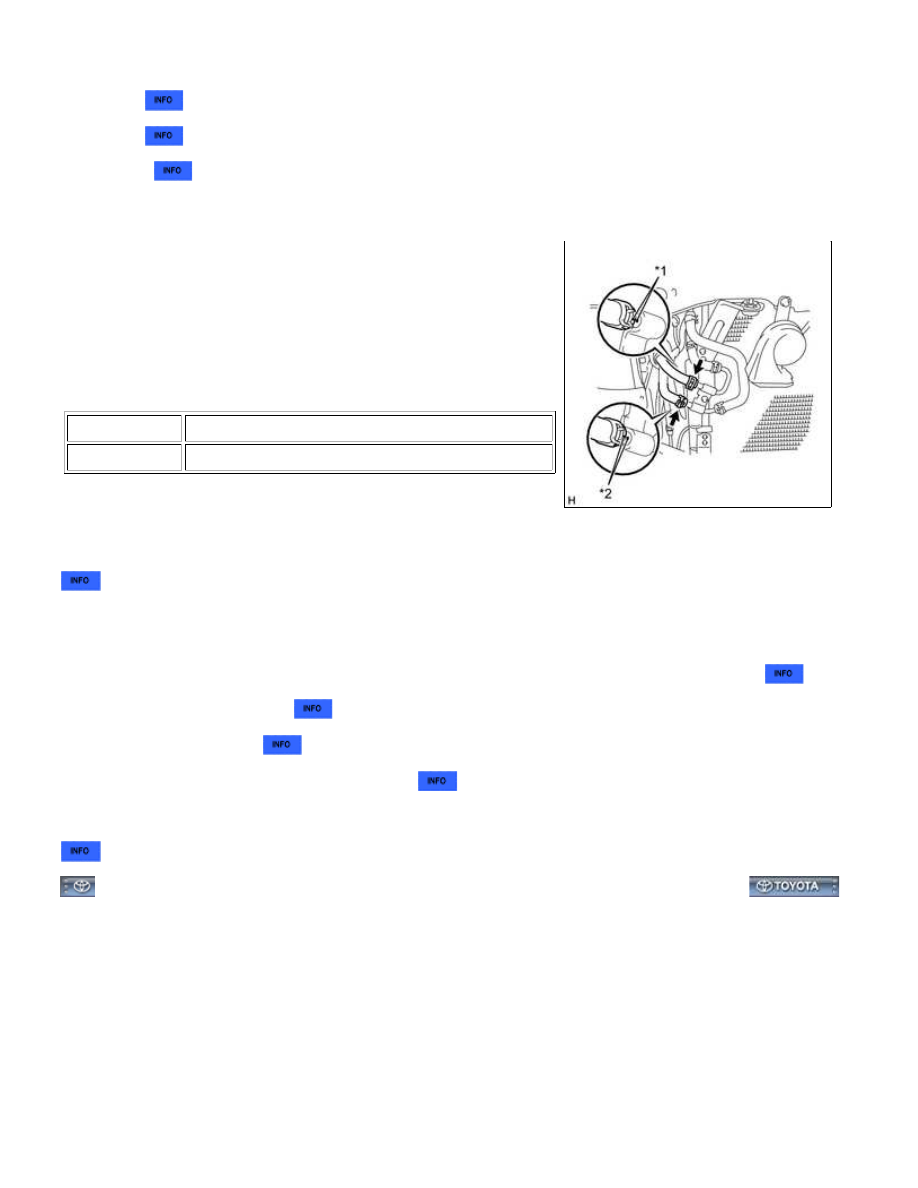

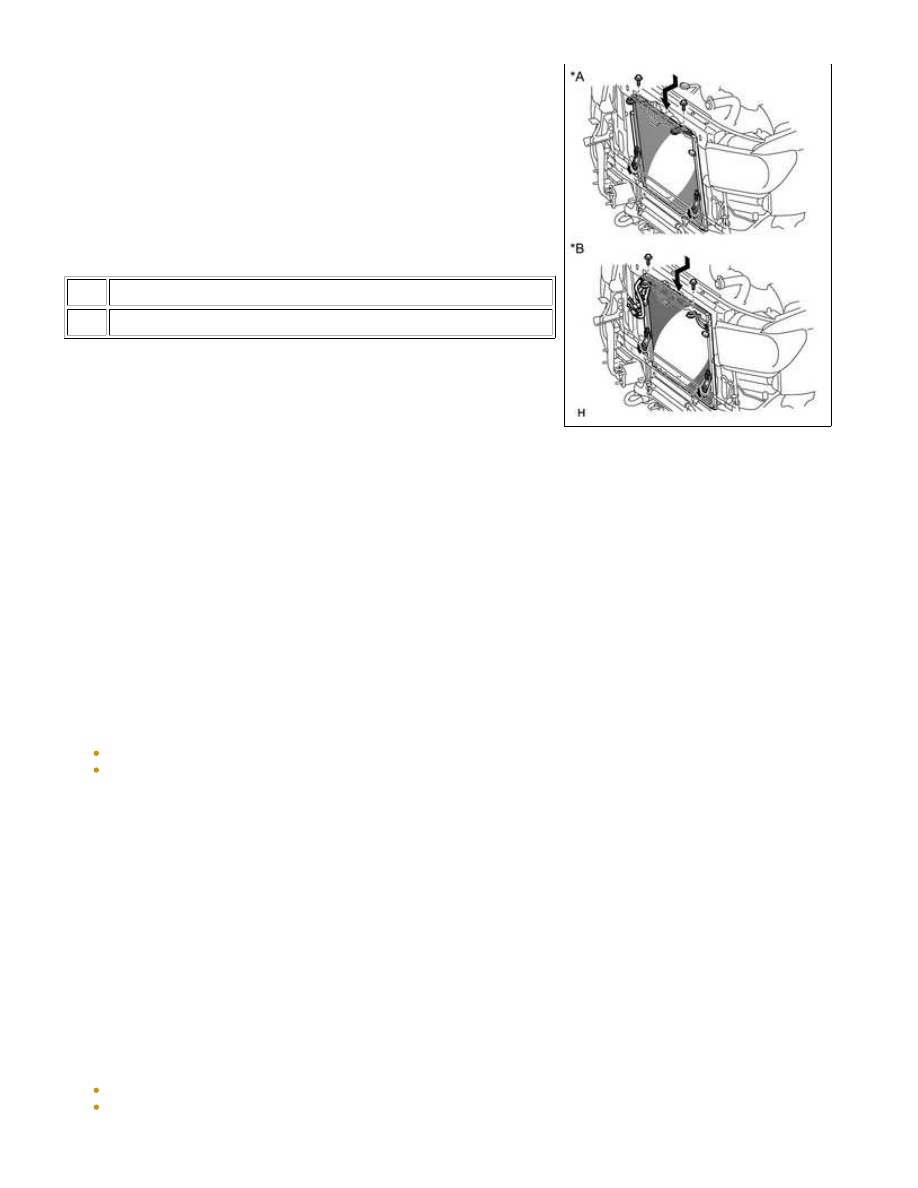

(a) Install the cooler condenser assembly with the 2 bolts as shown in the illustration. Torque: 9.8 N·m {100 kgf·cm, 87in·lbf} Text in Illustration *A w/o Air Cooled Transmission Oil Cooler *B w/ Air Cooled Transmission Oil Cooler 3. CONNECT AIR CONDITIONER TUBE ASSEMBLY ND-OIL 8 or equivalent (c) Install the O-ring to the air conditioner tube assembly. (d) Connect the air conditioner tube assembly to the cooler condenser assembly with the 2 bolts. Torque: 9.8 N·m {100 kgf·cm, 87in·lbf} NOTICE: (a) Remove the attached vinyl tape from the No. 1 cooler refrigerant discharge hose and the connecting part of the cooler condenser assembly. ND-OIL 8 or equivalent (c) Install the O-ring to the No. 1 cooler refrigerant discharge hose. (d) Connect the No. 1 cooler refrigerant discharge hose to the cooler condenser assembly with the bolt. Torque: 9.8 N·m {100 kgf·cm, 87in·lbf} NOTICE: |
