Toyota Tundra (2015 year). Manual

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002LPA019X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: SLIDING ROOF: SLIDING ROOF HOUSING (for CrewMax): COMPONENTS; 2015 MY Tundra [08/2014 -

]

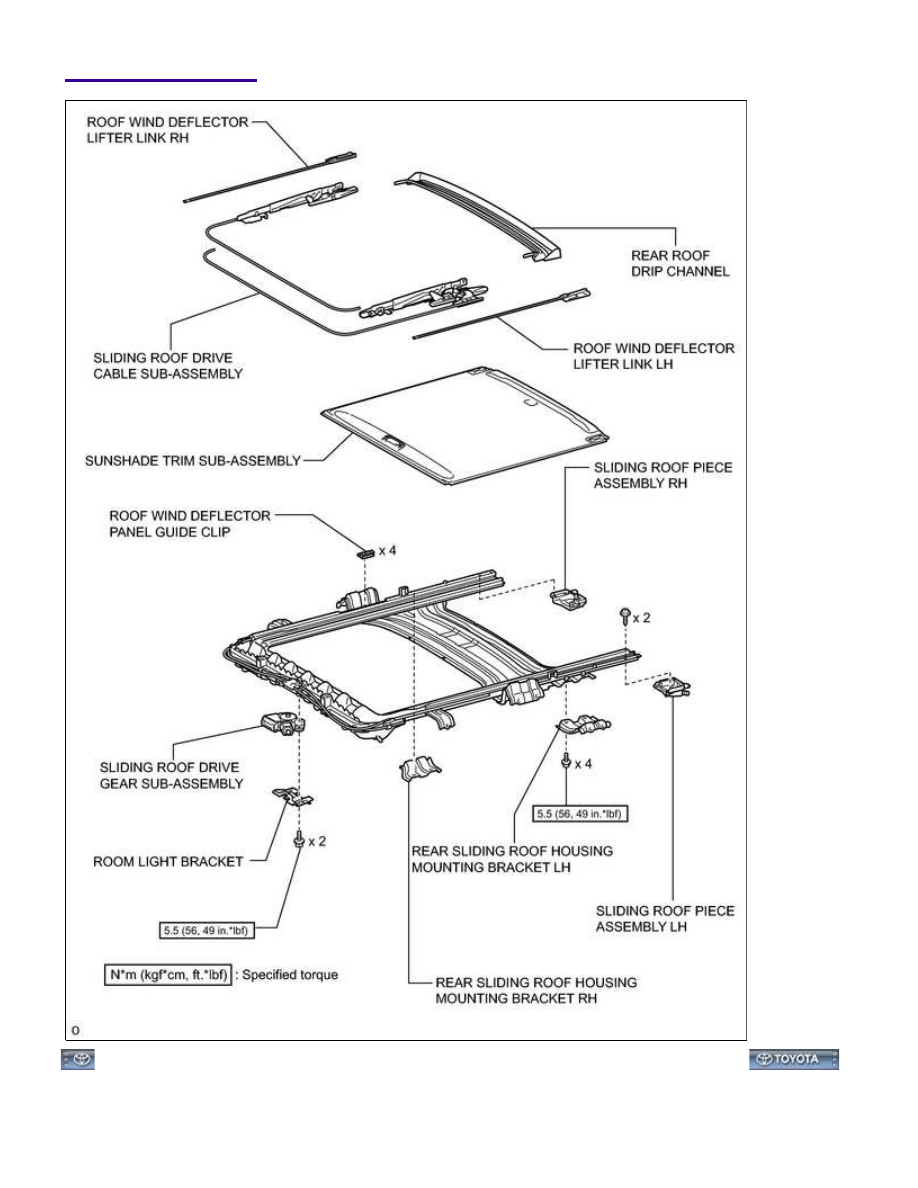

COMPONENTS

ILLUSTRATION

SLIDING ROOF: SLIDING ROOF HOUSING (for CrewMax): COM...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002LPB03CX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: SLIDING ROOF: SLIDING ROOF HOUSING (for CrewMax): REMOVAL; 2015 MY Tundra [08/2014 - ]

REMOVAL

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the

battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal
notice before proceeding with work

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent

airbag and seat belt pretensioner activation.

3. REMOVE ROOF HEADLINING ASSEMBLY

4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

(a) Remove the airbag

5. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

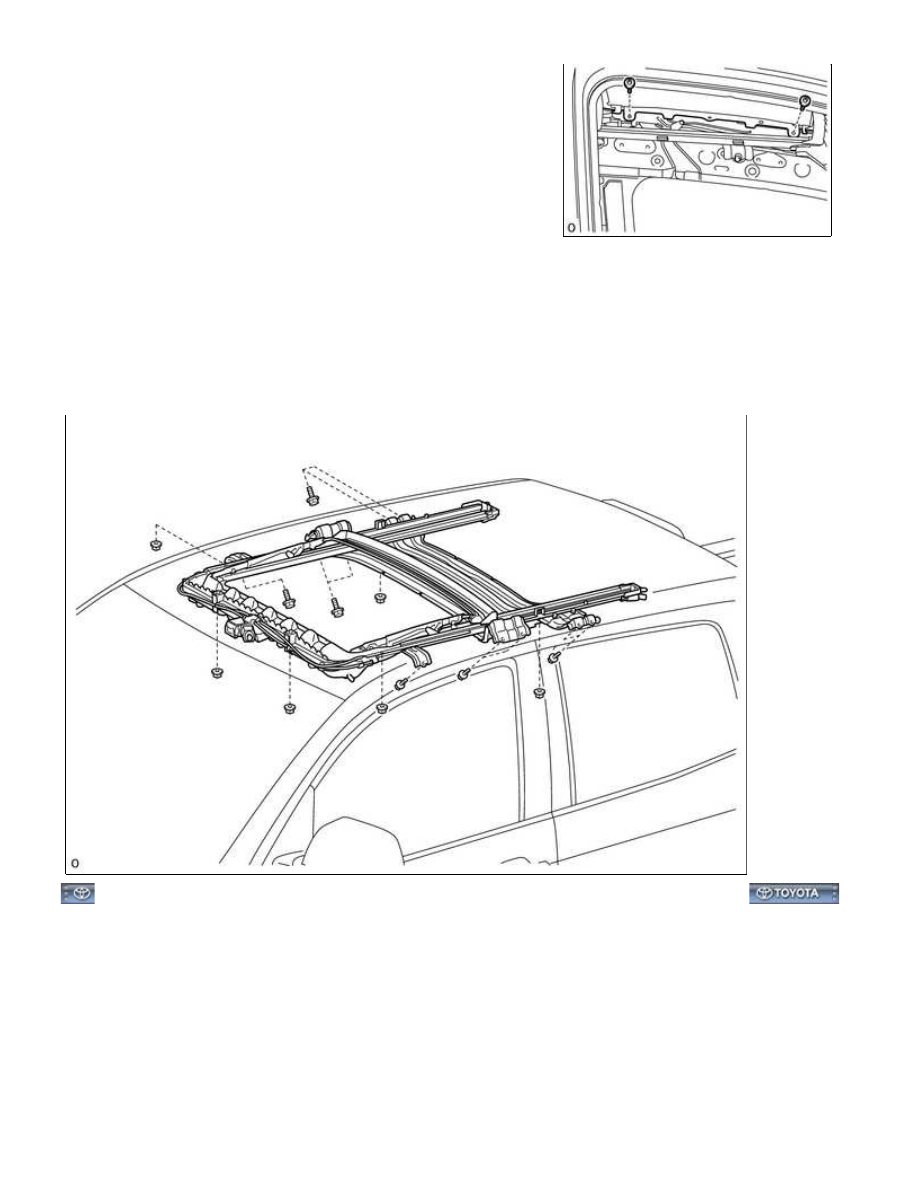

6. REMOVE SLIDING ROOF SIDE GARNISH LH

(a) Detach the 6 claws and remove the side garnish.

7. REMOVE SLIDING ROOF SIDE GARNISH RH

HINT:

Use the same procedures described for the LH side.

SLIDING ROOF: SLIDING ROOF HOUSING (for CrewMax): REM...
