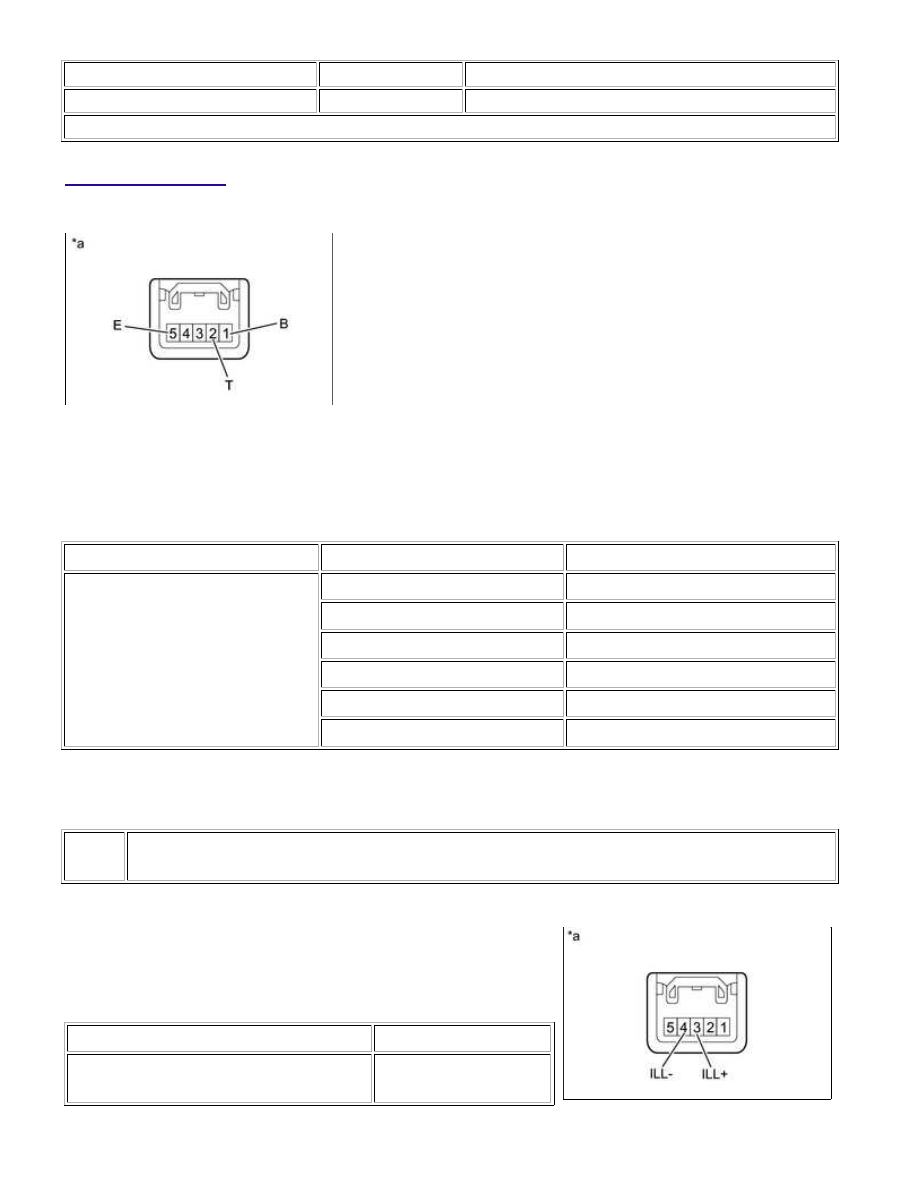

Last Modified: 9-16-2014 6.6 G Doc ID: RM000003SAG00TX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: LIGHTING: HEADLIGHT LEVELING SWITCH: INSPECTION; 2015 MY Tundra [08/2014 - ] INSPECTION 1. INSPECT HEADLIGHT LEVELING SWITCH (a) Check the voltage. (1) Connect the battery positive (+) lead to terminal 1 (B) and the negative (-) lead to terminal 5 (E). (2) Measure the voltage according to the value(s) in the table below. Standard Voltage: TESTER CONNECTION SWITCH CONDITION SPECIFIED CONDITION 1 (B) - 2 (T) 0 10.4 to 11.2 V 1 8.52 to 9.24 V 2 6.6 to 7.32 V 3 4.68 to 5.40 V 4 2.76 to 3.48 V 5 0.84 to 1.56 V If the result is not as specified, replace the headlight leveling switch. Text in Illustration *a Component without harness connected (Headlight Leveling Switch) (b) Check the illumination. (1) Apply battery voltage to the connector and check the illumination condition. OK: MEASUREMENT CONDITION SPECIFIED CONDITION Battery positive (+) → Terminal 3 (ILL+) Battery negative (-) → Terminal 4 (ILL-) Illuminates LIGHTING: HEADLIGHT LEVELING SWITCH: INSPECTION; 201... |
