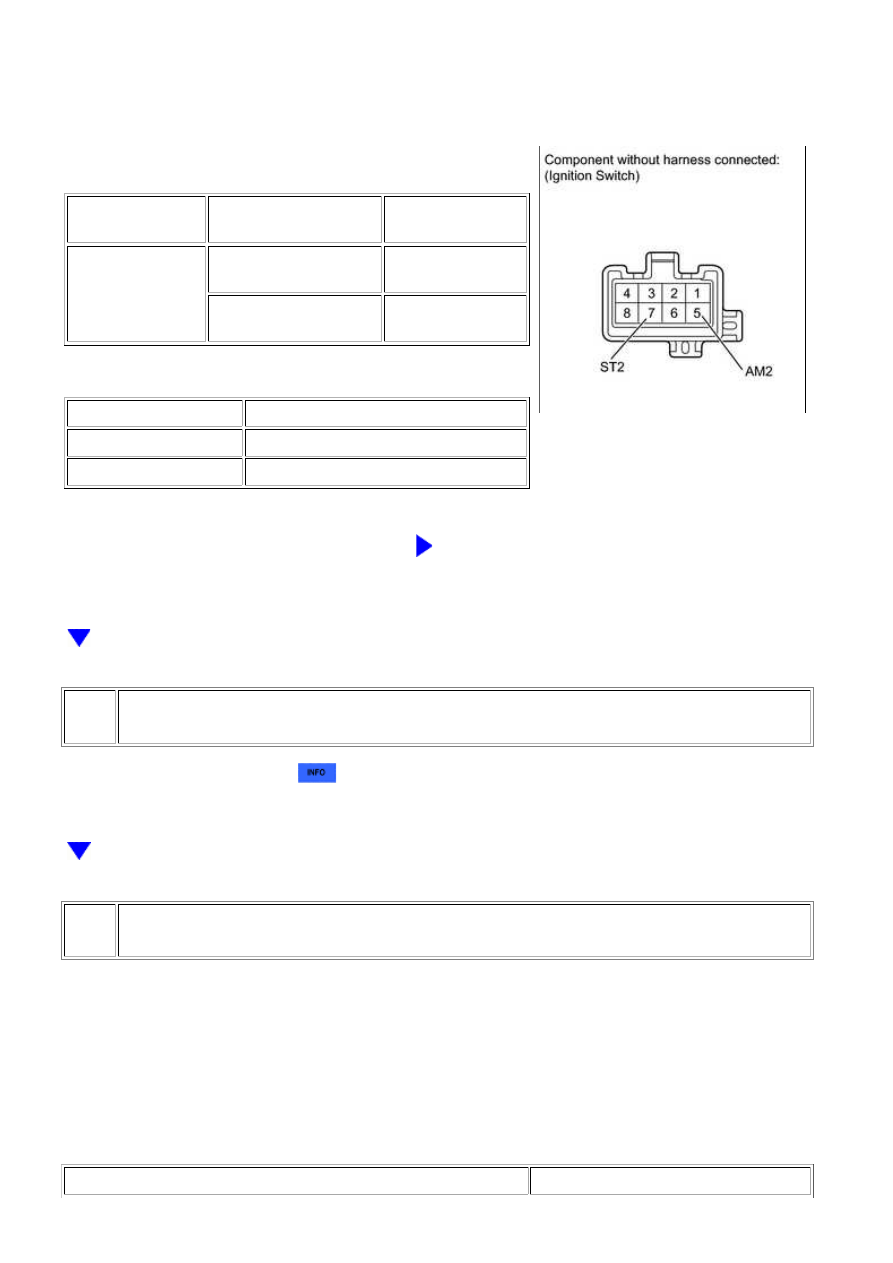

A NEXT (a) Disconnect the J9 ignition switch connector. (b) Measure the resistance according to the value(s) in the table below. Standard resistance: TESTER CONNECTION SWITCH CONDITION SPECIFIED CONDITION 5 (AM2) - 7 (ST2) Ignition switch position LOCK 10 kΩ or higher Ignition switch position START Below 1 Ω Result RESULT PROCEED TO NG A OK B B GO TO STEP 7 6. REPLACE IGNITION SWITCH ASSEMBLY (a) Replace the ignition switch

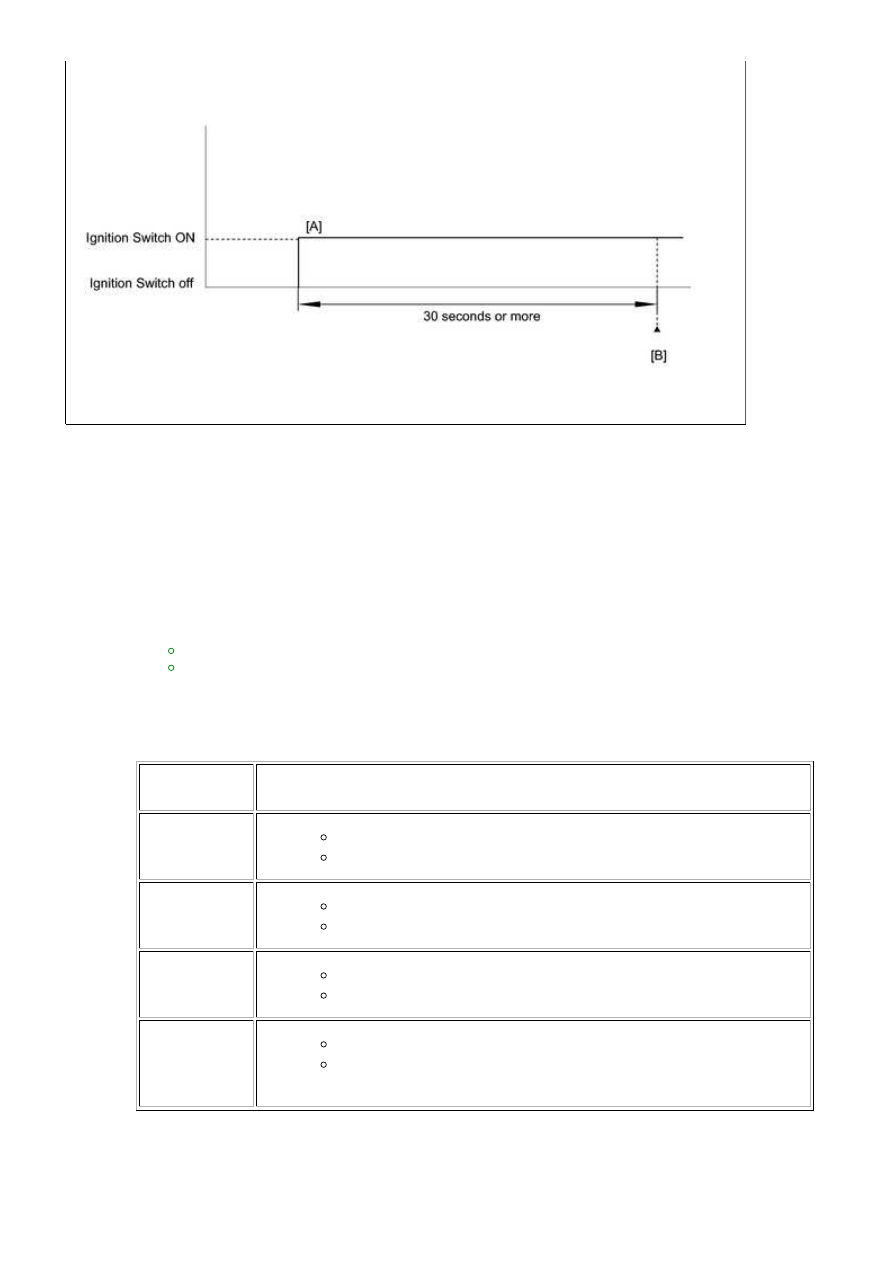

. 7. READ VALUE USING TECHSTREAM (STARTER SIGNAL) (a) Connect the Techstream to the DLC3. (b) Turn the ignition switch to ON and turn the Techstream on. (c) Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Starter Signal. (d) Check the value displayed on the Techstream when the ignition switch is turned to the ON and START positions. OK: IGNITION SWITCH POSITION STARTER SIGNAL 3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0617; Starter... |
