Toyota Tundra (2015 year). Manual - part 1456





Last Modified: 9-16-2014

6.6 G

Doc ID: RM000000Q6704HX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: ON-VEHICLE INSPECTION; 2015 MY

Tundra [08/2014 -        ]

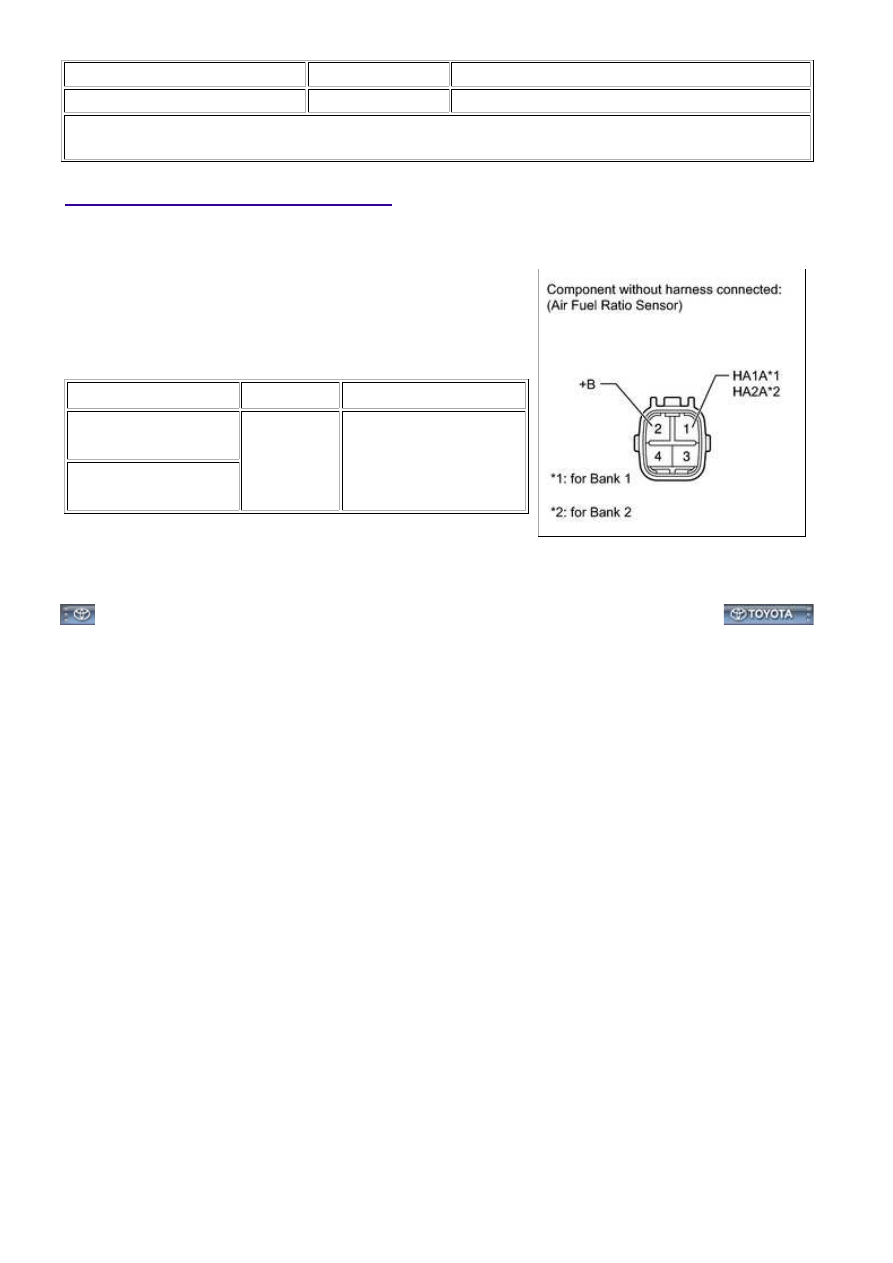

ON-VEHICLE INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR

(a) Disconnect the 2 sensor connectors.

(b) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 (HA1A) - 2 (+B)

(for Bank 1)

20°C (68°F)

1.6 to 3.2 Ω

1 (HA2A) - 2 (+B)

(for Bank 2)

If the result is not as specified, replace the sensor.

(c) Reconnect the 2 sensor connectors.

3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSO...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000031YH024X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: REMOVAL; 2015 MY Tundra [08/2014 -

       ]

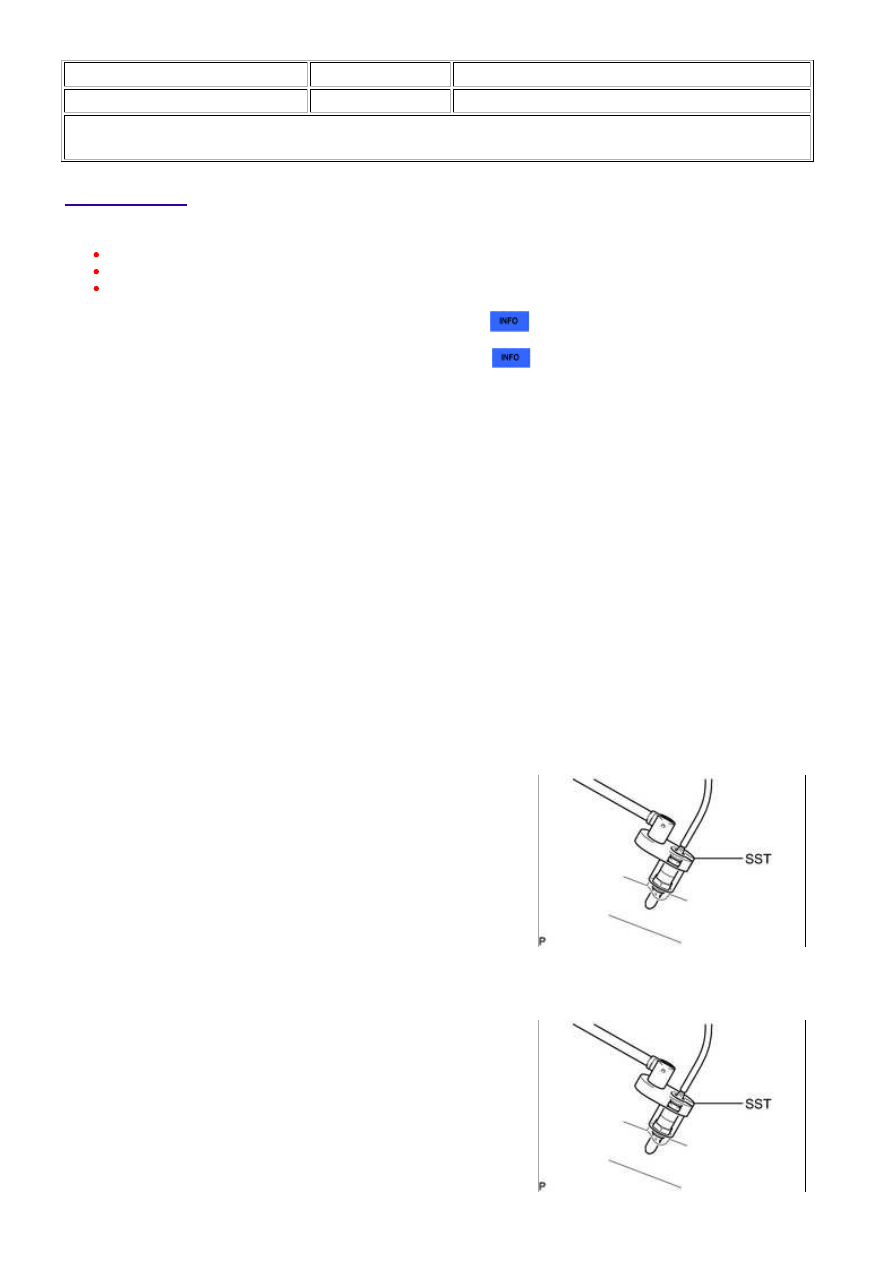

REMOVAL

CAUTION:

Wear protective gloves when removing the exhaust pipe assembly.
The exhaust pipe assembly is extremely hot immediately after the engine has stopped.
Confirm that the exhaust pipe assembly has cooled down before removing it.

1. REMOVE PROPELLER SHAFT HEAT INSULATOR

2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

3. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY

(a) Disconnect the air fuel ratio sensor connector.

(b) Disconnect the heated oxygen sensor connector.

(c) Remove the 2 bolts from the center exhaust pipe assembly.

(d) Remove the 3 nuts.

(e) Disconnect the front No. 2 exhaust pipe assembly from the exhaust pipe support to remove it.

(f) Remove the 2 gaskets.

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

(a) Disconnect the air fuel ratio sensor connector.

(b) Detach the 2 clamps and disconnect the heated oxygen sensor connector.

(c) Remove the 2 bolts from the center exhaust pipe assembly.

(d) Remove the 3 nuts, 2 gaskets and front exhaust pipe assembly.

5. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

(a) Using SST, remove the air fuel ratio sensor.

SST: 09224-00010

6. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

(a) Using SST, remove the air fuel ratio sensor.

SST: 09224-00010

3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSO...

3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSO...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000031YF027X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: INSTALLATION; 2015 MY Tundra

[08/2014 -        ]

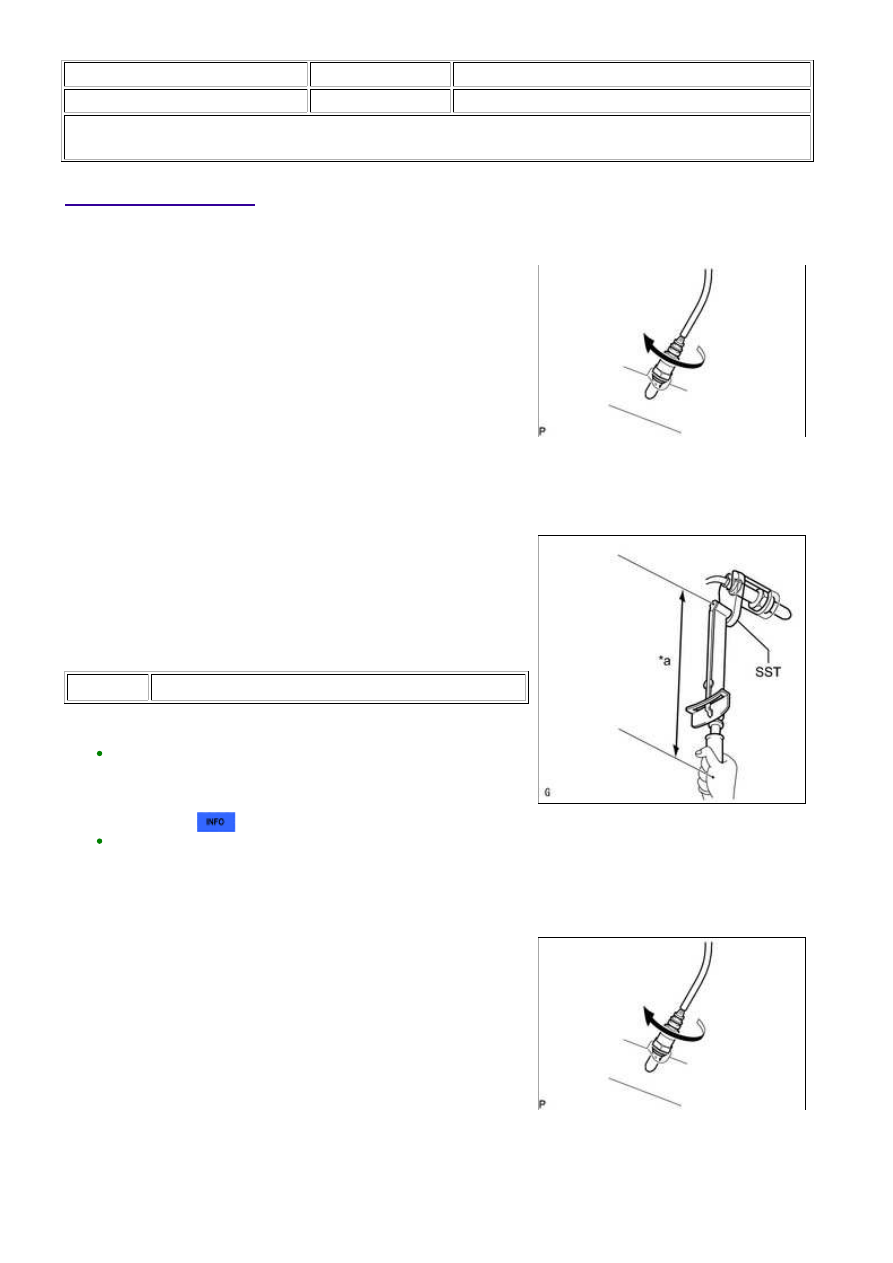

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

(a) Install the air fuel ratio sensor to the front exhaust pipe

assembly by hand.

(b) Using SST, tighten the air fuel ratio sensor.

SST: 09224-00010

Torque:

without SST -

44 N·m {449 kgf·cm, 32ft·lbf}

with SST -

40 N·m {408 kgf·cm, 30ft·lbf}

Text in Illustration

*a

Fulcrum length

HINT:



.

Make sure SST and the wrench are connected in a straight
line.

2. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

(a) Install the air fuel ratio sensor to the front No. 2 exhaust pipe

assembly by hand.

3UR-FBE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR...
