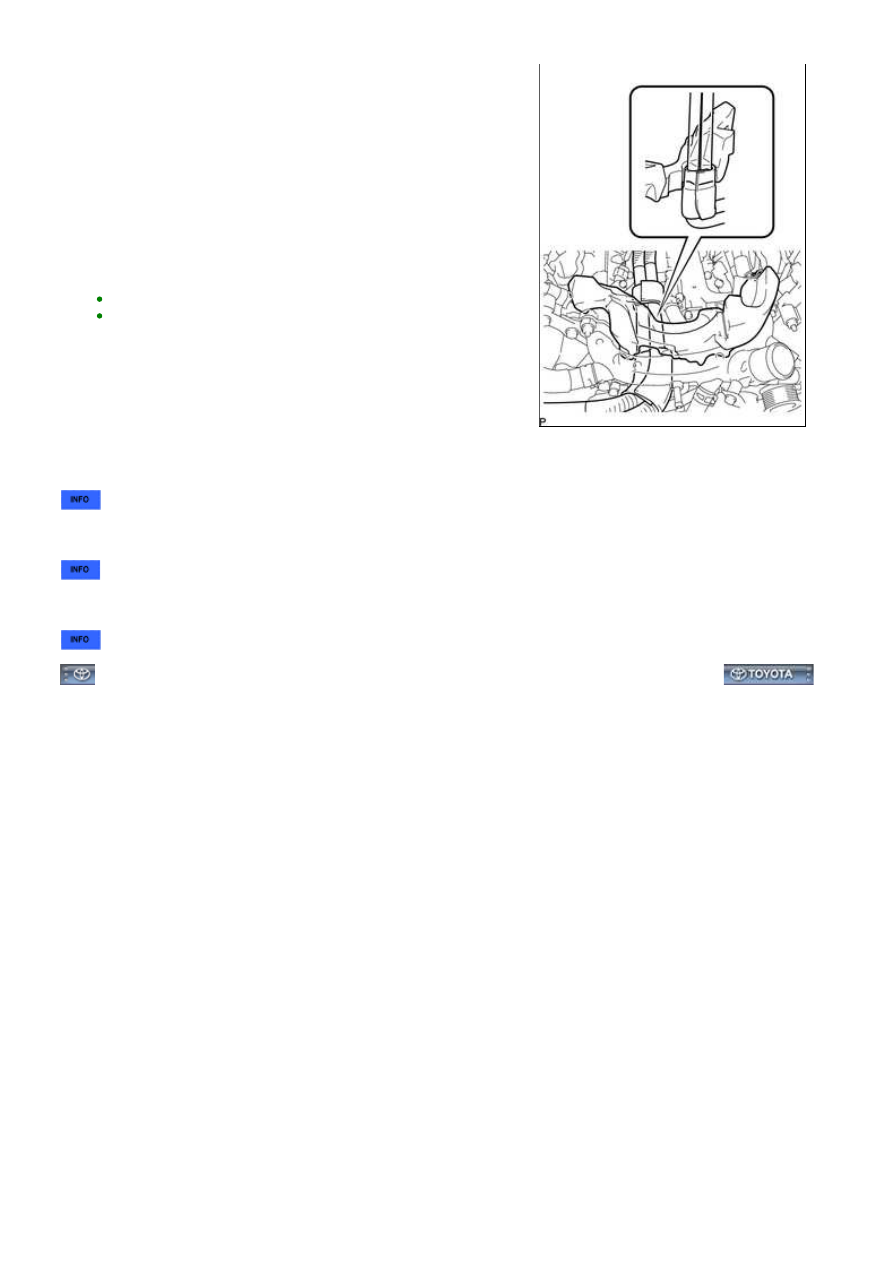

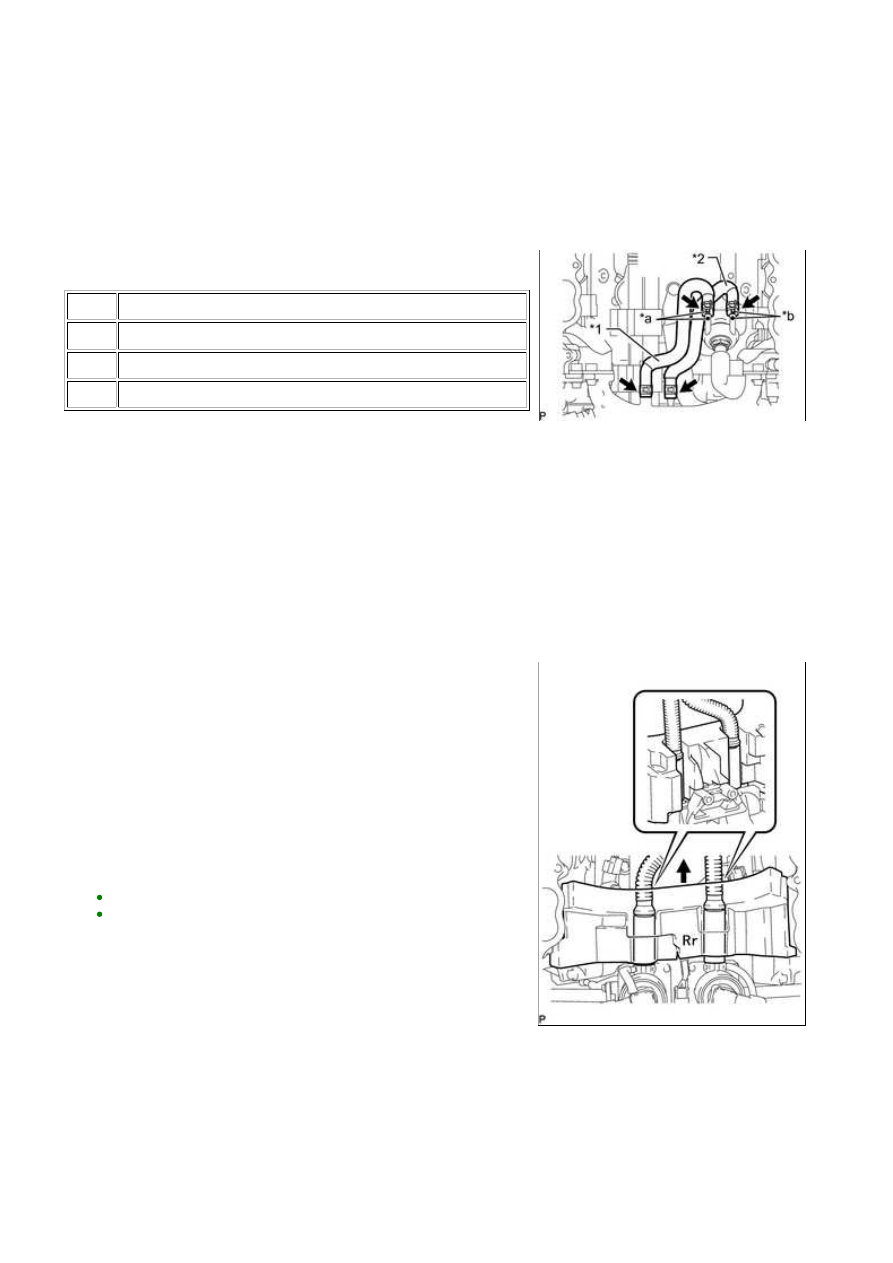

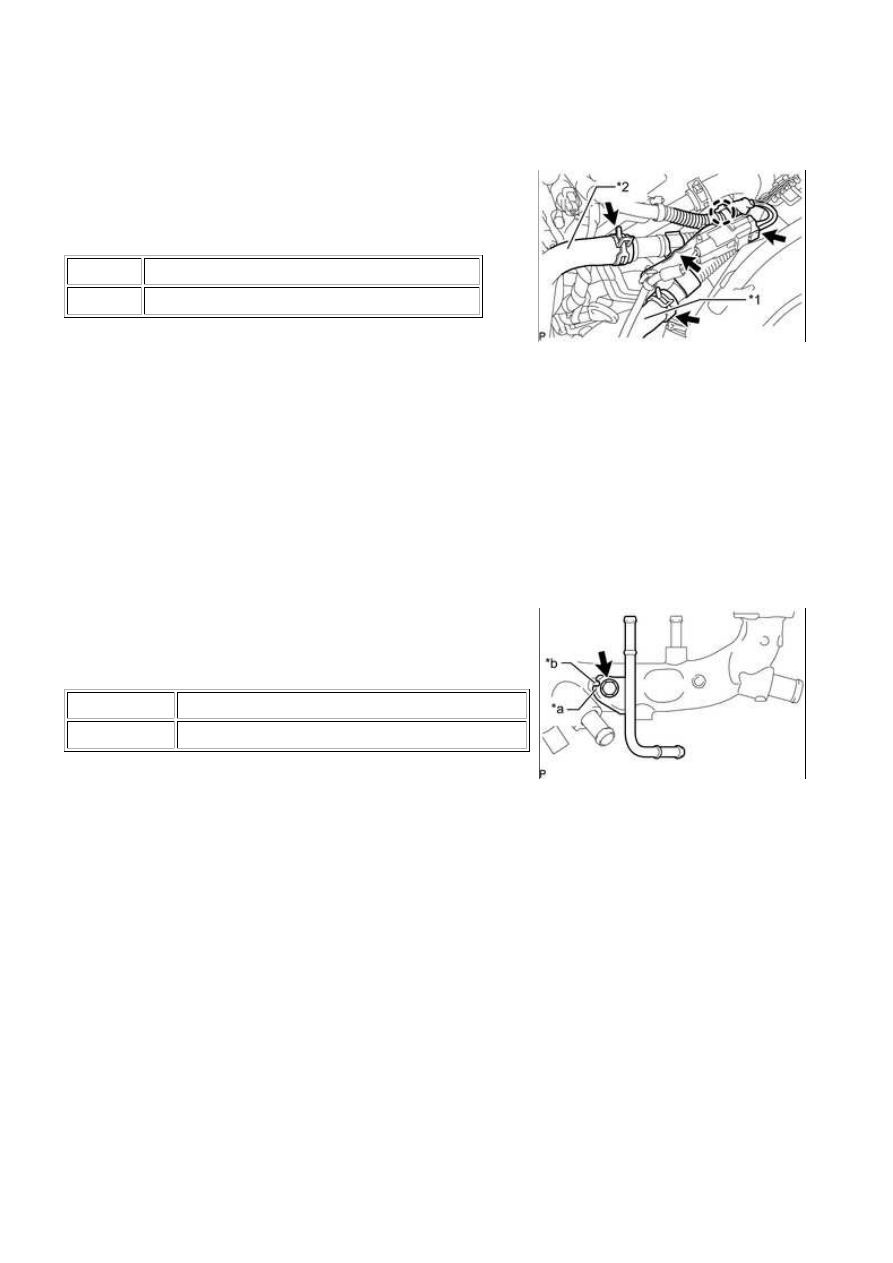

(b) Connect the air tube to the air switching valve assembly, and install the air tube with the 2 bolts to the No. 1 heat exchanger cover. Torque: 10 N·m {102 kgf·cm, 7ft·lbf} (c) Connect the air pump connector clamp holder. Text in Illustration *1 No. 2 Air Hose *2 No. 3 Air Hose (d) Attach the wire harness claw. (e) Connect the air pump connector. (f) Connect the No. 2 air hose and No. 3 air hose, and slide the 2 clamps to secure the hoses. 5. INSTALL NO. 3 WATER BY-PASS PIPE HINT: by-pass joint with the bolt. Torque: 10 N·m {102 kgf·cm, 7ft·lbf} Text in Illustration *a Stopper *b Protrusion NOTICE: 6. INSTALL FRONT WATER BY-PASS JOINT (a) Install 2 new gaskets and the front water by-pass joint with the 4 nuts to the cylinder head. Torque: 21 N·m {214 kgf·cm, 15ft·lbf} (b) Connect the engine coolant temperature sensor connector. 7. CONNECT NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY (a) Connect the No. 2 water by-pass pipe sub-assembly with the 3 bolts to the timing chain cover and front water by-pass joint. Torque: 10 N·m {102 kgf·cm, 7ft·lbf} 8. CONNECT NO. 2 WATER BY-PASS HOSE (a) Connect the No. 2 water by-pass hose to the water by-pass joint, and slide the clamp to secure the hose. 3UR-FBE EMISSION CONTROL: AIR SWITCHING VALVE: INSTA... |
