Title: 1UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tundra [08/2014 -        ]

INSTALLATION

1. INSTALL WATER INLET PIPE

(a) Apply soapy water to 2 new O-rings and install them to the water inlet pipe.

(b) Install the water inlet pipe to the No. 1 heat exchanger cover.

2. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY

(e) Apply seal packing in a continuous line to the timing chain cover sub-assembly as shown in the following

illustration.

Text in Illustration

*a

Continuous Line Area

*b

Dashed Line Area

*c

Diagonal Line Area

-

-

Seal packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

1UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tun...

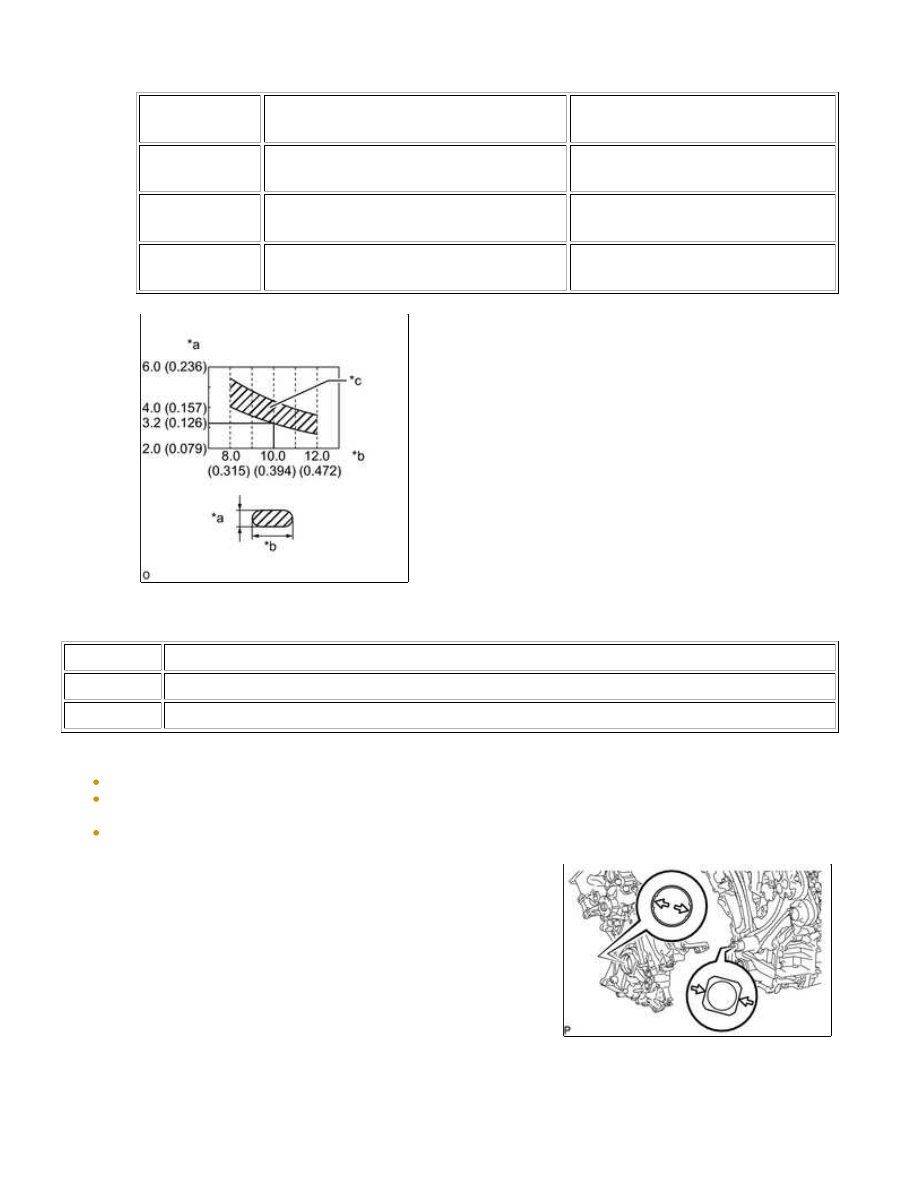

Apply Seal Packing As Follows:

AREA

SEAL PACKING DIAMETER

APPLICATION POSITION FROM

INSIDE EDGE OF COVER

Continuous Line

Area

3.0 to 4.0 mm (0.118 to 0.157 in.)

2.5 mm (0.0984 in.)

Dashed Line

Area

6.4 mm (0.252 in.) or more, or within OK

area shown in illustration

7.0 mm (0.276 in.)

Diagonal Line

Area

3.0 to 4.0 mm (0.118 to 0.157 in.)

5.5 mm (0.217 in.)

Text in Illustration

*a

Seal Packing Thickness

*b

Seal Packing Width

*c

OK Area

NOTICE:

When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
Install the timing chain cover sub-assembly within 3 minutes and tighten the bolts within 10 minutes after
applying seal packing.
Do not start the engine for at least 2 hours after installing.

(f) Align the oil pump drive rotor spline and crankshaft as shown in

the illustration and install the timing chain cover sub-assembly.

1UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tun...

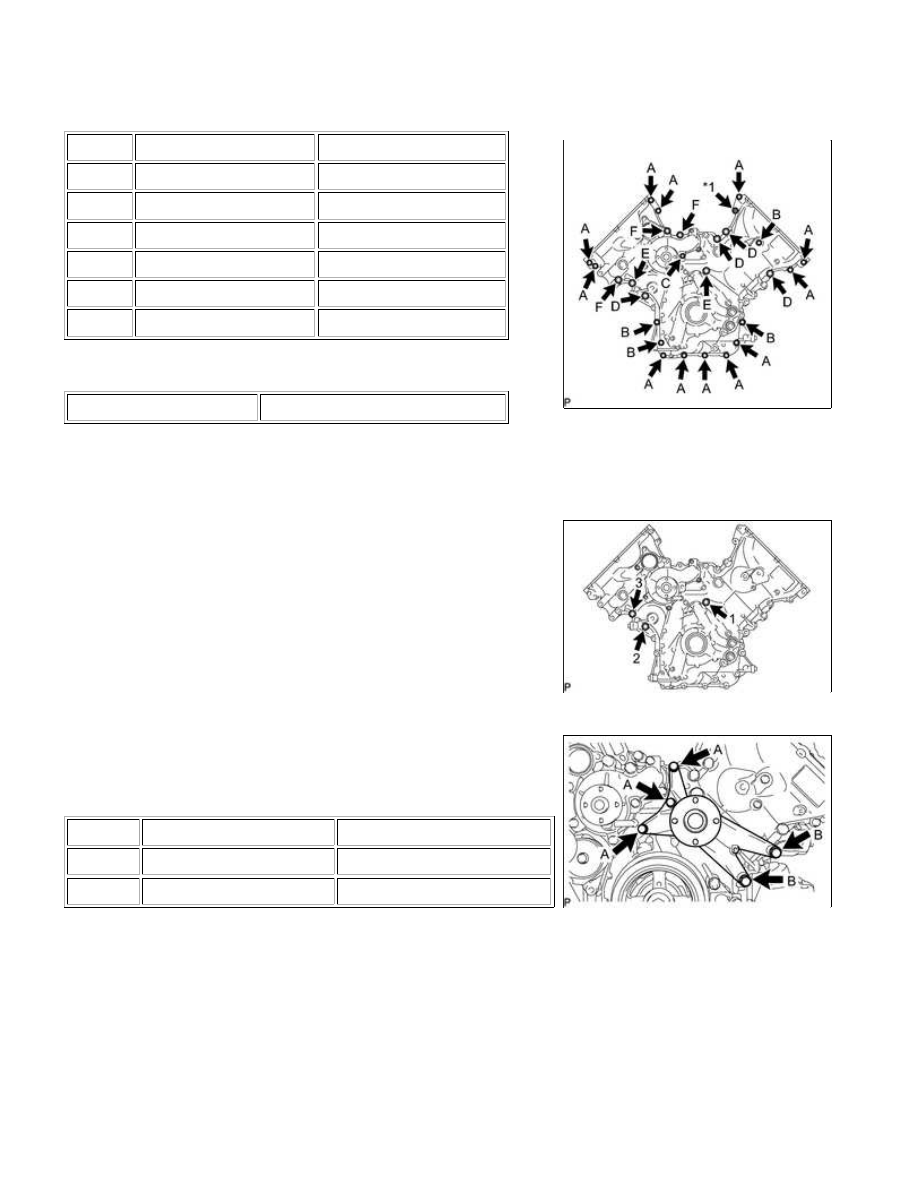

(g) Temporarily install the 26 bolts and nut.

Standard Bolt:

ITEM

LENGTH

THREAD DIAMETER

Bolt A

25 mm (0.984 in.)

8 mm (0.315 in.)

Bolt B

55 mm (2.17 in.)

8 mm (0.315 in.)

Bolt C

70 mm (2.76 in.)

8 mm (0.315 in.)

Bolt D

35 mm (1.38 in.)

10 mm (0.394 in.)

Bolt E

55 mm (2.17 in.)

10 mm (0.394 in.)

Bolt F

80 mm (3.15 in.)

10 mm (0.394 in.)

Text in Illustration

*1

Nut

NOTICE:

Make sure that there is no oil on the bolt threads.

(h) Tighten the 3 bolts in several steps in the sequence shown in

the illustration.

Torque:

47 N·m {479 kgf·cm, 35ft·lbf}

(i) Temporarily install the fan bracket assembly with the 5 bolts to

the timing chain cover sub-assembly.

Standard Bolt:

ITEM

LENGTH

THREAD DIAMETER

Bolt A

70 mm (2.76 in.)

8 mm (0.315 in.)

Bolt B

80 mm (3.15 in.)

10 mm (0.394 in.)

(j) Temporarily install the V-ribbed belt tensioner assembly with the bolt and 6 mm hexagon bolt to the timing

chain cover sub-assembly.

1UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tun...

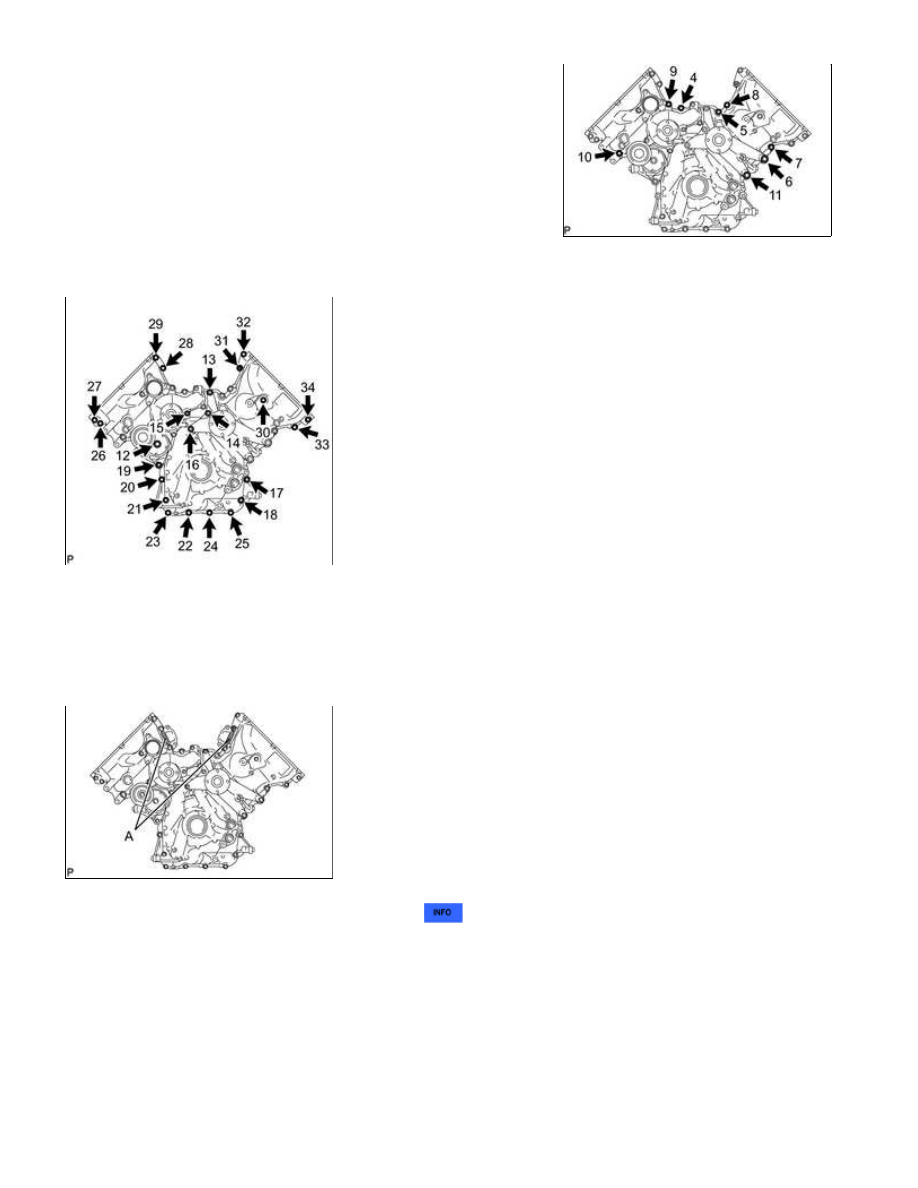

(k) Tighten the 8 bolts labeled 4 to 11 in several steps in the

sequence shown in the illustration.

Torque:

47 N·m {479 kgf·cm, 35ft·lbf}

(l) Tighten the 22 bolts and nut labeled 12 to 34 in several steps in the sequence shown in the illustration.

Torque:

23 N·m {235 kgf·cm, 17ft·lbf}

NOTICE:

After the installation, if the seal packing has seeped out at the areas labeled A shown in the illustration,

wipe it off.

3. INSTALL FRONT CRANKSHAFT OIL SEAL

4. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH

(a) Install 5 new gaskets to the No. 2 camshaft bearing cap and No. 3 camshaft bearing cap.

(b) Install the cylinder head cover gasket LH to the cylinder head cover sub-assembly LH.

NOTICE:

Remove any oil from the contact surface.

(c) Apply seal packing as shown in the illustration.

1UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tun...
