Last Modified: 9-16-2014
6.6 G
Doc ID: RM000004UDH00DX
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: PARK ASSIST / MONITORING: BLIND SPOT MONITOR MAIN SWITCH: INSPECTION; 2015 MY Tundra
[08/2014 - ]
INSPECTION

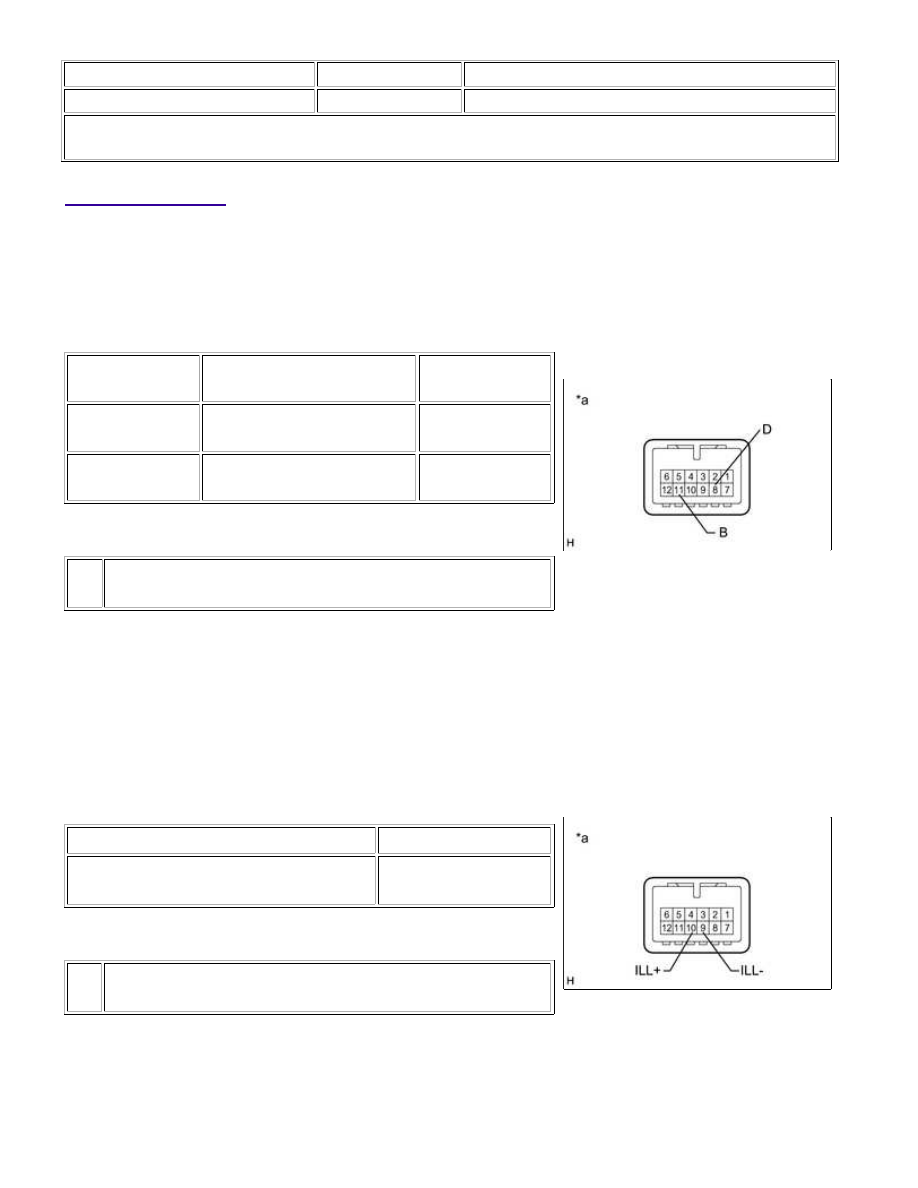

1. INSPECT BLIND SPOT MONITOR MAIN SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table
below.
Standard Resistance:
TESTER
CONNECTION
SWITCH CONDITION
SPECIFIED
CONDITION
11 (B) - 8 (D)
Blind spot monitor main
switch assembly on
Below 1 Ω
11 (B) - 8 (D)
Blind spot monitor main
switch assembly off
10 kΩ or higher
Text in Illustration
*a
Component without harness connected
(Blind spot monitor main switch assembly)
If the result is not as specified, replace the blind spot monitor
main switch assembly.
(b) Check that the switch illuminates.
(1) Apply battery voltage to the blind spot monitor main switch
assembly and check that the switch illuminates.
OK:
CONNECTION
SPECIFIED CONDITION
Battery positive (+) → Terminal 10 (ILL+)
Battery negative (-) → Terminal 9 (ILL-)
Illuminates
Text in Illustration
*a
Component without harness connected
(Blind Spot Monitor Main Switch Assembly)
If the result is not as specified, replace the blind spot
monitor main switch assembly.

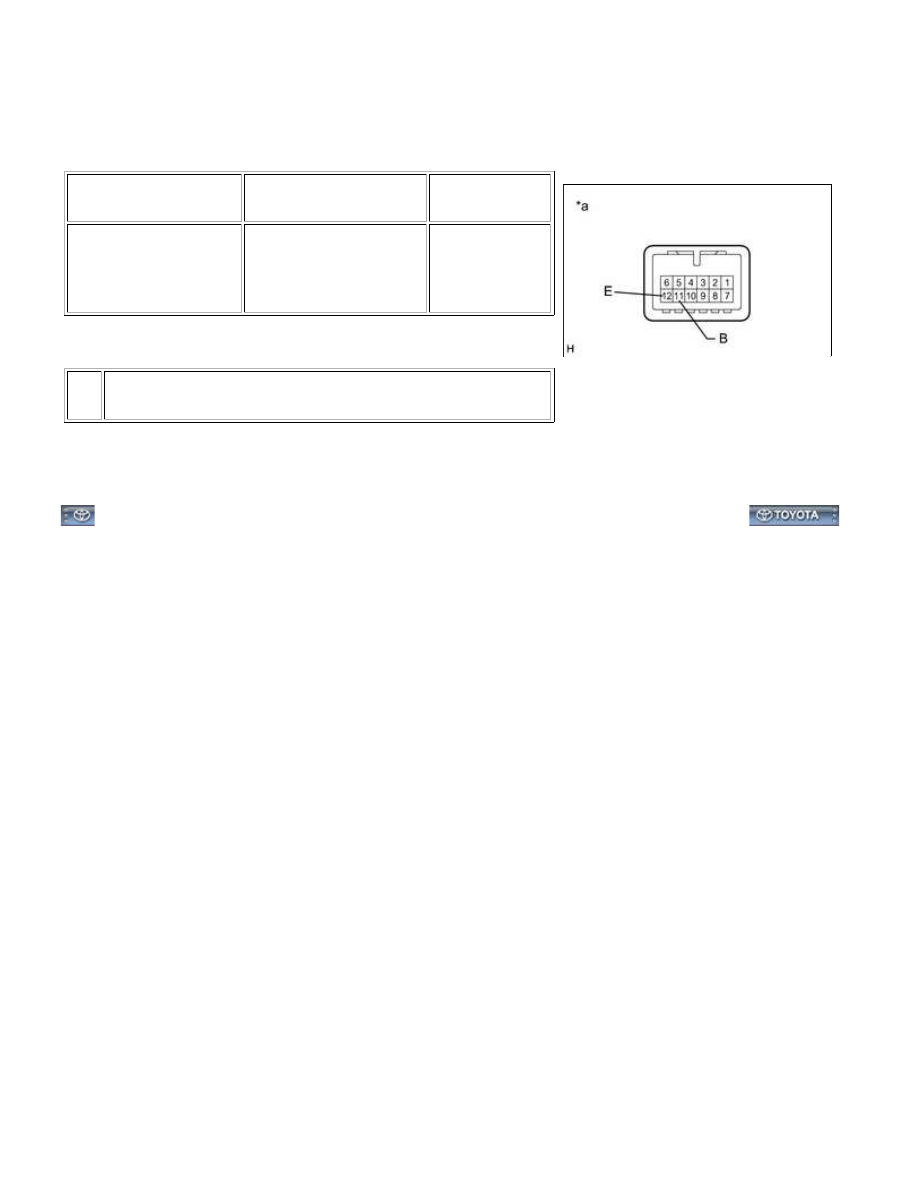

(c) Check that the switch indicator operates.
