Toyota Tundra (2015 year). Manual - part 1098





DTC

NO.

DTC DETECTION CONDITION

TROUBLE AREA

P0010

(1 trip detection logic)

Open or short in OCV (for intake side of

bank 1) circuit

P0020

(1 trip detection logic)

Open or short in OCV (for intake side of

bank 2) circuit

HINT:

This DTC relates to the Oil Control Valve (OCV).

MONITOR DESCRIPTION

This DTC is designed to detect opens or shorts in the camshaft oil control valve (OCV) circuit. If the OCV's

duty-cycle is excessively high or low while the engine is running, the ECM will illuminate the MIL and store the

DTC.

MONITOR STRATEGY

Related DTCs

P0010: VVT OCV range check (Bank 1)

P0020: VVT OCV range check (Bank 2)

Required Sensors/Components (Main)

VVT OCV

Required Sensors/Components (Related)

-

Duration

1 second

MIL Operation

Immediate

TYPICAL ENABLING CONDITIONS

All

Monitor runs whenever following DTCs not present

None

Starter

OFF

Ignition switch

ON

Time after ignition switch off to ON

0.5 seconds or more

Case 1

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010,P0020;...

Battery voltage

11 to 13 V

Target duty ratio

Less than 70%

Battery voltage

13 V or more

Target duty ratio

Less than 80%

Case 2

Current cut status

Not cut

TYPICAL MALFUNCTION THRESHOLDS

Case 1

Output duty cycle

100% or more

Case 2

Output duty cycle

3% or less

COMPONENT OPERATING RANGE

VVT OCV duty cycle

3 to 100%

CONFIRMATION DRIVING PATTERN

Connect the Techstream to the DLC3.

1.

Turn the ignition switch to ON and turn the Techstream on.

2.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

3.

Turn the ignition switch off and wait for at least 30 seconds.

4.

Turn the ignition switch to ON and turn the Techstream on.

5.

Wait 5 seconds.

6.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

7.

Read the pending DTCs.

HINT:

If a pending DTC is output, the system is malfunctioning.
If a pending DTC is not output, perform the following procedure.

8.

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

9.

Input the DTC: P0010 or P0020.

10.

Check the DTC judgment result.

TESTER

DISPLAY

DESCRIPTION

NORMAL

DTC judgment completed

System normal

11.

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010,P0020;...

TESTER

DISPLAY

DESCRIPTION

ABNORMAL

DTC judgment completed

System abnormal

INCOMPLETE

DTC judgment not completed

Perform driving pattern after confirming DTC enabling conditions

N/A

Unable to perform DTC judgment

If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and

check for permanent DTCs



.

HINT:

If a permanent DTC is output, the system is malfunctioning.
If no permanent DTC is output, the system is normal.

12.

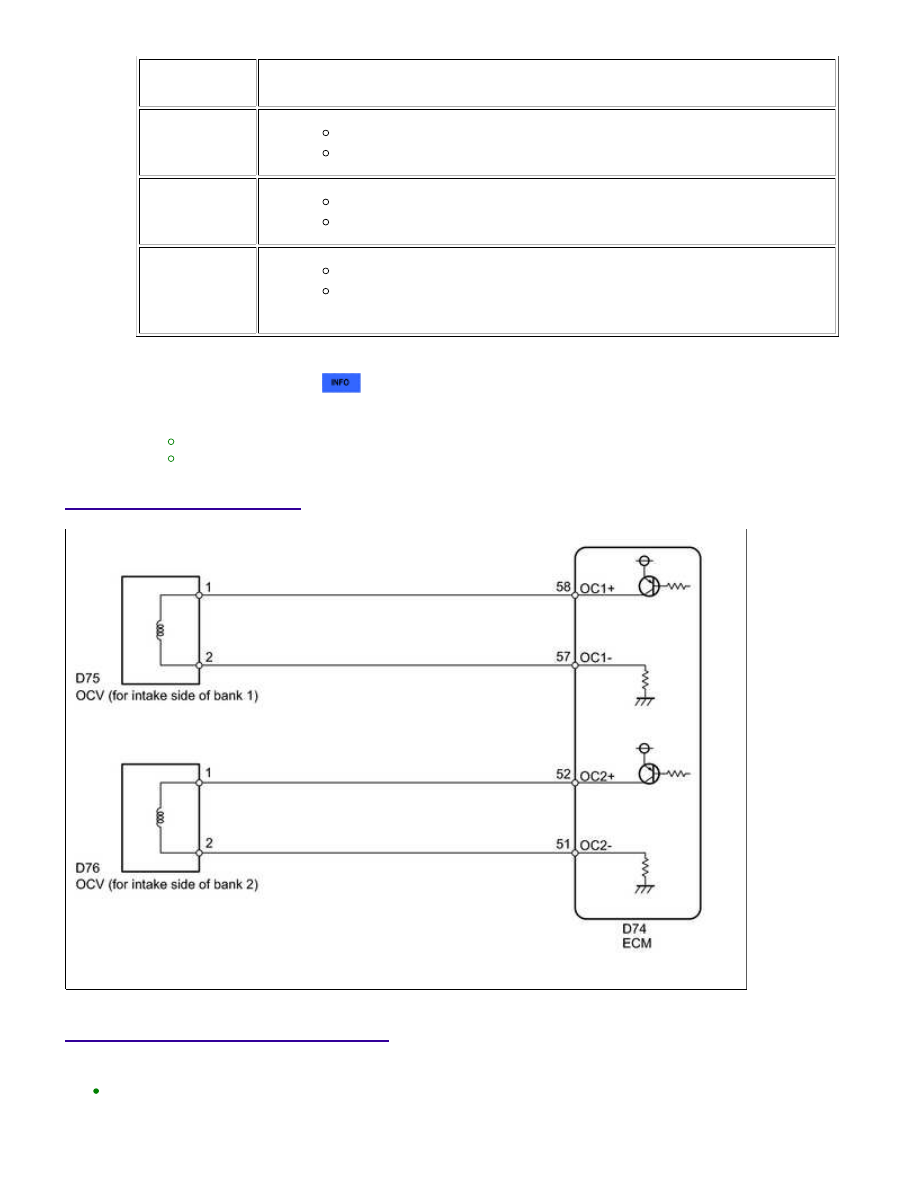

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Read freeze frame data using the Techstream. Freeze frame data records the engine condition when
malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010,P0020;...

moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other
data from the time the malfunction occurred.
Bank 1 refers to the bank that includes the No. 1 cylinder*.

*: The No. 1 cylinder is the cylinder which is farthest from the transmission.

Bank 2 refers to the bank that does not include the No. 1 cylinder.

PROCEDURE

1.

CHECK FOR DTC

(a) Clear DTCs after recording the freeze frame data and DTCs



.

(b) Turn the ignition switch off.

(c) Allow the engine to idle and check for DTCs.

(d) Check that P0010 or P0020 is not present.

OK:

P0010 or P0020 is not present.

NG

GO TO STEP 2

OK

CHECK FOR INTERMITTENT PROBLEMS

2.

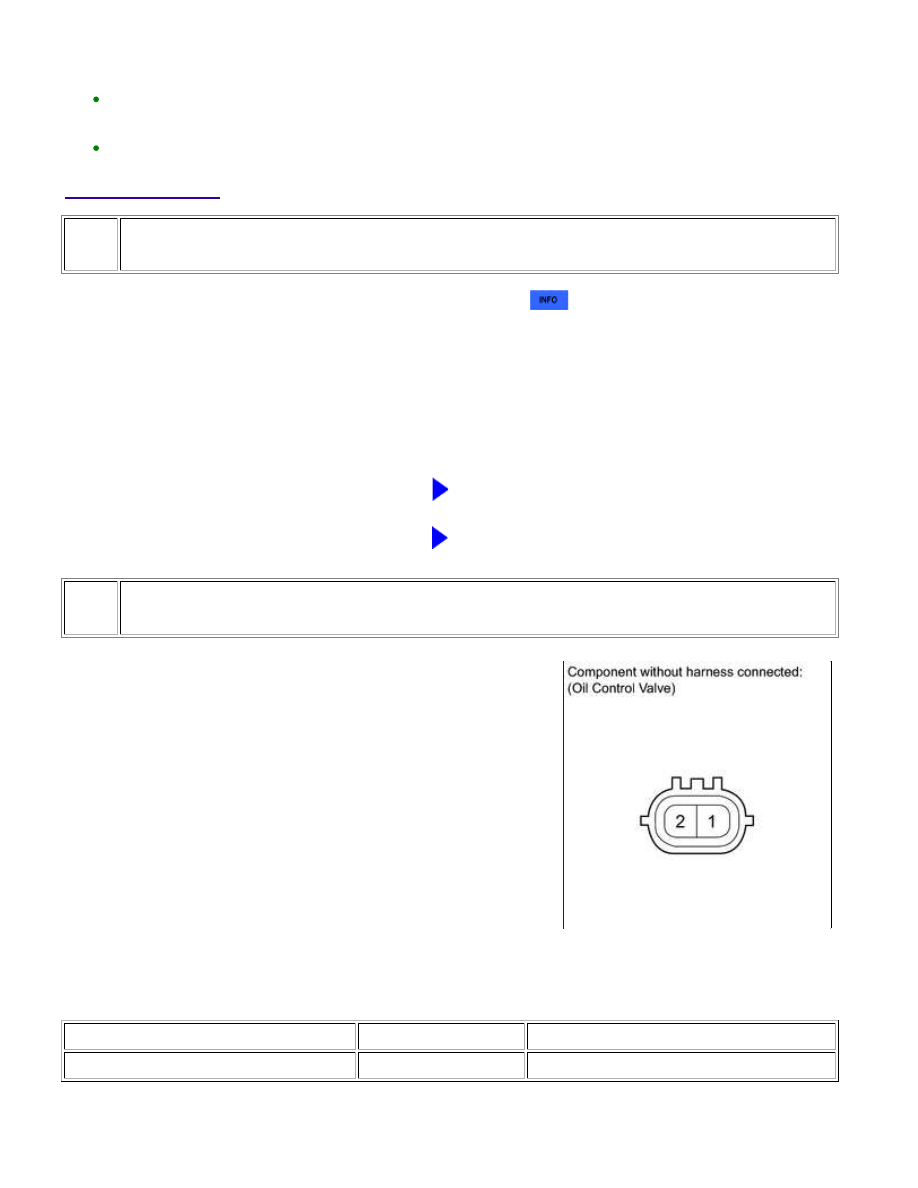

INSPECT CAMSHAFT OIL CONTROL VALVE

(a) Disconnect the OCV connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 - 2

20°C (68°F)

6.9 to 7.9 Ω

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010,P0020;...
