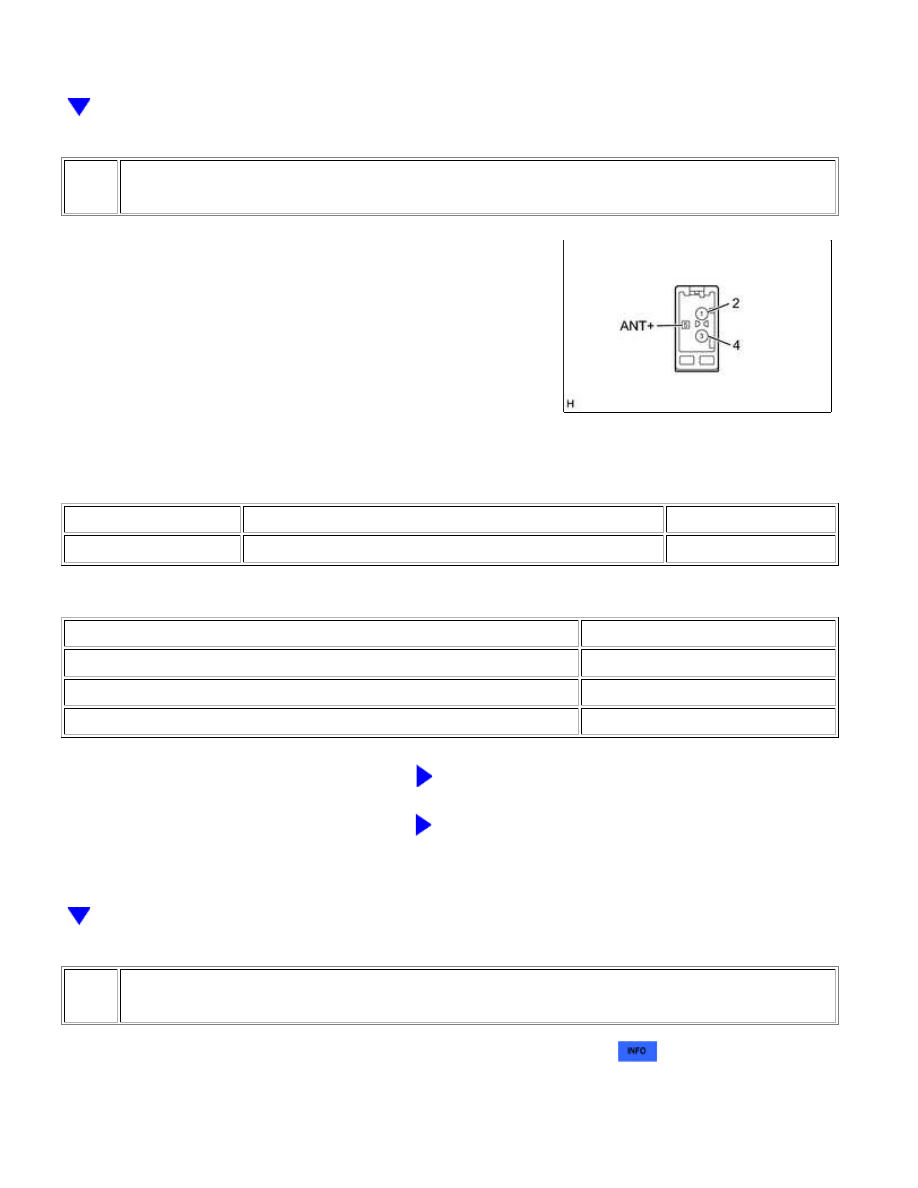

A A 5. INSPECT NAVIGATION RECEIVER ASSEMBLY (a) Disconnect the J151 navigation receiver assembly connector. (b) Measure the voltage according to the value(s) in the table below. Standard Voltage: TESTER CONNECTION SWITCH CONDITION SPECIFIED CONDITION 5 (ANT+) - Body ground Ignition switch ACC, radio switch on and FM or AM selected 11 to 14 V Result RESULT PROCEED TO OK A NG (for Column Shift Type) B NG (for Floor Shift Type) C B REPLACE NAVIGATION RECEIVER ASSEMBLY C REPLACE NAVIGATION RECEIVER ASSEMBLY 6. CHECK PULL TOP ANTENNA POLE SUB-ASSEMBLY (a) Check that the pull top antenna pole sub-assembly is securely installed
. OK: The pull top antenna pole sub-assembly is installed properly. NAVIGATION: NAVIGATION SYSTEM: Radio Broadcast cannot be R... |
