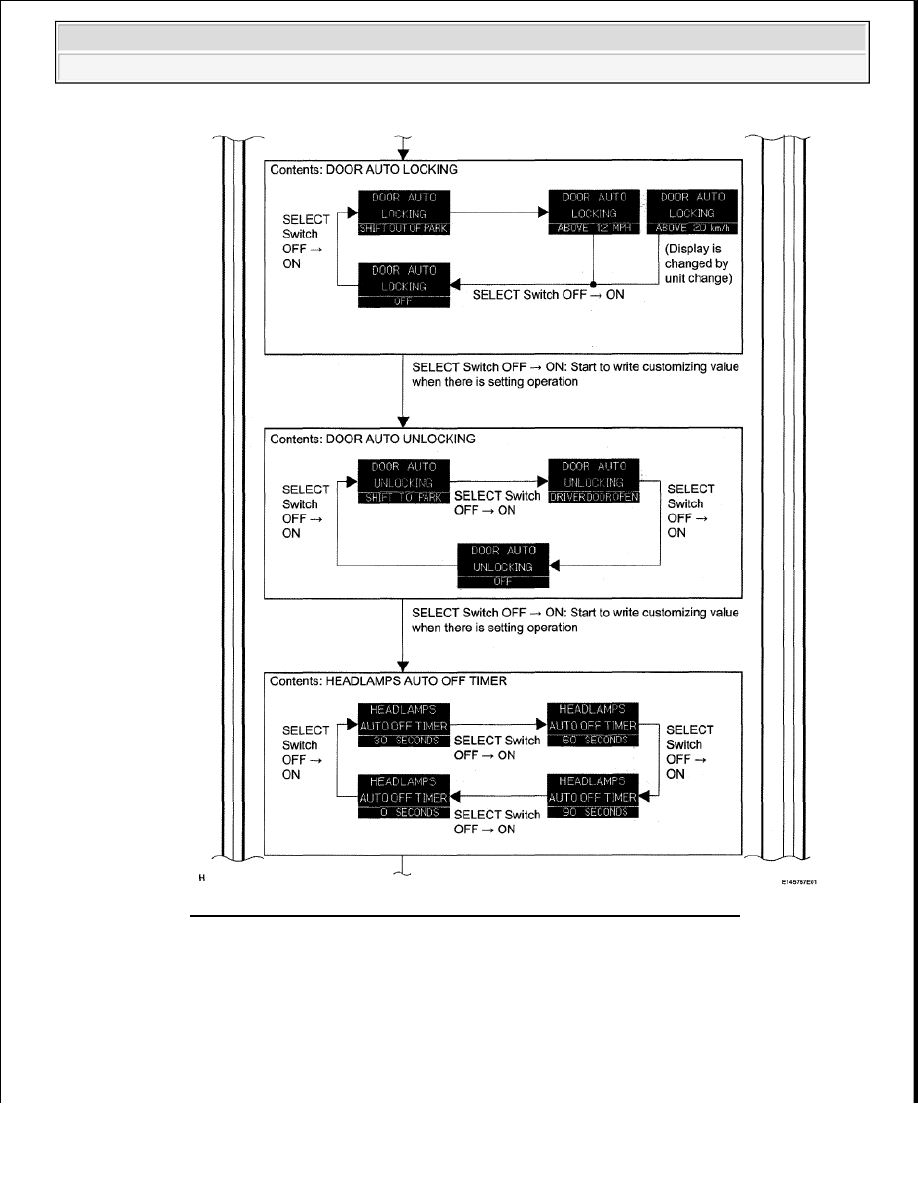

Fig. 16: Customizing Function With Multi-Information Display (3 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Meter - Tundra

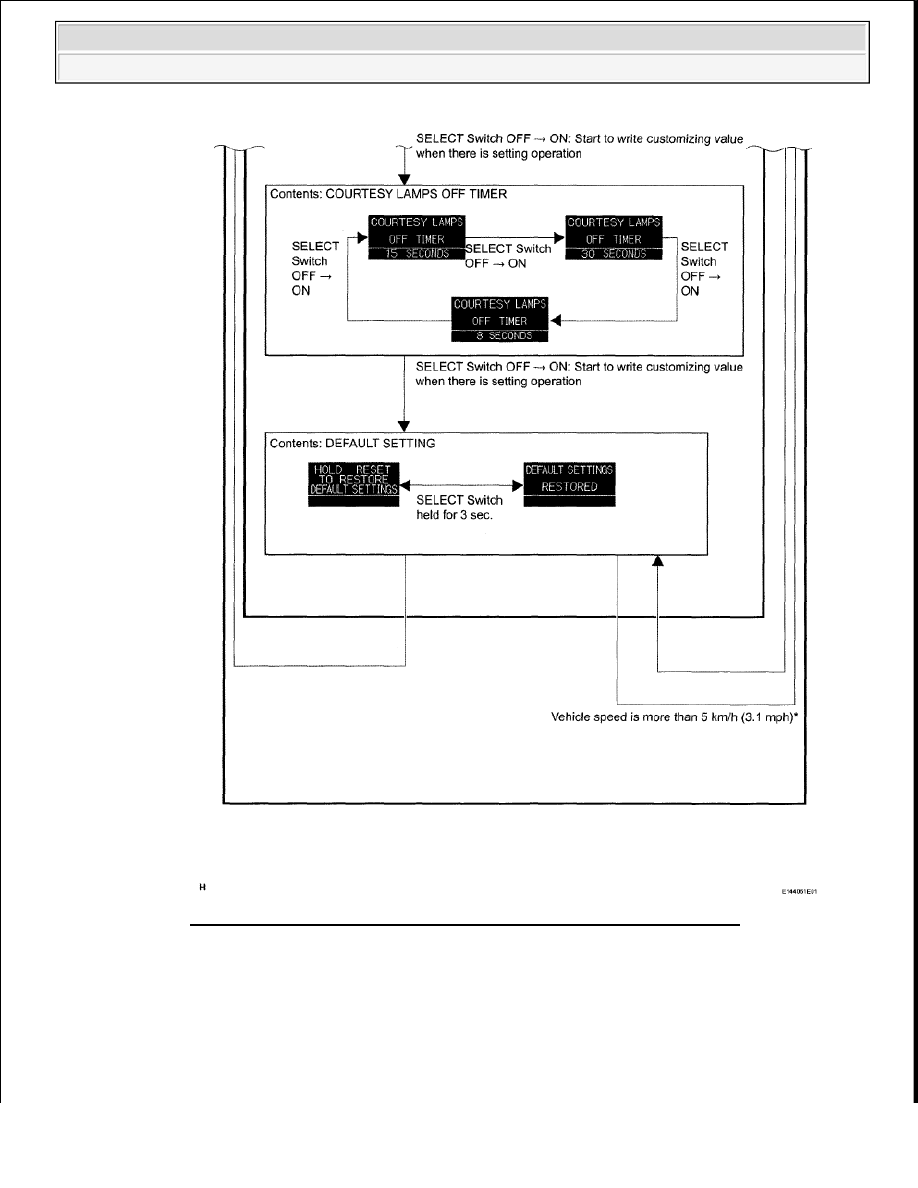

Fig. 17: Customizing Function With Multi-Information Display (4 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

*: When setting change operation is performed by SELECT switch, writing of customized
value must be performed.

PROBLEM SYMPTOMS TABLE

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Meter - Tundra

HINT:

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms
are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking
the suspected areas in the order they are listed. Replace parts as necessary.

Malfunction system:

SYMPTOMS REFERENCE

Meter gauges:

METER GAUGES SYMPTOMS REFERENCE

Symptom

Suspected Area

Refer To

Entire combination meter does
not operate

Fuses (MET, MET-B)

ENTIRE COMBINATION
METER DOES NOT OPERATE

Harness and connector

ENTIRE COMBINATION
METER DOES NOT OPERATE

Combination meter

ENTIRE COMBINATION
METER DOES NOT OPERATE

Operating light control rheostat
does not change light brightness

Combination meter

OPERATING LIGHT
CONTROL RHEOSTAT DOES
NOT CHANGE LIGHT
BRIGHTNESS

Meter illumination is always dark

Light control rheostat

OPERATING LIGHT
CONTROL RHEOSTAT DOES
NOT CHANGE LIGHT
BRIGHTNESS

Combination meter

OPERATING LIGHT
CONTROL RHEOSTAT DOES
NOT CHANGE LIGHT
BRIGHTNESS

Harness and connector

OPERATING LIGHT
CONTROL RHEOSTAT DOES
NOT CHANGE LIGHT
BRIGHTNESS

Meter illumination does not dim
at night*

CAN communication system

METER ILLUMINATION
DOES NOT DIM AT NIGHT

Combination meter

METER ILLUMINATION
DOES NOT DIM AT NIGHT

Light control rheostat

METER ILLUMINATION
DOES NOT DIM AT NIGHT

Harness and connector

METER ILLUMINATION
DOES NOT DIM AT NIGHT

HINT:
*: for Optitron type

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Meter - Tundra

Symptom

Suspected Area

Refer To

Speedometer malfunction

CAN communication system

SPEEDOMETER
MALFUNCTION

Combination meter

SPEEDOMETER
MALFUNCTION

Vehicle stability control system

SPEEDOMETER
MALFUNCTION

Tachometer malfunction*1

CAN communication system

TACHOMETER
MALFUNCTION

Combination meter

TACHOMETER
MALFUNCTION

SFI system (for 1GR-FE)

TACHOMETER
MALFUNCTION

SFI system (for 2UZ-FE)

TACHOMETER
MALFUNCTION

SFI system (for 3UR-FE)

TACHOMETER
MALFUNCTION

Fuel receiver gauge malfunction

Fuel sender gauge (DTC B1500)

FUEL RECEIVER GAUGE
MALFUNCTION

Combination meter power source
circuit ("Entire Combination
Meter does not Operate")

FUEL RECEIVER GAUGE
MALFUNCTION

Engine coolant temperature gauge
malfunction*2

CAN communication system
