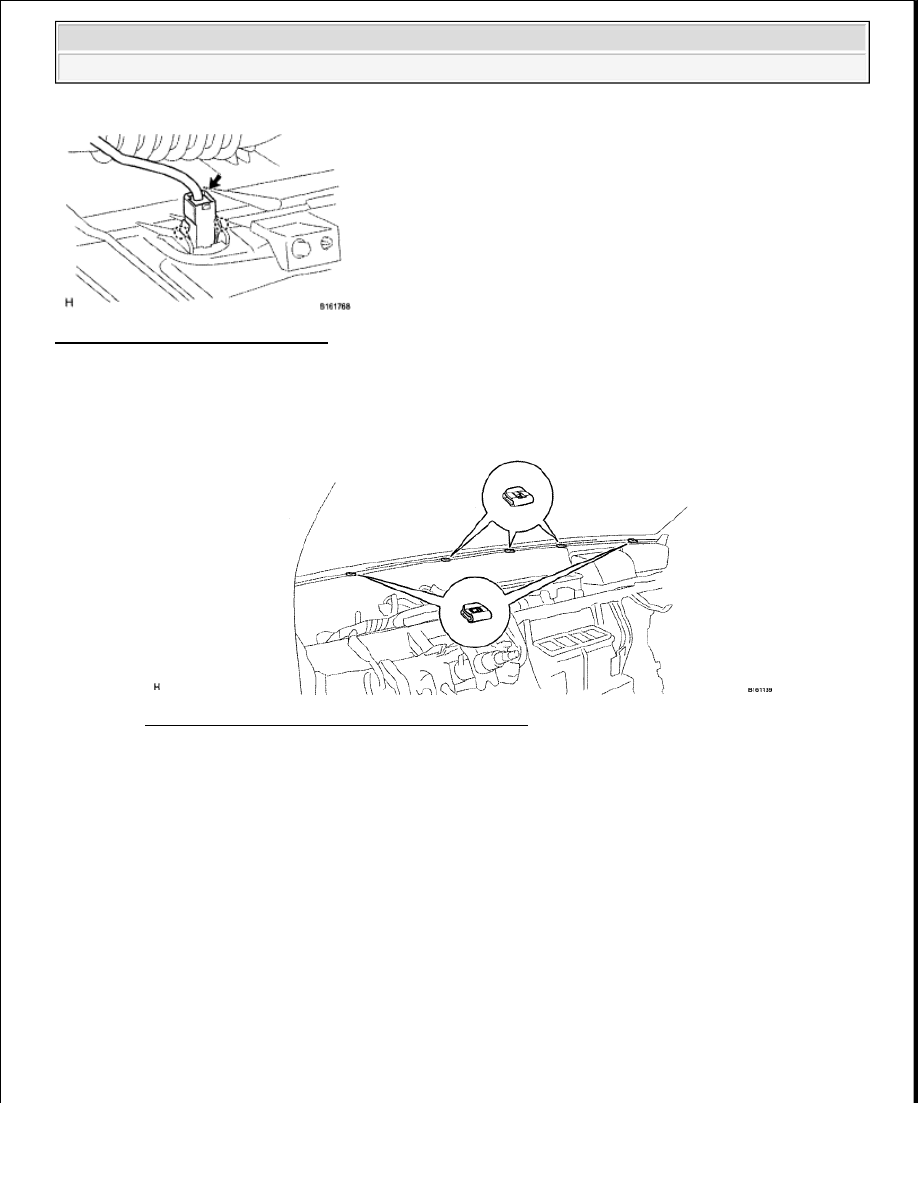

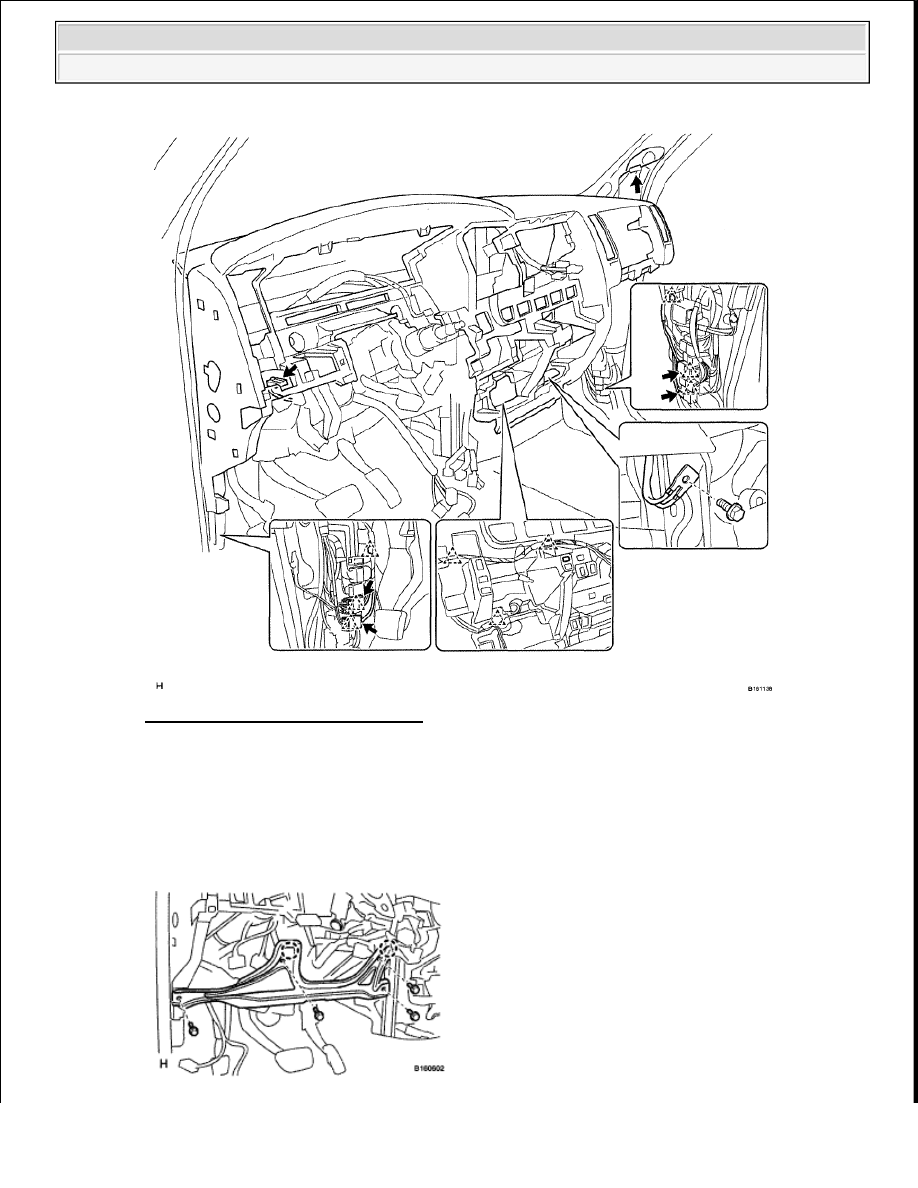

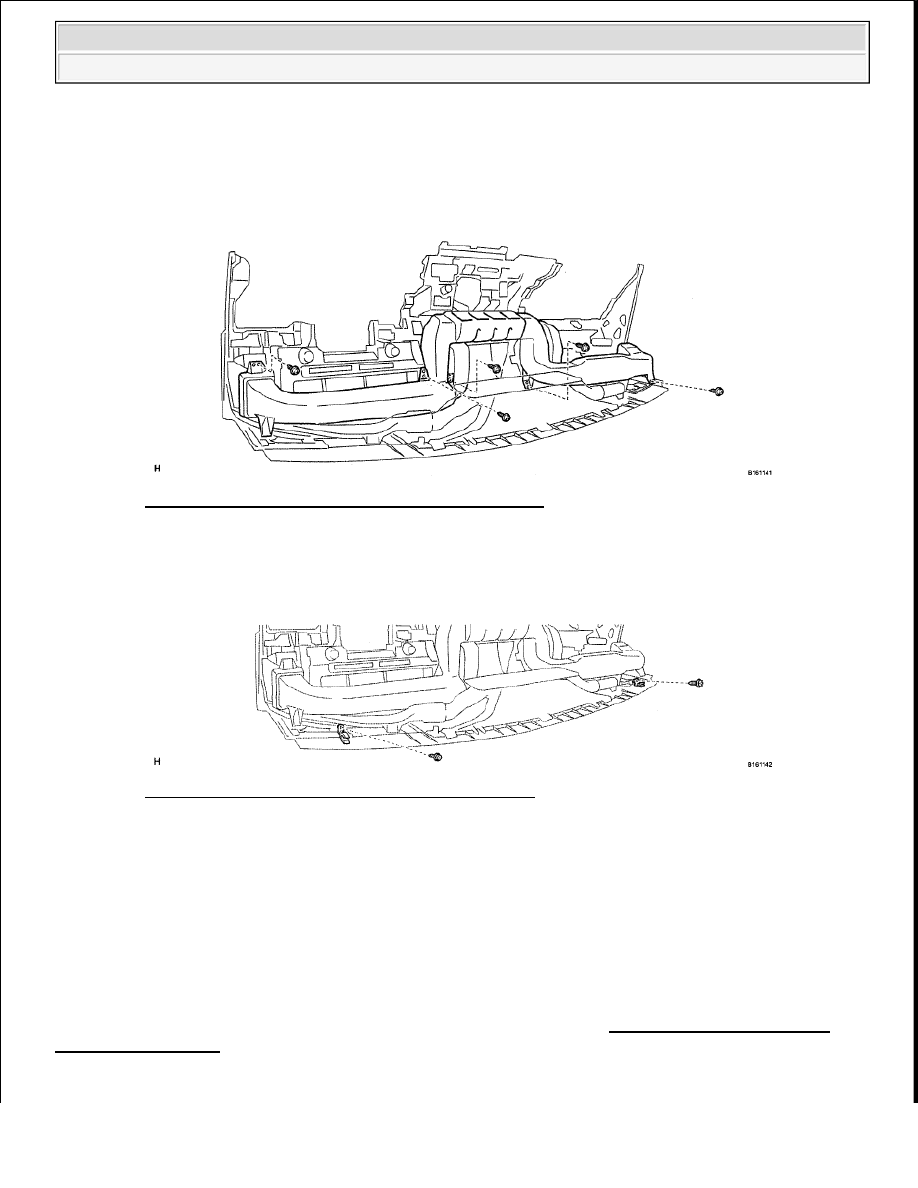

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10. INSTALL NO. 1 HEATER TO REGISTER DUCT WITH NO. 2 HEATER TO REGISTER DUCT a. Install the duct with the 5 screws. Fig. 51: Identifying Heater To Register Duct Screws 11. INSTALL NO. 1 INSTRUMENT PANEL PIN a. Install the 2 pins with the 2 screws. Fig. 52: Identifying No. 1 Instrument Panel Screws 12. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (for Automatic Air Conditioning System) a. Attach the 2 claws to install the sensor. b. Connect the sensor connector. INSTALLATION HINT: A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR
