b. Install a new lock washer and the nut.

Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

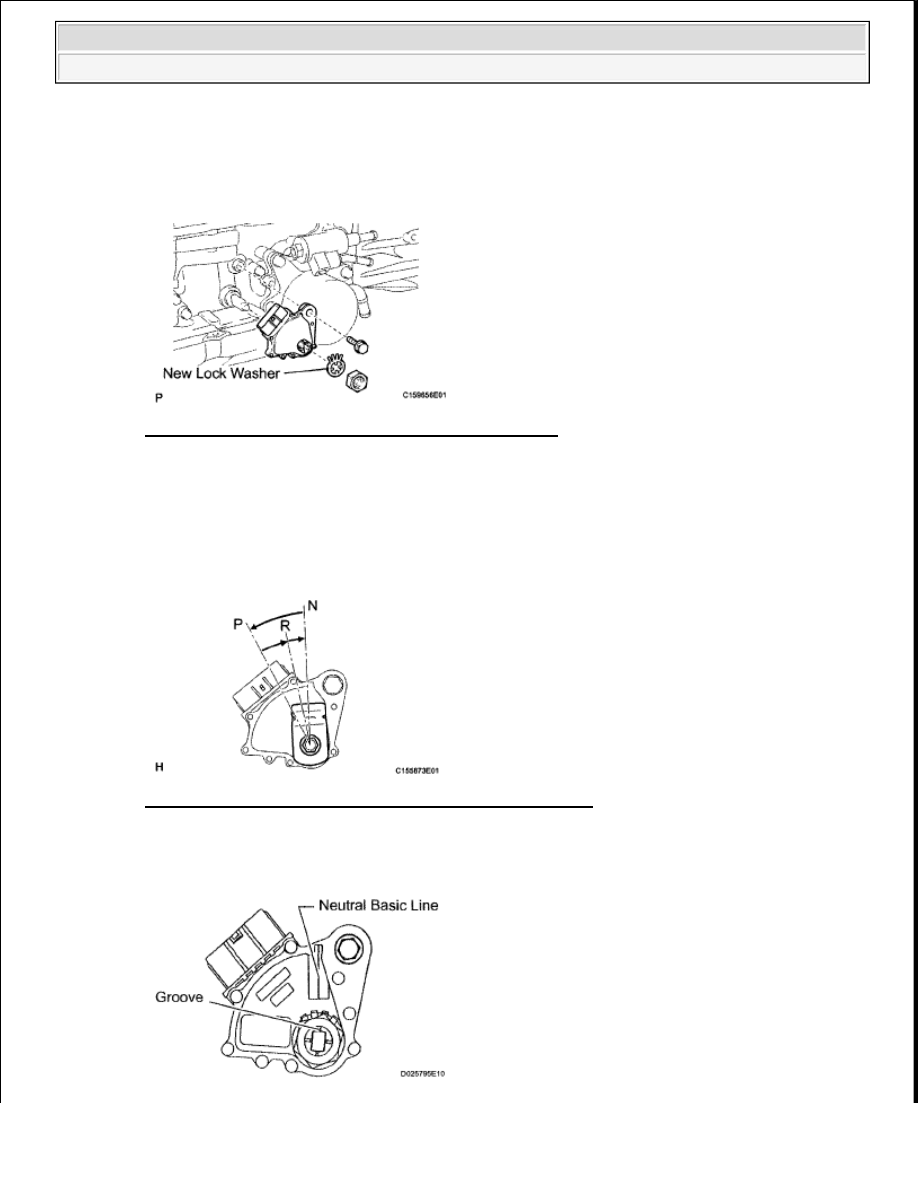

Fig. 641: Locating Park/Neutral Position Switch Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Temporarily install the control shaft lever RH.

d. Turn the control shaft lever RH counterclockwise until it stops, and then turn it clockwise 2 notches

to set it to the N position.

e. Remove the control shaft lever RH.

Fig. 642: Identifying Control Shaft Lever Notches Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

f. Align the groove with the neutral basic line.

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

Fig. 643: Identifying Neutral Basic Line & Groove
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

g. Hold the switch in position and tighten the bolt.

Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

h. Using a screwdriver, bend the tabs of the lock washer.

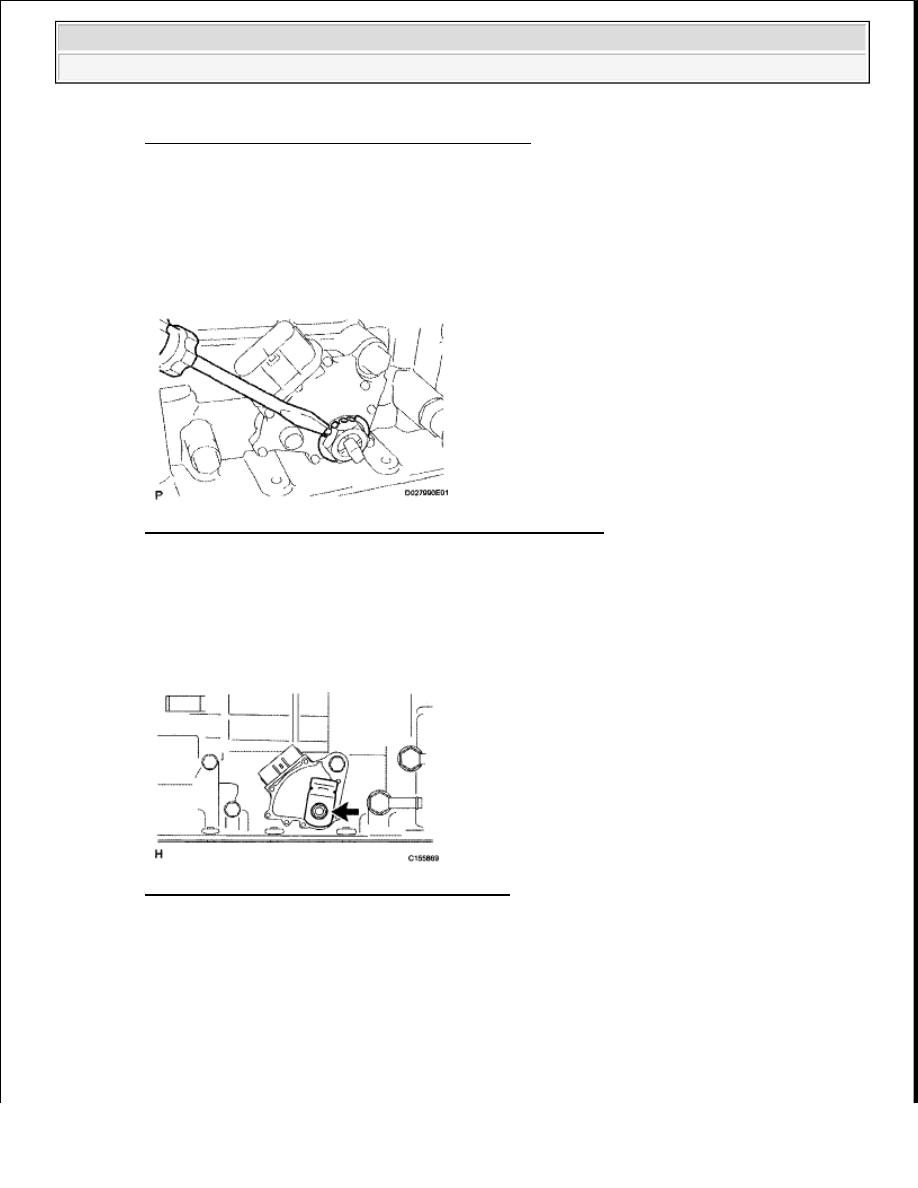

Fig. 644: Bending Tabs Of Lock Washer Using Screwdriver
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

79. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH

a. Install the control shaft lever RH with the washer and nut.

Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

Fig. 645: Locating Control Shaft Lever RH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

OIL PUMP

COMPONENTS

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

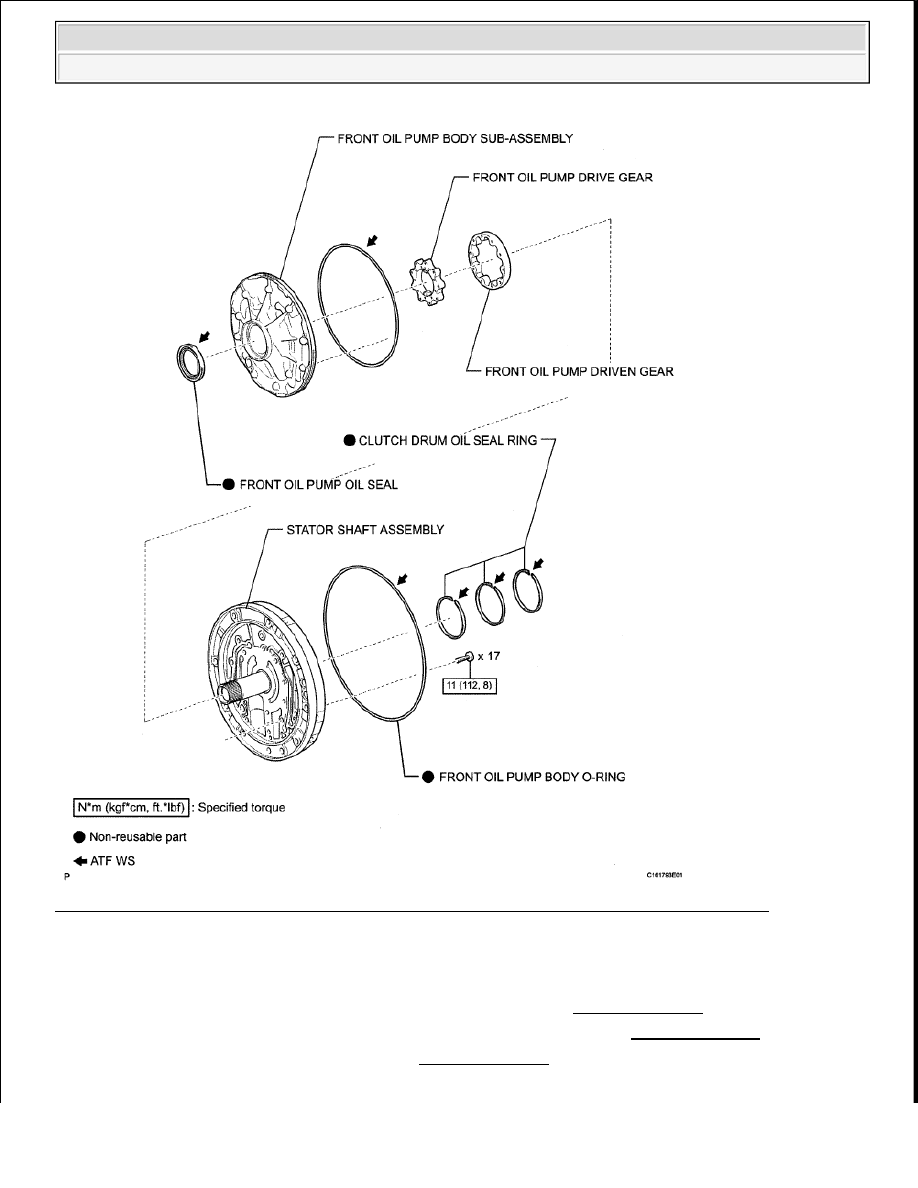

Fig. 646: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

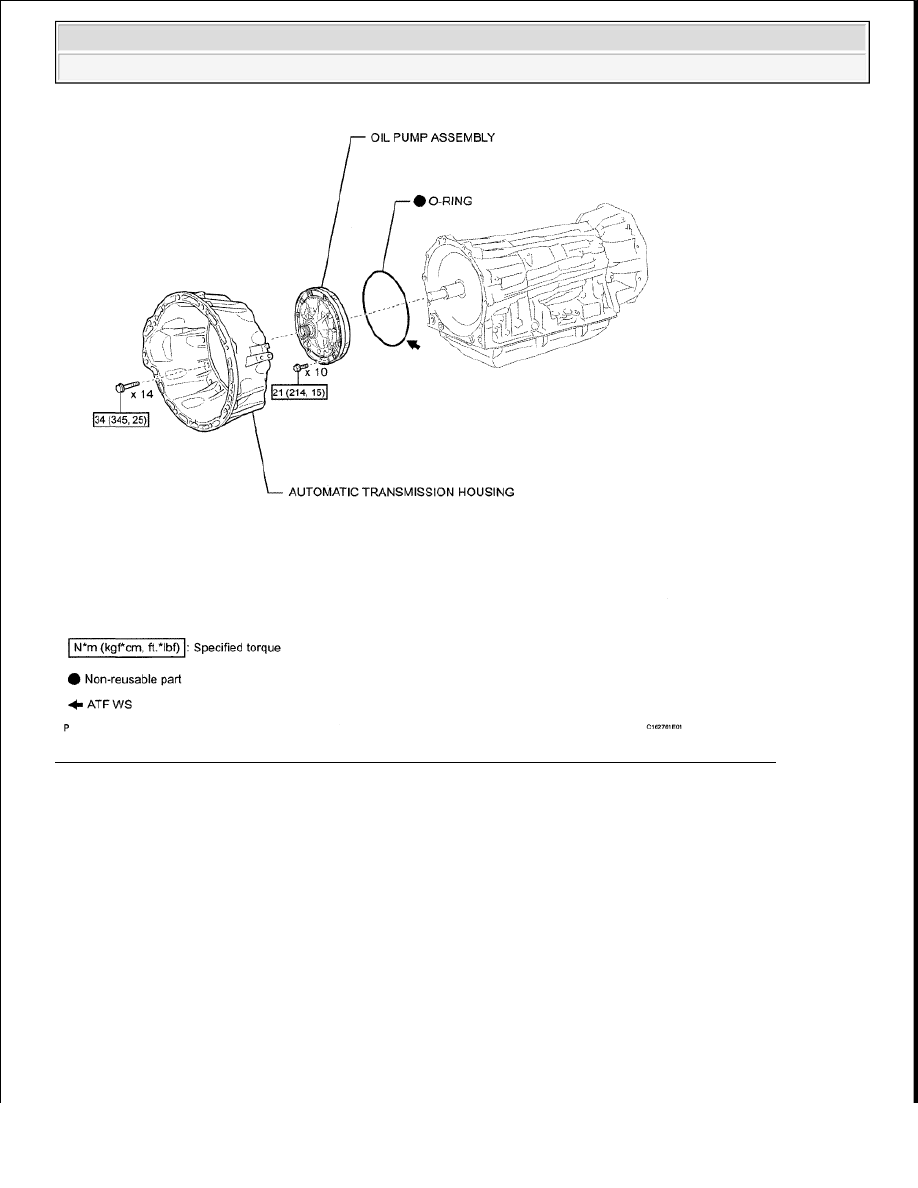

Fig. 647: Identifying Oil Pump Replacement Components With Torque Specification (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE AUTOMATIC TRANSMISSION HOUSING (See DISASSEMBLY )

2. FIX AUTOMATIC TRANSMISSION CASE SUB-ASSEMBLY (See DISASSEMBLY )

3. REMOVE OIL PUMP ASSEMBLY (See DISASSEMBLY )
