TYPICAL ENABLING CONDITIONS

TYPICAL ENABLING CONDITIONS TABLE

TYPICAL MALFUNCTION THRESHOLDS

TYPICAL MALFUNCTION THRESHOLDS TABLE

COMPONENT OPERATING RANGE

COMPONENT OPERATING RANGE TABLE

WIRING DIAGRAM

Frequency of operation

Continuous

Duration

5 sec.

MIL operation

Immediately

Sequence of operation

None

The monitor will run whenever the following DTCs
are not stored

P0500 (VSS)
P0748 (Trans solenoid (range))

Shift change

After shift change is completed and before starting
next shift change operation

ECM selected gear

4th, 5th or 6th

Output shaft RPM

1000 RPM or more

NSW switch

OFF

R switch

OFF

Engine

Running

Transmission position switch failure

Not detected

Battery voltage

8 V or higher

Ignition switch

ON

Starter

OFF

Speed sensor signal RPM

Less than 300 RPM

Speed sensor signal RPM

300 RPM or more



2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra































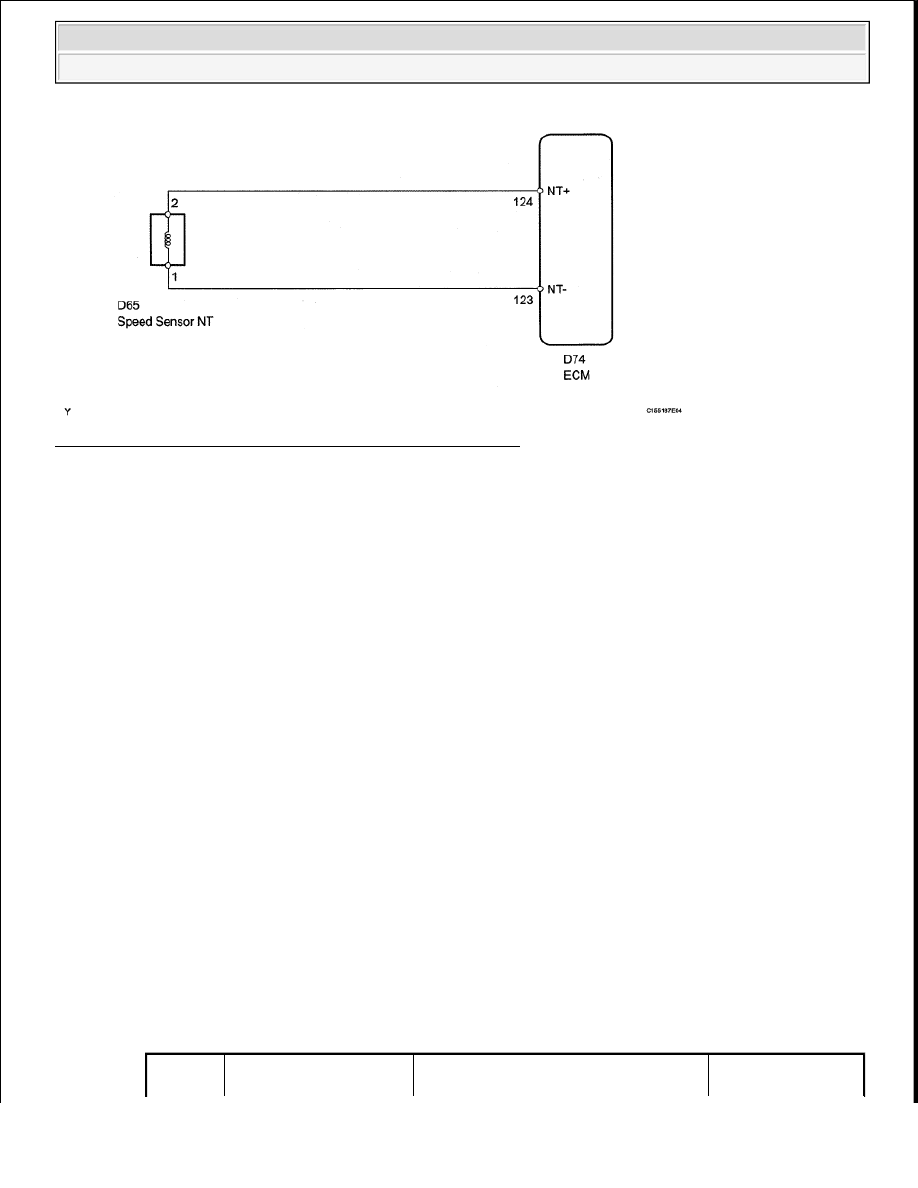

Fig. 36: Identifying Turbine Speed Sensor - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION PROCEDURE

1. DATA LIST

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and
other items to be read without removing any parts. This non-intrusive inspection can be very useful
because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading
the Data List information early in troubleshooting is one way to save diagnostic time.

a. Warm up the engine.

b. Turn the ignition switch off.

c. Connect the Techstream to the DLC3.

d. Turn the ignition switch to ON.

e. Turn the Techstream on.

f. Enter the following menus: Powertrain/Engine and ECT/Data List.

g. According to the display on the Techstream, read the Data List.

Engine and ECT:

DATA LIST TABLE

NOTE:

In the table below, the values listed under "Normal Condition" are
reference values. Do not depend solely on these reference values when
deciding whether a part is faulty or not.

Tester

Measurement

Normal Condition

Diagnostic Note



2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra































HINT:

SPD (NT) is always 0 while driving:

Open or short in the sensor or circuit.

SPD (NT) is always more than 0 and less than 300 RPM while driving the vehicle at 50 km/h
(30 MPH) or more:

Sensor trouble, improper installation, or intermittent connection trouble in the circuit.

1. INSPECT SPEED SENSOR NT INSTALLATION

a. Check the speed sensor NT installation.

OK: The installation bolt is tightened properly and there is no clearance between the sensor
and transmission case.


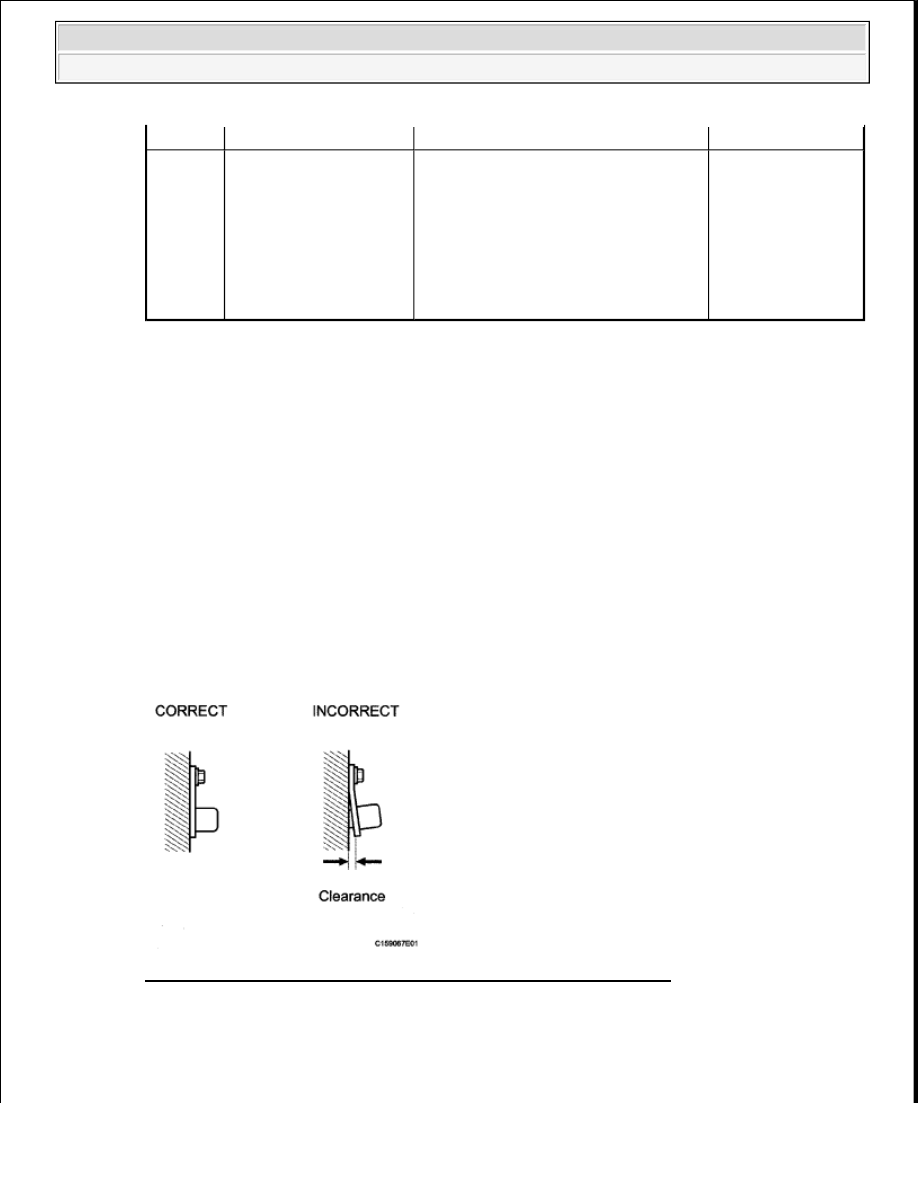

Fig. 37: Identifying Clearance Between Sensor & Transmission Case
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: SECURELY INSTALL OR REPLACE SPEED SENSOR NT

OK: Go to next step.

Display

Item/Range

SPD (NT)

Input shaft speed/ Min.: 0
RPM Max.: 12750 RPM

Lock-up is:

ON (after warming up engine):
Input turbine speed (NT) is equal
to engine speed

OFF (idling with shift lever on
N): Input turbine speed (NT) is
nearly equal to engine speed

Data is displayed in
increments of 50
RPM



2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra































2. INSPECT SPEED SENSOR NT

a. Disconnect the D65 speed sensor connector.

b. Measure the resistance according to the value (s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

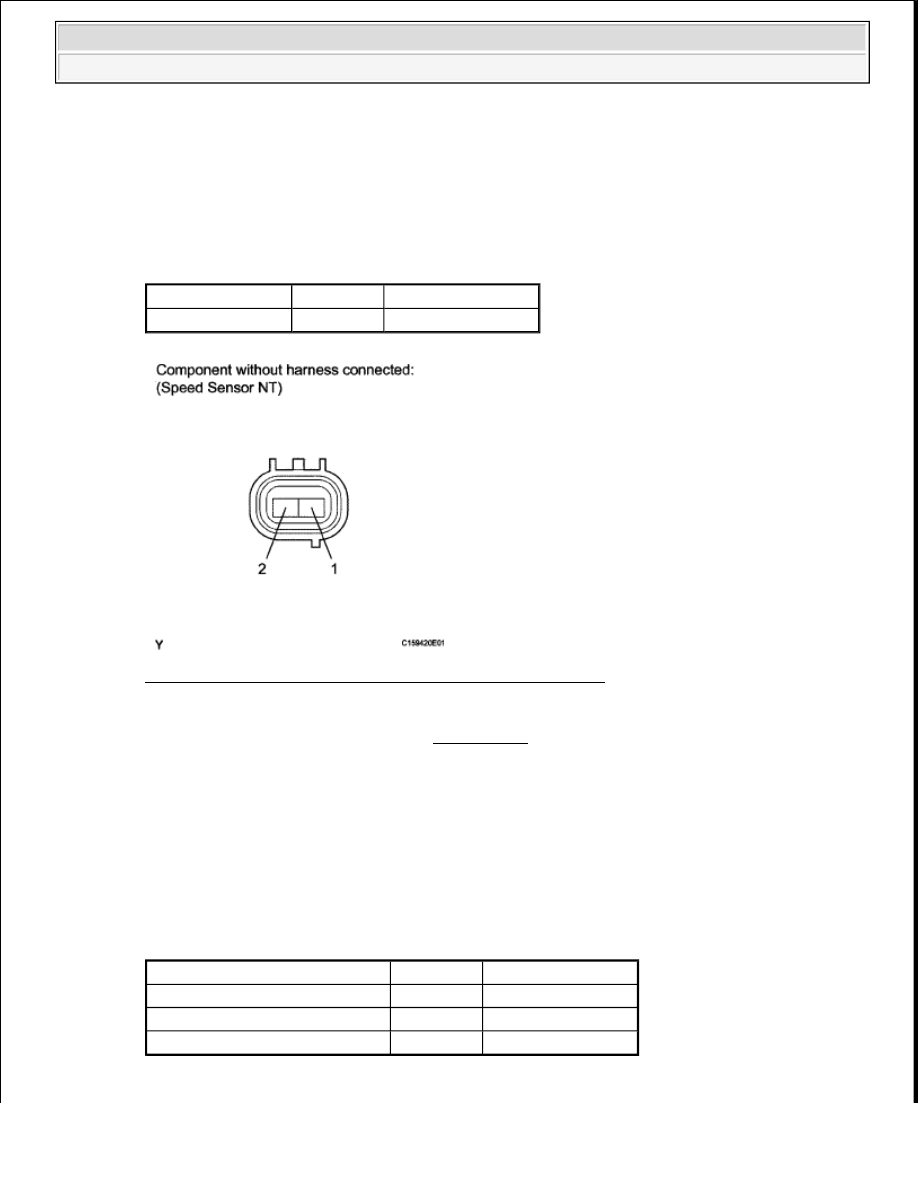

Fig. 38: Identifying D65 Speed Sensor Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPLACE SPEED SENSOR NT (See REMOVAL )

OK: Go to next step.

3. CHECK HARNESS AND CONNECTOR (SPEED SENSOR SP2 - ECM)

a. Disconnect the D74 ECM connector.

b. Measure the resistance according to the value (s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

RESULT

Tester Connection Condition Specified Condition

1 - 2

20°C (68°F)

560 to 680 ohms

Tester Connection

Condition Specified Condition

D74-124 (NT+) - D74-123 (NT-) 20°C (68°F)

560 to 680 ohms

D74-124 (NT+) - Body ground

Always

10 kohms or higher

D74-123 (NT-) - Body ground

Always

10 kohms or higher



2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra
