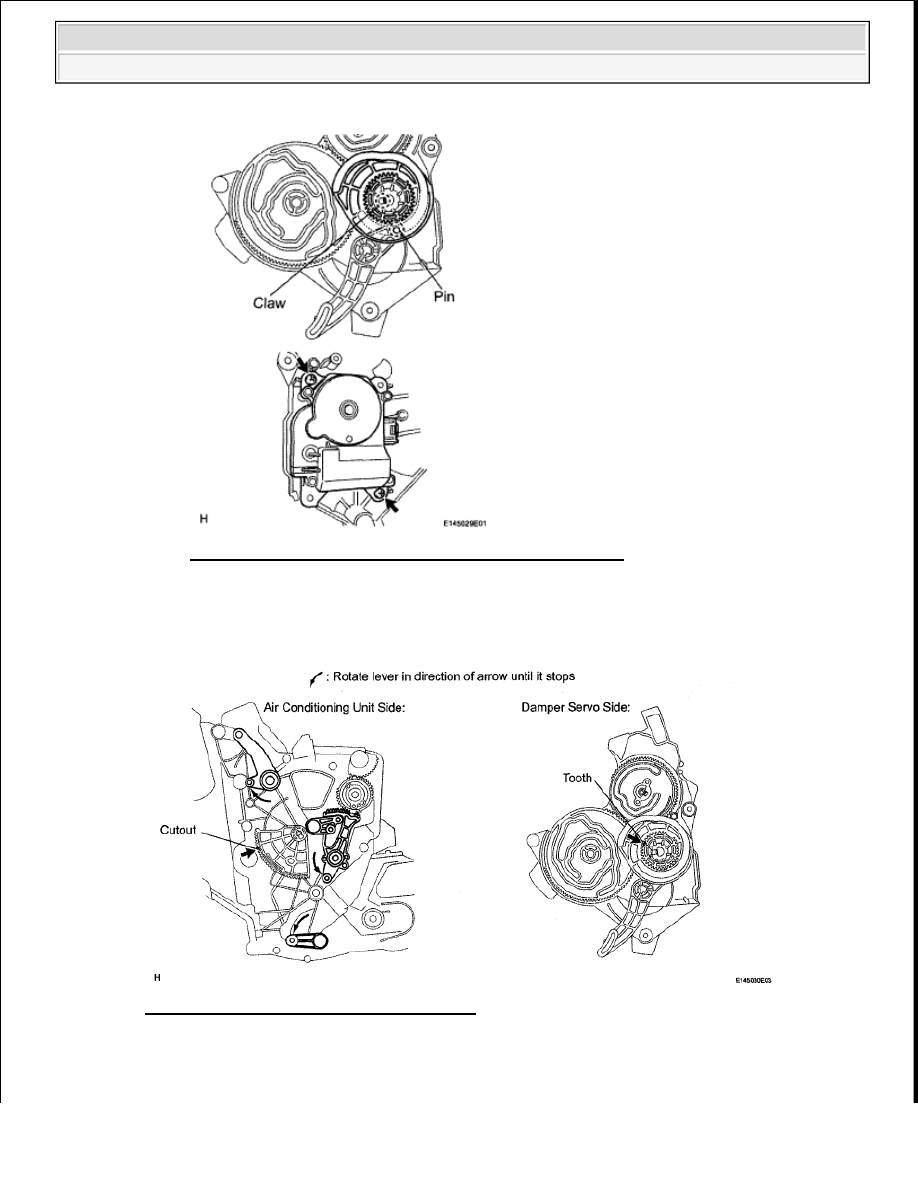

Fig. 347: Identifying Servo Motor Screws, Pin And Claw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Set the damper servo so that the cutout part engages with the tooth of the gear, and attach the claw

to install the damper servo.

Fig. 348: Identifying Air Conditioning Unit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Install the 4 screws and connect the 2 connectors.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

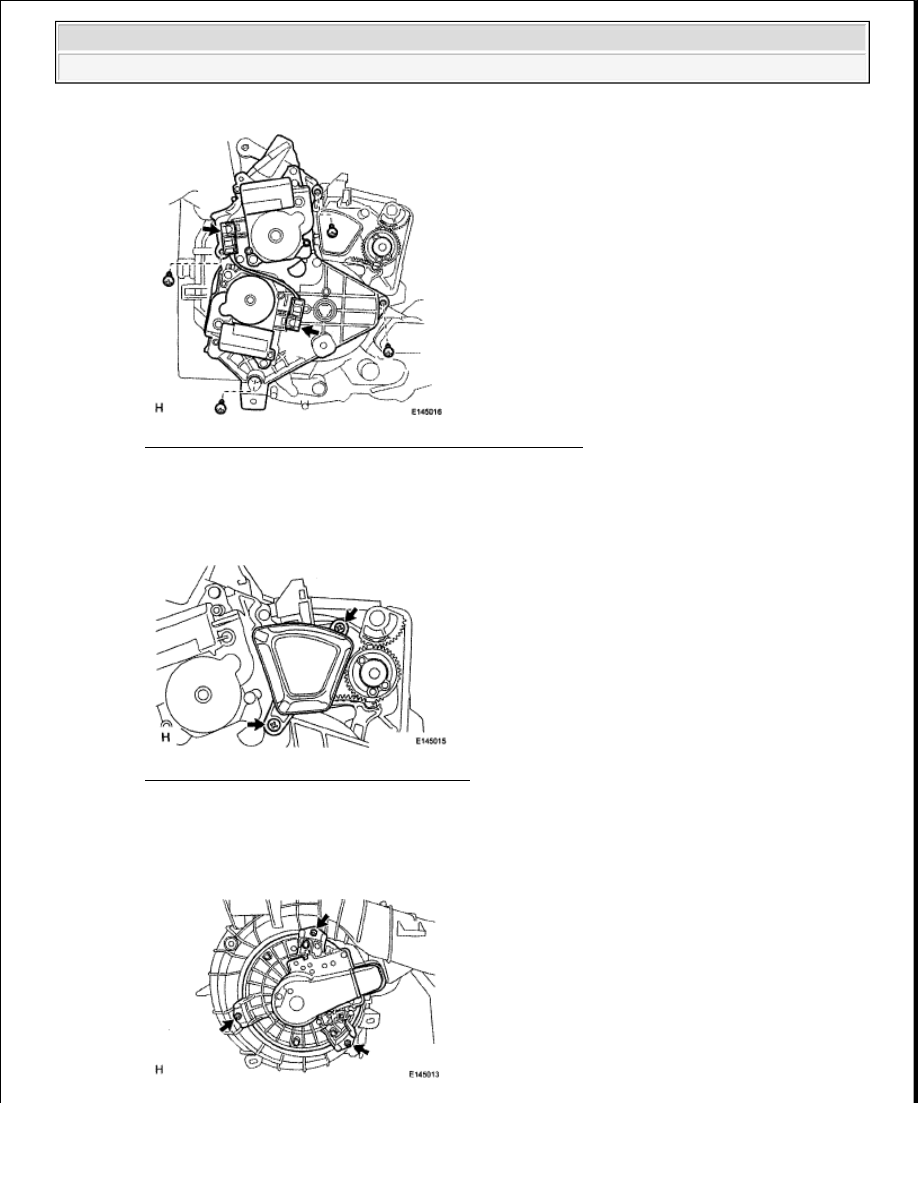

Fig. 349: Locating Damper Servo Screws And Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. INSTALL AIR DUCT

a. Install the duct with the 2 screws.

Fig. 350: Identifying Air Duct And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY

a. Install the motor with the 3 screws.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

Fig. 351: Locating Blower With Fan Motor And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

11. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

a. Install the amplifier with the 2 screws.

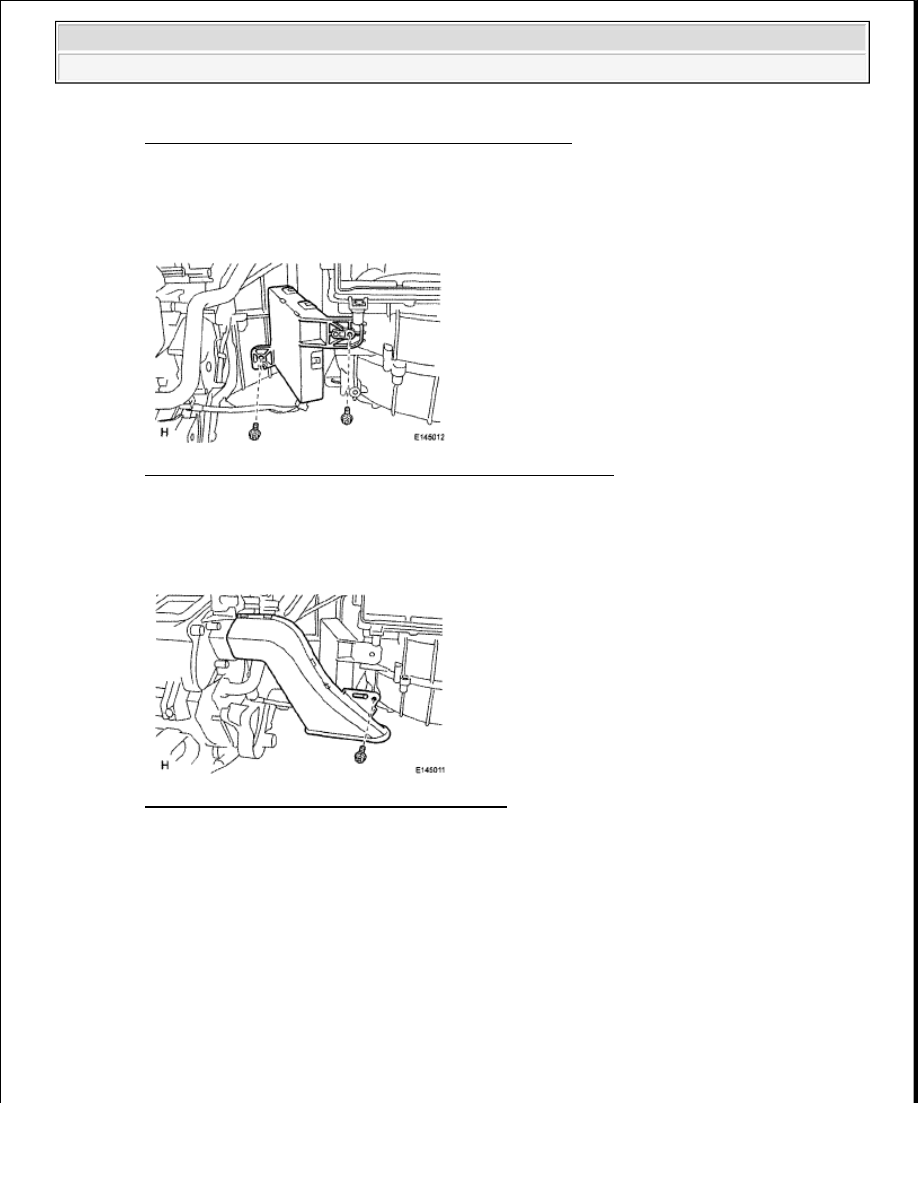

Fig. 352: Identifying Air Conditioning Amplifier And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY

a. install the duct with the screw.

Fig. 353: Identifying No. 2 Air Duct And Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

13. INSTALL CLEAN AIR FILTER

a. Install the filter as shown in the illustration.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

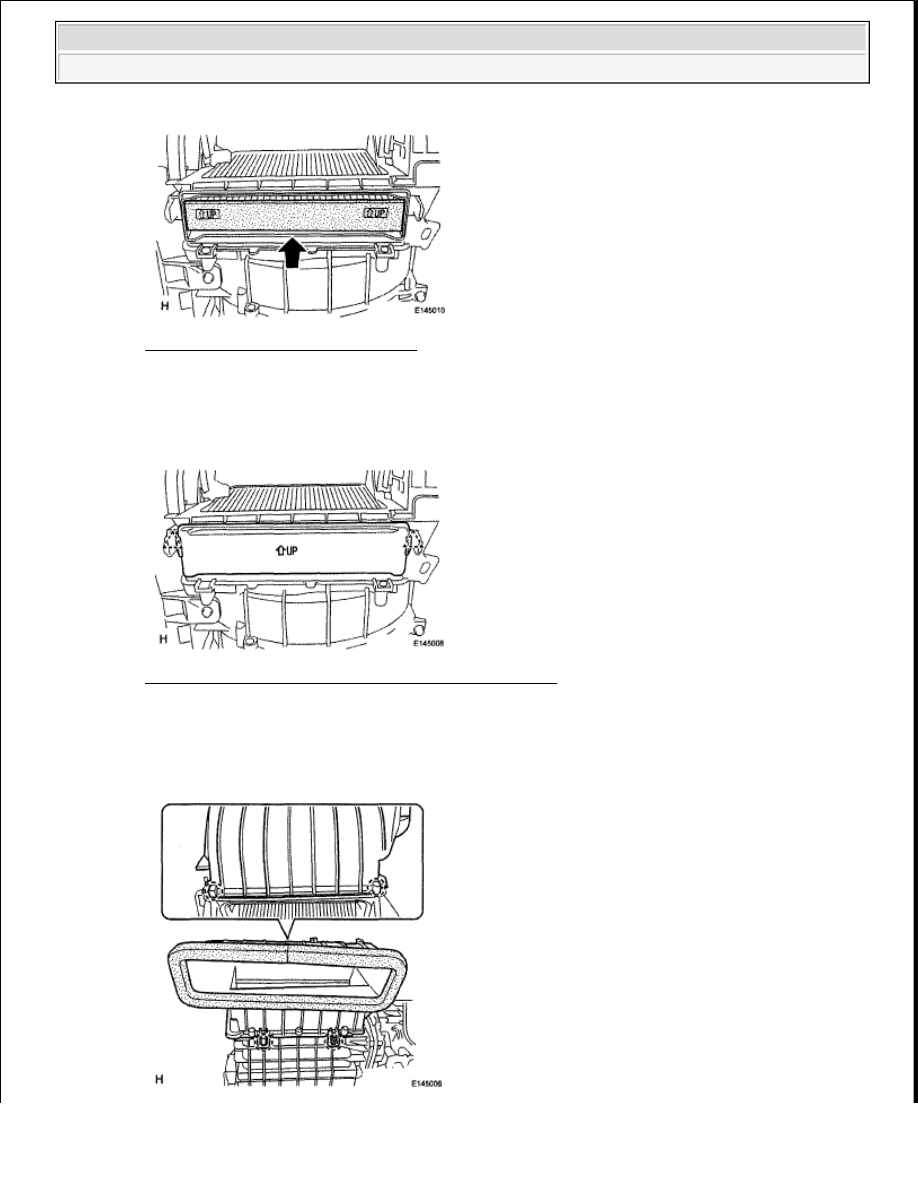

Fig. 354: Installing Clean Air Filter
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

14. INSTALL AIR FILTER COVER PLATE

a. Attach the 2 clips to install the plate.

Fig. 355: Identifying Air Filter Cover Plate And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

15. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY

a. Attach the 4 claws to install the duct.
