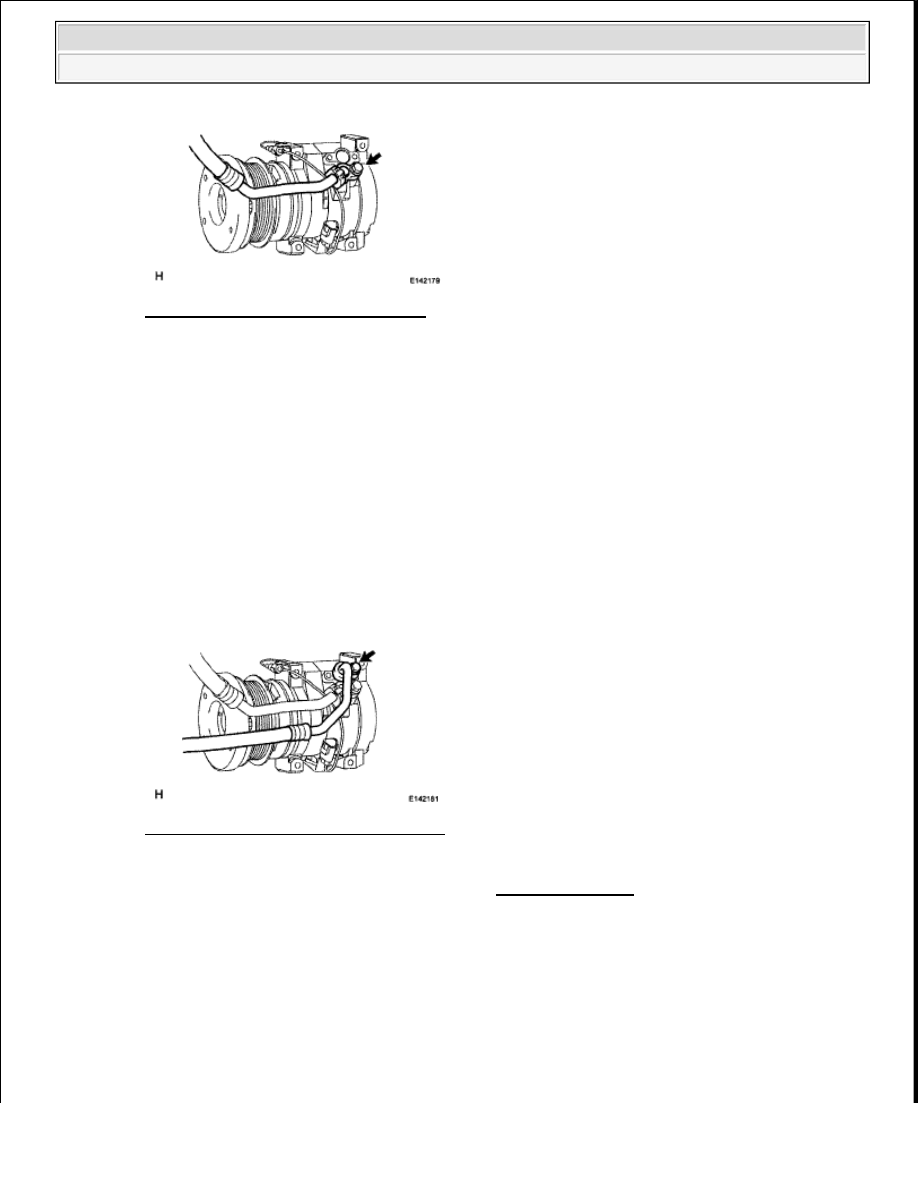

Fig. 246: Locating Suction Hose Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. CONNECT DISCHARGE HOSE

a. Remove the attached vinyl tape from the hose.

b. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor.

Compressor oil:

ND-OIL 8 or equivalent

c. Install the O-ring on the cooler refrigerant discharge hose.

d. Connect the cooler refrigerant discharge hose on the cooler compressor with the bolt.

Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

Fig. 247: Locating Discharge Hose Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL FAN AND GENERATOR V BELT (See INSTALLATION )

6. INSTALL FENDER APRON MUDGUARD SEAL LH

a. Install the seal with the 6 clips.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

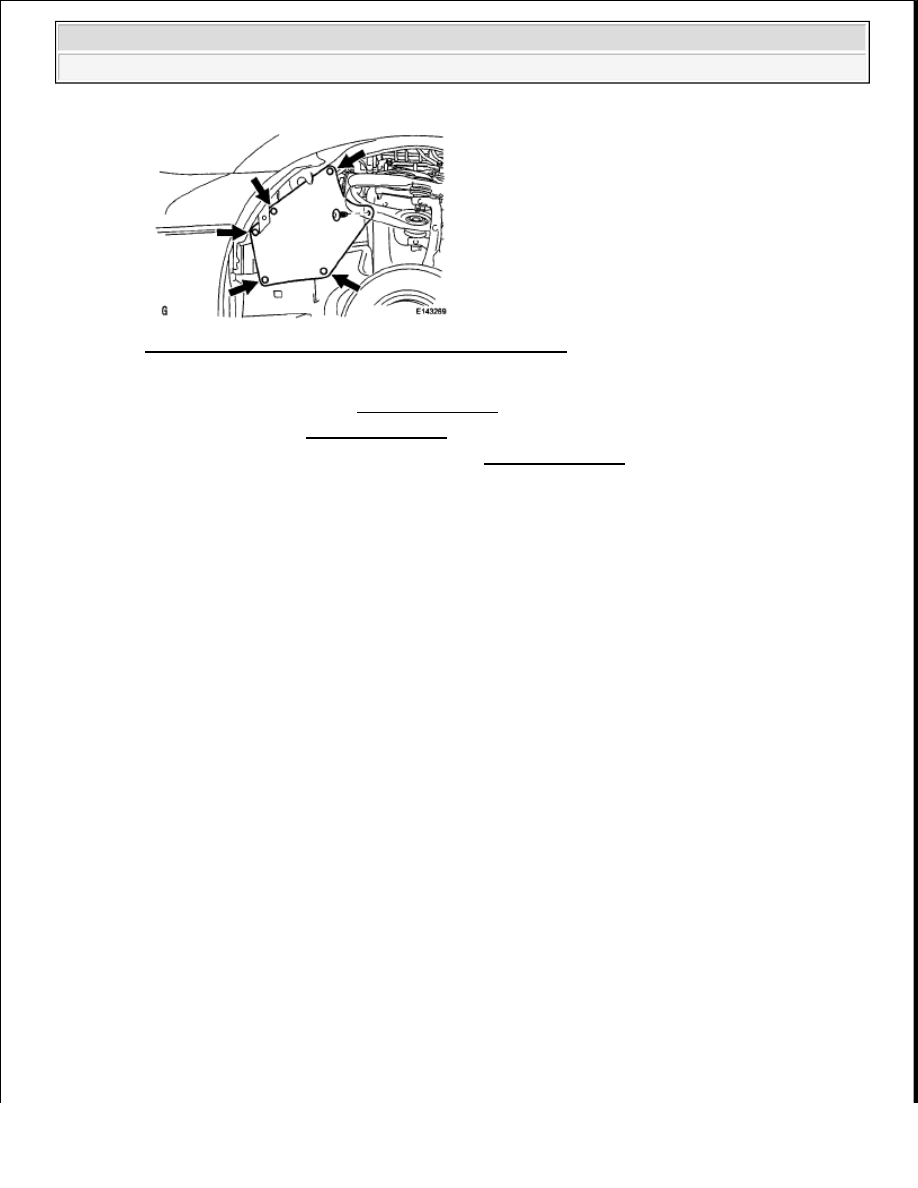

Fig. 248: Locating Fender Apron Mudguard Seal Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. CHARGE REFRIGERANT (See REPLACEMENT )

8. WARM UP ENGINE (See REPLACEMENT )

9. CHECK FOR REFRIGERANT GAS LEAK (See REPLACEMENT )

COMPRESSOR AND MAGNETIC CLUTCH (FOR 2UZ-FE)

COMPONENTS

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

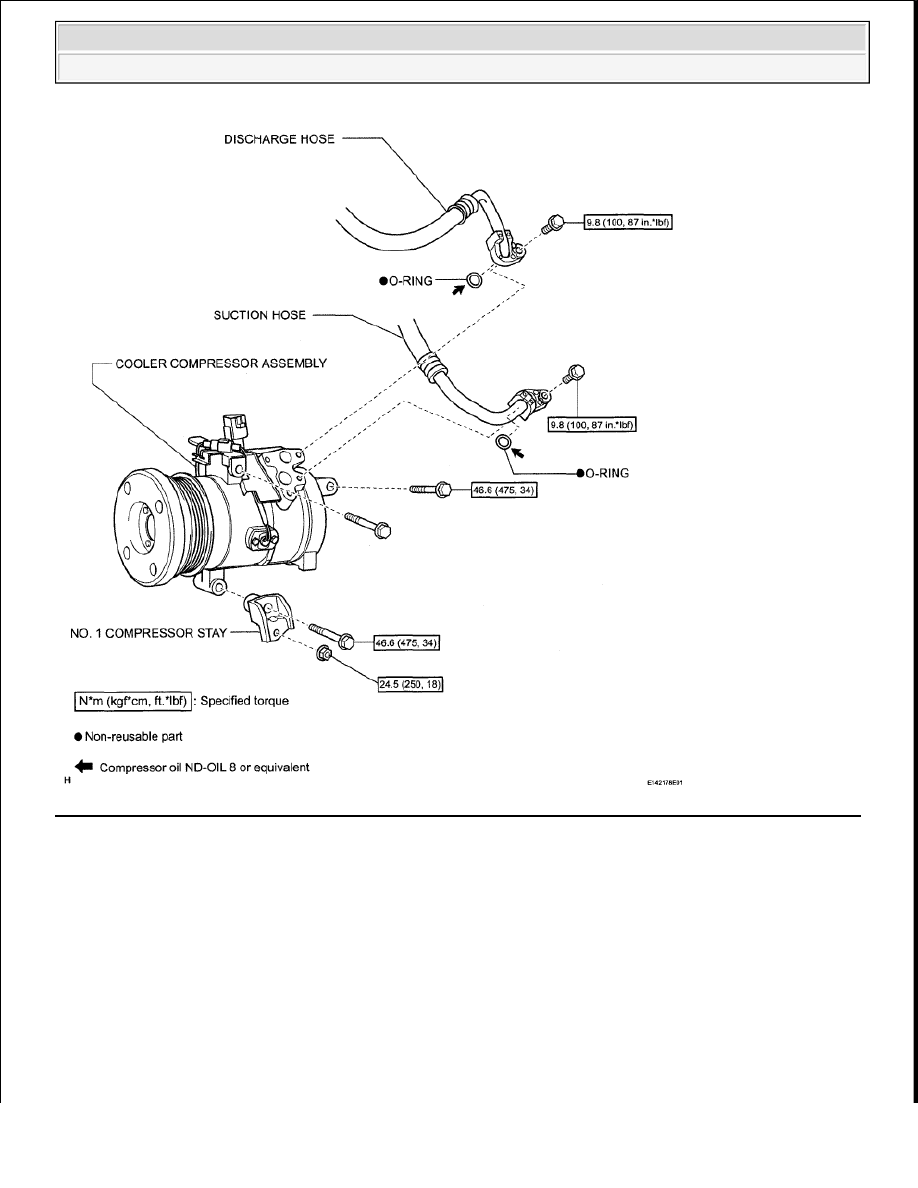

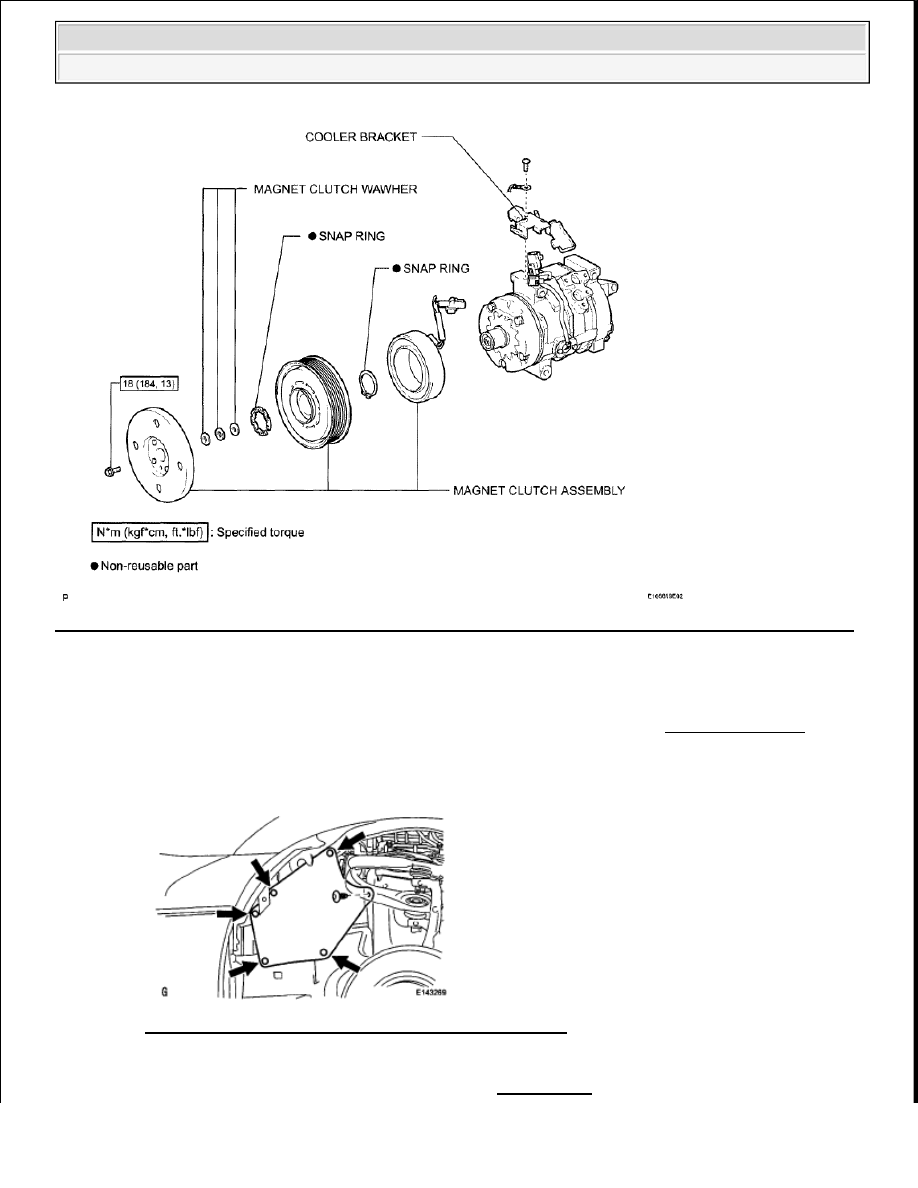

Fig. 249: Identifying Compressor And Magnetic Clutch Components With Torque Specifications (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

Fig. 250: Identifying Compressor And Magnetic Clutch Components With Torque Specification (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )

2. REMOVE FENDER APRON MUDGUARD SEAL LH

a. Remove the 6 clips and seal.

Fig. 251: Locating Fender Apron Mudguard Seal Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. REMOVE FAN AND GENERATOR V BELT (See REMOVAL )

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra
