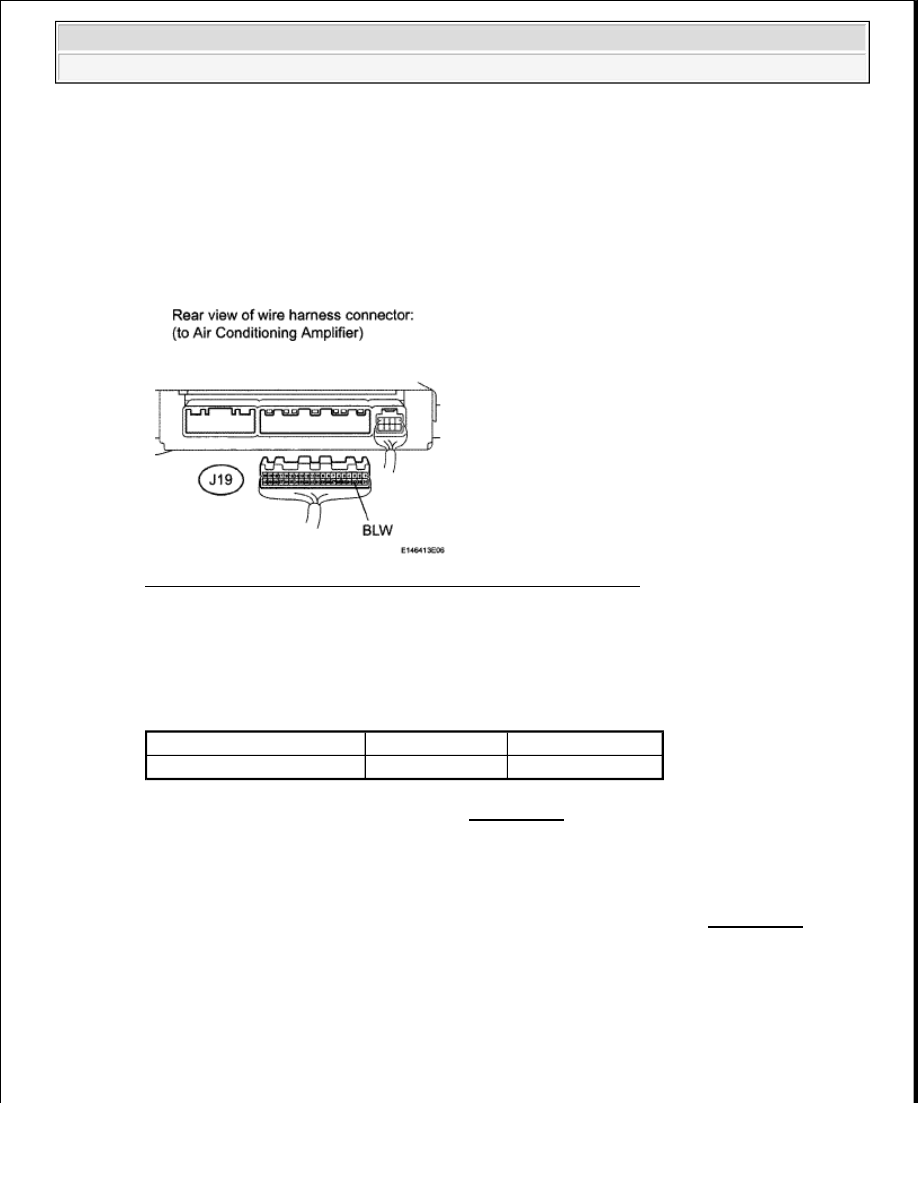

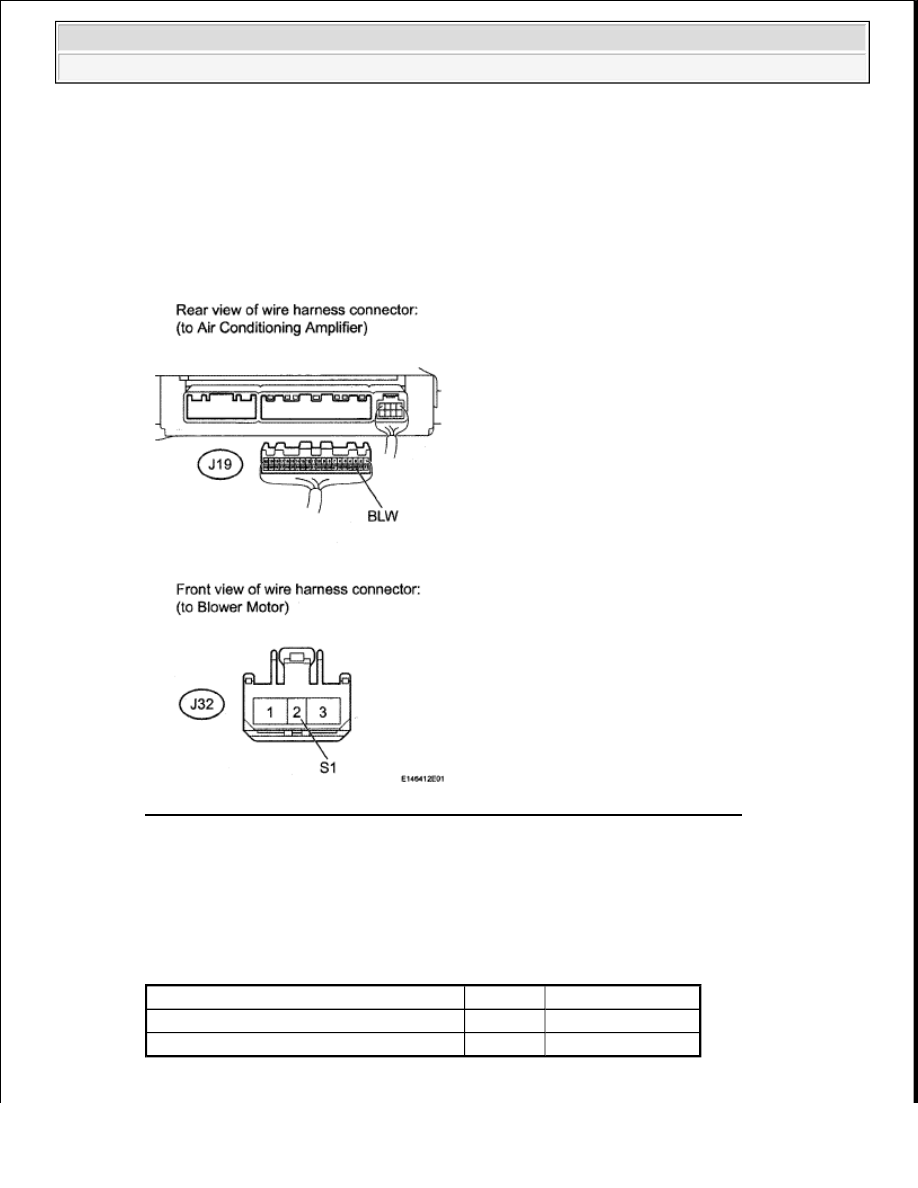

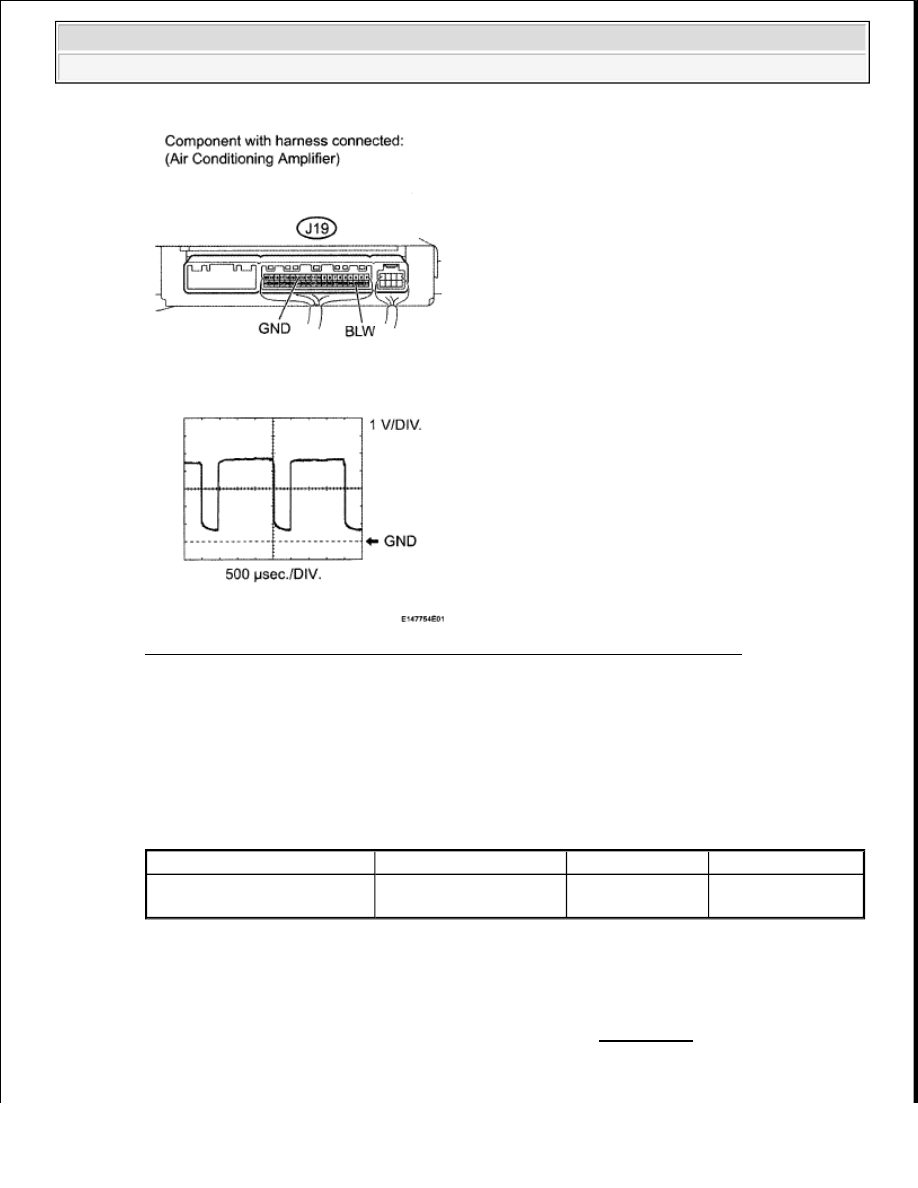

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to Next Step 4. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BLOWER MOTOR) a. Disconnect the J19 air conditioning amplifier connector. Fig. 131: Identifying Terminals Of J19 Air Conditioning Amplifier Connector b. Disconnect the J32 blower motor connector. c. Measure the resistance according to the value(s) in the table below. Standard Resistance TESTER CONNECTION SPECIFIED CONDITION CHART Tester Connection Condition Specified Condition J19-23 (BLW) - J32-2 (S1) Always Below 1 ohms J19-23 (BLW) or J32-2 (S1) - Body ground Always 10 kohms or higher
