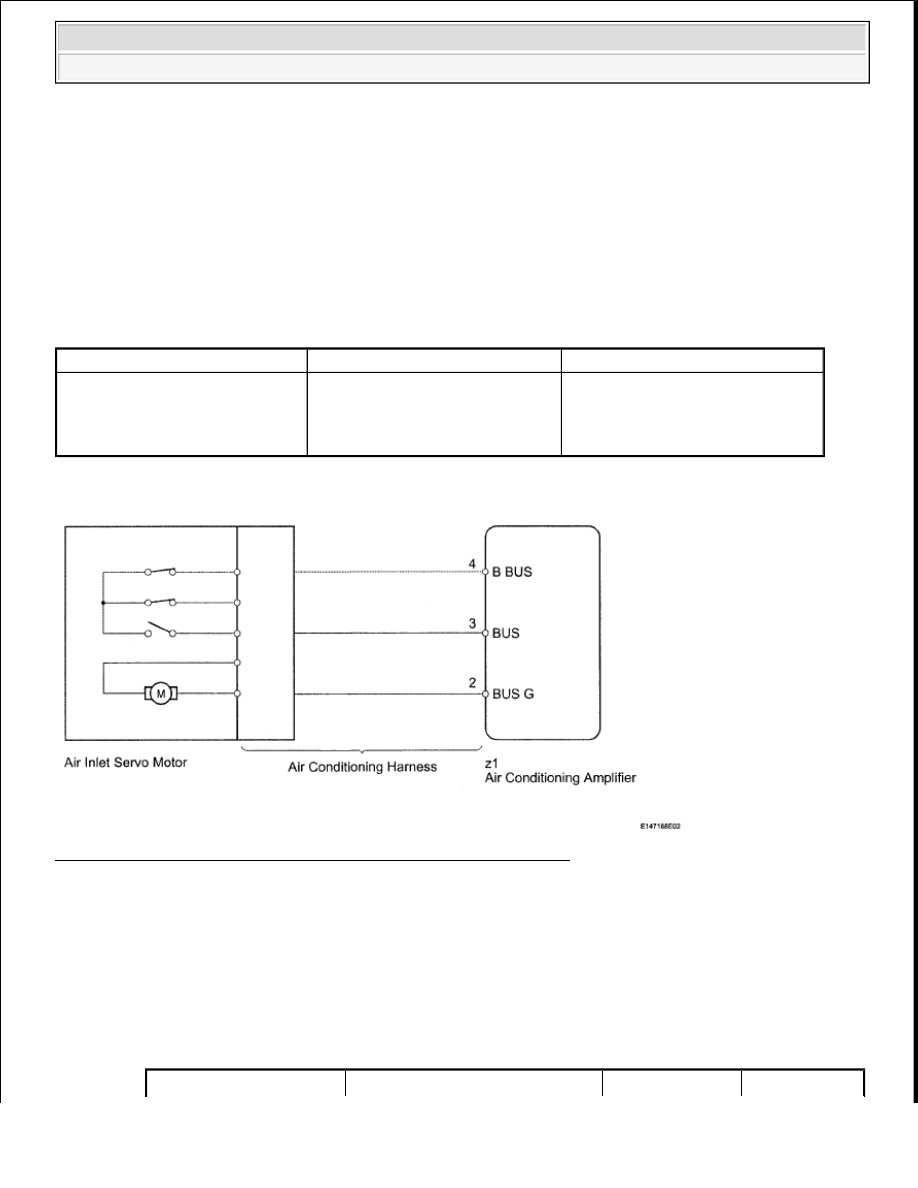

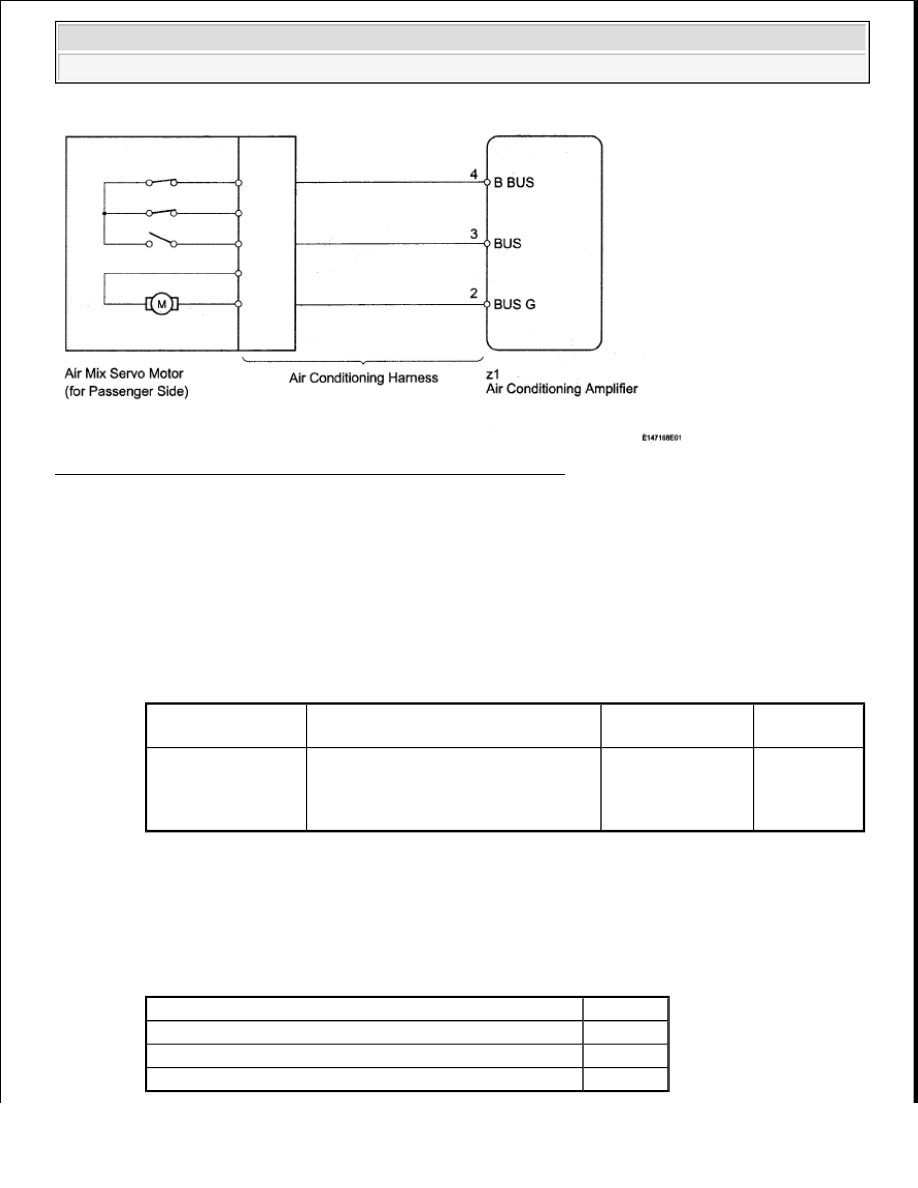

Fig. 121: Air Mix Damper Control Servo Motor - Wiring Diagram INSPECTION PROCEDURE 1. READ VALUE USING TECHSTREAM (AIR MIX SERVO MOTOR TARGET PULSE (for Passenger Side)) a. Use the Data List to check if the servo motor is functioning properly. Air Conditioner DATA LIST OK: The display is as specified in the normal condition. Result RESULT REFERENCE Tester Display Measurement Item/Range Normal Condition Diagnostic Note Air Mix Servo Targ Pulse (P) Passenger side air mix servo motor MAX. COLD: 105 - Result Proceed to NG A OK (Checking from the PROBLEM SYMPTOMS TABLE) B OK (Checking from the DTC) C
2009 Toyota Tundra 2009 HVAC Air Conditioning - Tundra
|
