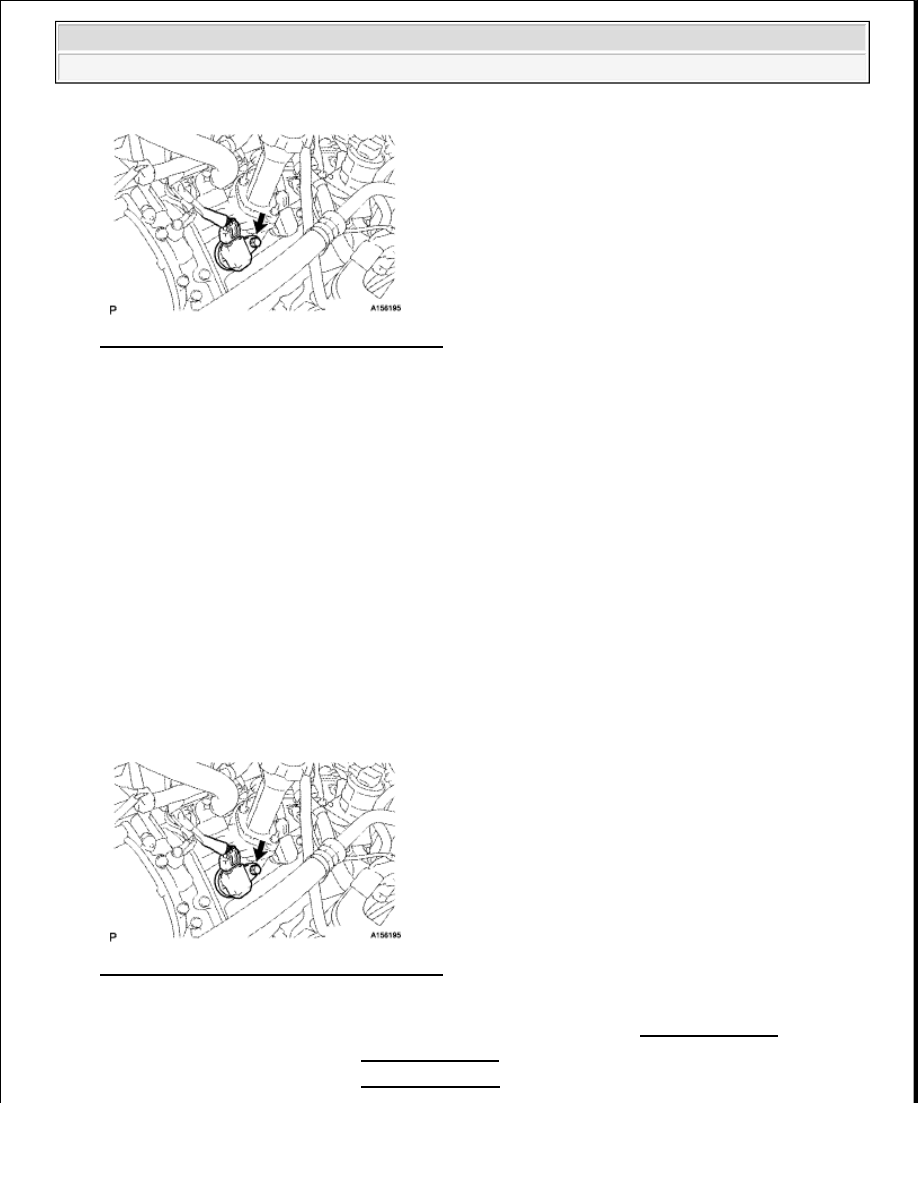

Fig. 14: Identifying Ignition Coil Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

13. REMOVE SPARK PLUG

a. Using a 16 mm plug wrench, remove the 8 spark plugs.

INSTALLATION

1. INSTALL SPARK PLUG

a. Using a 16 mm plug wrench, install the 8 spark plugs.

Torque: 18 N*m (178 kgf*cm, 13 ft.*lbf)

2. INSTALL IGNITION COIL ASSEMBLY

a. Install the 8 ignition coils with the 8 bolts.

Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

b. Connect the 8 ignition coil connectors.

Fig. 15: Identifying Ignition Coil Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL AIR SWITCHING VALVE ASSEMBLY (for Bank 1) (See INSTALLATION )

4. INSTALL NO. 3 AIR TUBE (See INSTALLATION )

5. INSTALL NO. 2 AIR HOSE (See INSTALLATION )

2009 Toyota Tundra

2009 ENGINE Ignition (2UZ-FE) - Tundra

6. INSTALL FRONT FENDER APRON SEAL REAR LH (See INSTALLATION )

7. INSTALL AIR SWITCHING VALVE ASSEMBLY (for Bank 2) (See INSTALLATION )

8. INSTALL NO. 2 AIR TUBE (See INSTALLATION )

9. CONNECT NO. 2 AIR INJECTION SYSTEM HOSE (See INSTALLATION )

10. CONNECT NO. 1 WATER BYPASS PIPE (See INSTALLATION )

11. INSTALL FRONT FENDER APRON SEAL REAR RH (See INSTALLATION )

12. INSTALL AIR CLEANER HOSE ASSEMBLY (See INSTALLATION )

13. INSTALL THROTTLE BODY COVER ASSEMBLY (See INSTALLATION )

2009 Toyota Tundra

2009 ENGINE Ignition (2UZ-FE) - Tundra

2009 ENGINE

Ignition (3UR-FBE) - Tundra

IGNITION SYSTEM

PARTS LOCATION

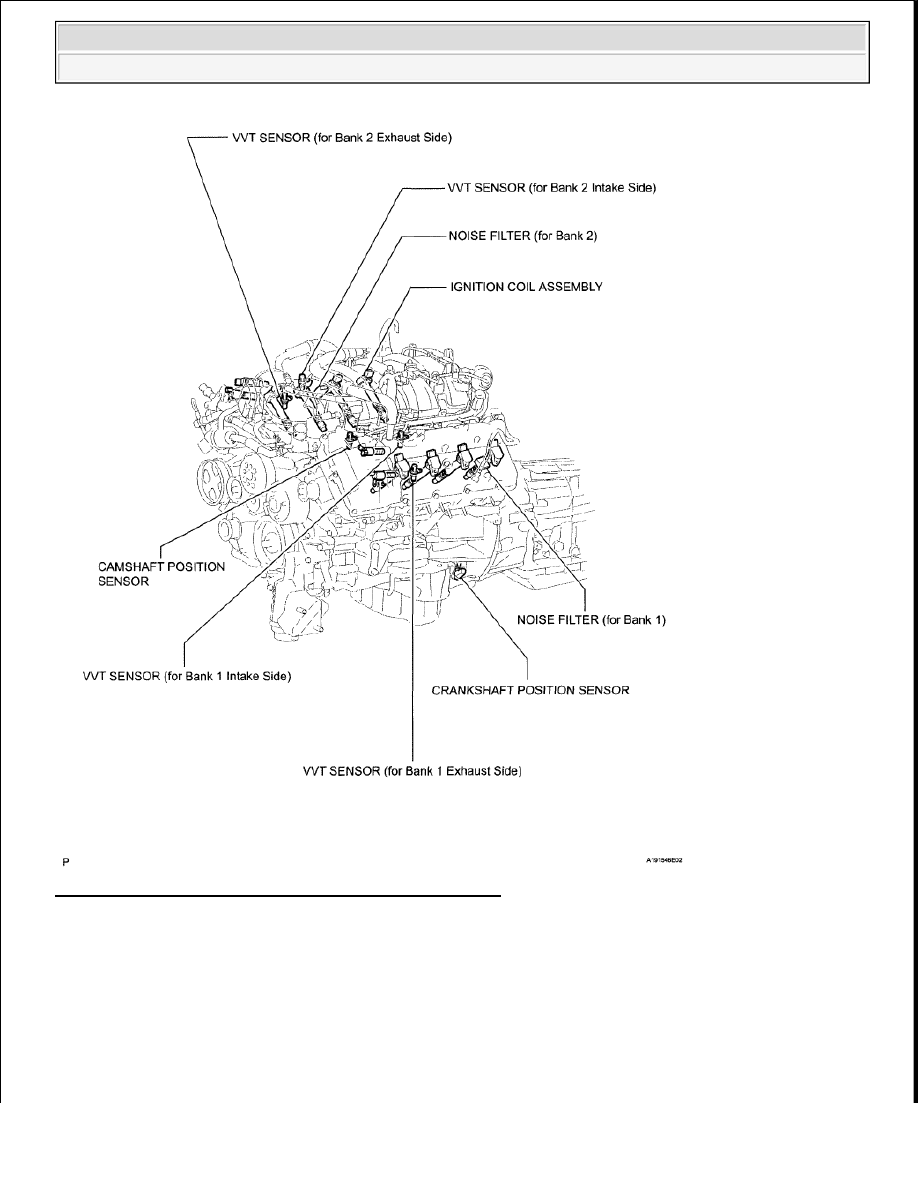

Fig. 1: Identifying Ignition System Parts Location (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ENGINE Ignition (3UR-FBE) - Tundra

2009 Toyota Tundra

2009 ENGINE Ignition (3UR-FBE) - Tundra

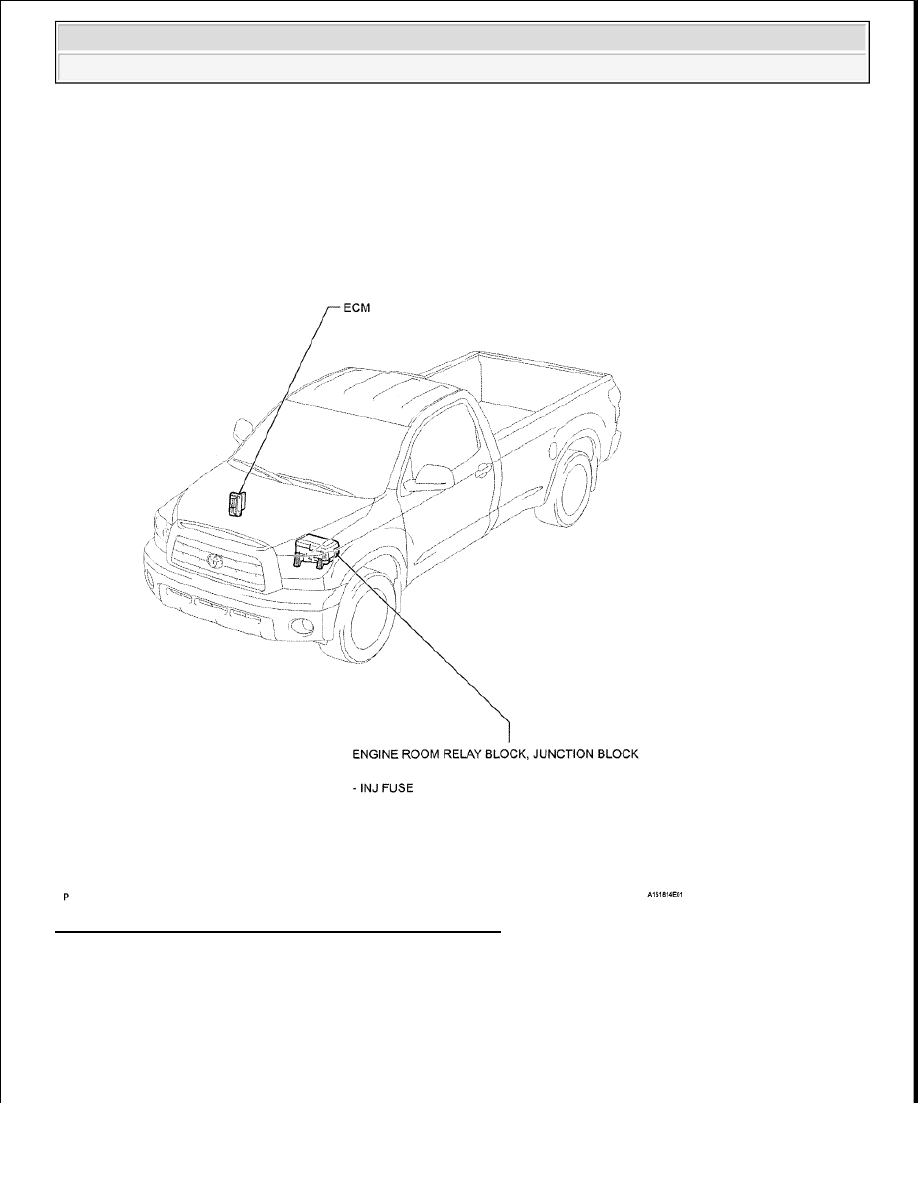

Fig. 2: Identifying Ignition System Parts Location (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

SYSTEM DIAGRAM
