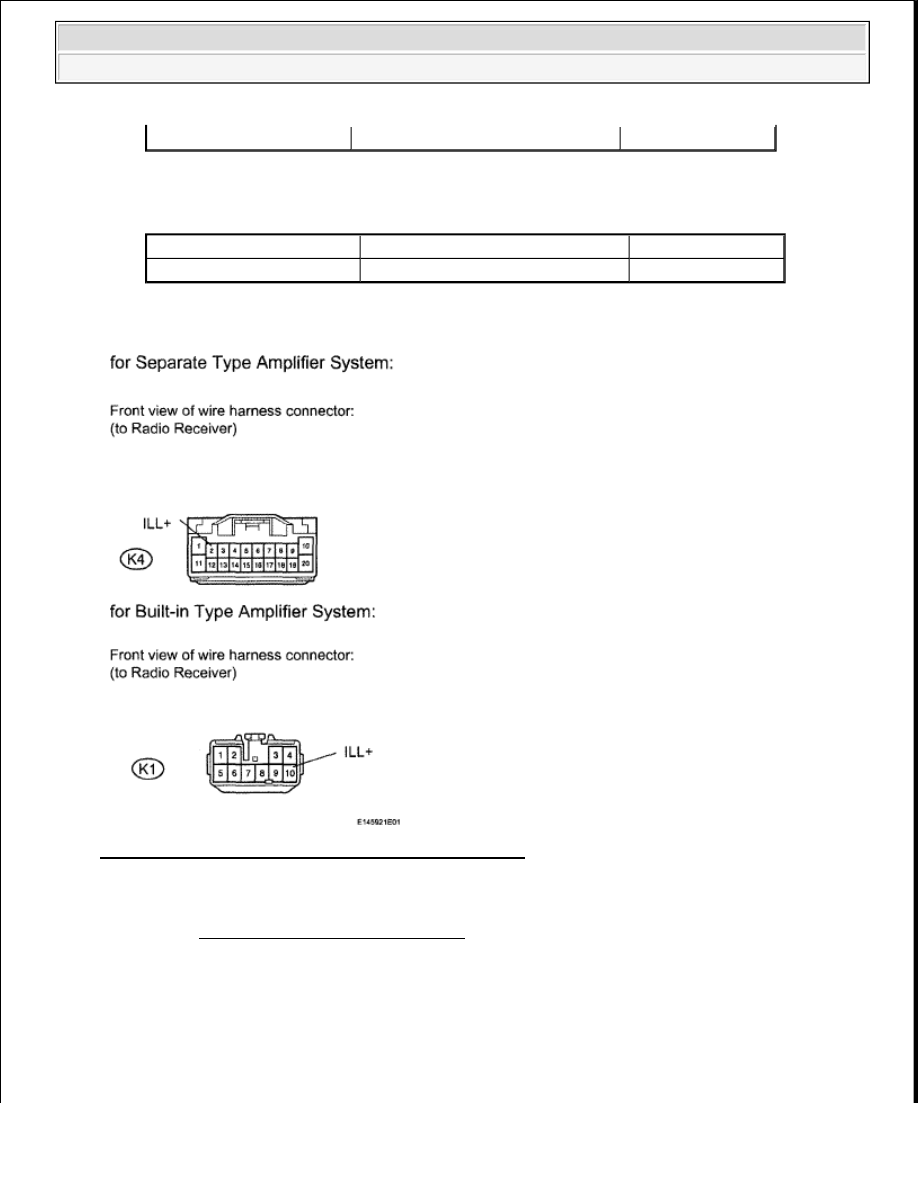

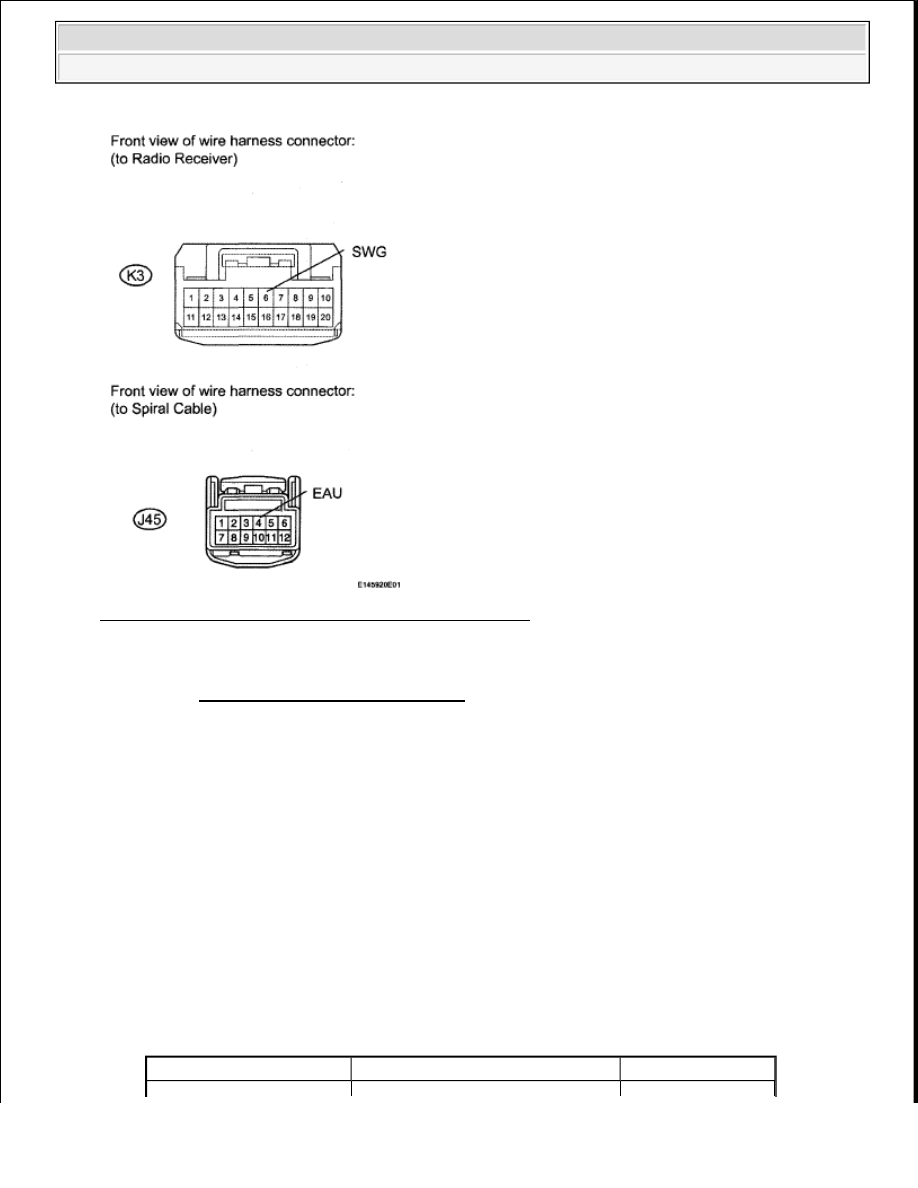

Fig. 194: Identifying K3 And J45 Connectors Terminals OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS 6. CHECK HARNESS AND CONNECTOR (BATTERY - RADIO RECEIVER) a. Disconnect the K1*1 or K4*2 receiver connector. HINT: *1: for Built-in Type Amplifier System *2: for Separate Type Amplifier System b. Measure the voltage according to the value(s) in the table below. Standard voltage: for Separate Type Amplifier System TESTER CONNECTION SPECIFIED CONDITION Tester Connection Switch Condition Specified Condition
