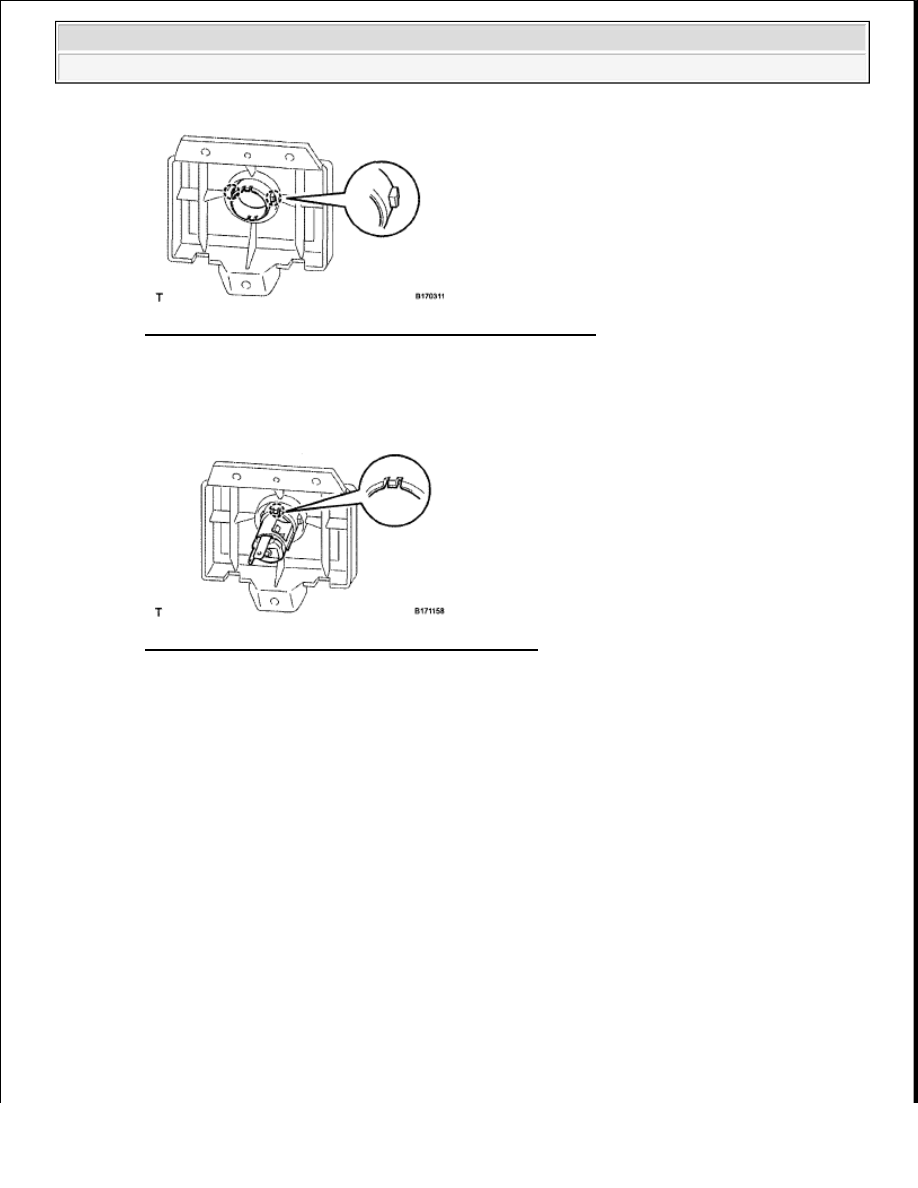

Fig. 21: Identifying Power Outlet Socket Cover And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. REMOVE REAR POWER POINT SOCKET (for AC Power Supply)

a. Detach the 2 claws and remove the power outlet socket.

Fig. 22: Identifying Power Outlet Socket And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL REAR POWER POINT SOCKET (for AC Power Supply)

a. Attach the 2 claws to install the power outlet socket.

Fig. 23: Identifying Power Outlet Socket And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL REAR POWER OUTLET SOCKET COVER (for Standard)

a. Attach the 2 claws to install the power outlet socket cover.

2009 Toyota Tundra

2009 ELECTRICAL Power Outlet - Tundra

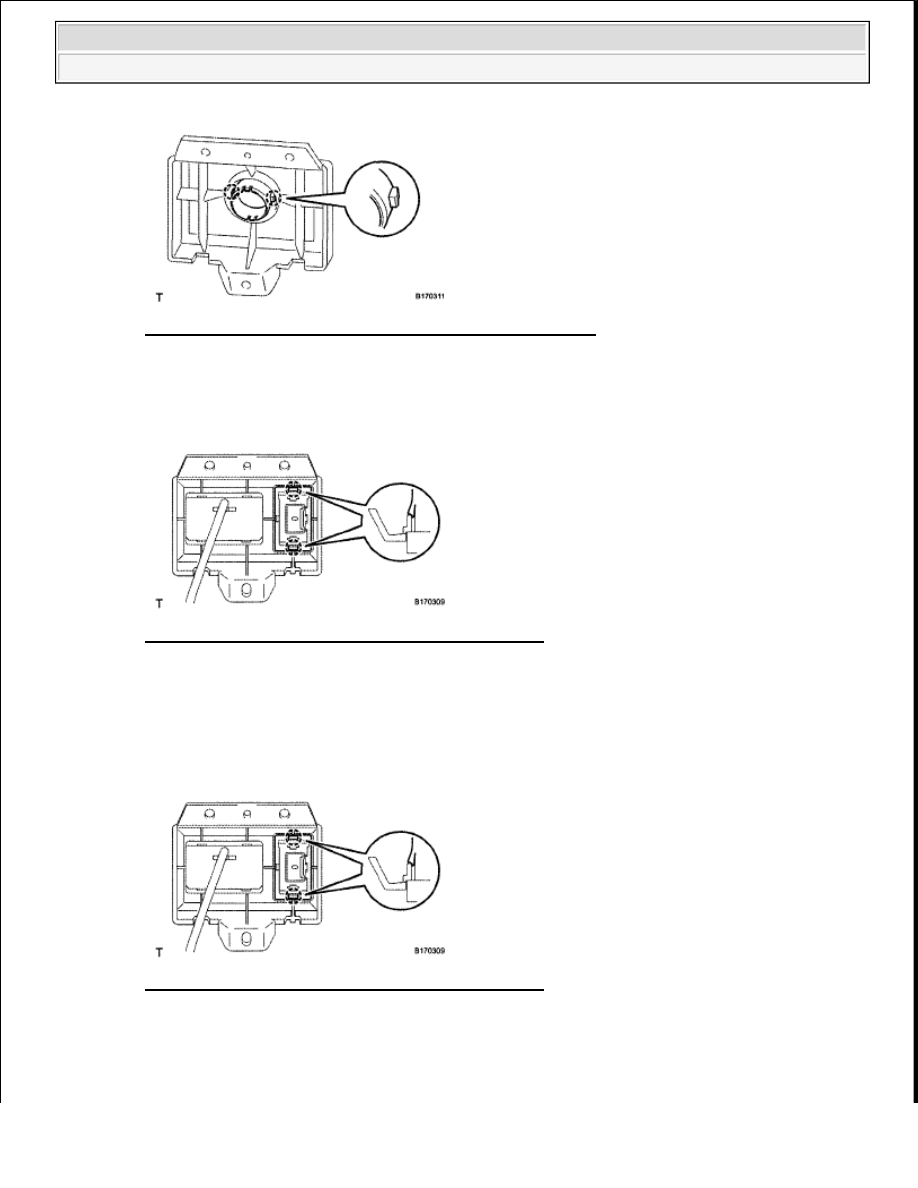

Fig. 24: Identifying Power Outlet Socket Cover And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL REAR POWER OUTLET SOCKET (for Standard)

a. Attach the claw to install the power outlet socket.

Fig. 25: Identifying Power Outlet Socket And Claw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. INSTALL CONSOLE BOX BEZEL

a. for AC Power Supply:

Connect the clamp.

b. Install the bezel with the 3 screws.

2009 Toyota Tundra

2009 ELECTRICAL Power Outlet - Tundra

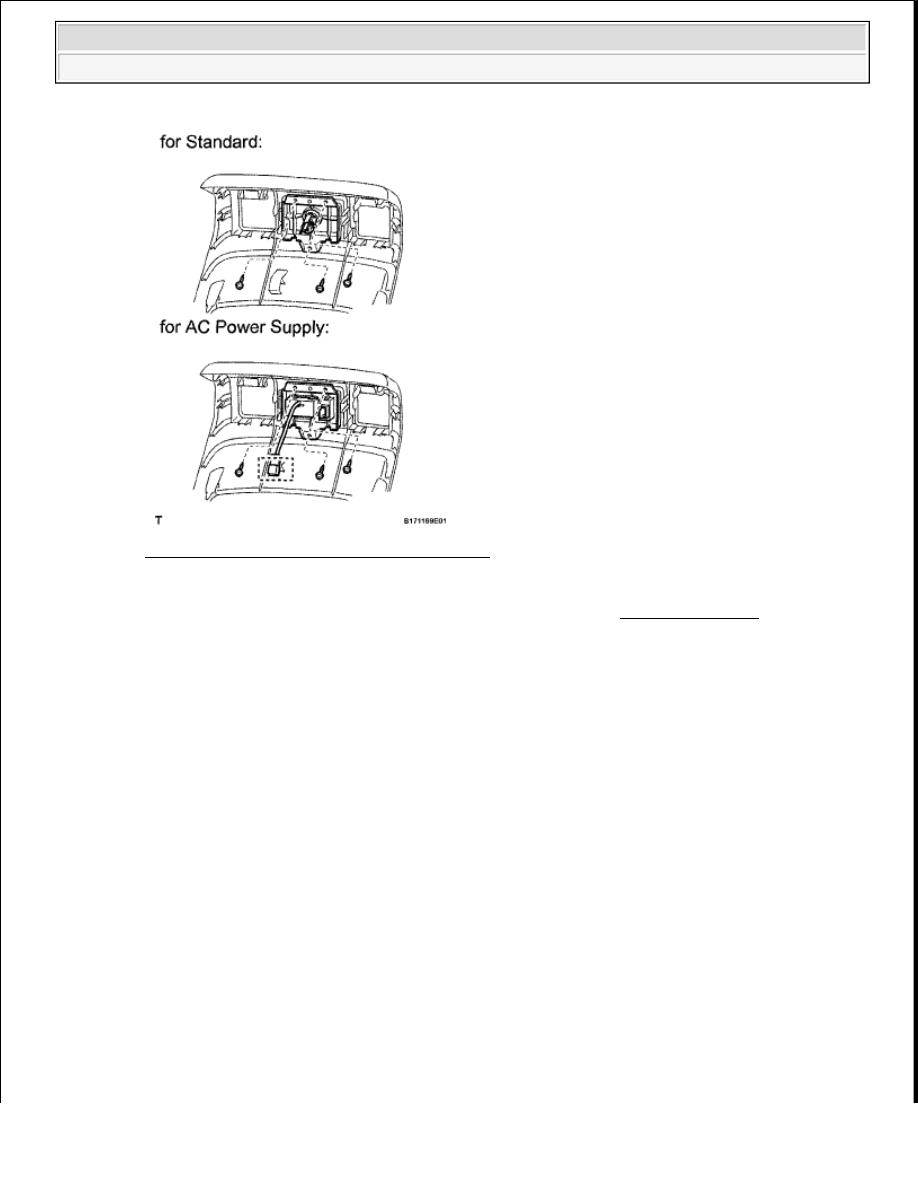

Fig. 26: Identifying Console Box Bezel Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY (See INSTALLATION )

POWER OUTLET SOCKET (FOR CREWMAX COLUMN SHIFT TYPE)

COMPONENTS

2009 Toyota Tundra

2009 ELECTRICAL Power Outlet - Tundra

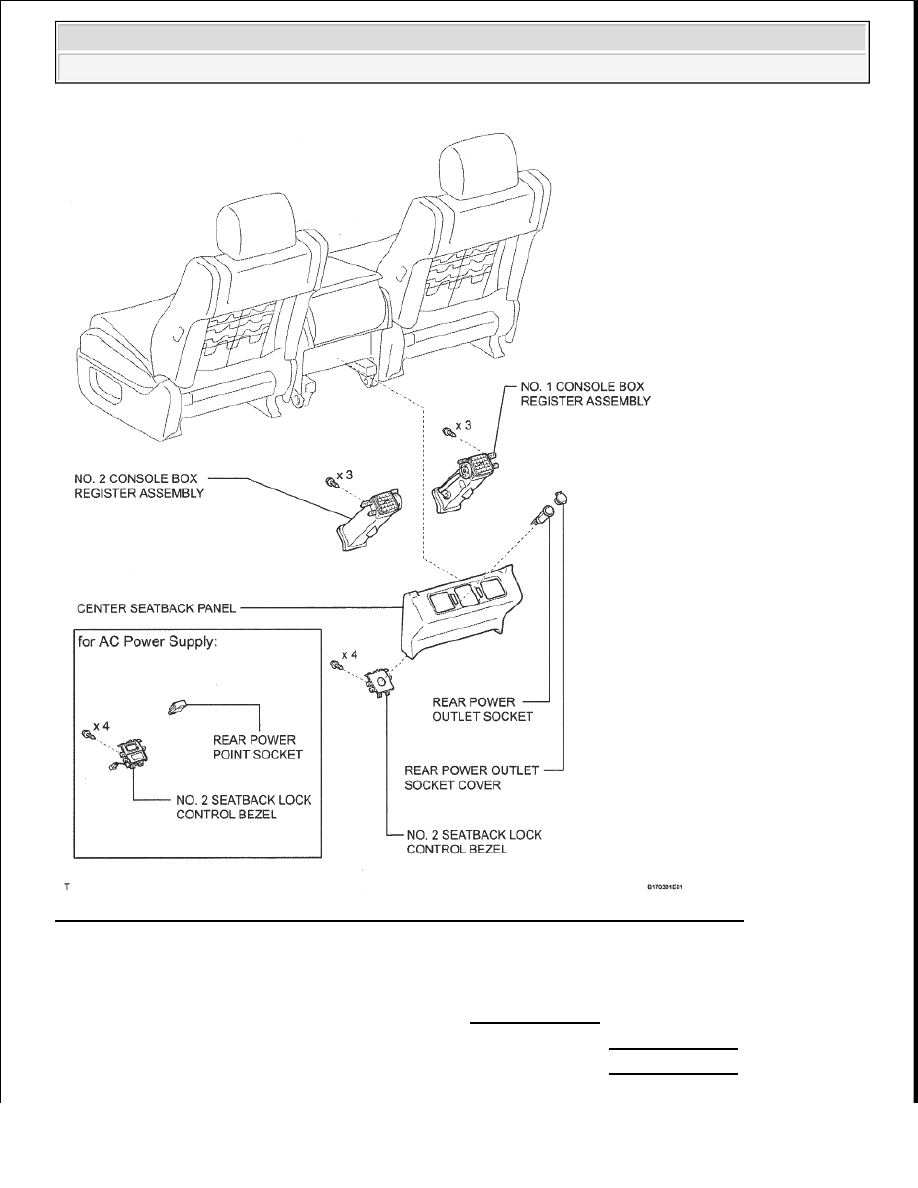

Fig. 27: Identifying Power Outlet Socket Components (For CrewMax Column Shift Type)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE CENTER SEATBACK PANEL (See DISASSEMBLY )

2. REMOVE NO. 2 CONSOLE BOX REGISTER ASSEMBLY (See DISASSEMBLY )

3. REMOVE NO. 1 CONSOLE BOX REGISTER ASSEMBLY (See DISASSEMBLY )

2009 Toyota Tundra

2009 ELECTRICAL Power Outlet - Tundra
