HINT:

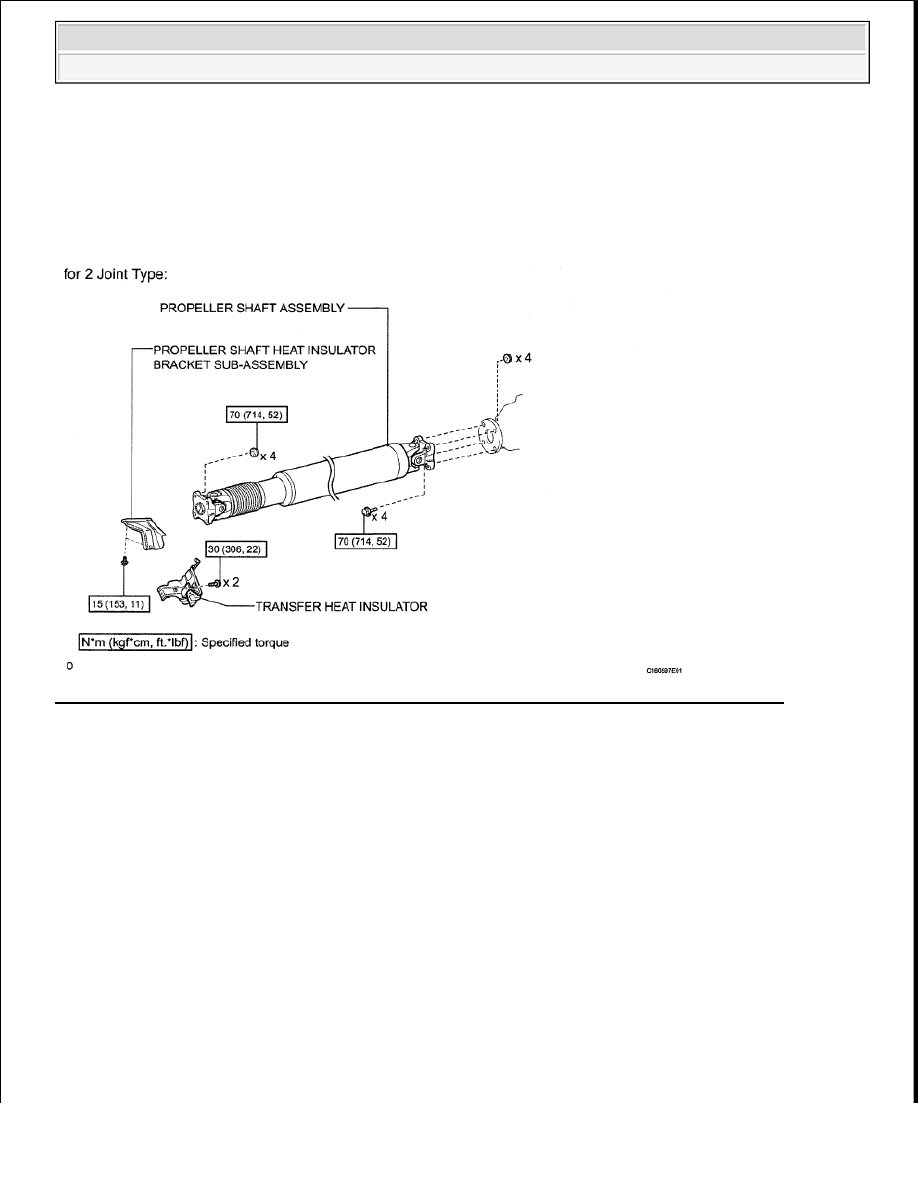

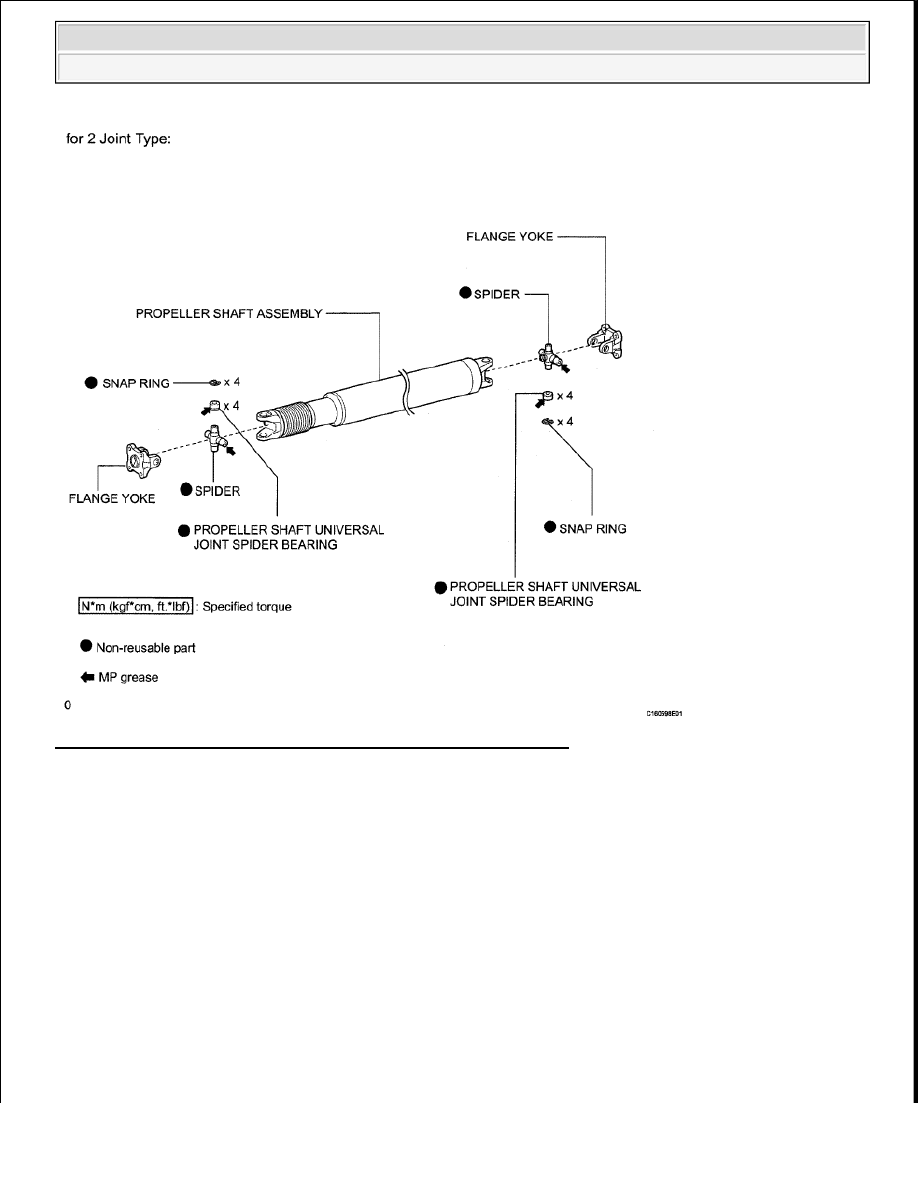

If the propeller shaft angle is outside the specification or there is vibration and noise, perform the
propeller shaft adjustment using the following procedure.
a. Adjust the No. 1, No. 2 and No. 3 joint angle.
1. Support the propeller shaft with a jack.
2. Remove the 2 center bearing mounting bolts.
3. Slowly lower the jack, and disconnect the center bearing.

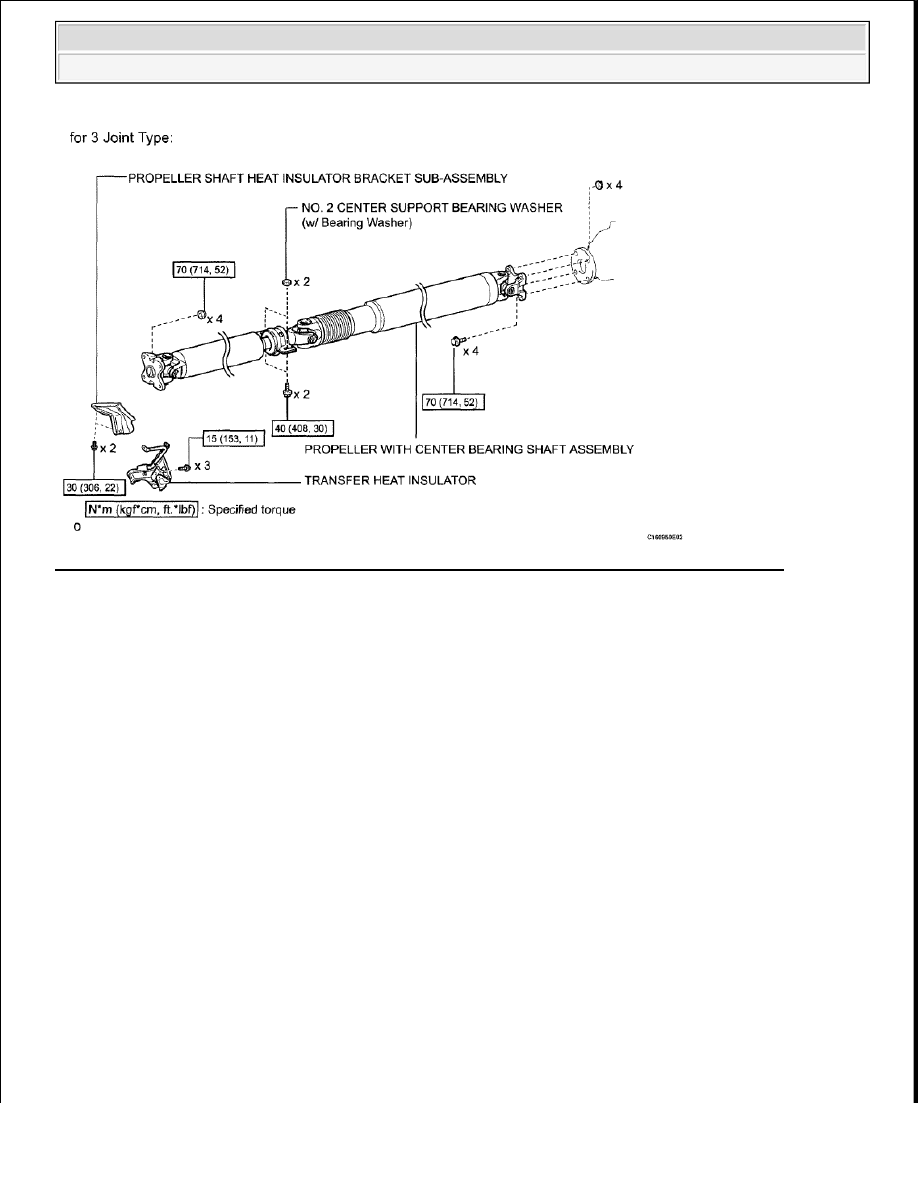

4. Select an appropriate center support bearing washer thickness from the table below, and
obtain a washer set.
Standard bearing washer thickness
THICKNESS CHART
HINT:
Each set contains 2 washers.
Using the washer set, perform the adjustment.
As a reference when selecting a bearing washer, the angle changes as follows for every
1.0 mm (0.0394 in.) change in bearing washer thickness.
Angle variation for every 1.0 mm (0.0394 in.) change in bearing washer thickness:
No. 1 joint angle:
0°04' (0.06°)
No. 2 joint angle:
0°07' (0.12°)
No. 3 joint angle:
0°04' (0.06°)
Thickness
2.0 mm (0.0787 in.)
4.5 mm (0.1772 in.)
6.5 mm (0.2559 in.)
9.0 mm (0.3543 In.)
11.0 mm (0.4331 in.)
13.5 mm (0.5315 in.)
2009 Toyota Tundra
2009 DRIVELINE/AXLES Propeller Shaft - Tundra
