119

2

Instrument cluster

2.

Instrument cluster
Warning lights

and indicators ..................120

Gauges and meters ...........128
Multi-information display

(Type A)...........................133

Multi-information display

(Type B)...........................136

Fuel consumption

information.......................144

120

2. Instrument cluster

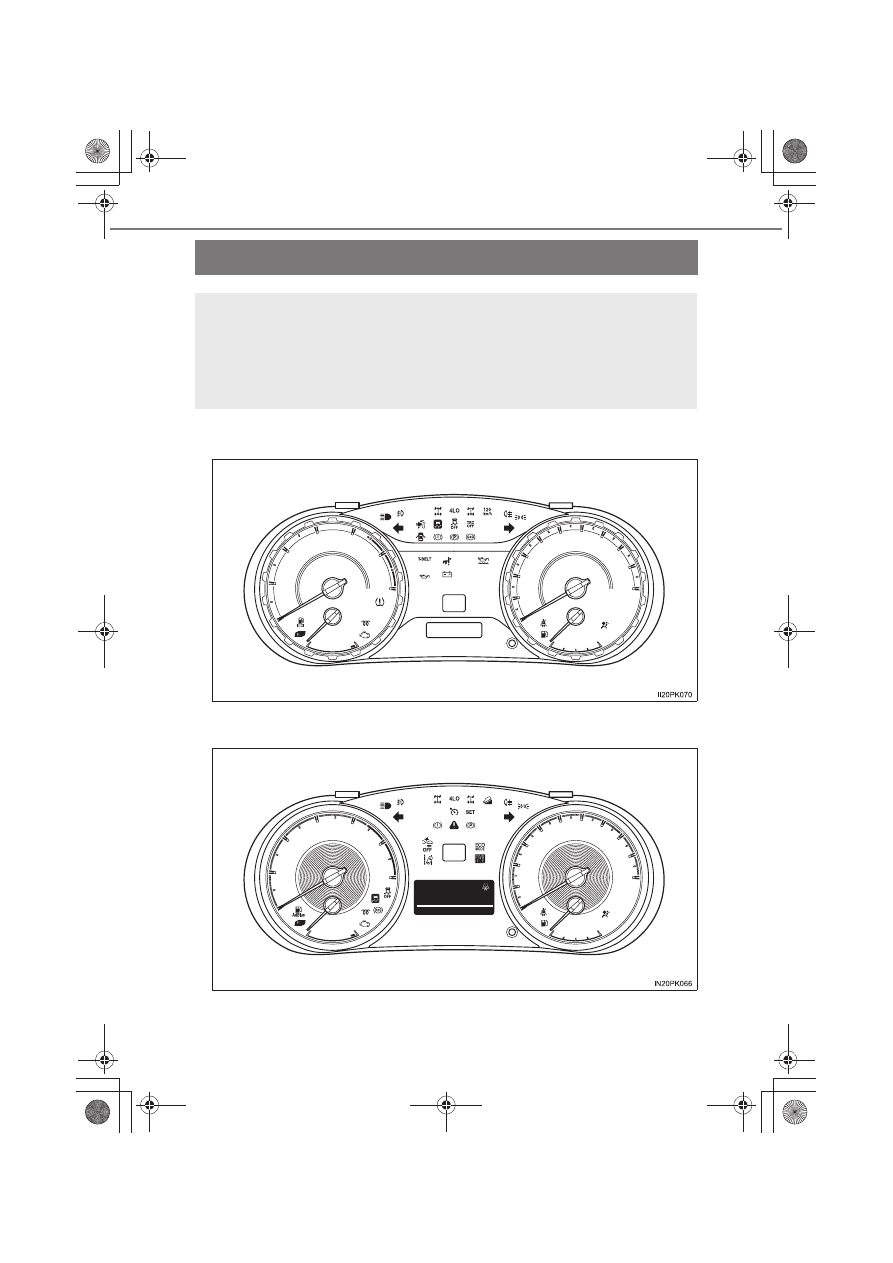

Warning lights and indicators

X

Vehicles without multi-information display

X

Vehicles with multi-information display type A

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

121

2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

X

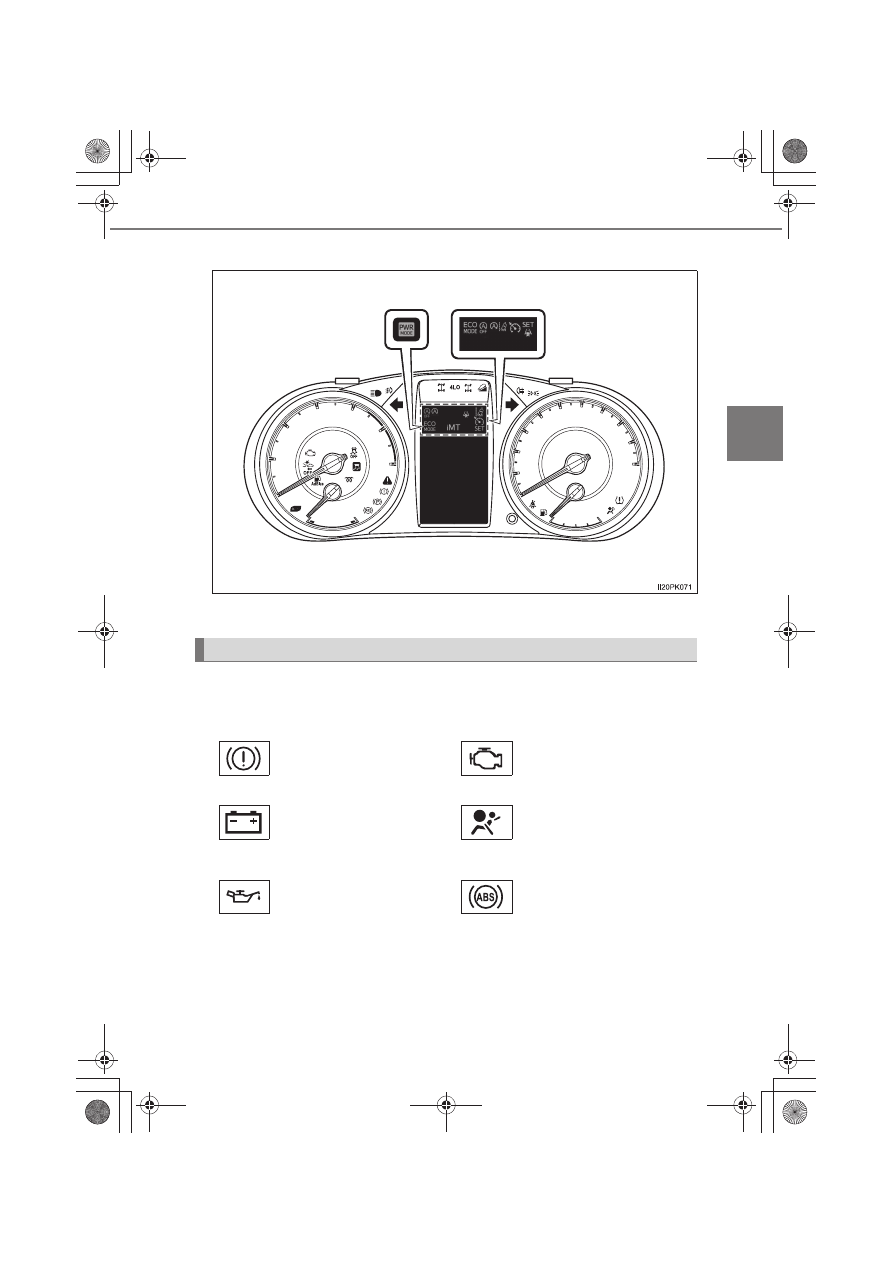

Vehicles with multi-information display type B

The positions of some warning lights and indicators differ depending on
vehicles.

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

Brake system warning
light (

→P. 567)

*

1, 2

Malfunction indicator
lamp (

→P. 568)

*

1

(if equipped)

Charging system
warning light (

→P. 567)

*

1

SRS warning light
(

→P. 568)

*

1

(if equipped)

Low engine oil pressure
warning light (

→P. 567)

*

1

ABS warning light
(

→P. 568)

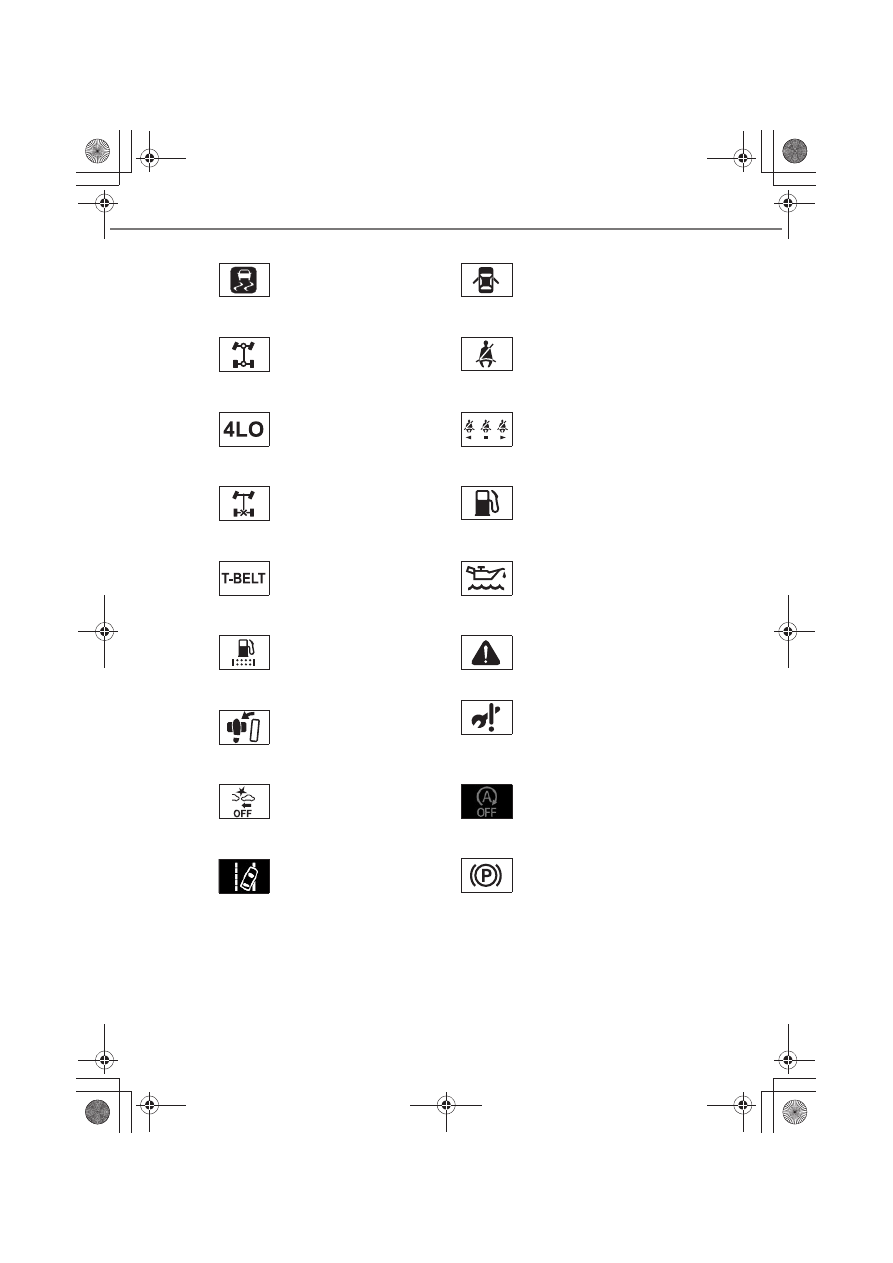

122

2. Instrument cluster

*

1

(if equipped)

Slip indicator light
(

→P. 568)

(if equipped)

Open door warning light
(

→P. 571)

*

3

(if equipped)

Four-wheel drive
indicator light (

→P. 569)

Driver’s and front
passenger’s seat belt
reminder light (

→P. 571)

*

3

(if equipped)

Low speed four-wheel
drive indicator light
(

→P. 569)

*

7

(if equipped)

Rear passengers’ seat
belt reminder lights
(

→P. 571)

*

3

(if equipped)

Rear differential lock
indicator light (

→P. 569)

Low fuel level warning
light (

→P. 571)

*

1

(if equipped)

Timing belt replacement
warning light (

→P. 569)

*

1

(if equipped)

Low engine oil level
warning light (

→P. 571)

*

1

(if equipped)

Fuel system warning
light (

→P. 569)

*

1

(if equipped)

Master warning light
(

→P. 571)

*

1, 4

(if equipped)

Brake Override System
warning light (

→P. 570)

(if equipped)

Go to service warning
light (

→P. 574)

*

1, 4

(if equipped)

PCS warning light
(

→P. 570)

*

1, 4

(if equipped)

Stop & Start cancel
indicator (

→P. 572)

*

5, 6

(if equipped)

LDA indicator (

→P. 571)

Parking brake indicator
light (

→P. 572)
