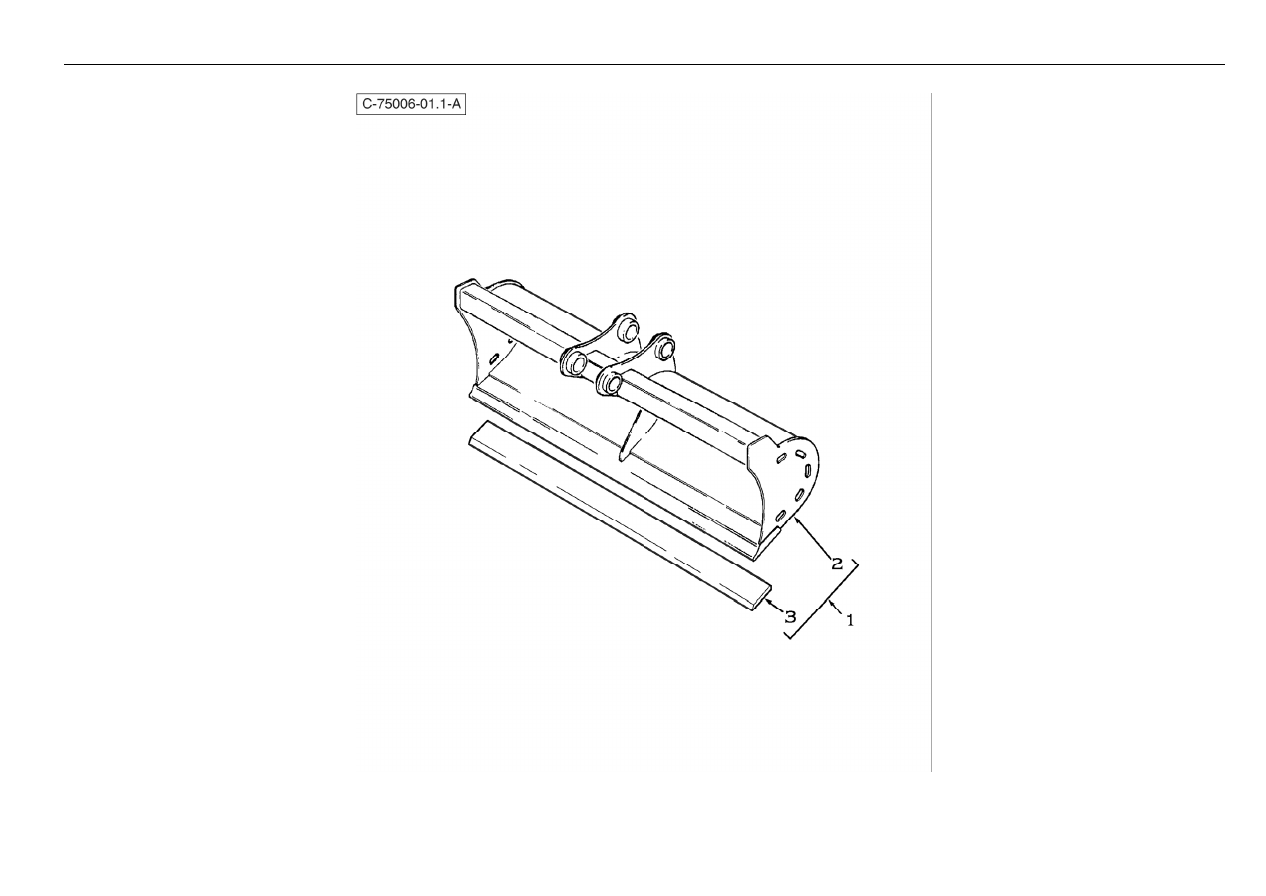

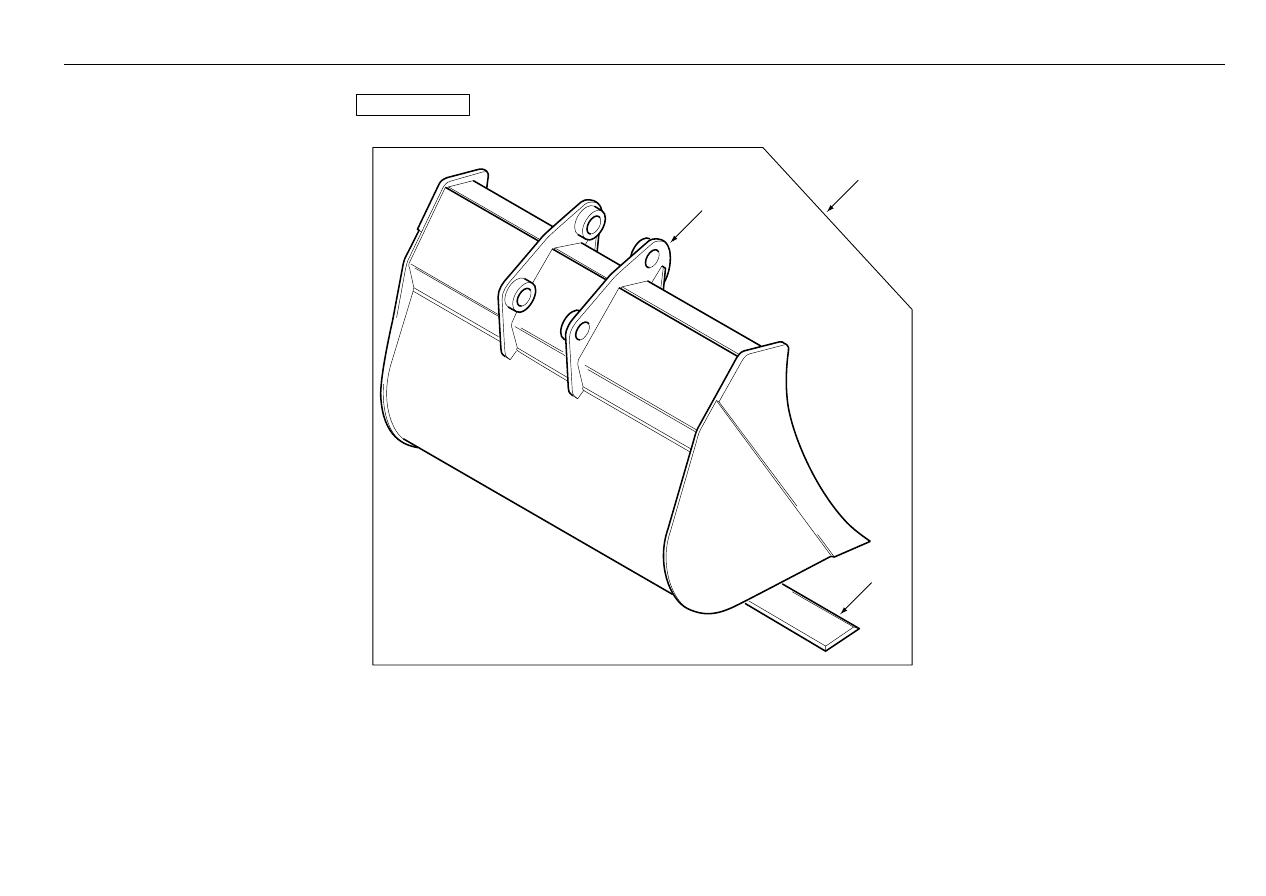

Digger Bucket

- Ditch Cleaning

4067 75006

Part No.

Qty.

English

French

German

Spanish

Remarks

1

3516000M91

1

Bucket, 1835mm - Ditch Cleaning

Godet

Grabenloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6190734M1

1

Blade, 1835mm - Ditch Cleaning
Bucket

Lame

Klinge

Cuchilla

6'.0"

®

1793

Digger Bucket

- Ditch Cleaning

4067 75007

Part No.

Qty.

English

French

German

Spanish

Remarks

1

3516001M91

1

Bucket, Digger - 1530mm, Ditch
Cleaning

Ensemble De Godet

Grabenloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6190735M1

1

Blade, 1530mm - Ditch Cleaning
Bucket

Lame

Klinge

Cuchilla

5'.0"

®

1795

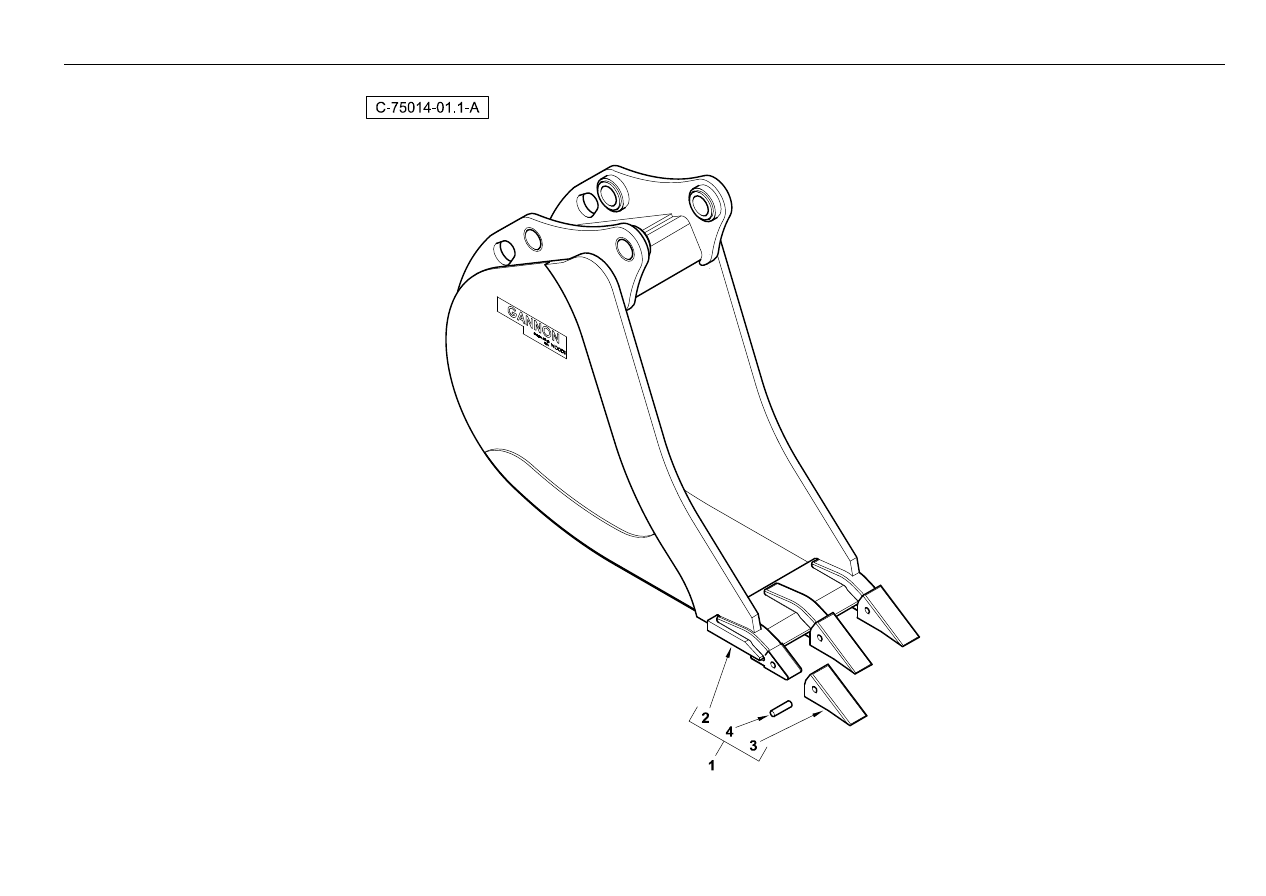

Digger Bucket

- Gannon 12 In

4067 75014

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6111925M91

1

Bucket - Digger 12" (Gannon)

Godet De Pelle

Baggerloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

#TOOTH

3

Tooth

Tooth

Tooth

Tooth

Ref. 1

4

#PIN

3

Pin

Goupille

Bolzen

Pasador

Ref. 1

®

1797

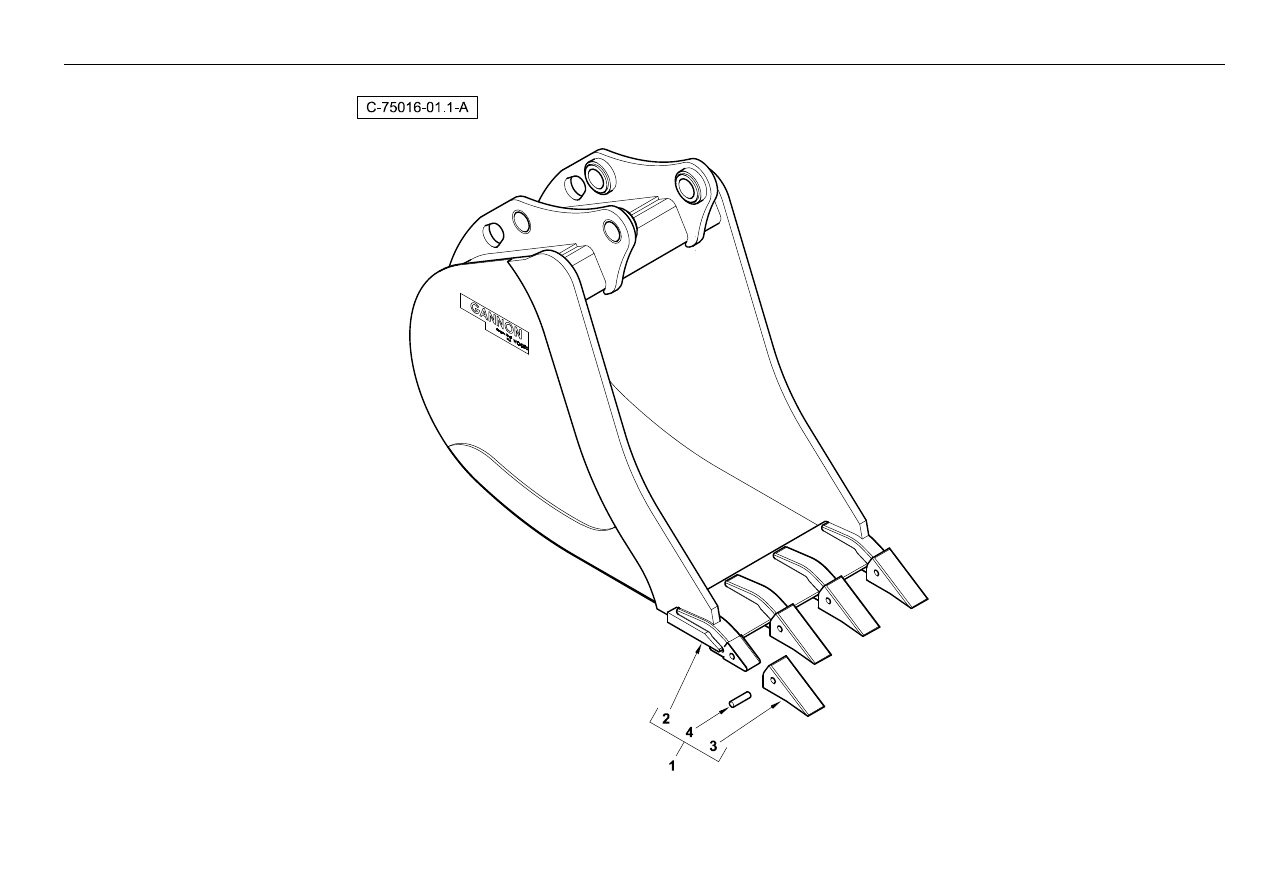

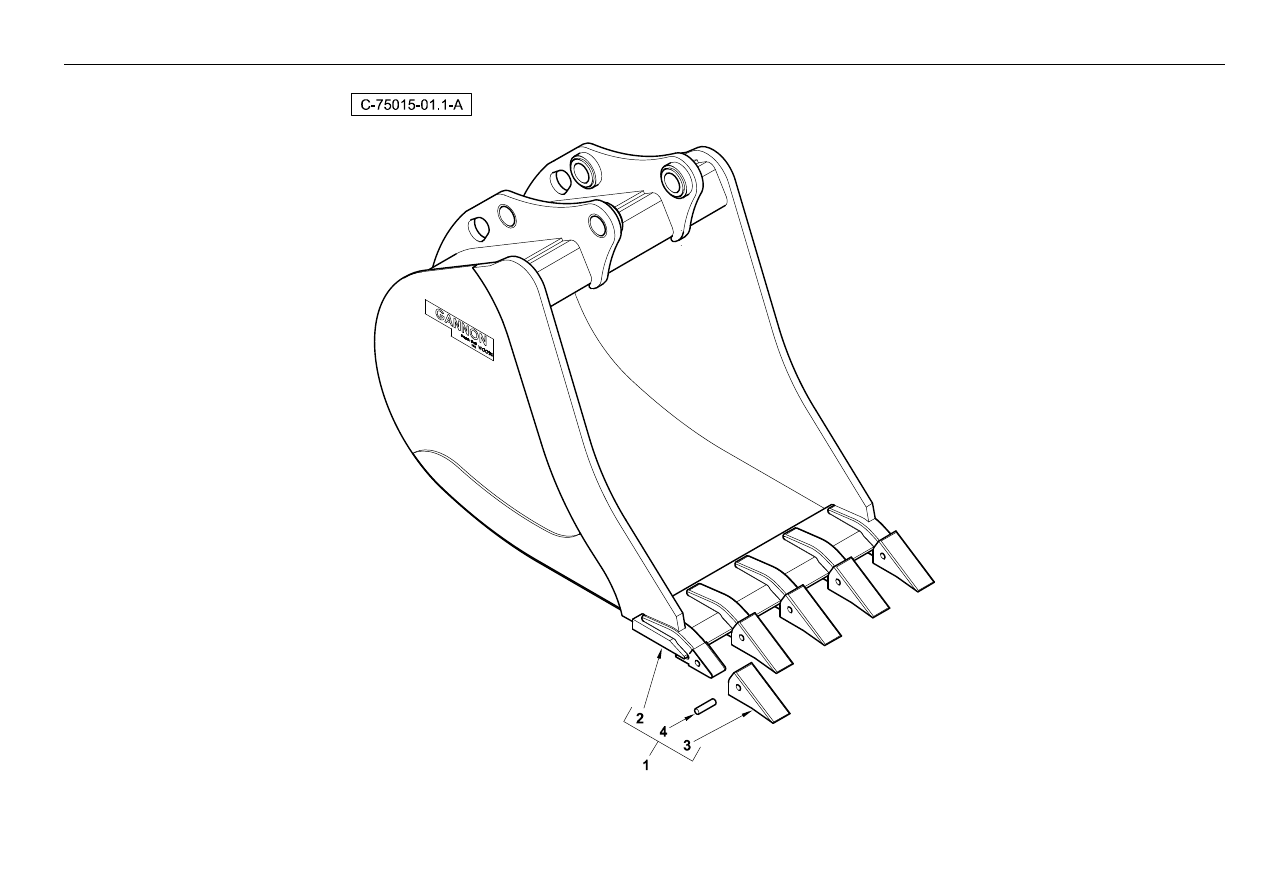

Digger Bucket

- Gannon 18 In

4067 75016

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6112241M91

1

Bucket - Digger 18" (Gannon)

Godet De Pelle

Baggerloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

#TOOTH

4

Tooth

Tooth

Tooth

Tooth

Ref. 1

4

#PIN

4

Pin

Goupille

Bolzen

Pasador

Ref. 1

®

1799

Digger Bucket

- Gannon 24 In

4067 75015

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6111926M91

1

Bucket - Digger 24" (Gannon)

Godet De Pelle

Baggerloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

#TOOTH

5

Tooth

Tooth

Tooth

Tooth

Ref. 1

4

#PIN

5

Pin

Goupille

Bolzen

Pasador

Ref. 1

®

1801

Not Serviced

4067 75999

Not Illustrated

Non Illustrée

Nicht Abgebildet

Non Illustrato

No Ilustrado

Part No.

Qty.

English

French

German

Spanish

Remarks

®

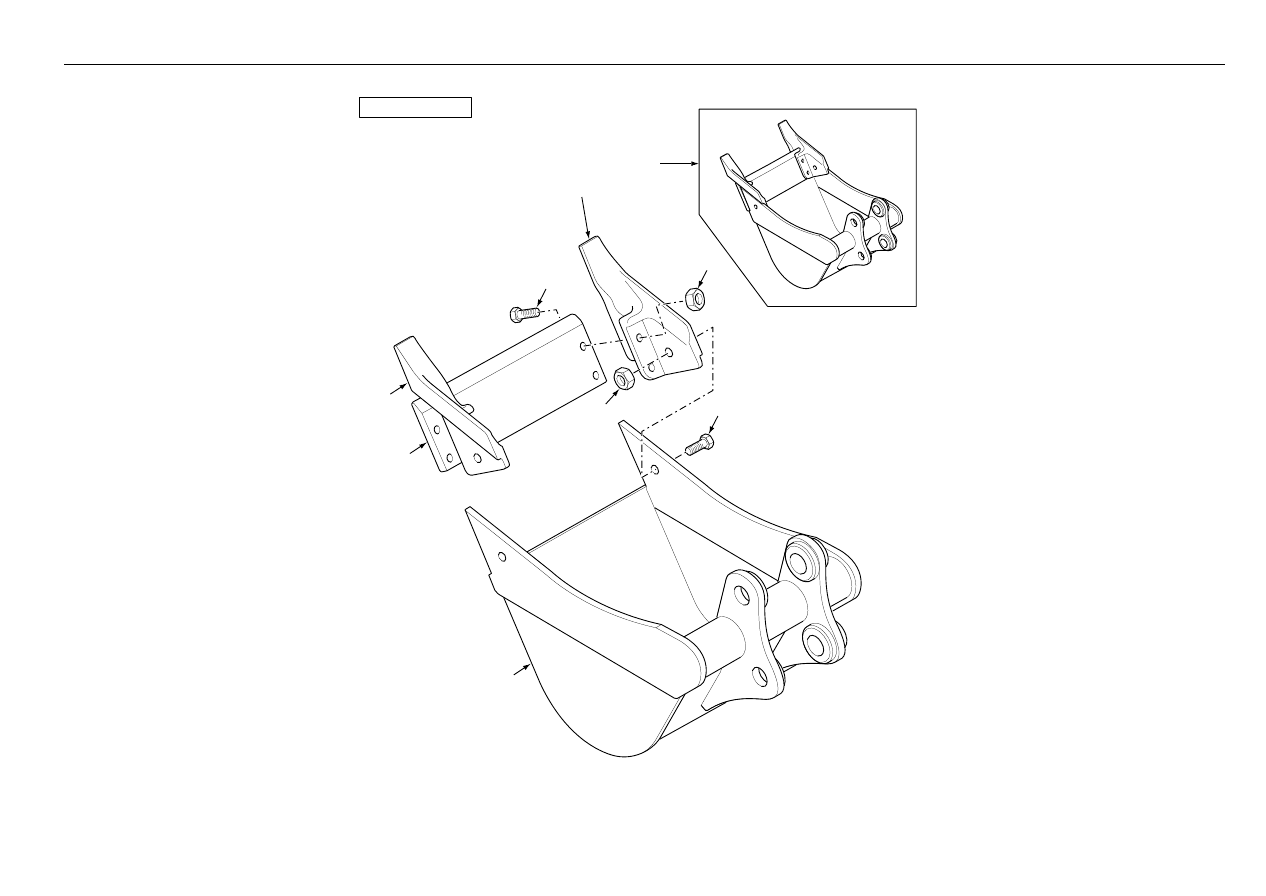

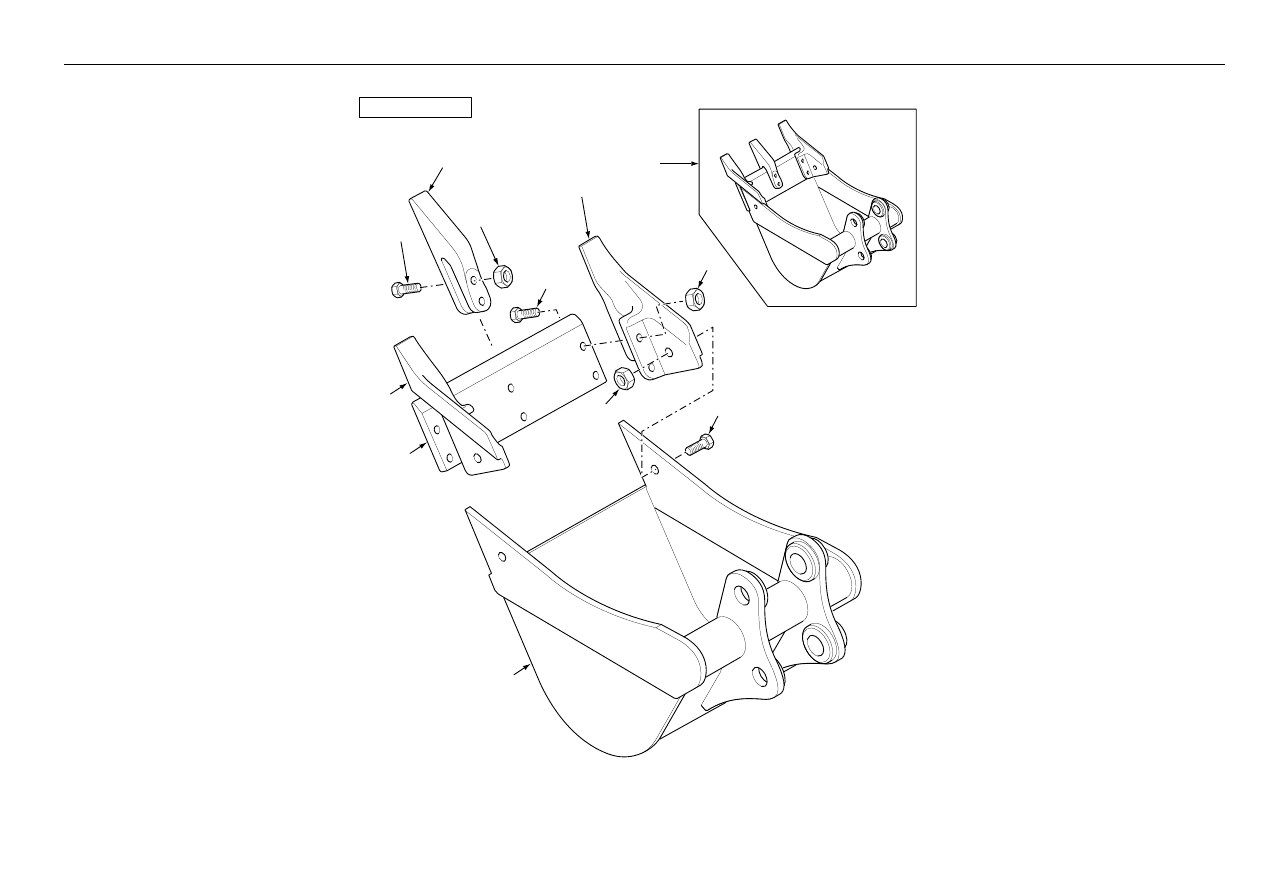

1803

Digger Bucket

- Premium

4067 98084

4

1

8

3

7

2

6

9

5

C-98084-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102393M92

1

Bucket-Premium 300mm-Black

Godet

Ladeschaufel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6192264M1

1

Tooth & Side Cutter L/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

4

6192265M1

1

Tooth & Side Cutter R/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

5

354710X1

4

Bolt, Hex. - 3/4"Unc X 2"

Goupille

Bolzen

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

7

#BLADE

1

Blade

Blade

Blade

Blade

Ref. 1

8

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

9

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

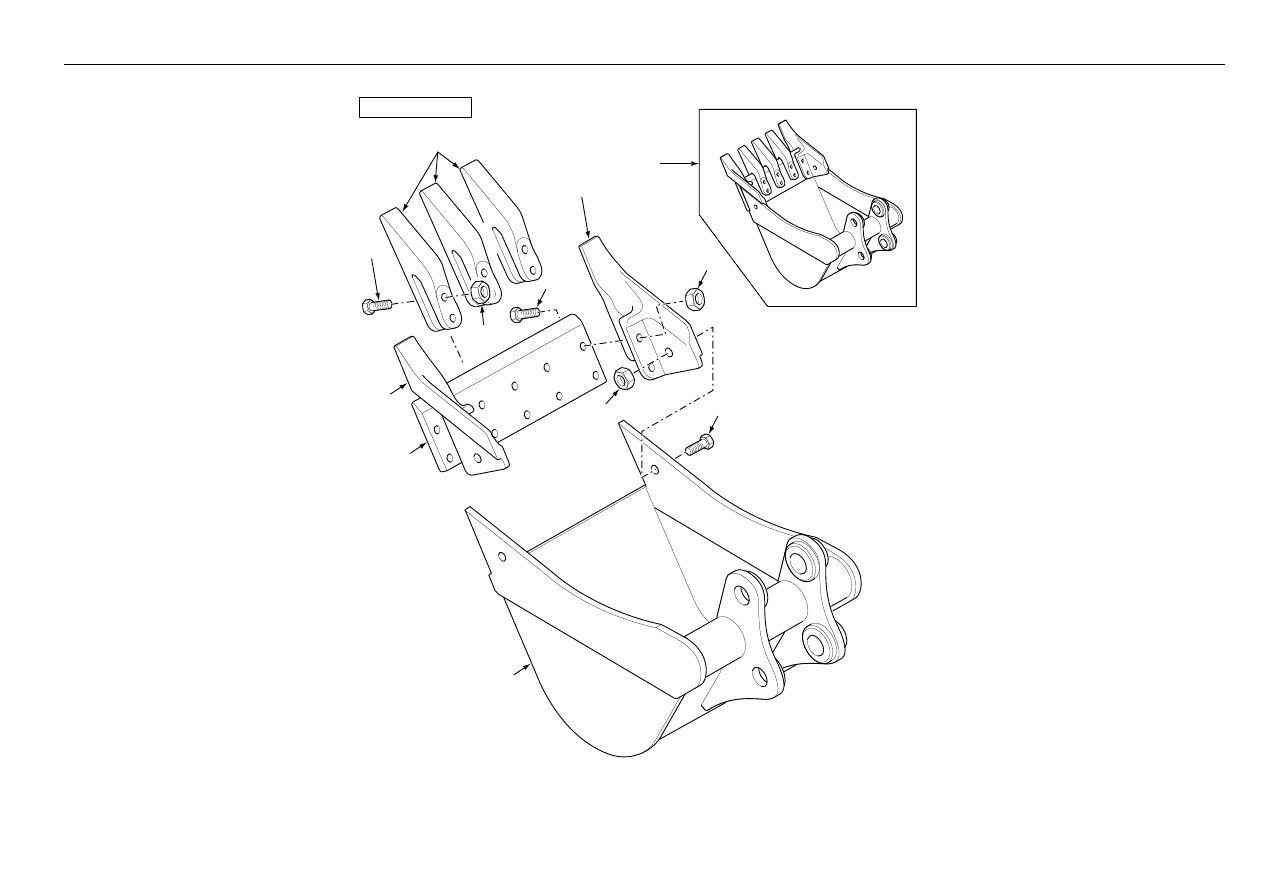

1805

Digger Bucket

- Premium

4067 98085

11

4

1

12

8

3

7

2

6

9

5

10

C-98085-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102394M92

1

Bucket-Premium 450mm-Black

Godet

Ladeschaufel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6192264M1

1

Tooth & Side Cutter L/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

4

6192265M1

1

Tooth & Side Cutter R/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

5

354710X1

4

Bolt, Hex. - 3/4"Unc X 2"

Goupille

Bolzen

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

7

#BLADE

1

Blade

Blade

Blade

Blade

Ref. 1

8

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

9

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

10

6192263M1

1

Tooth - Digger Bucket

Dent

Zahn

Diente

11

369700X1

2

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

12

375100X1

2

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

1807

Digger Bucket

- Premium

4067 98086

11

4

1

12

8

3

7

2

6

9

5

10

C-98086-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102395M92

1

Bucket-Premium 600mm-Black

Godet

Ladeschaufel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6192264M1

1

Tooth & Side Cutter L/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

4

6192265M1

1

Tooth & Side Cutter R/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

5

354710X1

4

Bolt, Hex. - 3/4"Unc X 2"

Goupille

Bolzen

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

7

#BLADE

1

Blade

Blade

Blade

Blade

Ref. 1

8

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

9

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

10

6192263M1

2

Tooth - Digger Bucket

Dent

Zahn

Diente

11

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

12

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

1809

Digger Bucket

- Premium

4067 98087

11

4

1

8

12

3

7

2

6

9

5

10

C-98087-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102396M92

1

Bucket-Premium 750mm-Black

Godet

Ladeschaufel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6192264M1

1

Tooth & Side Cutter L/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

4

6192265M1

1

Tooth & Side Cutter R/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

5

354710X1

4

Bolt, Hex. - 3/4"Unc X 2"

Goupille

Bolzen

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

7

#BLADE

1

Blade

Blade

Blade

Blade

Ref. 1

8

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

9

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

10

6192263M1

3

Tooth - Digger Bucket

Dent

Zahn

Diente

11

369700X1

6

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

12

375100X1

6

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

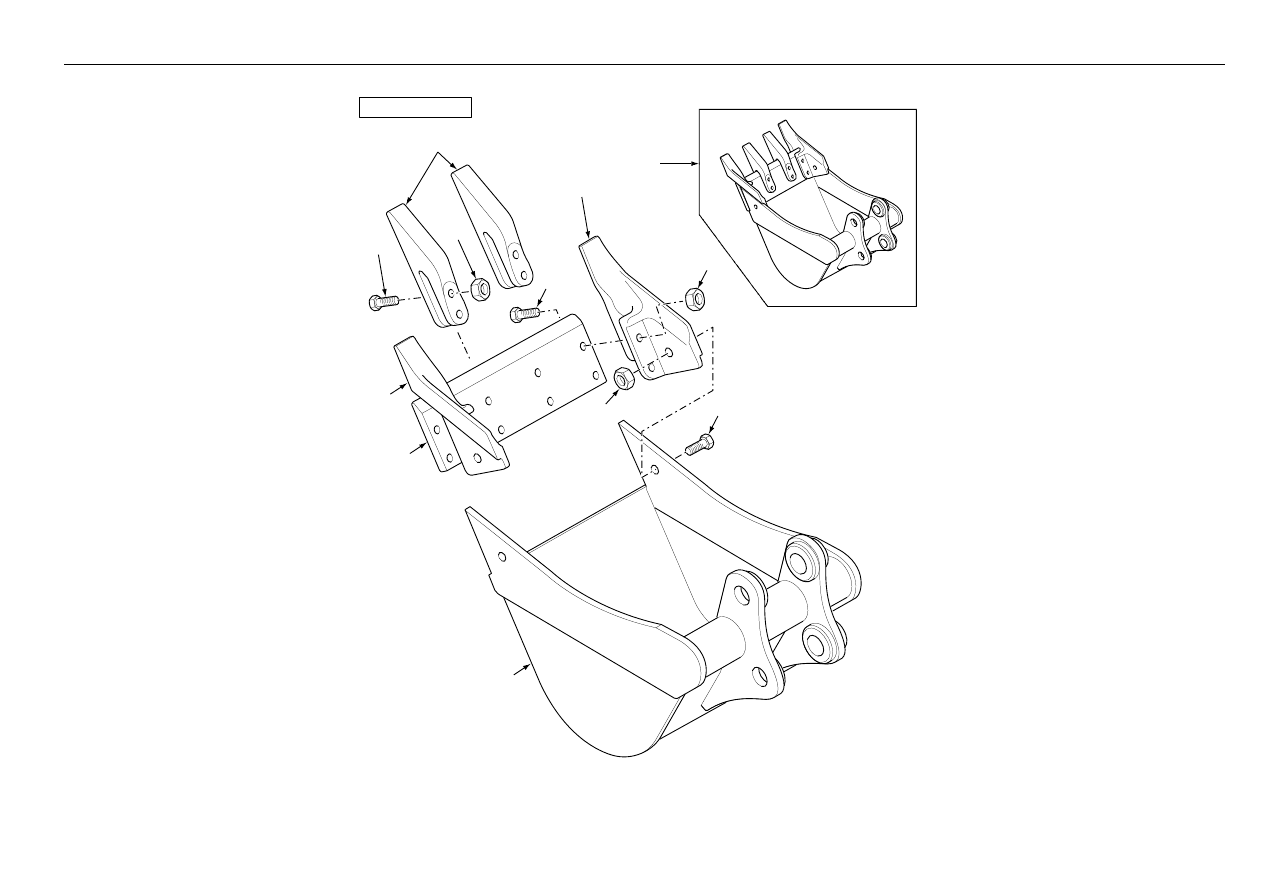

1811

Digger Bucket

- Premium

4067 98088

11

4

1

12

8

3

7

2

6

9

5

10

C-98088-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102397M92

1

Bucket-Premium 900mm-Black

Godet

Ladeschaufel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref. 1

3

6192264M1

1

Tooth & Side Cutter L/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

4

6192265M1

1

Tooth & Side Cutter R/H

Lame D¿Attaque

Schneidkante

Cuchilla De Ataque

5

354710X1

4

Bolt, Hex. - 3/4"Unc X 2"

Goupille

Bolzen

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

7

#BLADE

1

Blade

Blade

Blade

Blade

Ref. 1

8

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

9

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

10

6192263M1

4

Tooth - Digger Bucket

Dent

Zahn

Diente

11

369700X1

8

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

12

375100X1

8

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

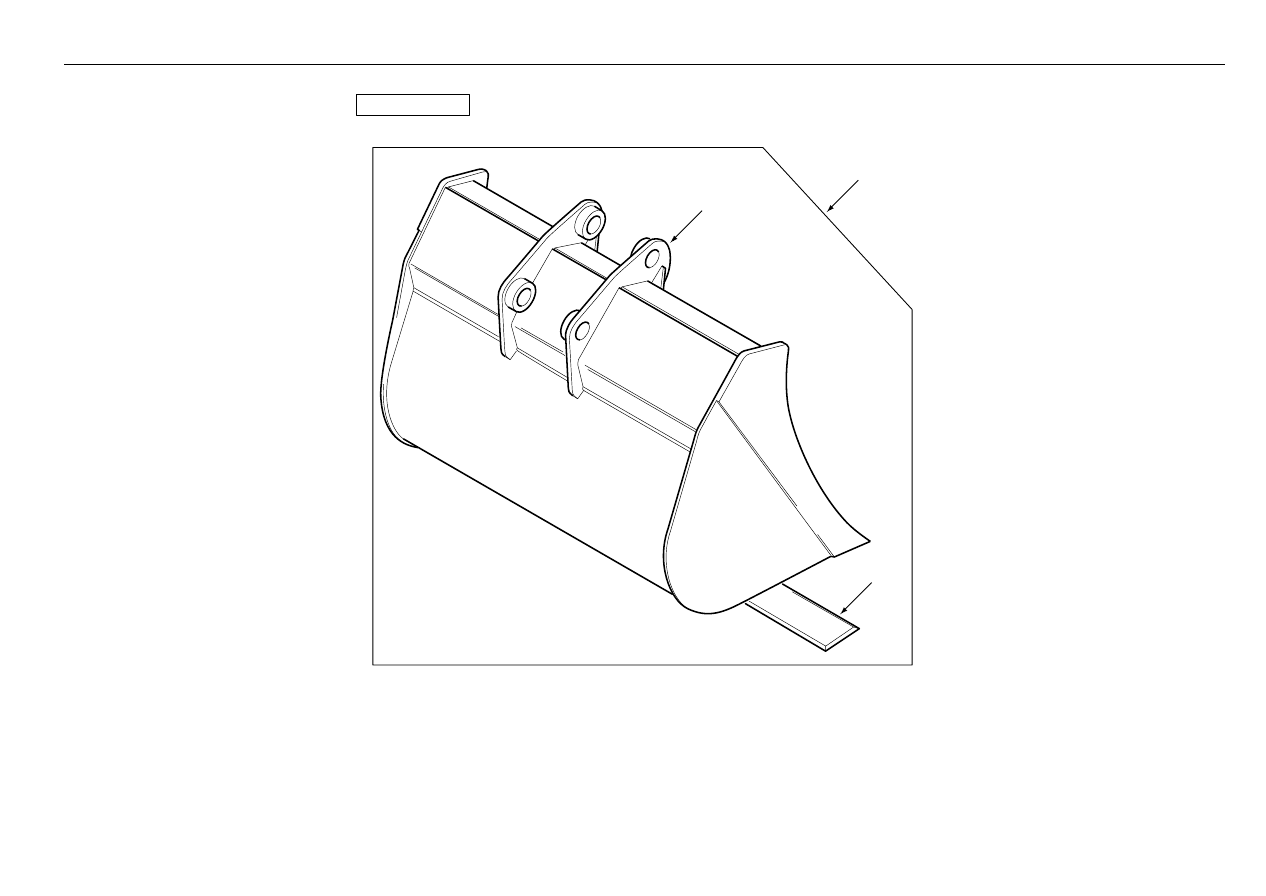

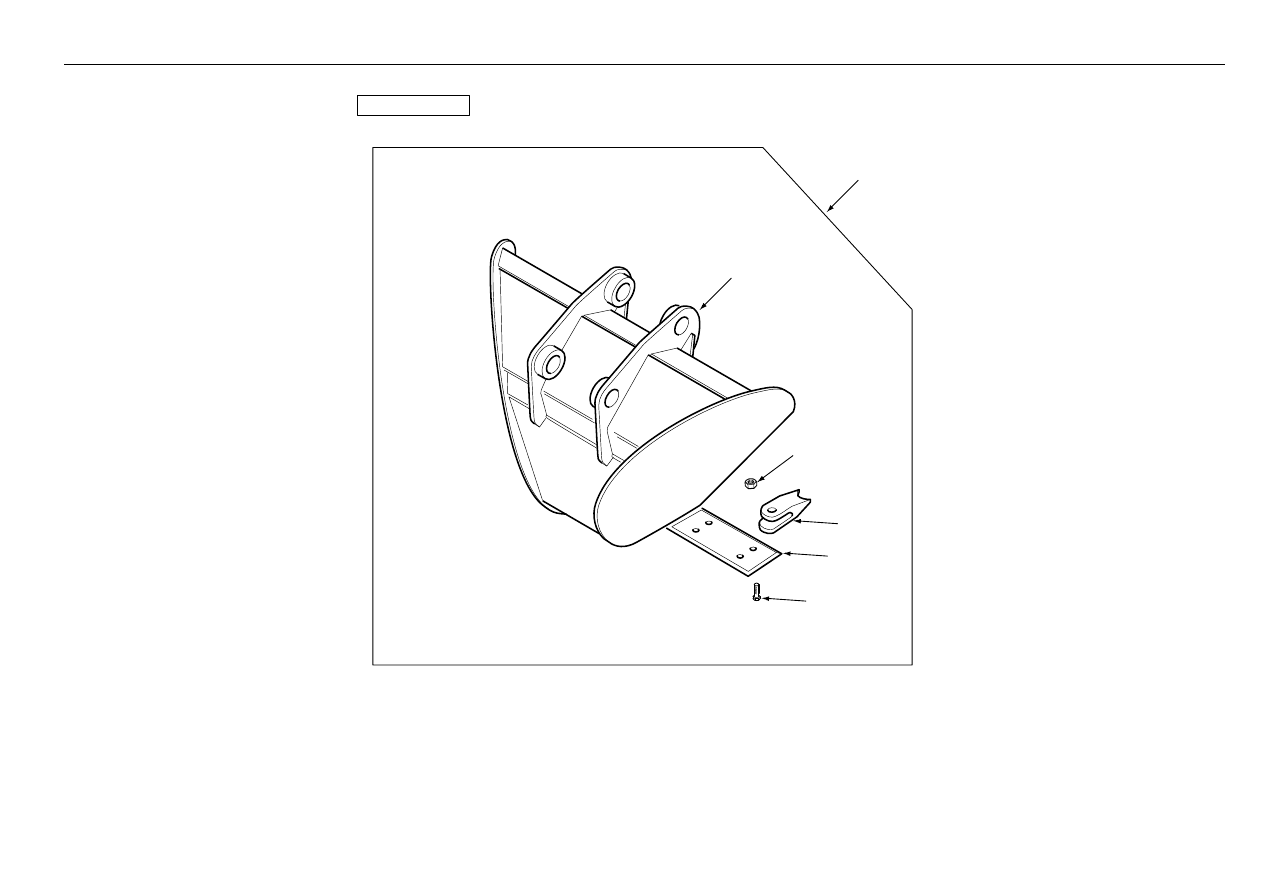

1813

Digger Bucket

- Ditch Maintenance

4067 98089

2

1

3

C-98089-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102398M92

1

Bucket, Digger - 1500mm, Ditch
Cleaning

Godet De Fosse

Grabenloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref.1

3

#BLADE

1

Blade

Blade

Blade

Blade

Ref.1

®

1815

Digger Bucket

- Ditch Maintenance

4067 98090

2

1

3

C-98090-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102399M92

1

Bucket, Digger - 1800mm, Ditch
Cleaning

Godet De Fosse

Grabenloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

Ref.1

3

#BLADE

1

Blade

Blade

Blade

Blade

Ref.1

®

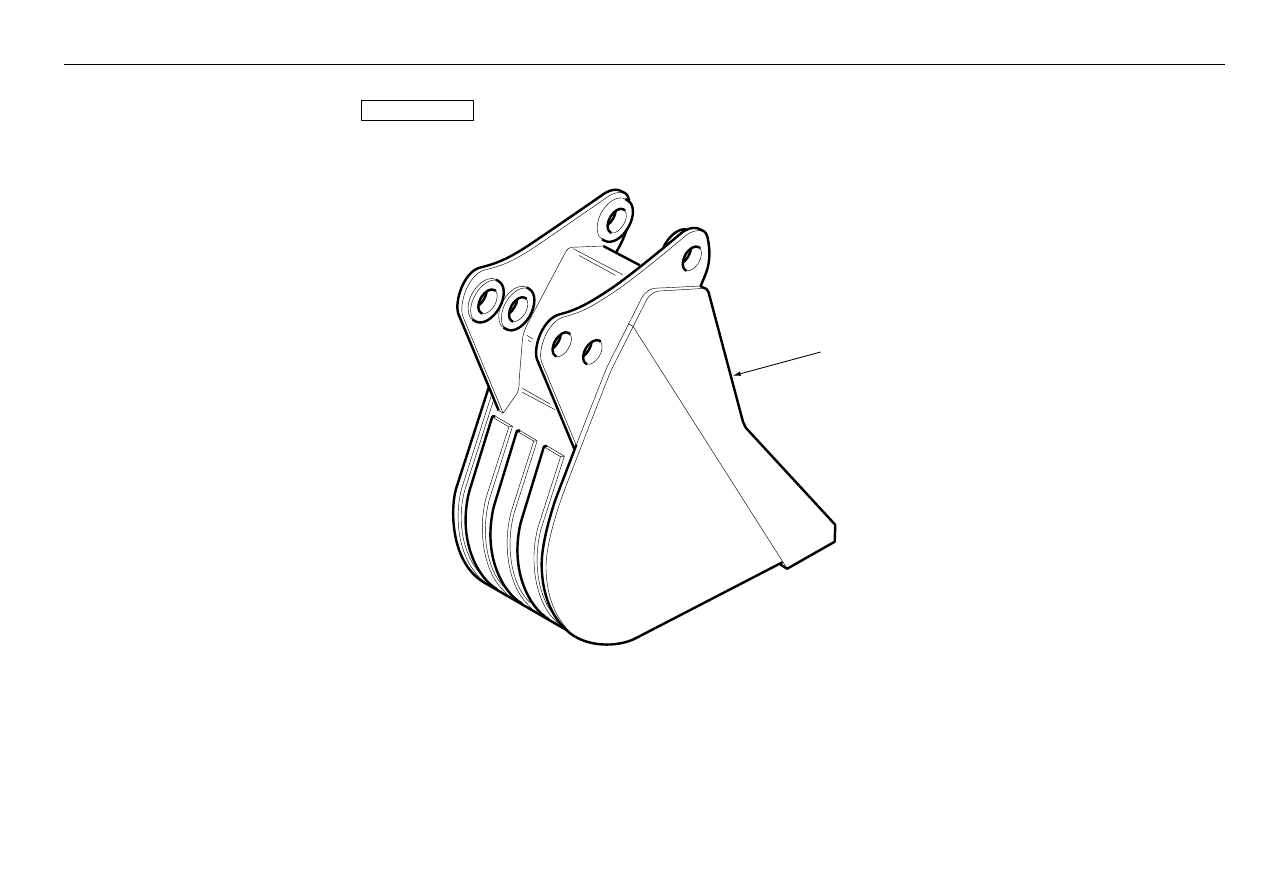

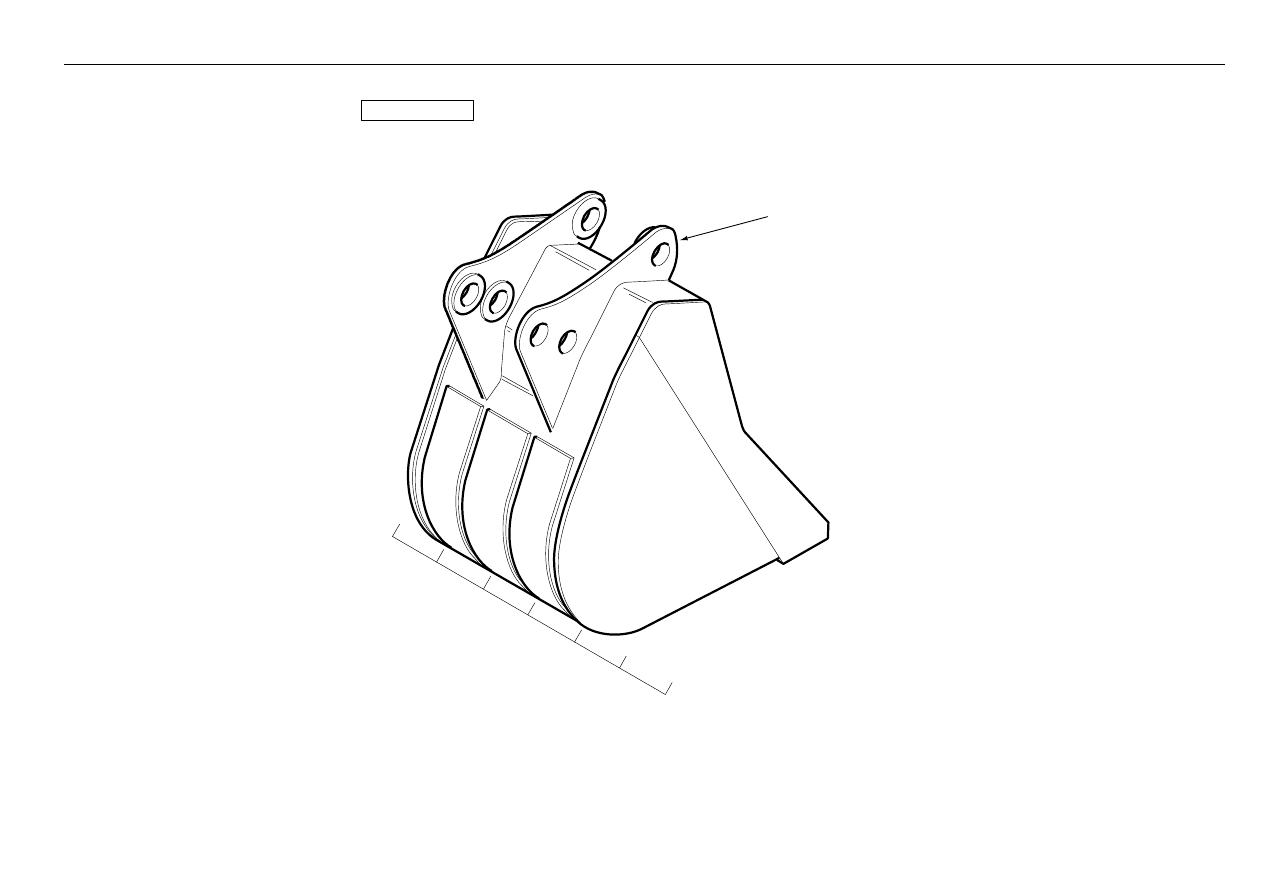

1817

Digger Bucket

- Ditch Digging

4067 98096

2

3

4

6

5

1

C-98096-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6102405M92

1

Bucket, Ditch Digging - Trapezoidal

Godet De Fosse

Grabenloffel

Cuchara, Conj.

2

#BUCKET

1

Bucket

Bucket

Bucket

Bucket

3

#BLADE

1

Blade

Blade

Blade

Blade

4

6192263M1

2

Tooth - Digger Bucket

Dent

Zahn

Diente

5

369700X1

4

Bolt, Plough Head - 3/4" UNC X 2.5"
Sae5

Boulon

Masch. Schraube

Perno

6

375100X1

4

Nut - Hex. 3/4" UNC

Ecrou UNC

Mutter UNC

Tuerca

®

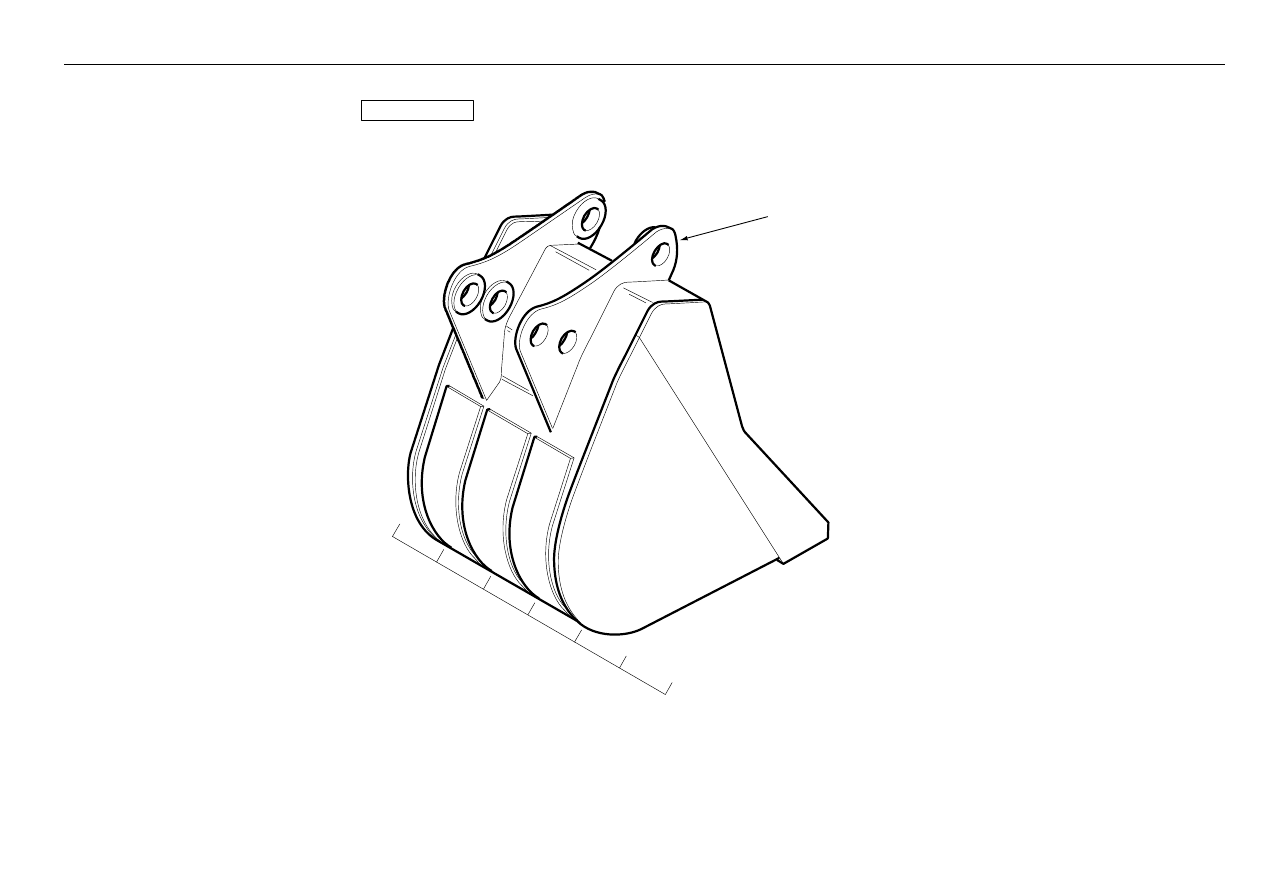

1819

Digger Bucket

- Jcb

4067 98097

1

C-98097-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6108097M91

1

Bucket, Digger - 300mm,Jcb, S/Land
Q/Att

Godet

Ladeschaufel

Cuchara, Conj.

®

1821

Digger Bucket

- Jcb

4067 98098

15

0

30

0

45

0

60

0

75

0

90

0

1

C-98098-01.1-A

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6108098M91

1

Bucket, Digger - Jcb,450mm,S/Land
Q/Att

Godet

Ladeschaufel

Cuchara, Conj.

®

1823
