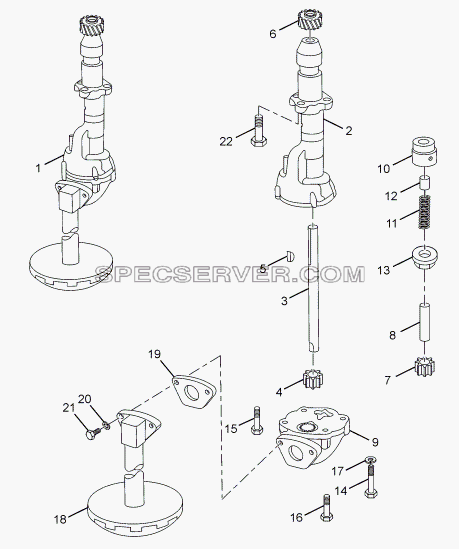

Запчасти: OIL PUMP для LPT 613 LHD EURO II

OIL PUMP для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	885418082525	GEAR KIT OIL PUMP (50MM LG) CONSISTS OF :
1	252518100149	ASSY. OIL PUMP WITH STRAINER
2	252518103704	OIL PUMP HOUSING
3	252518107902	DRIVE SHAFT
4	252518105405	GEAR, DRIVE SHAFT
4	GEAR, DRIVE SHAFT
5	13650505055	WOODRUFF KEY 3X6.5
6	3121810308	DRIVE, GEAR
7	252518105406	DRIVEN GEAR, OIL PUMP
7	DRIVEN GEAR, OIL PUMP
8	252518107901	SHAFT FOR DRIVE GEAR
9	3521811220	COVER, OIL PUMP
10	3521840329	VALVE HOUSING
11	3269930401	SPRING
12	3211810042	PLUNGER
13	3529970730	SCREW PLUG
14	11324196031	SCREW M 8X22
15	11064096011	BOLT M 8X35
16	11064096038	BOLT M 8X45
17	12520698025	SPRING WASHER B 8
18	252518150115	ASSEMBLY STRAINER (OIL PUMP)
19	3121860080	GASKET
20	12520698025	SPRING WASHER B 8
21	11324196023	SCREW M 8X20
22	11342408283	SCREW M 8X28

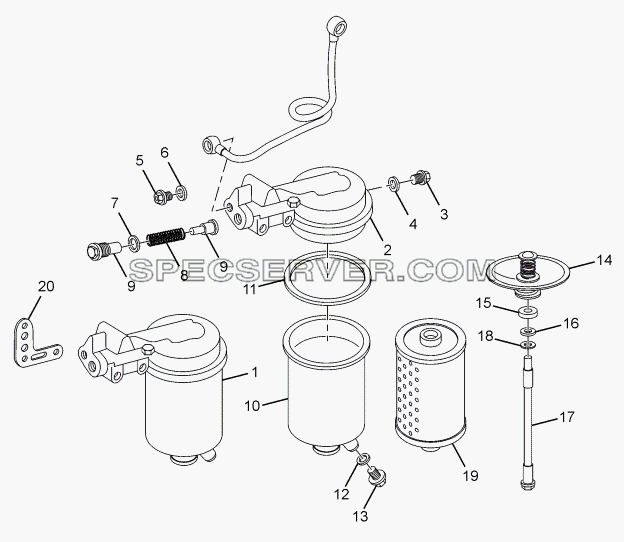

Запчасти: ASSY. OIL FILTER для LPT 613 LHD EURO II

ASSY. OIL FILTER для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	252518130128	ASSY, OIL FILTER
2	252318130139	ASSY, COVER (FOR OIL FILTER)
3	16081001808	SCREW PLUG AM 18X1.5
4	16220710240	SEALING WASHER 16X20 CU
5	252018137203	SCREW PLUG (FOR RELIEF VALVE)
6	16220710380	SEALING WASHER 24X29 CU
7	16220710282	SEALING WASHER 18X22 CU
8	252018138701	SPRING (FOR PRESSURE RELIEF VALVE)
9	3521840032	OIL FILTER BYE - PASS VALVE PLUNGER
10	252218130103	ASSY. HOUSING (FOR OIL FILTER)
11	252018137701	SEALING RING
12	16220710240	SEALING WASHER 16X20 CU
13	0129970030J	SEALING PLUG
14	252318130113	ASSY. SPG. RETAINER (FOR OIL FILTER)
15	252018137702	OIL SEAL
16	252018137703	SEALING RING
17	252318133201	CENTRE PIN
18	16220610229	SEALING WASHER A 14X20
19	252518130124	OIL FILTER CARTRIDGE (30 MICRONS)
20	252318135301	GASKET (OIL FILTER TO CYLINDER BLOCK)

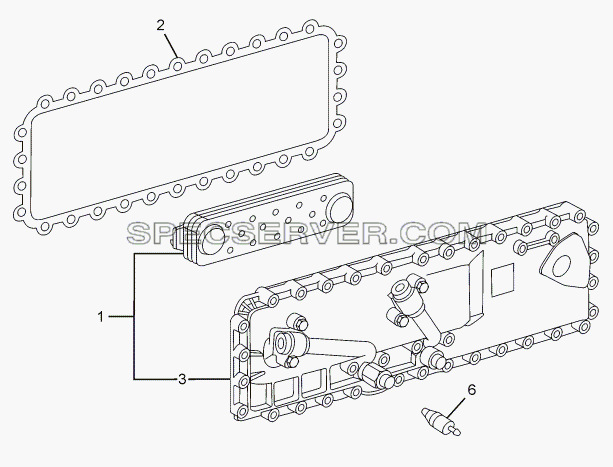

Запчасти: OIL COOLER (PLATE TYPE) для LPT 613 LHD EURO II

OIL COOLER (PLATE TYPE) для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	252518170169	ASSY, OIL COOLER WITH ALUMINIUM COVER (PLATE TYPE)
2	3521880780	GASKET OIL COOLER
3	252518173805	COVER, OIL COOLER
6	265454509913	LOW OIL PRESSURE SWITCH

Запчасти: PISTON COOLING для LPT 613 LHD EURO II

PISTON COOLING для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	252518170160	ASSY PISTON COOLING NOZZLE
2	252518170150	ASSY RELIEF VALVE (FOR NOZZLE)
3	252518179201	SEALING WASHER
4	252518179202	SEALING WASHER

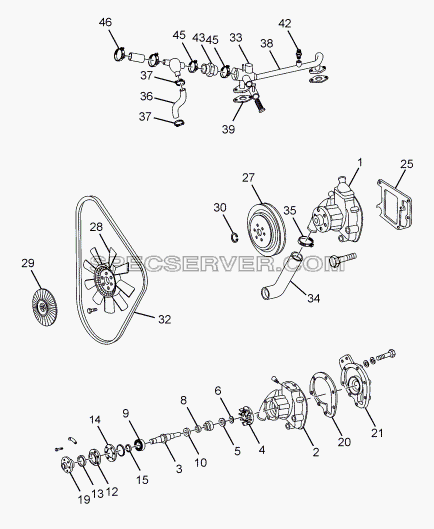

Запчасти: WATER PUMP для LPT 613 LHD EURO II

WATER PUMP для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	14280599264	HOSE CLIP TB 34
-	252520100118	MINOR REPAIR KIT (WATER PUMP) CONSISTING OF :
-	252520100119	MAJOR REPAIR KIT (WATER PUMP) CONSISTING
-	252550100292	CONNECTOR (RADIATOR TO WATER PUMP)
-	252550105856	RUBBER HOSE (THERMOSTAT TO RADIATOR)
-	252550105858	RADIATOR HOSE (RADIATOR TO WATER PUMP)
-	264154509908	TEMPERATURE SWITCH REPAIR KITS
-	264354249903	TEMPARATURE SENSOR REPAIR KITS
-	AXLE SLIDE RING SEAL
-	CYCLAM SLIDE RING SEAL
-	SEAL SLIDING RING
1	252520100116	ASSY, WATER PUMP (POWER STEERING)
2	252520103704	HOUSING, WATER PUMP
3	SHAFT
4	IMPELLER
5	SLIDING RING
5	SLIDING RING
6	SEALING MEMBER
6	SEALING MEMBER
8	RUBBER SEAL RING
9	TAPER ROLLER BEARING
10	TAPER ROLLER BEARING
12	252520105102	COVER
13	OIL SEAL
13	OIL SEAL
14	GASKET WATER PUMP
14	GASKET WATER PUMP
15	SHIM
15	SHIM
15	SHIM
15	SHIM
15	SHIM
19	HUB
20	GASKET
20	GASKET WATER PUMP
21	252520103701	BACK COVER
25	GASKET
25	GASKET CLUTCH
27	252520147011	PULLEY (THREE GROOVE)
28	252520140109	ASSY FAN (WITHOUT VISCOUS COUPLING)
29	252520140111	VISCOUS COUPLING
30	14550502802	CIRCLIP A 28X2 (HUB LOCKING ON W/P SHAFT)
30	CIRCLIP
30	CIRCLIP
32	252520156305	COGGED V. BELT (1325 MM LONG)
33	252520120196	ASSY, THERMOSTAT
34	252550105857	RADIATOR HOSE (RADIATOR TO WATER PUMP)
35	14280598217	HOSE CLIP TB 54
36	252520125817	REDUCER HOSE (THERMOSTAT TO WATER PUMP)
37	254750104222	HOSE CLAMP (50 DIA)
38	252520120178	ASSY, UPPER COOLING LINE LPT 613
38	252520120199	ASSY, UPPER COOLING LINE LPT 613 (FLAME START)
39	252020125301	GASKET (UPPER COOLING LINE)
42	263254209903	TEMP. TRANSDUCER
43	253450005801	RUBBER BELLOW
45	254750104222	HOSE CLAMP (50 DIA)
46	14280599302	HOSE CLAMP TB 36

ENGINE SUSPENSION для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252322123204	HEX COLLER SCREW
-	252322123205	HEX COLLER SCREW
-	264324100101	ASSY. RUBBER SUPPORT, FRONT LH
-	3129900540	WASHER
-	3129900640	WASHER
-	3129940132	LOCKING PLATE
-	3522420509	TORQUE SUPPORT
1	252922125101	ENGINE MOUNTING ARM, FRONT
8	257324100103	ASSY. ENGINE MTG. PAD FRONT
15	264024200110	ASSY. RUBBER SUPPORT, REAR
19	252522107108	LIFTING HOOK, FRONT
20	252522107109	LIFTING HOOK, REAR

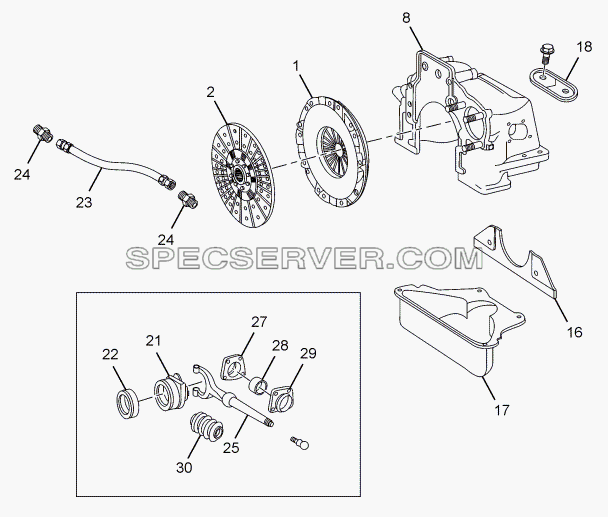

CLUTCH для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252325106701	PIN
-	257525600104	ASSY. COVER
-	276325200113	KIT FOR CLUTCH DISC CONSISTING OF :
-	276325400114	COVER DIAPHRAGM SUB ASSY. CONSISTING OF :
-	276325400115	KIT FOR STRAP AND RIVETS CONSISTING OF :
-	3029910015	BALL PIN
-	3124211068	COVER (FOR INSPECTION WINDOW)
-	CLUTCH COVER HOUSING
-	CLUTCH FACINGS	CLUTCH FACINGS (310 DIA.)
-	COVER PLATE
-	DIAPHRAGM PLATE
-	DIAPHRAGM RIVETS
-	DIAPHRAGM SPRING
-	FACING RIVET
-	FACING RIVET
-	FULCRUM PLATE
-	RIVET
-	RIVET
-	STRAP
1	276325400105	ASSY. COVER PLATE 310 DIA. (REINFORCED)
2	276325200105	DRIVEN PLATE ASSY. 310 DIA.(REINFORCED)
8	252525103735	CLUTCH HOUSING
16	252325108203	PROTECTIVE COVER (CLUTCH HOUSING FRONT)
17	252525108201	CLUTCH HOUSING LOWER PART
18	0422510004J	CLUTCH COVER HOUSING UPPER
21	257525600110	CLUTCH RELEASE BEARING WITH SLEEVE
22	257525603106	CLUTCH RELEASE BEARING
23	257525600121	ASSY. HOSE
24	257625606801	DOUBLE SOCKET
25	272425605106	CLUTCH RELEASE FORK
27	272425608201	BRACKET INSIDE
28	272425600103	OUTER RACE
29	272425600102	ASSY. BRACKET OUTSIDE
30	3522540097	RUBBER BELLOW

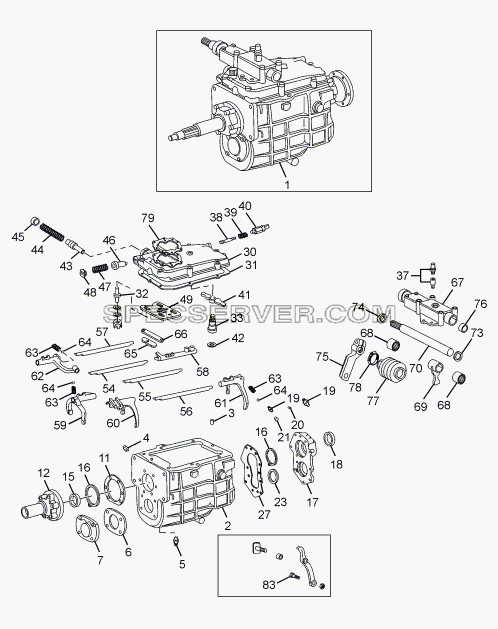

GEAR BOX HOUSING для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

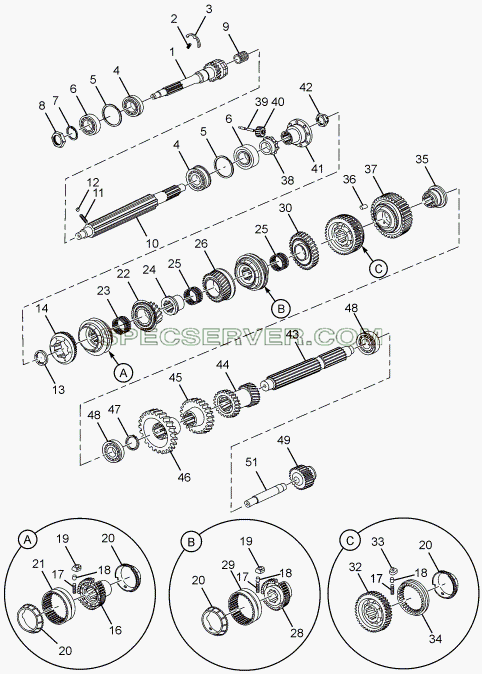

GEAR SHAFT AND GEAR для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	250526000101	GEAR BOX GASKET KIT CONSISTING OF :
-	250526258201	OIL SLINGER (FRONT COVER)
-	250526405303	GASKET (FOR COVER)
-	250526713403	SUPPORT PIECE CHECK PLATE
-	250526713407	STOPPER PIECE CHECK PLATE
-	3212610333	COVER (FOR PTO APPLICATION)
-	885426051613	OVERHAULING KIT - GB 40 CONSISTING OF :
-	GASKET
-	GASKET
-	GASKET
-	GASKET
-	HEX COLLAR NUT
-	HEX NUT
-	OIL SEAL
-	OIL SEAL
-	PIN MAIN SHAFT
-	PRESSURE SPRING
-	SHIM
-	SHIM
-	SHIM
-	SHIM
-	SHIM
1	250526040180	ASSY GBS 40-5/6.34,W/6BCF,PTO PROVISION .FR.COMP
2	250526103724	GEAR BOX HOUSING (6.34 RATIO)
3	13050909209	CYLINDRICAL PIN 10 H 8X20
4	0009970006J	PLUG OIL FILLING
5	250626107203	MAGNETIC DRAIN PLUG (HEX HEAD TYPE)
6	250530145301	GASKET, FRONT COVER LOWER
6	GASKET FRONT COVER LOWER
7	250530144701	FRONT COVER LOWER
11	250526255301	GASKET (FR. COVER TOP TO HSG.)
11	GASKET FRONT COVERUPPER
12	250530134701	GEAR BOX HOUSING COVER FRONT TOP
15	250526257808	OIL SEAL
16	250526258601	BUTTING RING 2.95 MM THICK
16	250526258602	BUTTING RING 3.05 MM THICK
16	250526258603	BUTTING RING 3.15 MM THICK
16	250526258604	BUTTING RING 3.25 MM THICK
16	250526258605	BUTTING RING 3.35 MM THICK
16	250526258606	BUTTING RING 3.45 MM THICK
16	250530138601	BUTTING RING 2.90 MM THICK
16	250530138602	BUTTING RING 3.00 MM THICK
16	250530138603	BUTTING RING 3.10 MM THICK
16	250530138604	BUTTING RING 3.20 MM THICK
16	250530138605	BUTTING RING 3.30 MM THICK
16	250530138606	BUTTING RING 3.40 MM THICK
16	250530138607	BUTTING RING 3.50 MM THICK
16	250530138608	BUTTING RING 3.60 MM THICK
17	250530153701	GEAR CASE COVER REAR
18	250526207803	OIL SEAL
19	3212610031	ADAPTER
20	3212600086	ASSY. THREADED BUSH
21	1532640055	PLUG SPEEDO DRIVE
23	3122831052	SHIM 0.1 MM THICK
23	3122831152	SHIM 0.2 MM THICK
23	3122831252	SHIM 0.4 MM THICK
23	3122831752	SHIM 0.05 MM THICK
23	3122832152	SHIM 0.8 MM THICK
27	3522610780	GASKET (GEAR CASE COVER REAR)
27	GASKET REAR COVER
30	250526713755	GEAR CASE COVER TOP (LOWER HALF)
31	250530145301	GASKET, FRONT COVER LOWER
31	GASKET TOP COVER
32	250530128801	STUD
33	250526716701	PIN SWING LEVER
37	266835150102	PRESSURE RELIEF VALVE
38	250530116701	THRUST PIN (REVERSE INDICATOR SWITCH)
39	3129934201	PRESSURE SPRING (REVERSE INDICATOR SWITCH)
40	265454500134	REVERSE INDICATOR SWITCH
41	250526705105	SWING LEVER - 1ST SPEED
42	250530129201	WASHER (SWING LEVER)
43	250526713409	PRESSURE PIECE FOR CHECK PLATE
44	250526718702	PRESSURE SPRING FOR PRESSURE PIECE
45	3219970103	SLOTTED PLUG
46	250526713410	INTERLOCKING PIN
47	3219930601	PRESSURE SPRING FOR INTERLOCKING PIN
48	16082502401	SEALING PLUG M 24X1.5
49	3212600846	ASSY. CHECK PLATE
54	3212650805	SELECTOR SHAFT FOR FIRST SPEED
55	3212651805	SELECTOR SHAFT (2/3)
56	3212651905	SELECTOR SHAFT (4/5)
57	3222650305	SELECTOR SHAFT (FOR REVERSE GEAR)
58	3222650123	GEAR SHIFT DOG (FOR FIRST GEAR)
59	3212651202	SELECTOR FORK (2/3)
60	250526515102	SELECTOR FORK (4/5)
61	3212651301	SELECTOR FORK (FOR 1ST SPEED GEAR)
62	250526515101	SELECTOR FORK (FOR REVERSE GEAR)
63	3129931001	PRESSURE SPRING
64	15950101102	STEEL BALL 11 MM DIA.
65	3122651036	CLAMP (SELECTOR SHAFT TO GEAR BOX HOUSING)
66	3129940332	LOCKING PLATE (SELECTOR SHAFT TO GEAR BOX HOUSING) TOP COVER
67	250526713756	COVER TOP (UPPER HALF)
68	250726713105	NEEDLE BEARING
69	250526705104	SHIFTER FINGER
70	250526707909	SELECTOR & SHIFTER SHAFT
73	17061602518	OIL SEAL
74

№	Номер детали	Наименование запчасти
-	250526353401	BUSH (REVERSE IDLER GEAR)
-	885426041612	SYNCHRO KIT GBS 40 CONSISTING OF :
1	250526257904	DRIVE SHAFT (6.34)
2	3219931201	COMPRESSION SPRING
3	3212620073	CLAMPING PLATE
4	0009811201	CYLINDRICAL ROLLER BEARING
5	250526204302	SNAP RING 2.68 MM THICK
5	250526204303	SNAP RING 2.73 MM THICK
5	250526204304	SNAP RING 2.78 MM THICK
5	250526204305	SNAP RING 2.83 MM THICK
5	250526204306	SNAP RING 2.88 MM THICK
5	250526204307	SNAP RING 2.93 MM THICK
6	250526203106	FOUR POINT BALL BEARING
7	250726258601	SPACER ON DRIVE SHAFT
8	3122621172	LOCK NUT LH THREAD
9	250526203118	ROLLER CAGE (31MM LONG)
10	250526207903	MAIN SHAFT (W/O GROOVE)
11	3129931701	PRESSURE SPRING
12	3212620374	PIN ON MAIN SHAFT
13	250526208608	BUTTING RING 6.95 MM THICK
13	250526208609	BUTTING RING 7.05 MM THICK
13	250526208610	BUTTING RING 7.15 MM THICK
13	250526208611	BUTTING RING 7.25 MM THICK
13	250526208612	BUTTING RING 7.35 MM THICK
13	250526208613	BUTTING RING 7.75 MM THICK
13	250526208614	BUTTING RING 7.85 MM THICK
13	250526208615	BUTTING RING 7.95 MM THICK
13	3212620462	BUTTING RING 7.40 MM THICK
13	3212620562	BUTTING RING 7.50 MM THICK
13	3212620662	BUTTING RING 7.60 MM THICK
13	3212620762	BUTTING RING 7.70 MM THICK
13	3212621762	BUTTING RING 7.30 MM THICK
13	3212621862	BUTTING RING 7.20 MM THICK
13	3212621962	BUTTING RING 7.10 MM THICK
13	3212622062	BUTTING RING 7.00 MM THICK
13	3212622162	BUTTING RING 6.90 MM THICK
13	3212622562	BUTTING RING 7.80 MM THICK
13	3212622662	BUTTING RING 7.90 MM THICK
13	3212622762	BUTTING RING 8.00 MM THICK
13	3212622862	BUTTING RING 7.45 MM THICK
13	3212622962	BUTTING RING 7.55 MM THICK
13	3212623062	BUTTING RING 7.65 MM THICK
14	3222620134	SYNCHRONISING RING
16	250530155403	SYNCHRONISING SLEEVE 4TH & 5TH
17	COMP. SPRING
18	RETENTION	RETENTION PIN 4/5, 2/3
18	RETENTION	RETENTION PIN 4/5, 2/3
19	CARRIER	CARRIER 4/5 & 2/3
20	250526203802	SYNCHRONISING CONE
20	250526203802	SYNCHRONISING CONE
20	250526203802	SYNCHRONISING CONE
21	3212620823	SHIFTING SLEEVE
22	250526200135	ASSY. HELICAL GEAR 4TH SPEED
23	250526203123	DOUBLE ROW NEEDLE CAGE
24	3222624050	COLLAR BUSHING 44.5 MM LONG (FOR THIRD SPEED GEAR)
24	3222624150	COLLAR BUSHING 44.6 MM LONG (FOR THIRD SPEED GEAR)
25	250526203124	DOUBLE ROW ROLLER CAGE
25	250526203124	DOUBLE ROW ROLLER CAGE
26	250526200118	ASSY. HELICAL GEAR 3RD SPEED
28	3222620435	SYNCHRONISING SLEEVE 2/3
29	3212620823	SHIFTING SLEEVE
30	3222620112	HELICAL GEAR 2ND SPEED
32	3222630333	REVERSE GEAR ON MAIN SHAFT
33	CARRIER	CARRIER 4/5 & 2/3
34	3212620723	SHIFTER SLEEVE 1ST SPEED
35	250530153401	COLLAR BUSHING 47.2 MM LONG
35	250530153402	COLLAR BUSHING 47.3 MM LONG
35	250530153403	COLLAR BUSHING 47.4 MM LONG
35	250530153404	COLLAR BUSHING 47.5 MM LONG
35	250530153405	COLLAR BUSHING 47.6 MM LONG
35	250530153406	COLLAR BUSHING 47.7 MM LONG
35	250530153407	COLLAR BUSHING 47.8 MM LONG
35	250530153408	COLLAR BUSHING 47.9 MM LONG
36	250526203001	CYLINDRICAL ROLLER 4X8
37	250530155401	GEAR WHEEL 1ST SPEED
38	3522640130	GEAR SPEEDOMETER DRIVE
39	250526207902	SHAFT (SPEEDO DRIVE)
40	3522640130	GEAR SPEEDOMETER DRIVE
41	3222620045	COUPLING FLANGE (8 HOLES)
42	3222620072	HEX. NUT
43	250530147901	COUNTER SHAFT (WITH PTO PROVISION)
44	250526305402	TWIN GEAR (COUNTER SHAFT) (2/3)
45	250526305401	4TH GEAR (ON COUNTER SHAFT)
46	250526305407	CONSTANT MESH GEAR (ON COUNTER SHAFT) (6.34)
47	14550699053	CIRCLIP A 52X2.5
48	250526303104	TAPER ROLLER BEARING
49	250526350102	REVERSE IDLER GEAR WITH BUSH
51	250530177901	REVERSE IDLER GEAR SHAFT

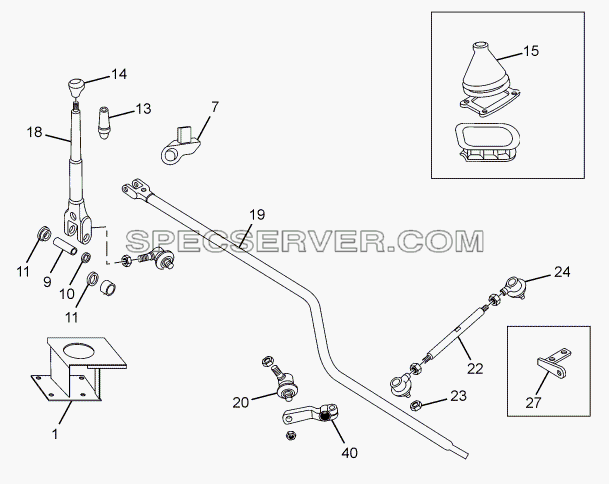

GEAR SHIFT LINKAGE для LPT 613 LHD EURO II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264126800188	ASSY. RUBBER BELLOW
-	264126800204	SUB ASSY. CUP
-	264126803412	BUSH (SPHERICAL SEAT G.S.LEVER)
-	264126807715	FLAP (FOR CAB VERSION)
-	264126808234	BELLOW HOLDER
-	264326810107	SUB ASSY. GUSSET (G S LEVER BKT)
-	268426713403	BUSH (EXTENSION ARM)
1	264326810105	ASSY. BRACKET
7	264126803409	BUSH (G.S.L.BALL SEAT)
9	264126808238	RETAINING PLATE
10	264126808702	SPRING RING
11	3522540097	RUBBER BELLOW
13	264126806304	SPACER GEAR SHIFT LEVER
14	263026700102	ASSY. GEAR SHIFT LEVER KNOB
15	264126807717	RUBBER SEAL
18	264126800227	ASSY. GEAR SHIFT LEVER WITH BUSHES
19	264326800133	ASSY. TURNING TUBE (WITHOUT BALL JOINT)
20	250726700152	SUB. ASSY. BALL AND SOCKET JOINT BIG
22	276326807901	LINK ROD
23	264126800224	ASSY. BALL JOINT, RH THREADS
24	264126800225	ASSY. BALL JOINT, LH THREADS
27	250526710260	ASSY. BRACKET GEAR SHIFT LEVER
40	250726706013	ASSY. SHIFTING LEVER
