Запчасти: FUEL FILTER MOUNTING для SFC 407 LHD Euro II

FUEL FILTER MOUNTING для SFC 407 LHD Euro II (список запасных частей)

FUEL FILTER MOUNTING для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 9450030116 ASSY.FUEL FILTER
2 253409113703 BRACKET FUEL FILTER MOUNTING
4 252709120157 ASSY. OVERFLOW LINE (COMBINED)
5 252709118001 AIR VENT SCREW (ON FUEL FILTER BANJO)
6 252709125805 HOSE
8 253409120147 ASSY. FUEL LINE (FEED PUMP TO FILTER)
9 252709113201 PIPE UNION BOLT 10
10 16220510216 SEALING WASHER 14X18 AL
12 253409120147 ASSY. FUEL LINE (FEED PUMP TO FILTER)

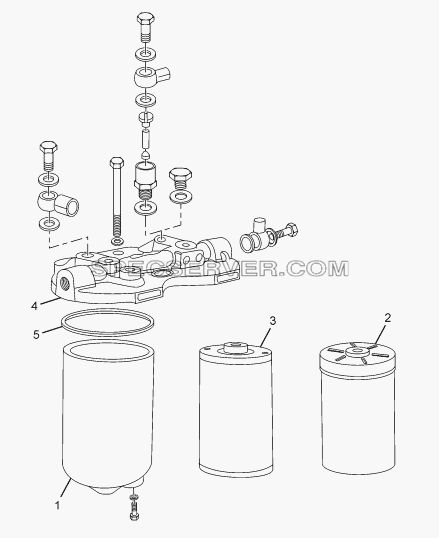

Запчасти: FUEL FILTER (MICO) для SFC 407 LHD Euro II

FUEL FILTER (MICO) для SFC 407 LHD Euro II (список запасных частей)

FUEL FILTER (MICO) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 9450030116 ASSY.FUEL FILTER
2 9451037405 MICRO SUPER FILTER INSERT (STAR TYPE)
2 9451037407 MICRO SUPER FILTER INSERT (COIL TYPE)
3 9451037404 PRE FILTER INSERT
4 9451035558 FILTER COVER ASSY
5 9451030109 SEALING RING

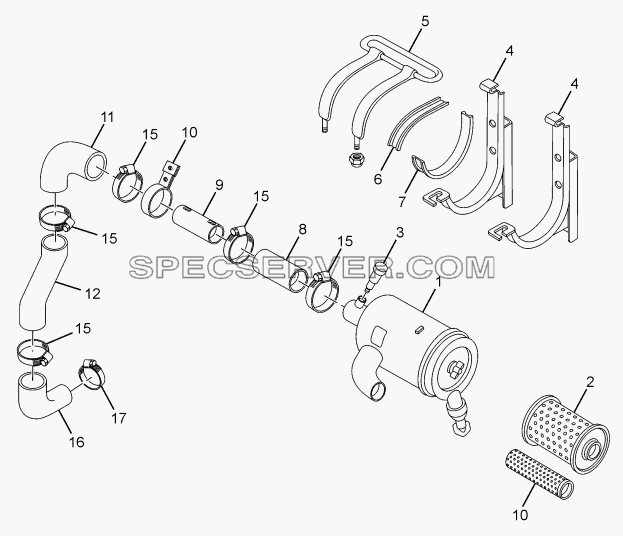

Запчасти: AIR FILTER для SFC 407 LHD Euro II

AIR FILTER для SFC 407 LHD Euro II (список запасных частей)

AIR FILTER для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 252709130275 ASSY.AIR FILTER COMPLETE
1 253409130233 ASSY.AIR FILTER COMPLETE
2 252309130222 FILTER ELEMENT
2 252709130256 FILTER ELEMENT
3 254709130135 SERVICE INDICATOR
4 253409130206 ASSY. BRACKET
5 253409130207 ASSY. SHACKLE
6 253409139902 RUBBER STRAP (188 MM LONG)
7 253409139903 RUBBER STRAP (270 MM LONG)
8 252709135867 HOSE (AIR FILTER TO INT.PIPE)
9 252709130289 ASSY.INTERMEDIATE PIPE(W/O S-CAM)
10 252309130223 SAFETY CARTRIDGE
10 252709130255 SAFETY CARTRIDGE
10 252709130281 ASSY CLAMP (FOR AIR INTAKE PIPE):LP/LPT
11 252709135866 HOSE (INT.PIPE TO PIPE)
12 253409136933 PIPE (AIR FILTER TO TC)
15 14280599299 HOSE CLAMP TB 80
16 252709135862 HOSE (PIPE TO TC -KKK)
16 253409135836 HOSE (PIPE TO TC) THL
17 14280599191 HOSE CLAMP TB40 SAE-J1508

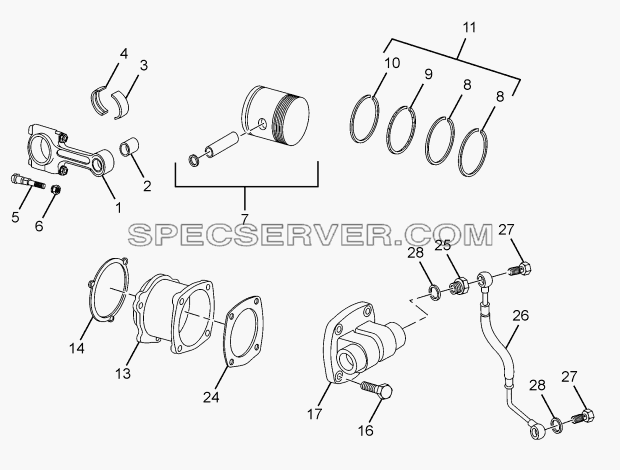

Запчасти: AIR SUCTION UNIT для SFC 407 LHD Euro II

AIR SUCTION UNIT для SFC 407 LHD Euro II (список запасных частей)

AIR SUCTION UNIT для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 885413062534 SET CONNECTING ROD BEARING STD, CONSISTING OF :
- 885413082534 SET CONNECTING ROD BEARING RS 1, CONSISTING OF :
- 885413092534 SET CONNECTING ROD BEARING RS 2, CONSISTING OF :
1 3211300416 ASSY. CONNECTING ROD (AIR COMPRESSOR)
2 885413102534 SET CONNECTING ROD BUSH STD
3 CONNECTING ROD BEARING UPPER RS1
3 CONNECTING ROD BEARING UPPER RS2
3 CONNECTING ROD BEARING UPPER STD
4 CONNECTING ROD BEARING LOWER RS1
4 CONNECTING ROD BEARING LOWER RS2
4 CONNECTING ROD BEARING LOWER STD
5 3211310171 GUIDE SCREW, CON. ROD
6 3129900251 HEX. NUT (BALL PIN)
7 252313140124 ASSY PISTON AIR COMPRESSOR
8 COMPRESSION RING (GR. I & II)
8 COMPRESSION RING (GR. I & II)
9 NOSE SCRAPER RING GR. III
9 SCRAPPER RING NORMAL
10 OIL RING GR. IV NORMAL
10 OIL RING GR. IV NORMAL
11 252313140127 SET AC PISTON RINGS 70 DIA STD
11 253413990101 SET AC PISTON RINGS 70 DIA STD
13 252313103710 CYLINDER SLEEVE NORMAL
14 252713105312 GASKET (0.5 THK)
16 3529900604 HEX. HEAD COLLAR BOLT
17 253313100102 ASSY.CYLINDER HEAD AIR SUCTION UNIT
24 252313105301 GASKET
24 3121310179 GASKET
25 253413106802 REDUCER
26 253413100103 ASSY. OIL LINE
27 16531999049 PIPE UNION BOLT 10
28 16220510216 SEALING WASHER 14X18 AL

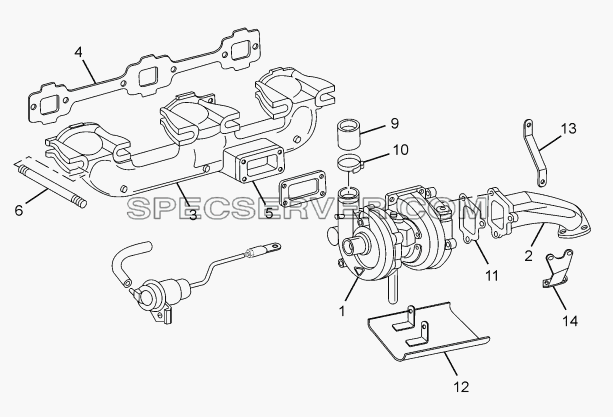

Запчасти: EXHAUST MANIFOLD AND TURBOCHARGER для SFC 407 LHD Euro II

EXHAUST MANIFOLD AND TURBOCHARGER для SFC 407 LHD Euro II (список запасных частей)

EXHAUST MANIFOLD AND TURBOCHARGER для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 253414990102 REPAIR KIT FOR TURBOCHARGER HX-25 (HOLSET) CONSISTING OF
- 254714116503 CLINCH NUT (SIMMONDS MARSHALL)
- JOURNAL BEARING
- LOCK NUT (COMPRESSOR WHEEL)
- RETAINING RING
- SPLIT SEAL RING
- SPLIT SEAL RING (COMPRESSOR)
- THRUST BEARING
- ‘O’ RING (BEARING HOUSING)
- ‘O’ RING (COMPRESSOR)
1 253414510107 TURBOCHARGER K16 (KKK)
1 253414510116 TURBOCHARGER (HONEYWELL)
1 253414510117 TURBOCHARGER (HOLSET)
2 252714113710 INTERMEDIATE PIPE (KKK)
2 253414113709 INTERMEDIATE PIPE (HOLSET)
3 252714113711 EXHAUST MANIFOLD (KKK)
3 253414113708 EXHAUST MANIFOLD (HOLSET)
4 252414115304 GASKET EXHAUST MANIFOLD
5 252714115307 GASKET (EXHAUST MANIFOLD TO TURBO CHARGER) (KKK)
5 253414115305 GASKET (EXHAUST MANIFOLD TO TURBO CHARGER) (HOLSET)
6 11632408350 STUD BM 8X35
9 253409135827 RUBBER HOSE
10 254714604215 HOSE CLAMP 65
11 252714115304 GASKET (TC TO INTRERMEDIATE PIPE)
11 253414115306 GASKET (TC TO INTERMEDIATE PIPE)
12 253414130108 ASSY. HEAT SHIELD (STARTER)
12 253414130113 ASSY. HEAT SHIELD (STARTER)
13 253414118202 SUPPORT BRACKET
13 253414118204 SUPPORT BRACKET
14 253414110109 ASSY. BRACKET ( SUPPORT FOR INTERMEDIATE PIPE)

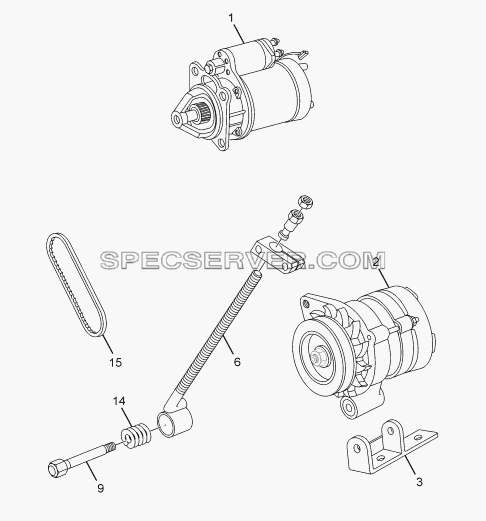

STARTER AND ALTERNATOR для SFC 407 LHD Euro II (список запасных частей)

STARTER AND ALTERNATOR для SFC 407 LHD Euro II (список запасных частей)

STARTER AND ALTERNATOR для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 265115100102 STARTER MOTOR 6M14,M/S LUCAS TVS
2 257315100108 ALTERNATOR (TWIN GROOVE) 12V65A (LUCAS)
2 264015400107 ALTERNATOR 14V,65 AMPS,2 GR.PULLEY(MICO)
3 253315143702 BRACKET (FOR 65AMP ALTERNATOR) FOR LUCAS ALTERNATOR
3 253415140104 ASSY BRACKET ALT MTG FOR MICO ALTERNATOR
6 252415140110 ASSY CLAMP ROD COMPLETE WITH CLAMPING PIECE
6 253315140109 ASSY CLAMP ROD COMPLETE WITH CLAMPING PIECE
9 3121550174 BOLT (FOR FIXING ALTERNATOR)
14 3129932801 SPRING ALTERNATOR
15 253420156302 NARROW V BELT 1185 LG COGGED TYPE
15 253420156327 COGGED BELT(1185 LENGTH)

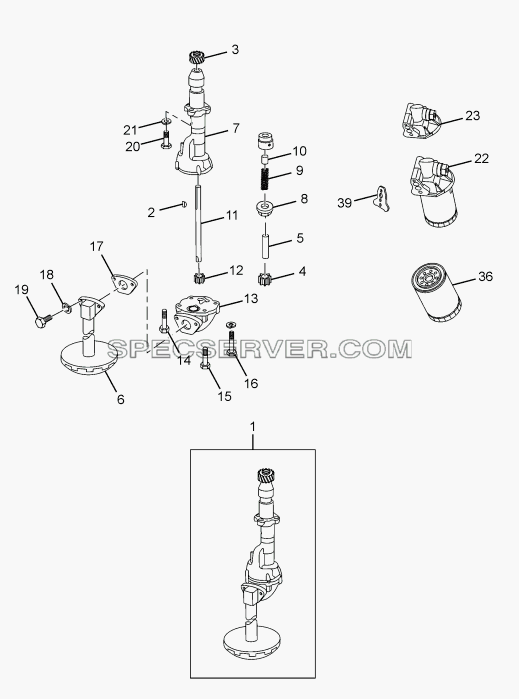

OIL PUMP для SFC 407 LHD Euro II (список запасных частей)

OIL PUMP для SFC 407 LHD Euro II (список запасных частей)

OIL PUMP для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 265454500139 OIL PRESSURE SWITCH
- 3521840329 VALVE HOUSING
- 885418012523 KIT, OIL PUMP GEAR CONSISTING OF :
1 253418100123 ASSY. OIL PUMP COMPLETE
2 13650505055 WOODRUFF KEY 3X6.5
3 3121810308 DRIVE, GEAR
4 252318105409 OIL PUMP GEAR (DRIVEN)
4 OIL PUMP GEAR (DRIVEN)
5 252318107901 SHAFT DRIVEN GEAR
6 252418150105 STRAINER
7 253318103701 OIL PUMP HOUSING
8 3529970730 SCREW PLUG
9 3269930401 SPRING
10 3211810042 PLUNGER
11 252718107901 DRIVE SHAFT OIL PUMP
12 252318105410 OIL PUMP GEAR (DRIVE SHAFT)
12 OIL PUMP GEAR (DRIVE SHAFT) OIL FILTER
13 3521811220 COVER, OIL PUMP
14 11324196031 SCREW M 8X22
15 11064096038 BOLT M 8X45
16 11064096011 BOLT M 8X35
17 3121860080 GASKET
18 SPRING WASHER B 8 STRAINER TO OIL PUMP
19 11324196023 SCREW M 8X20
20 11342408283 SCREW M 8X28
21 SPRING WASHER B 8 OIL PUMP TO CRANKCASE
22 253418130166 LUBE OIL FILTER ASSY:SPINON:4SP BS3:FLG
23 253418130173 HEAD ASSY:4SP-FLEETGUARD-III:SPINON
36 253418130169 ASSY.OIL FILTER (SPIN ON) M/S FLEETGUARD
39 253418135301 GASKET (OIL FILTER TO CYL BLOCK):BS-III

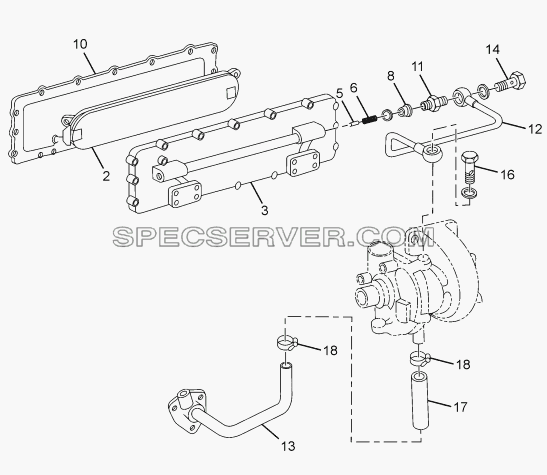

ENGINE LUBRICATION(OIL COOLER) для SFC 407 LHD Euro II (список запасных частей)

ENGINE LUBRICATION(OIL COOLER) для SFC 407 LHD Euro II (список запасных частей)

ENGINE LUBRICATION(OIL COOLER) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 252718177201 ADAPTOR (T.C. TO OIL SUMP)
- 253418175305 GASKET (TC OUTLET)
- 253418178001 COLLER SCREW
2 253418170117 ASSY. PLATE TYPE HEAT EXCHANGER
3 253418173708 OIL COOLER COVER
5 253418179001 PLUNGER BY - PASS VALVE
6 252018138701 SPRING (FOR PRESSURE RELIEF VALVE)
8 253418177206 SEALING PLUG BY - PASS VALVE
10 253418175304 GASKET (OIL COOLER)
11 253418177204 ADAPTOR
12 253418170126 ASSY. OIL LINE (OIL COOLER TO T.C.)
12 253418170127 ASSY. OIL LINE (OIL COOLER TO TC )
13 253418170128 ASSY FLANGE (TC OUTLET TO SUMP)
14 253418173201 PIPE UNION BOLT
16 16531999031 PIPE UNION BOLT 8 M12X1.5 TS16405
16 253418179906 PIPE UNION BOLT
17 253418175812 HOSE (OIL RETURN TO BLK)4SP BSII TEL/HON
17 253418175813 HOSE(OIL RETURN TO BLOCK)4SP BS-II THL
18 254720124214 HOSE CLAMP (32 DIA)

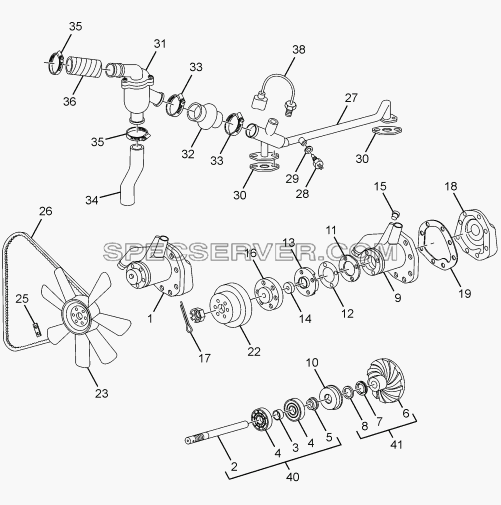

WATER PUMP 357175, 357174 для SFC 407 LHD Euro II (список запасных частей)

WATER PUMP 357175, 357174 для SFC 407 LHD Euro II (список запасных частей)

WATER PUMP 357175, 357174 для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 253420990104 REPAIR KIT (MINOR) FOR WATER PUMP CONSISTING OF :
- 253420990105 REPAIR KIT (MAJOR) FOR WATER PUMP CONSISTING OF :
- 3122010758 BRACKET SEALING RING
- GASKET
- GASKET (WATER PUMP)
1 253420100120 ASSY.WATER PUMP
2 253420107902 SHAFT (WATER PUMP)
3 3122010153 SPACER TUBE
4 9819905 CONICAL ROLLER BEARING
5 253420107801 OIL SEAL
6 253420103711 IMPELLER
7 2010197 SEALING MEMBER
7 SEALING MEMBER
8 2010463 SLIDE RING
8 SLIDE RING
9 253420103705 WATER PUMP HOUSING.
10 2013619 AXIAL SLIDE RING
10 AXIAL SLIDE RING
10 AXIAL SLIDE RING
11 3122010580 GASKET WATER PUMP
11 GASKET
11 GASKET (WATER PUMP)
12 3122010852 SHIM 0.1 MM THICK
12 SHIM 0.05 MM THICK
13 3122000460 ASSY. PACKING HOLDER
13 ASSY. PACKING HOLDER
14 253420107801 OIL SEAL
15 3122000098 ASSY. GREASE CAP
16 253420105103 HUB (WATER PUMP)
17 13150608222 SPLIT PIN 3.2X22
17 SPLIT PIN 3.2X22
17 SPLIT PIN 3.2X22 ST.
18 253420103703 WATER PUMP BACK COVER
19 253420105302 GASKET
19 GASKET
19 GASKET (BACK COVER)
22 253320137003 WATER PUMP PULLEY
23 253420140101 ASSY. FAN (PLASTIC MOULDED)
25 3129940330 LOCK PLATE
26 253420156302 NARROW V BELT 1185 LG COGGED TYPE
27 253420120135 ASSY.U.C.W.LINE(WITH H.D.& THRMO SWITCH)
28 263254209903 TEMP. TRANSDUCER
29 16220510216 SEALING WASHER 14X18 AL
30 252020125301 GASKET (UPPER COOLING LINE)
31 252720120141 ASSY. THERMOSTAT
32 253450005801 RUBBER BELLOW
33 254750104222 HOSE CLAMP (50 DIA)
34 253420125806 RUBBER HOSE (THERMOSTAT TO WATER PUMP)
35 252750104208 HOSE CLAMP 34
36 252550005812 RUBBER HOSE (RADIATOR TOP TO THERMOSTAT)
38 264154509908 TEMPERATURE SWITCH REPAIR KITS
40 ASSY. WATER PUMP SHAFT
41 ASSY. IMPELLER
