9L-11 Paint / Coatings:

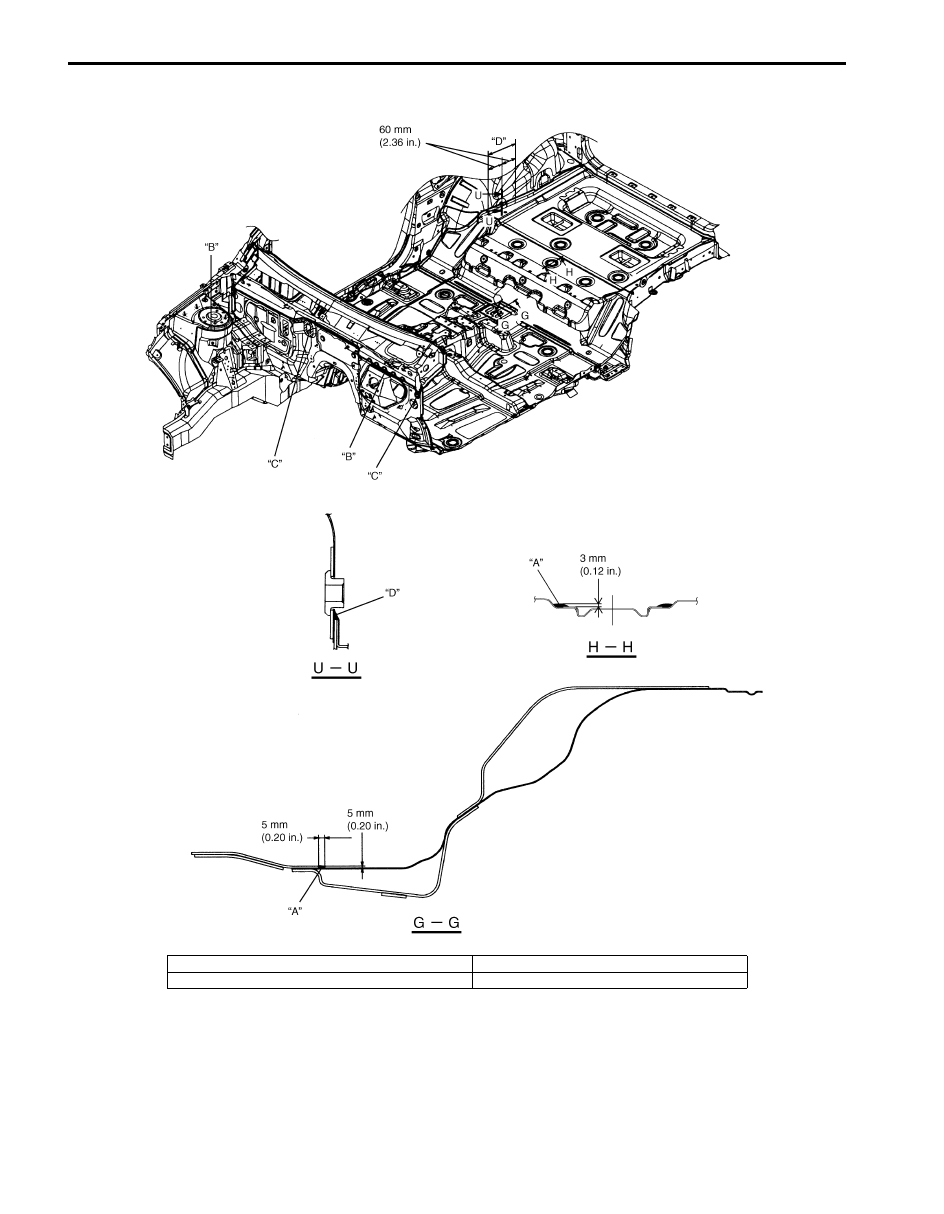

Floor Panel (3 Door Model)

I5JB0A9C0010-01

“A”: Apply sealant.

“C”: Do not apply sealant.

“B”: Smooth off sealant with a brush.

“D”: Flatten sealant.

Paint / Coatings:  9L-12

Under Coating Application Areas

S6JB0A9C03002

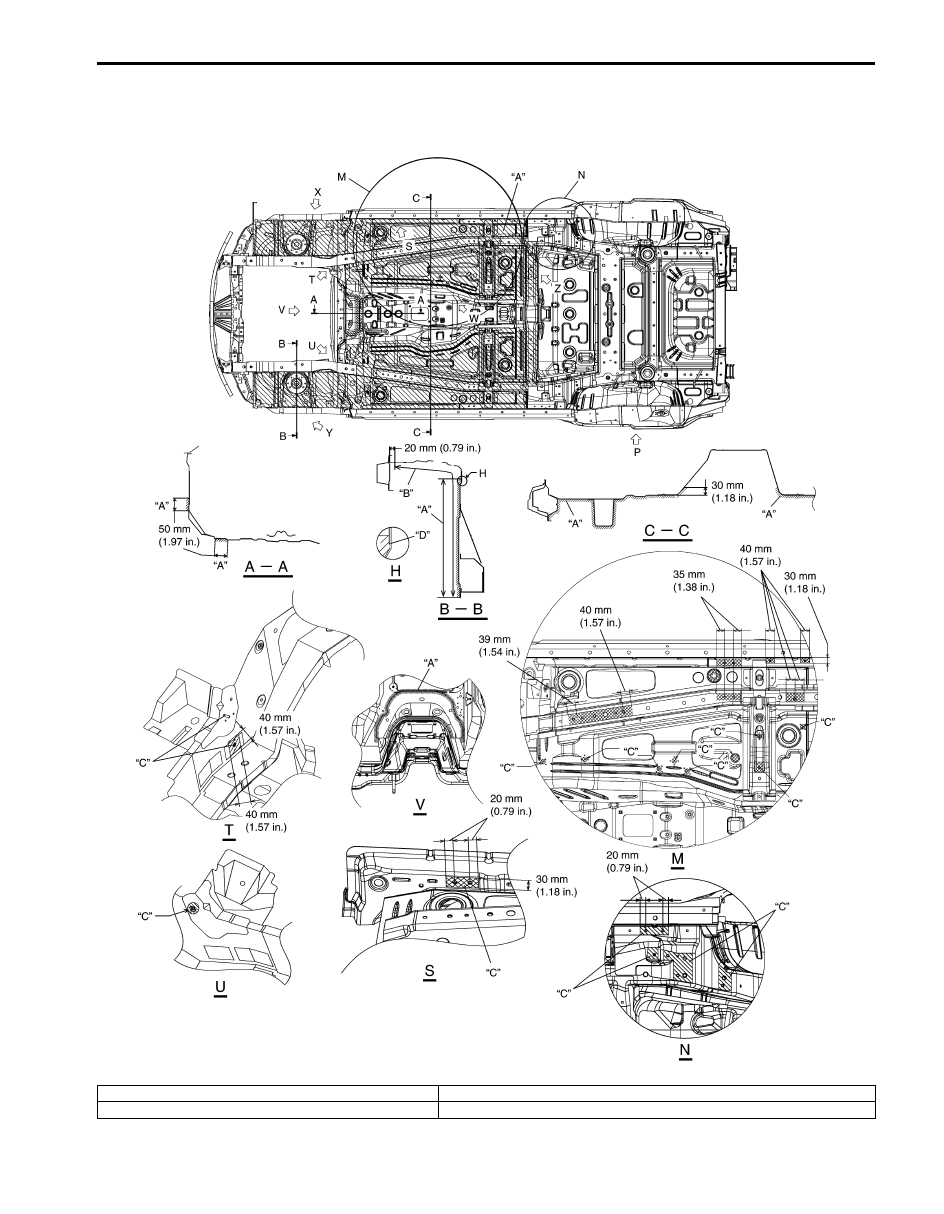

5 Door Model

I5JB0A9C0011-01

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

“D”: Apply undercoating (PVC, 400

µm or more) covering flange end.

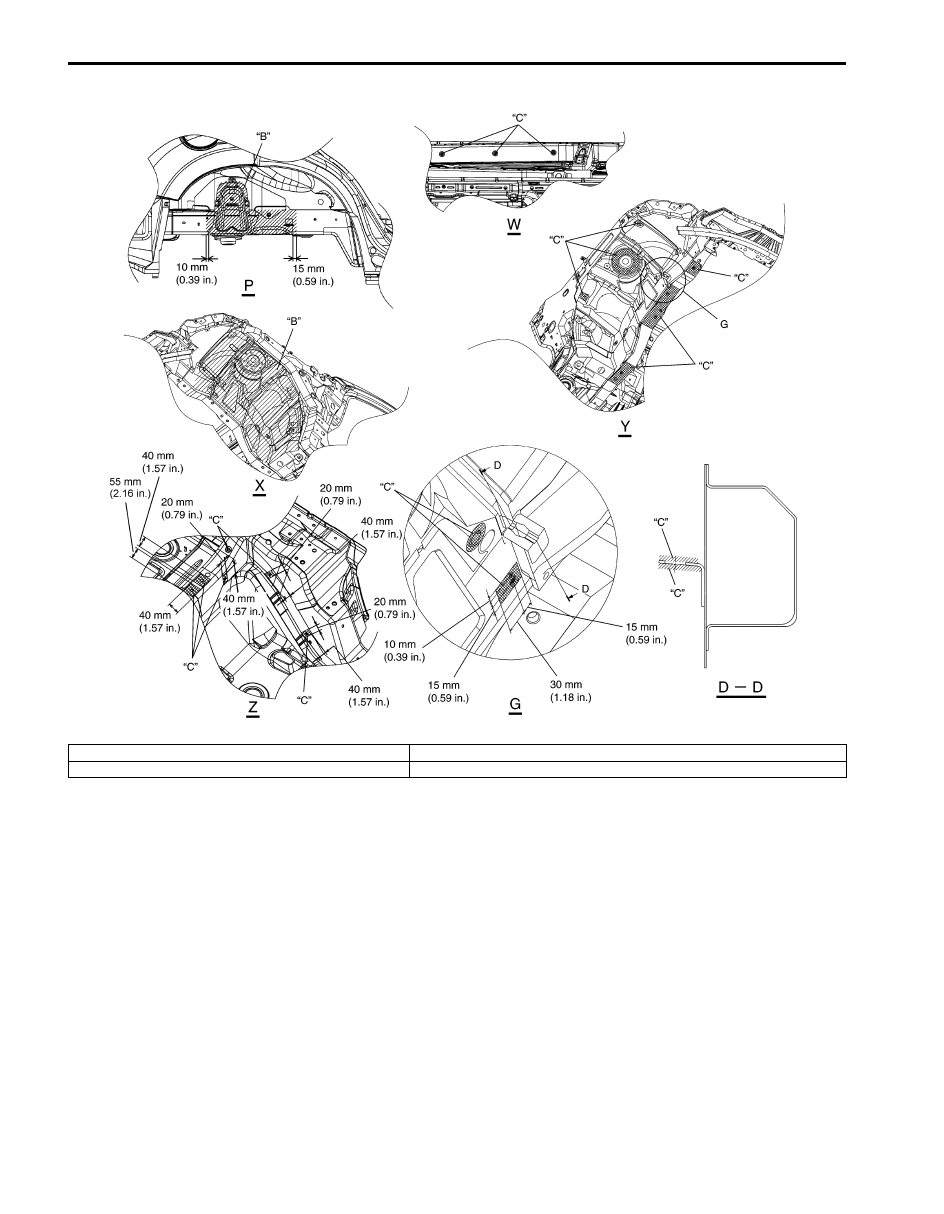

9L-13 Paint / Coatings:

I5JB0A9C0012-02

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

Paint / Coatings:  9L-14

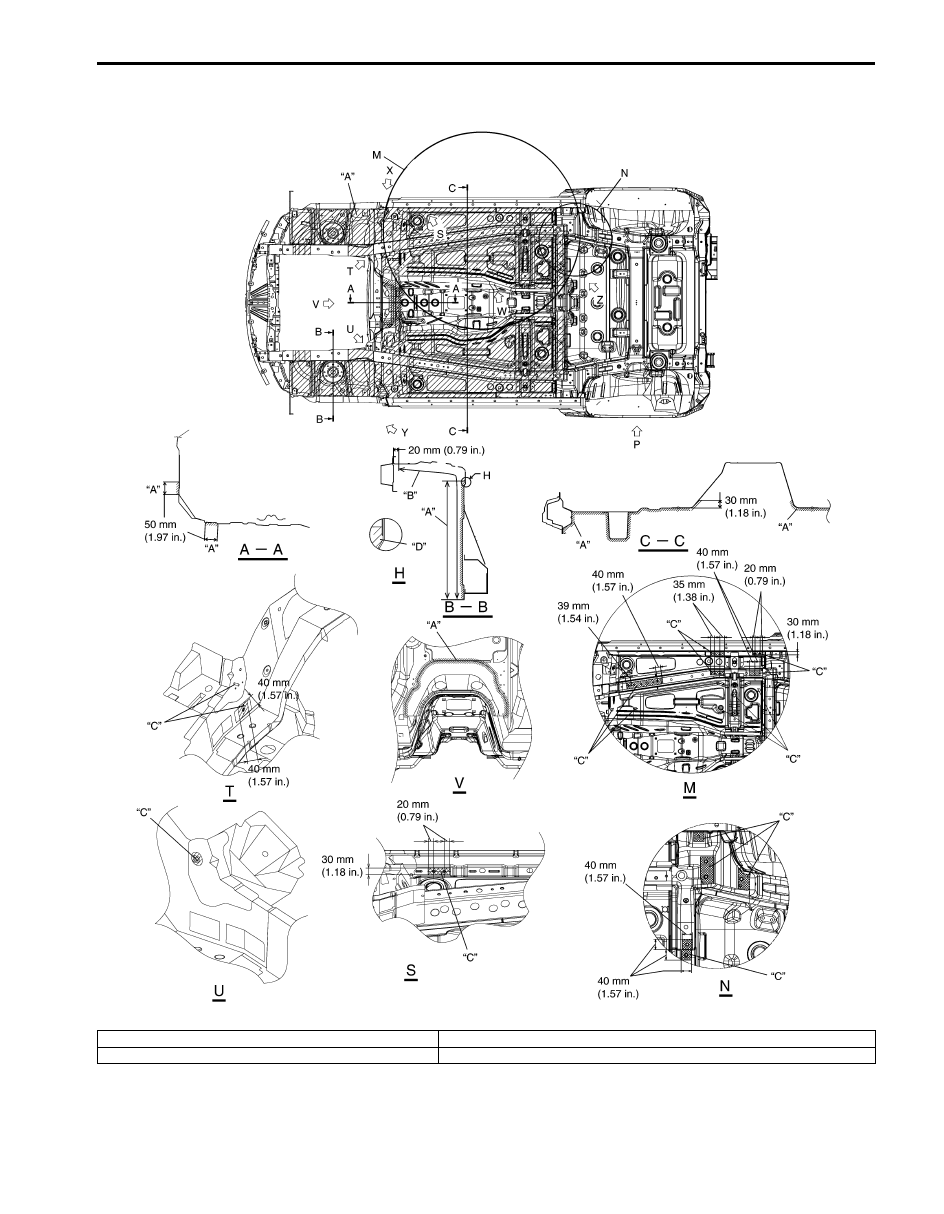

3 Door Model

I5JB0A9C0013-01

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

“D”: Apply undercoating (PVC, 400

µm or more) covering flange end.
